FEATURED D-Style Hoppers, No Bump & Dump

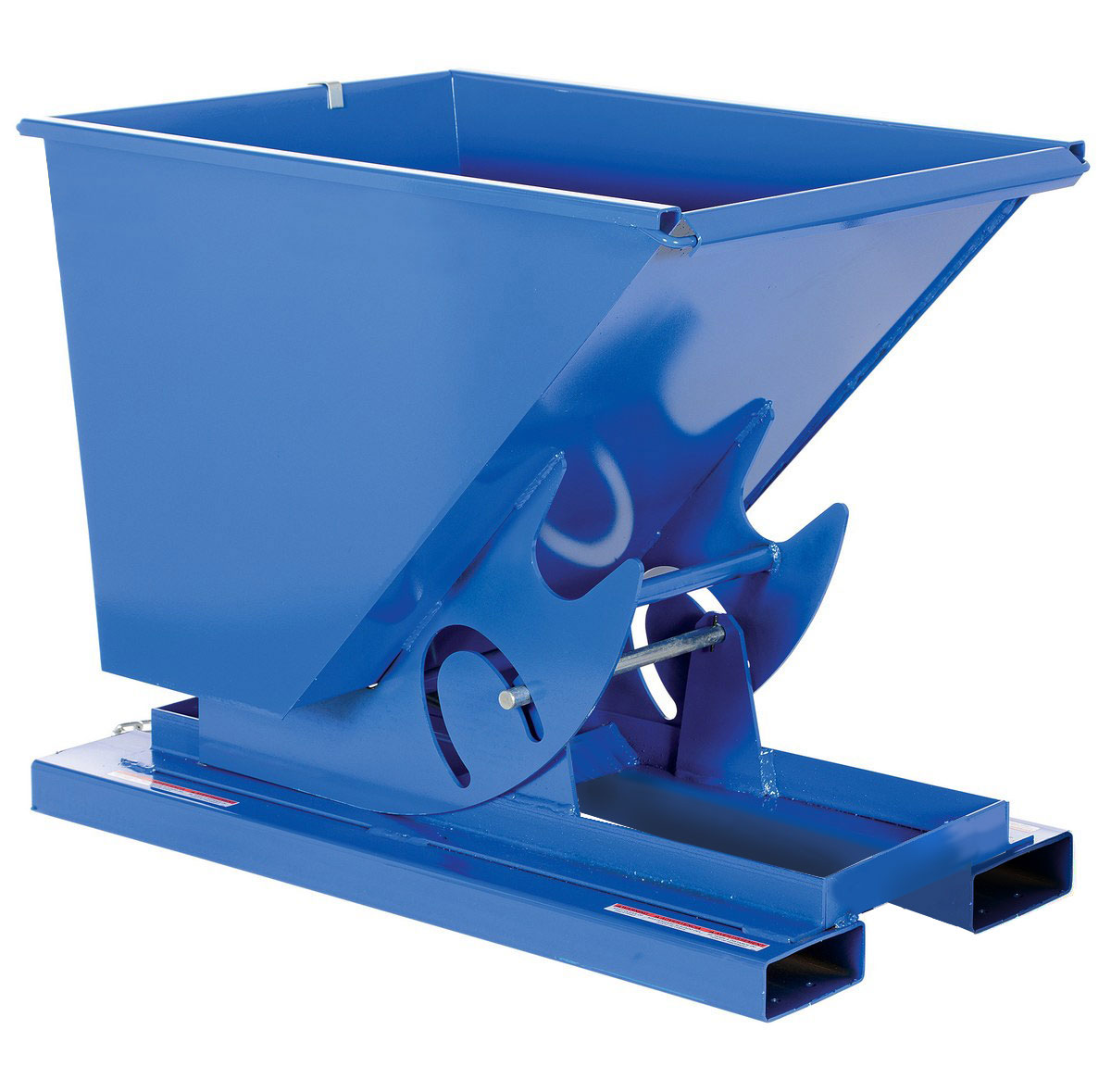

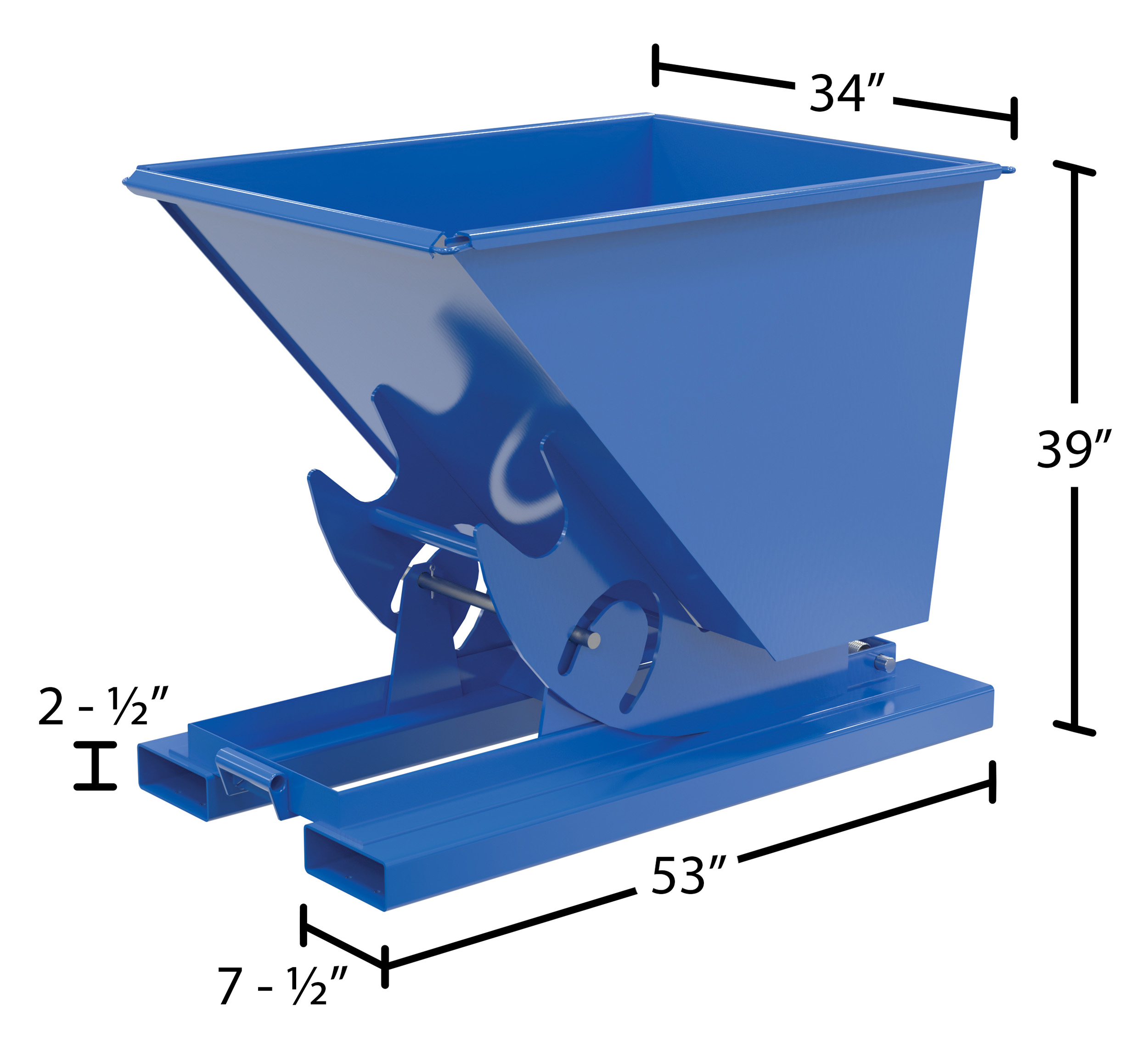

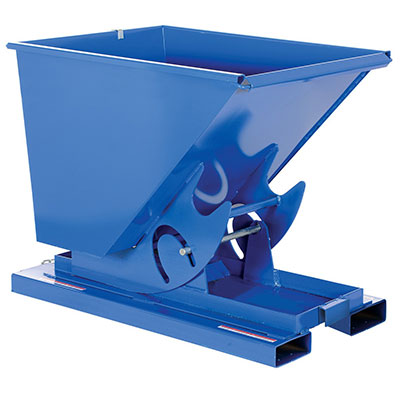

model: D-50-HD-NB

D-Style Hoppers, No Bump & Dump

SERIES: D-NB 30Products 4Options

New Product

Powder Coat

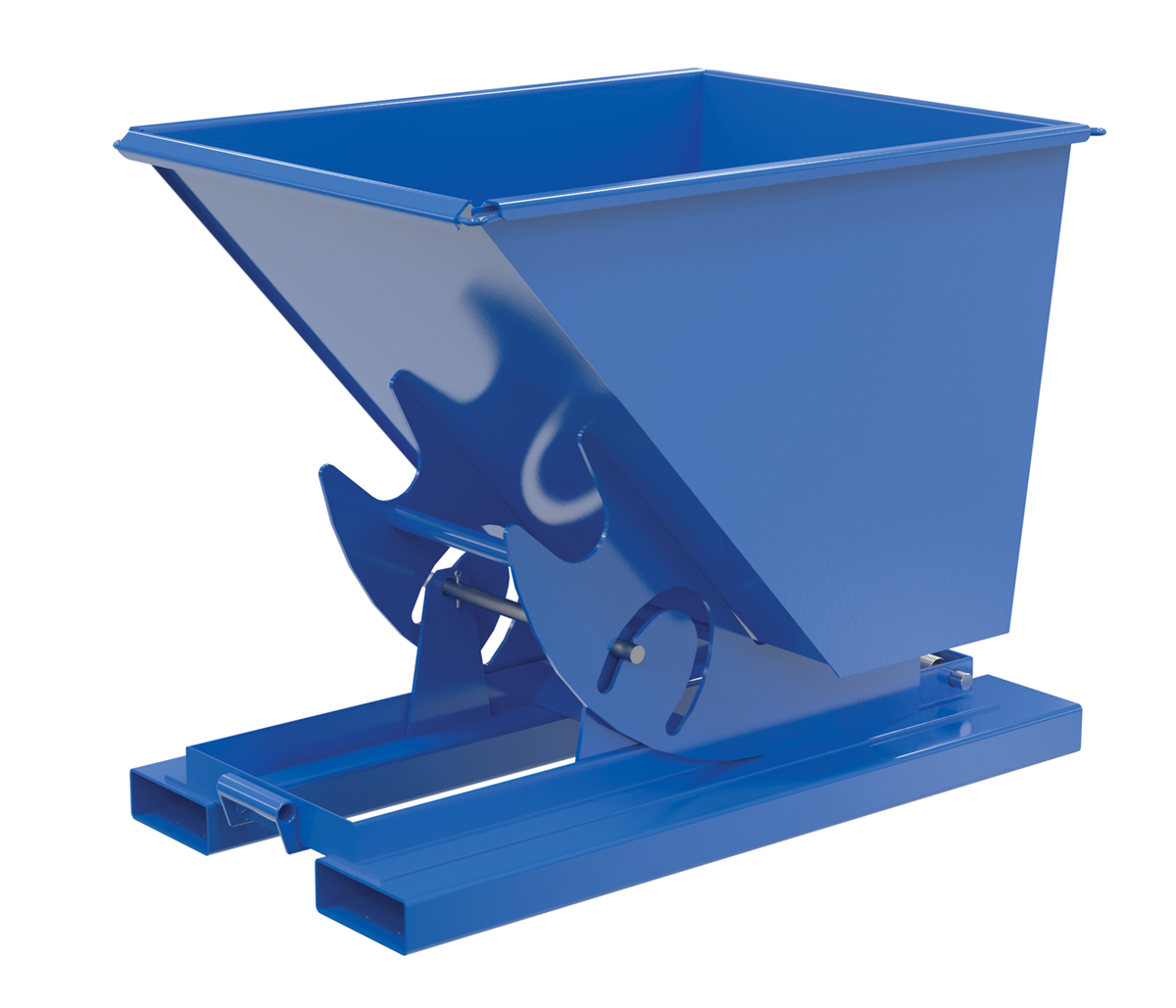

Manual Release Steel Self-Dumping Hoppers for Forklift Scrap Handling

Manual release D-style self-dumping hoppers provide a dependable forklift-handled solution for collecting, transporting, and dumping scrap, waste, bulk materials, chips, and debris. Designed for warehouses, manufacturing plants, fabrication shops, construction sites, recycling areas, and maintenance departments, these no bump and dump hoppers allow controlled discharge without relying on bumper-triggered dumping.

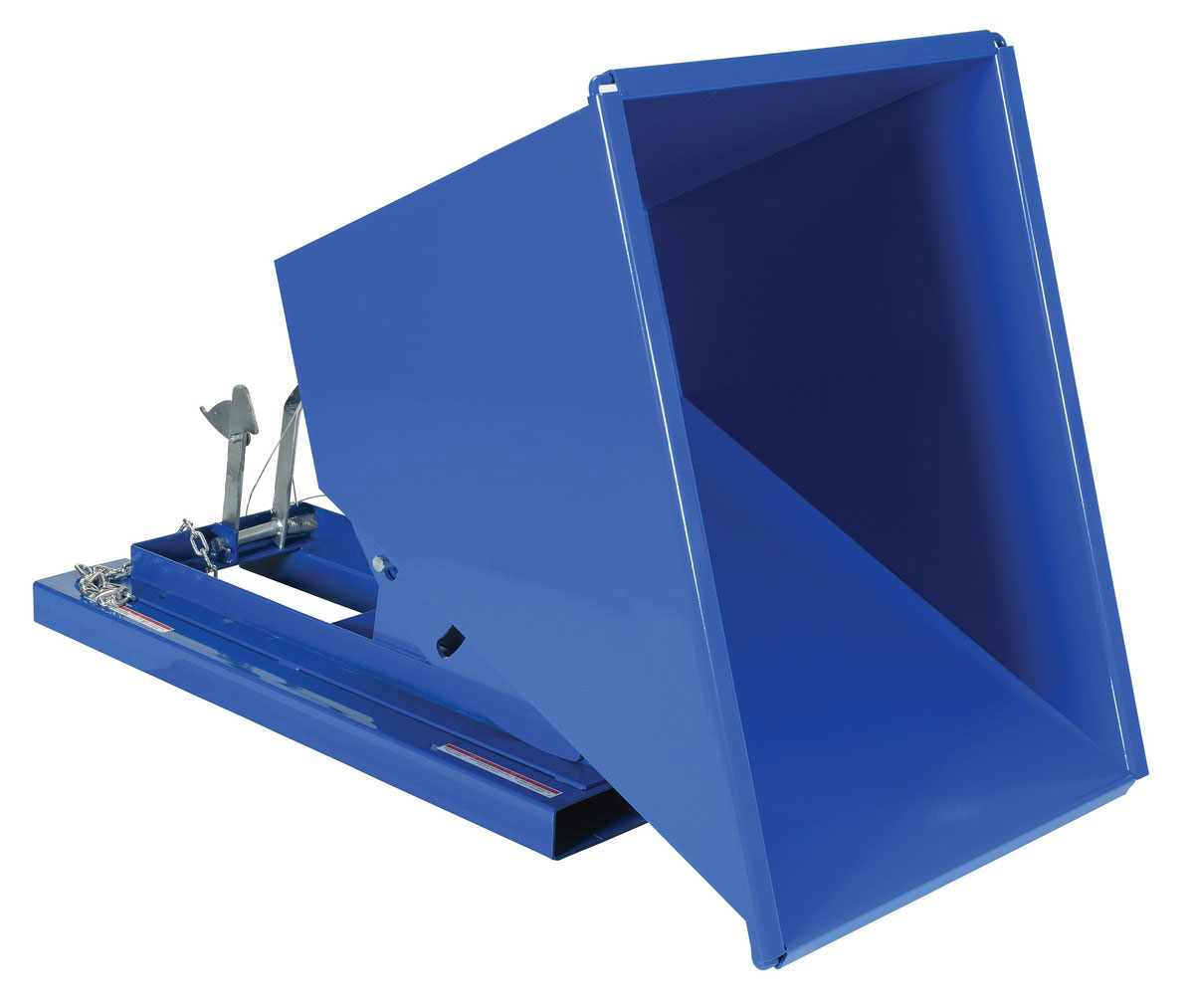

Forklift-Controlled Dumping

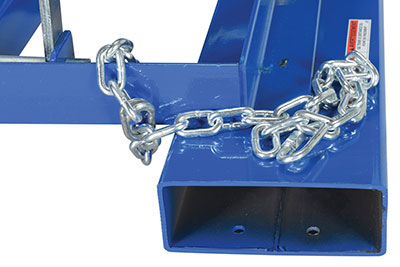

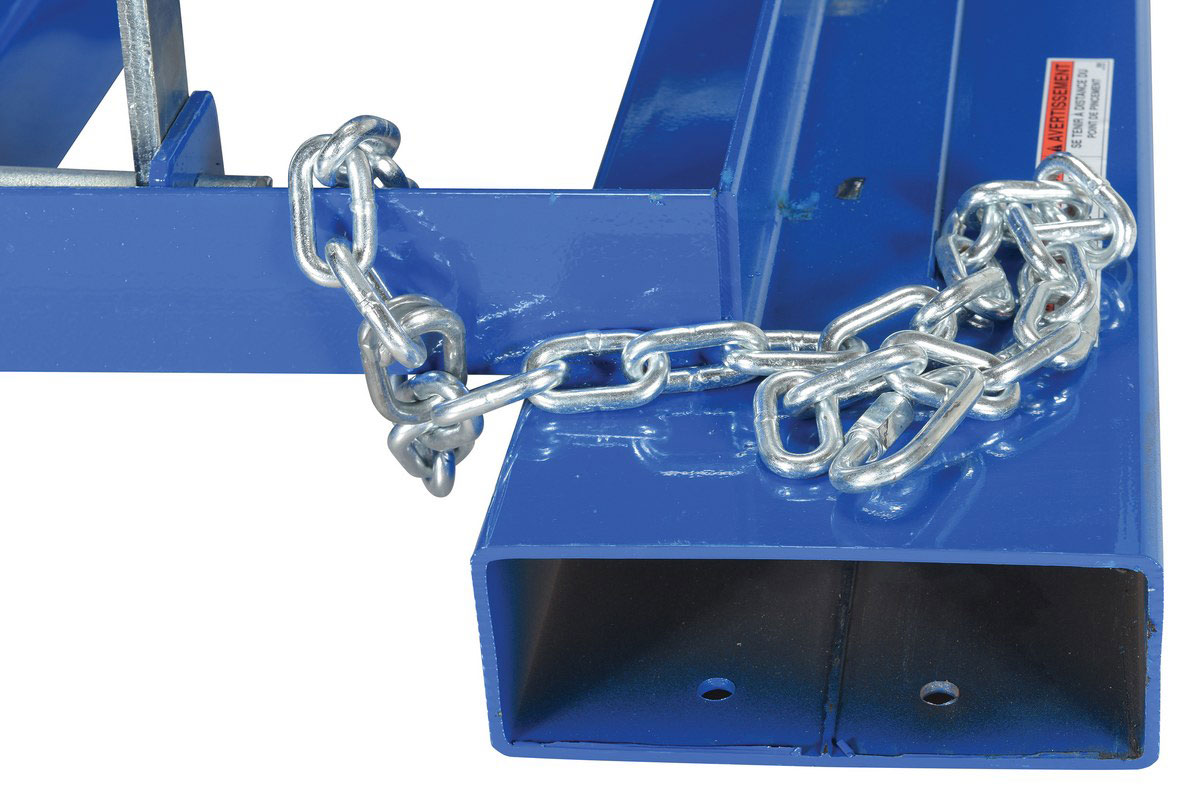

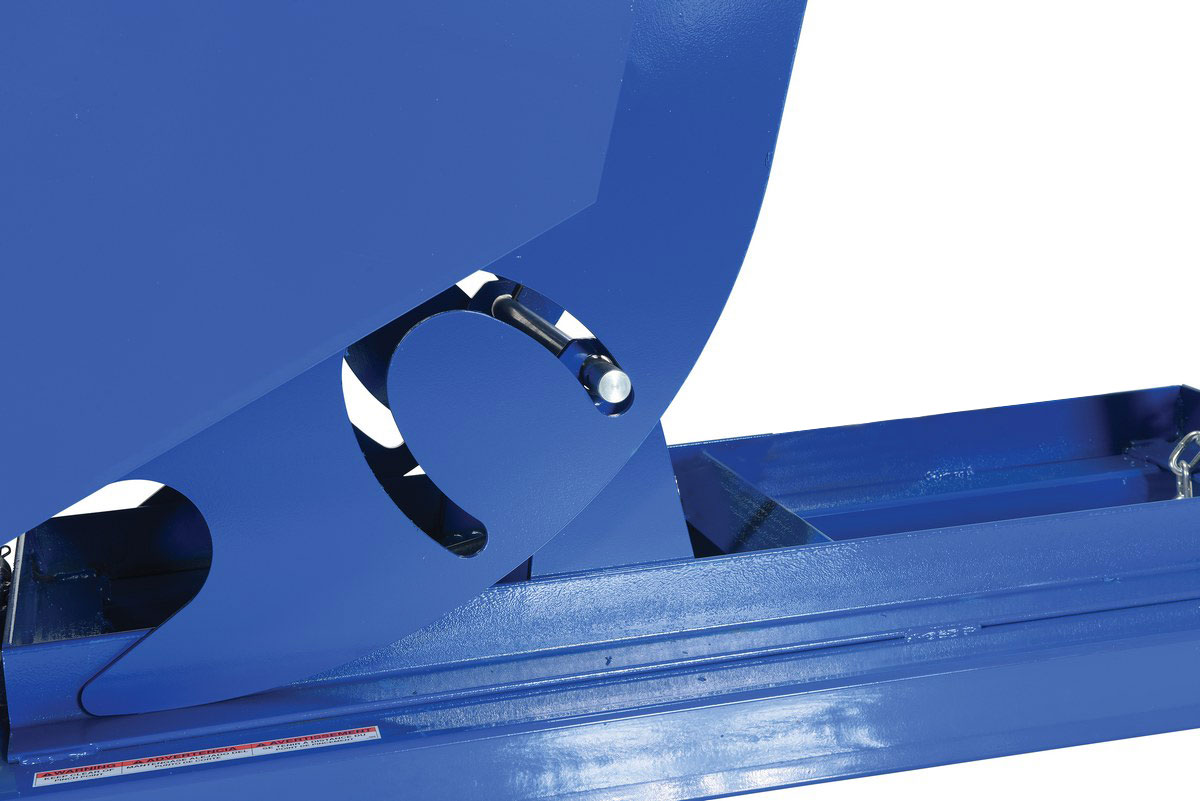

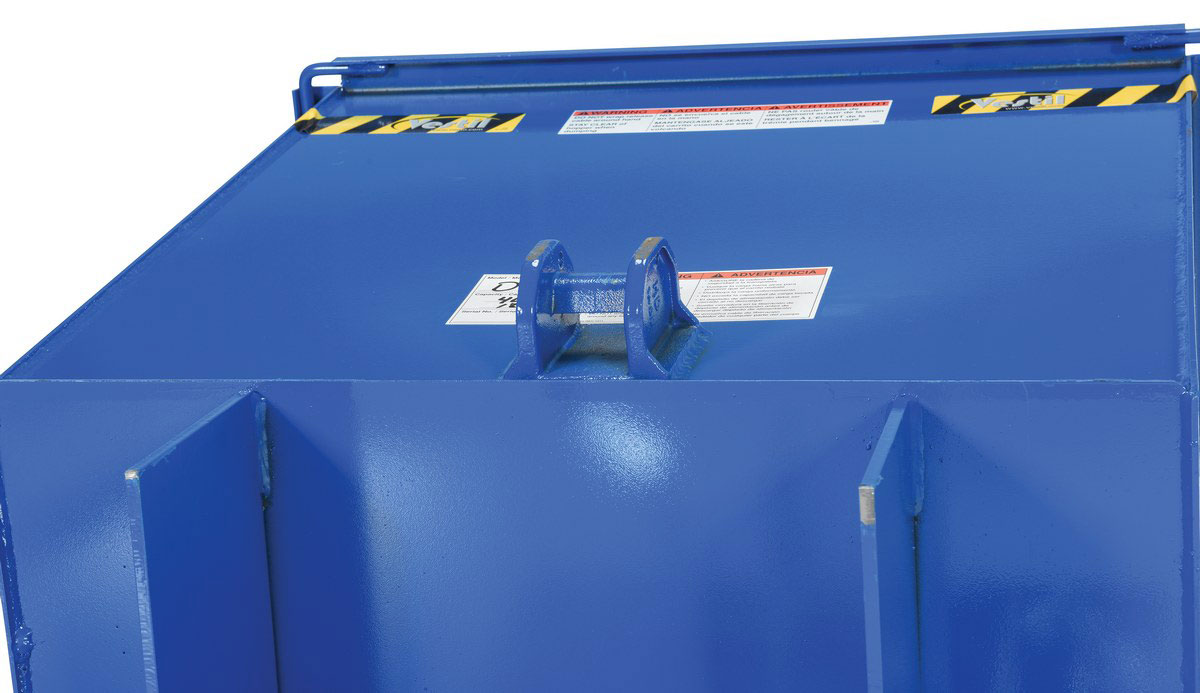

A pull chain release allows the forklift operator to dump the hopper from the truck seat, helping personnel stay clear of the discharge area. Smooth interior surfaces and contoured edges promote better material flow for cleaner unloading, while fork pockets provide a stable lifting foundation during transport and dumping.

Light, Medium, and Heavy Duty Designs

This family includes light duty 12 gauge, medium duty 10 gauge, and heavy duty 8 gauge steel models to match different load requirements. Capacities range from 2,000 lb. to 6,000 lb., with hopper volumes from 1/4 cubic yard to 5 cubic yards depending on duty class and model size.

Options, Colors, and Application Flexibility

Available options include caster kits, lids, fork retaining pins, leak proof welded seams, drain plugs, lifting lugs, side tilt, and steel mesh side extensions for select models. Multiple color finishes are available to support facility organization, department identification, and safety programs. Each hopper includes a safety restraint for securing the unit to the fork truck during use. Must be attached to fork truck when dumping.

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard
D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

D-Style Hoppers, No Bump & Dump

model: D-50-HD-NB

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

Model Number	Image	Description	Wt. (lbs.)
Caster Options		Casters for D Style Hoppers	-
Optional Lids		Lids for D Style Hoppers	-
D-TILT		Sideways Tilt Option (only available for models D-75-LD & D-100-LD)	130
D-PIN		Steel Fork Retaining Pin Option	5
LEKP		Welded leak proof Option	5
D-DPLG-75*		0.75" Threaded Drain, Located in Left Corner	2
D-DPLG-2*		2" Threaded Drain, Located in Left Corner	2
LUG		(4) Lifting Lugs (Welded) One on Each Corner	23
*D-DPLG option includes leak proof chute welds

OPTION: D-150-EXT-SMY

Side Extensions, are great addition for material handling and construction facilities. The extended sides are constructed of steel mesh for high strength durability during transference of goods, while the yellow painted finish delivers great visibility.

Side Extensions For "D" Style Hoppers
Model Number	Extension Height	Works With Hopper Series	Wt. (lbs.)
D-150-EXT-SMY	15-11/16"	D-150	37
D-200-EXT-SMY	15-11/16"	D-200	40
D-250-EXT-SMY	15-11/16"	D-250	45
D-300-EXT-SMY	15-11/16"	D-300	50

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

0

No owner's manuals for this product family.

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

7

Testing Certificates

30

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

0

No label page PDFs for this product family.

Other PDFs

0

No other PDFs for this product family.

Enhanced Product Content

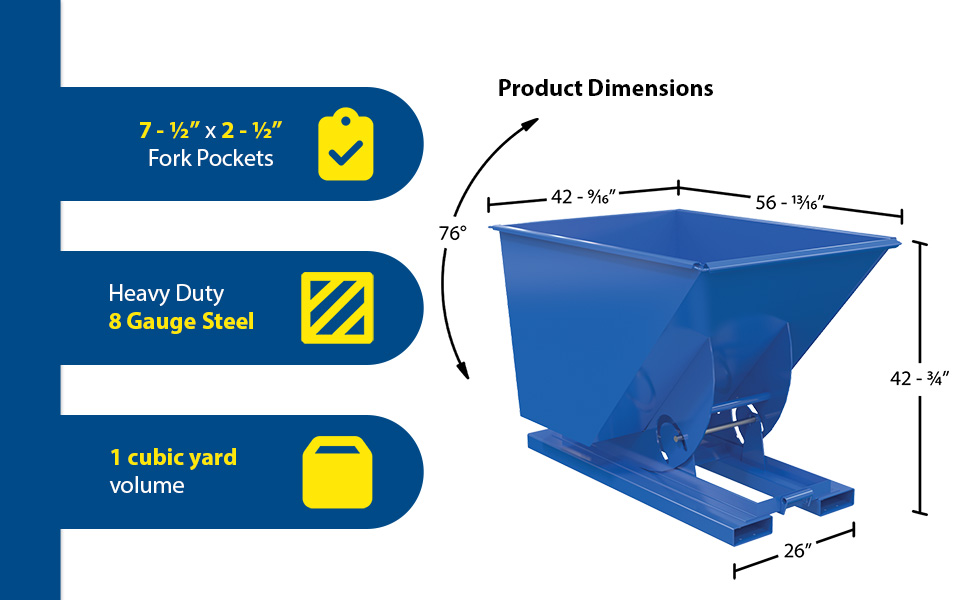

D-100-HD-NB

D-100-HD-NB - A+ Content 3

D-100-HD-NB - A+ Content 2

D-100-HD-NB - A+ Content 1

D-200-HD-NB

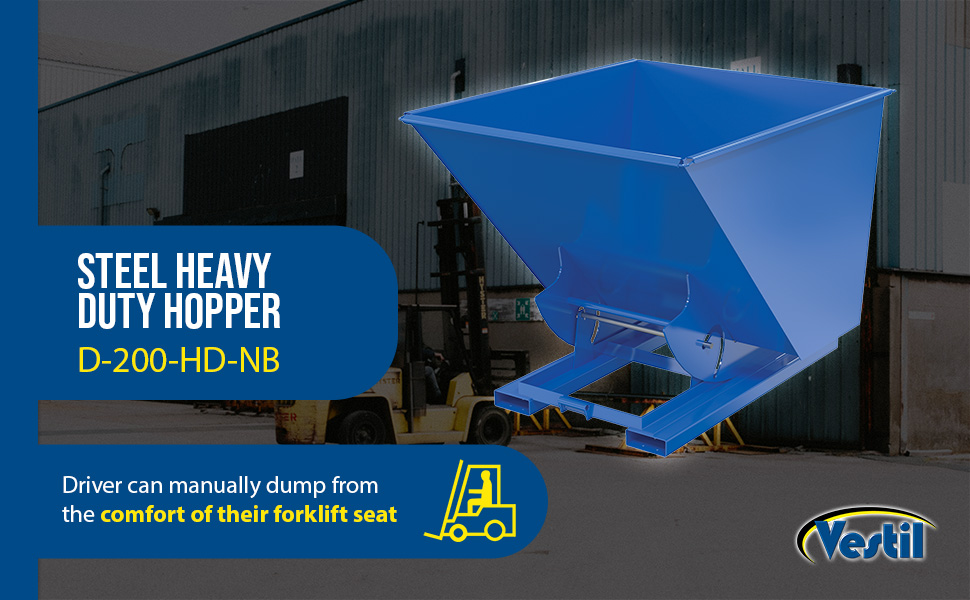

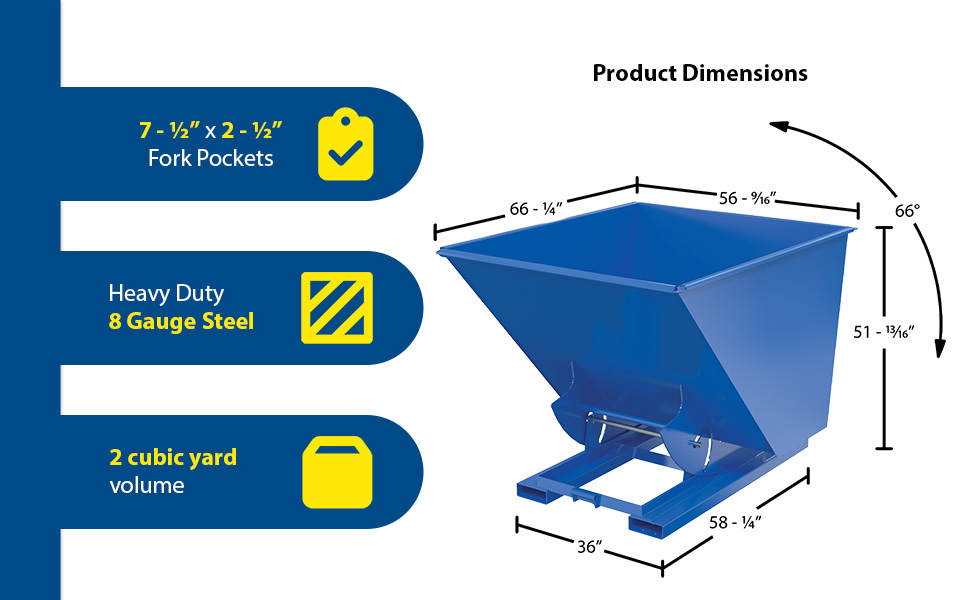

D-200-HD-NB A+ Content 3

D-200-HD-NB A+ Content 2

D-200-HD-NB A+ Content 1

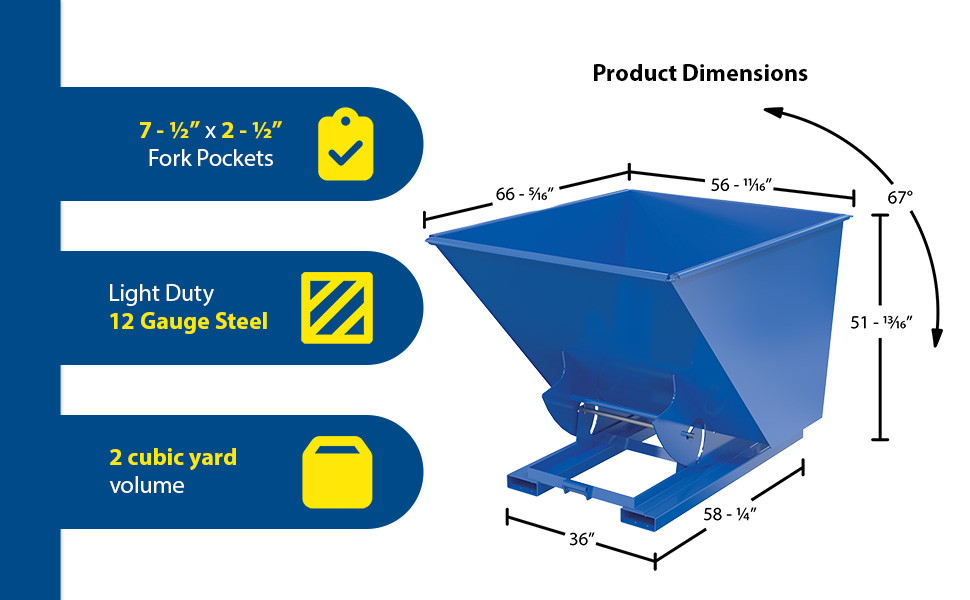

D-200-LD-NB

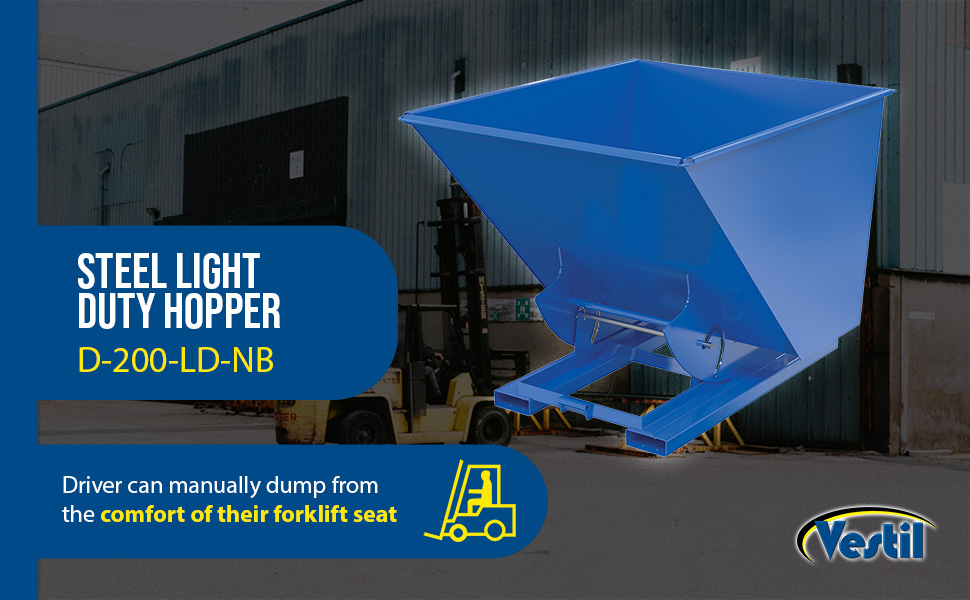

D-200-LD-NB A+ Slide 1

D-200-LD-NB A+ Slide 3

D-200-LD-NB A+ Slide 2

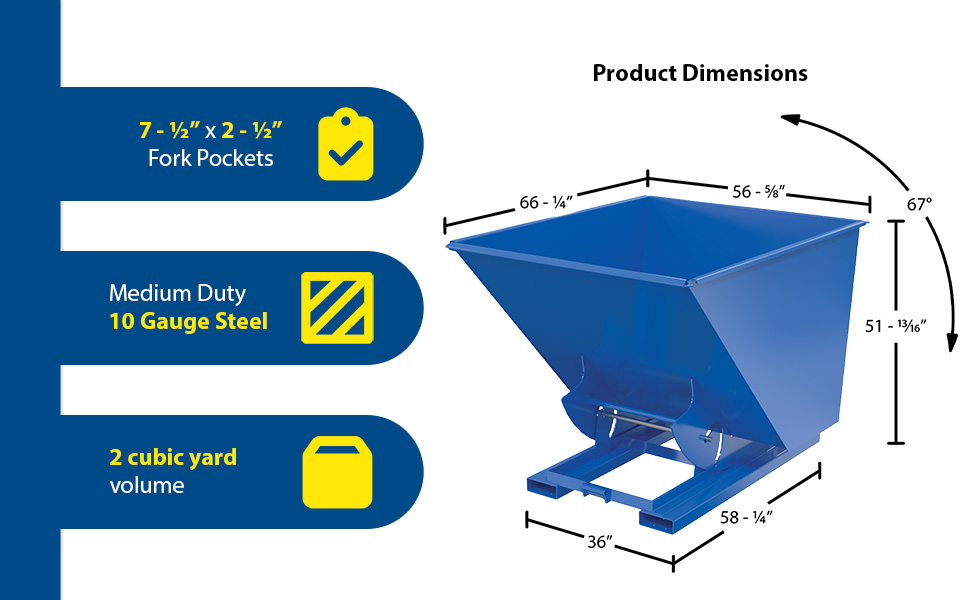

D-200-MD-NB

D-200-MD-NB A+ Content 2

D-200-MD-NB A+ Content 1

D-200-MD-NB A+ Content 3

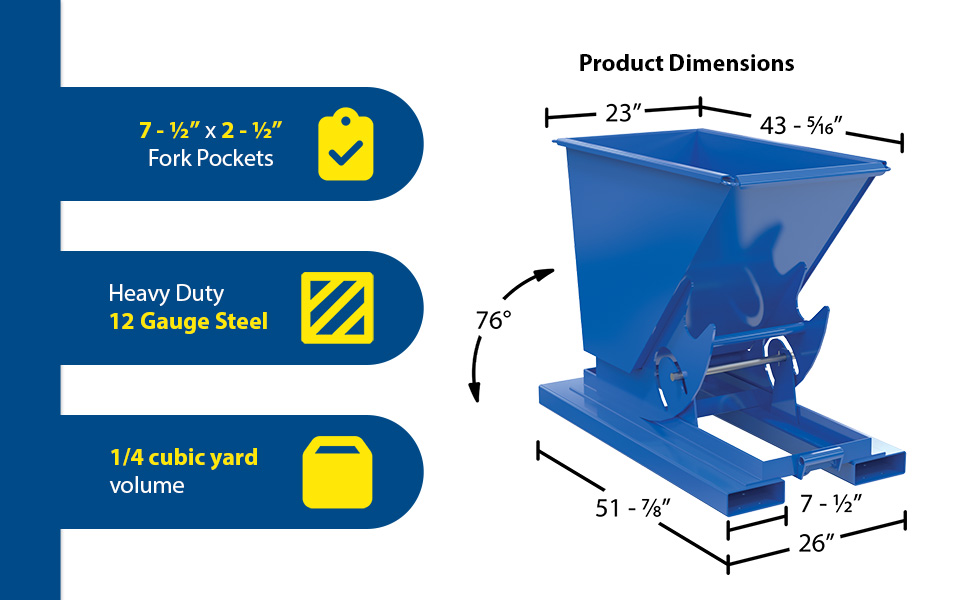

D-25-HD-NB

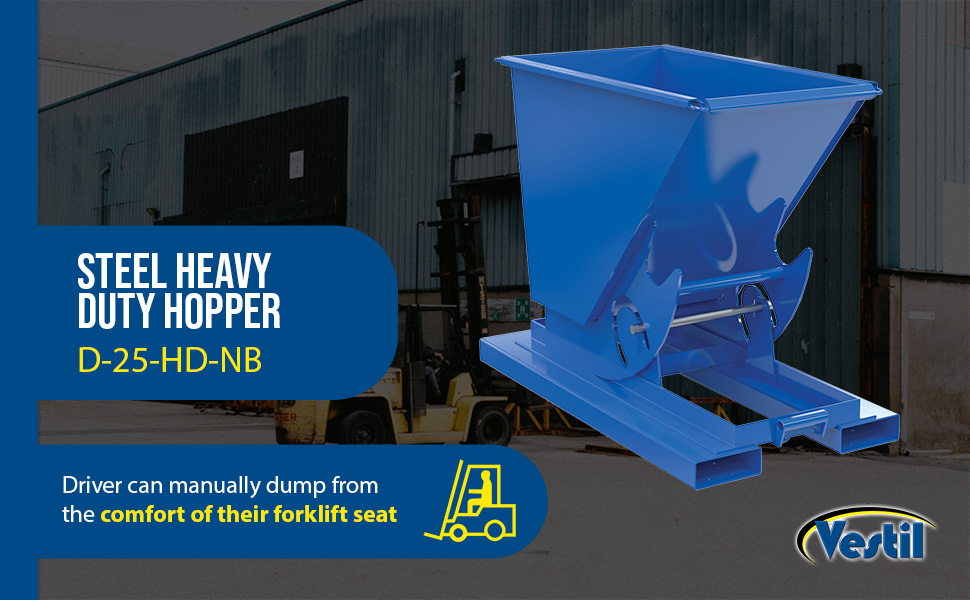

D-25-HD-NB A+ Slide 3

D-25-HD-NB A+ Slide 2

D-25-HD-NB A+ Slide 1

D-25-LD-NB

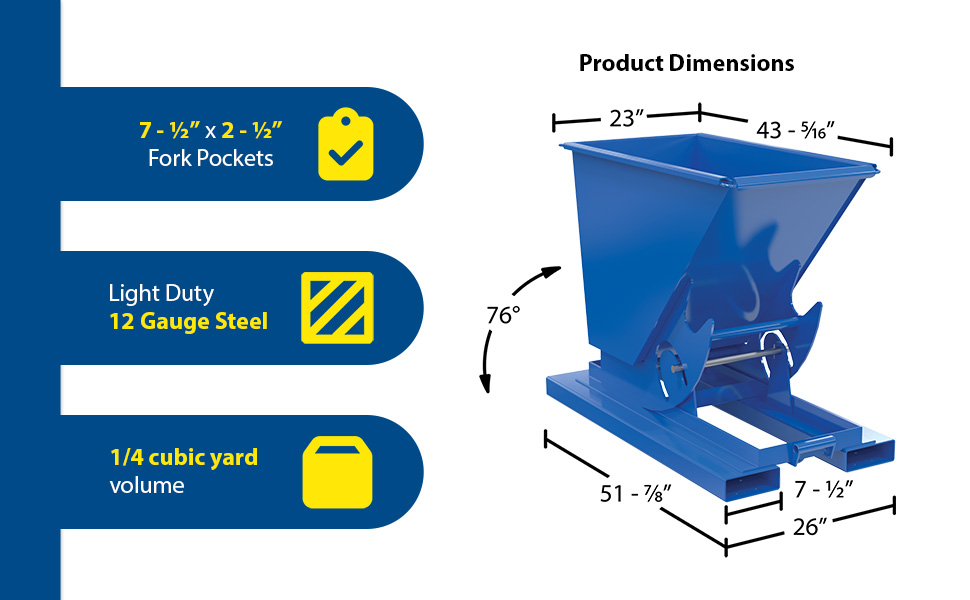

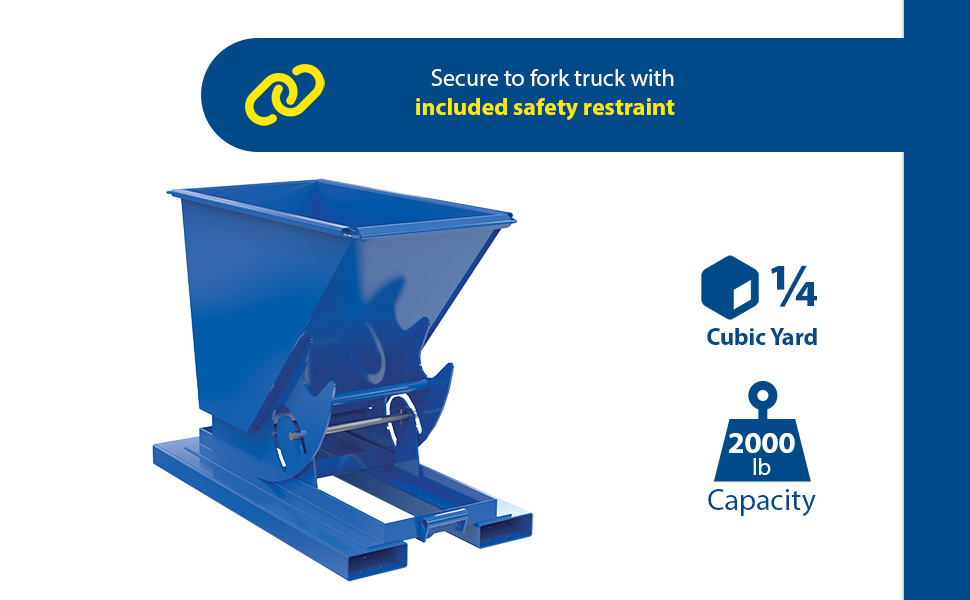

D-25-LD-NB A+ Content 1

D-25-LD-NB A+ Content 3

D-25-LD-NB A+ Content 2

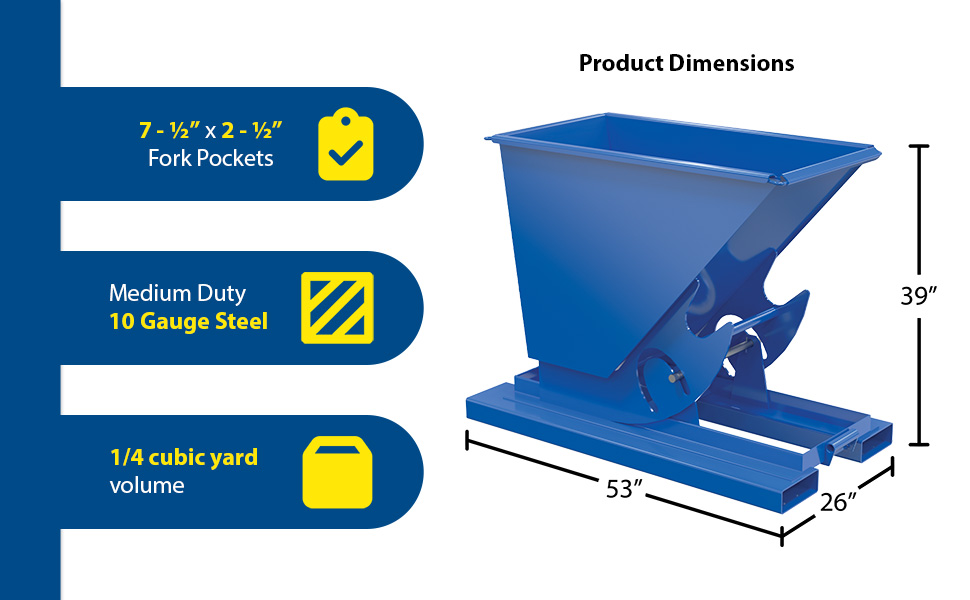

D-33-MD-NB

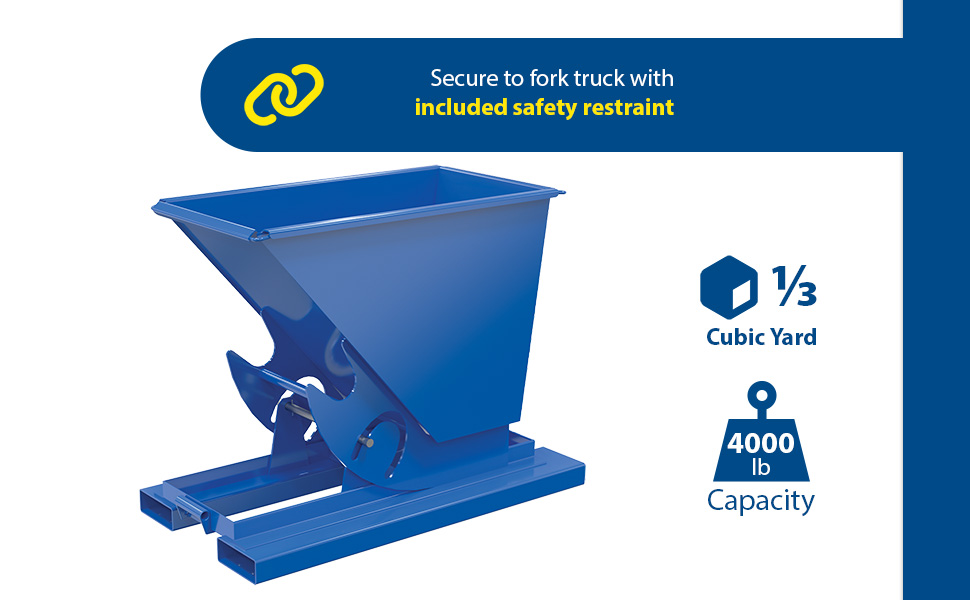

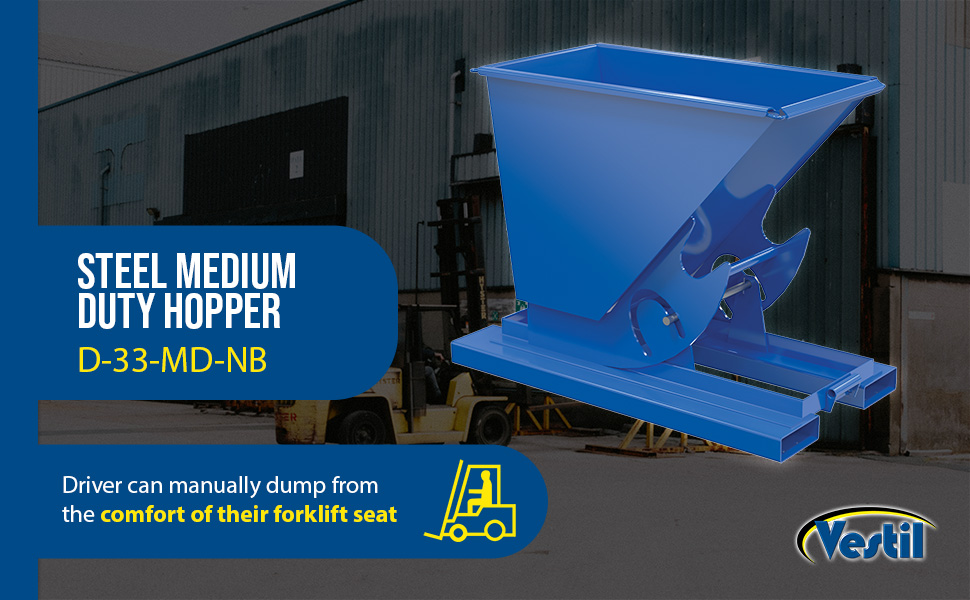

D-33-MD-NB A+ Slide 3

D-33-MD-NB A+ Slide 2

D-33-MD-NB A+ Slide 1

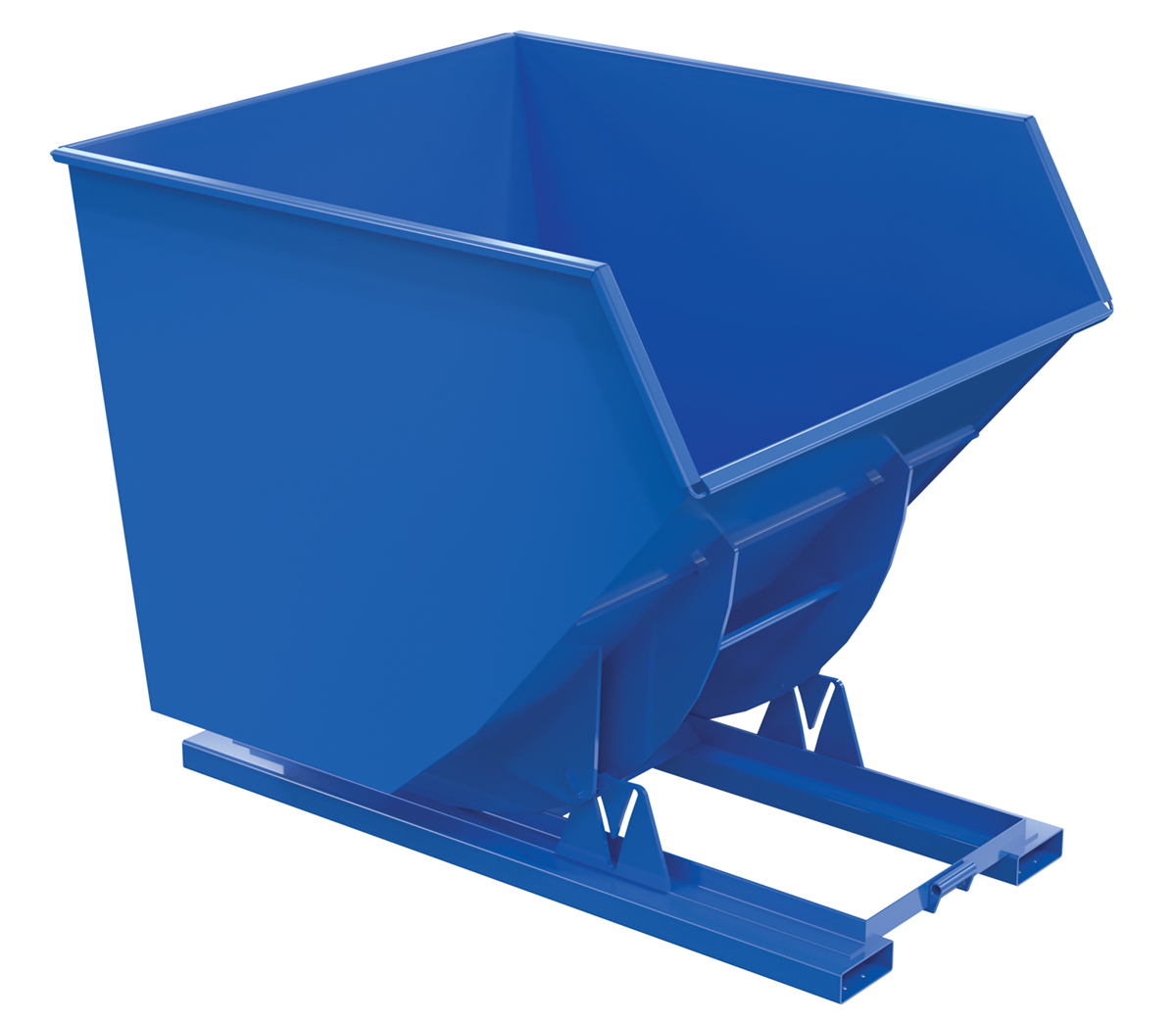

D-350-HD-NB

D-350-HD-NB A+ Slide 1

D-350-HD-NB A+ Slide 3

D-350-HD-NB A+ Slide 2

Check Out All Of Our Specialty Colors Available!

SODA RED
Suggested Use: Hazard
Model Suffix: -SR

WHITE
Suggested Use: Paper
Model Suffix: -WHT

BATTLE SHIP GRAY

BATTLE SHIP GRAY
Suggested Use: Metal
Model Suffix: -GY-SG

TRACTOR GREEN

TRACTOR GREEN
Suggested Use: Organic
Model Suffix: -GRN-T

BLUE (Standard)

BLUE (Standard Color)
Suggested Use: Plastic
Model Suffix: -

YELLOW
Suggested Use: Glass
Model Suffix: -YEL

ORANGE
Suggested Use: Corrosive Fluid
Model Suffix: -ORG-C

HOT DIPPED GALVANIZED

HOT DIPPED GALVANIZED
Suggested Use: Wet Environment
Model Suffix: -GAL

EARTH BROWN

EARTH BROWN
Suggested Use: Combustible Fluids
Model Suffix: -BRN-EB

KHAKI TAN
Suggested Use: User Defined
Model Suffix: -BRN-KT

SANDY BEIGE

SANDY BEIGE
Suggested Use: User Defined
Model Suffix: -BRN-SB

BUBBLE GUM PINK

BUBBLE GUM PINK
Suggested Use: User Defined
Model Suffix: -BG

BLACK - HIGH GLOSS

BLACK - HIGH GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-HG

BLACK - SEMI-GLOSS

BLACK - SEMI-GLOSS
Suggested Use: User Defined
Model Suffix: -BLK-SG

HUNTER GREEN

HUNTER GREEN
Suggested Use: User Defined
Model Suffix: -GRN-H

SILVER LINING

SILVER LINING
Suggested Use: User Defined
Model Suffix: -SL

SKY BLUE
Suggested Use: User Defined
Model Suffix: -BL-S

MACHINE GRAY

MACHINE GRAY
Suggested Use: User Defined
Model Suffix: -GY-MG

Notice These swatches are a representation of the colors available, and may not be exact.

Applications

Construction Projects

Municipalities

Hotels

Trucking Companies

Warehouses

Do It Yourself

Farming and Agriculture

Parking Lots

Maintenance Yards

Recycling Areas

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids

Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for Hoppers

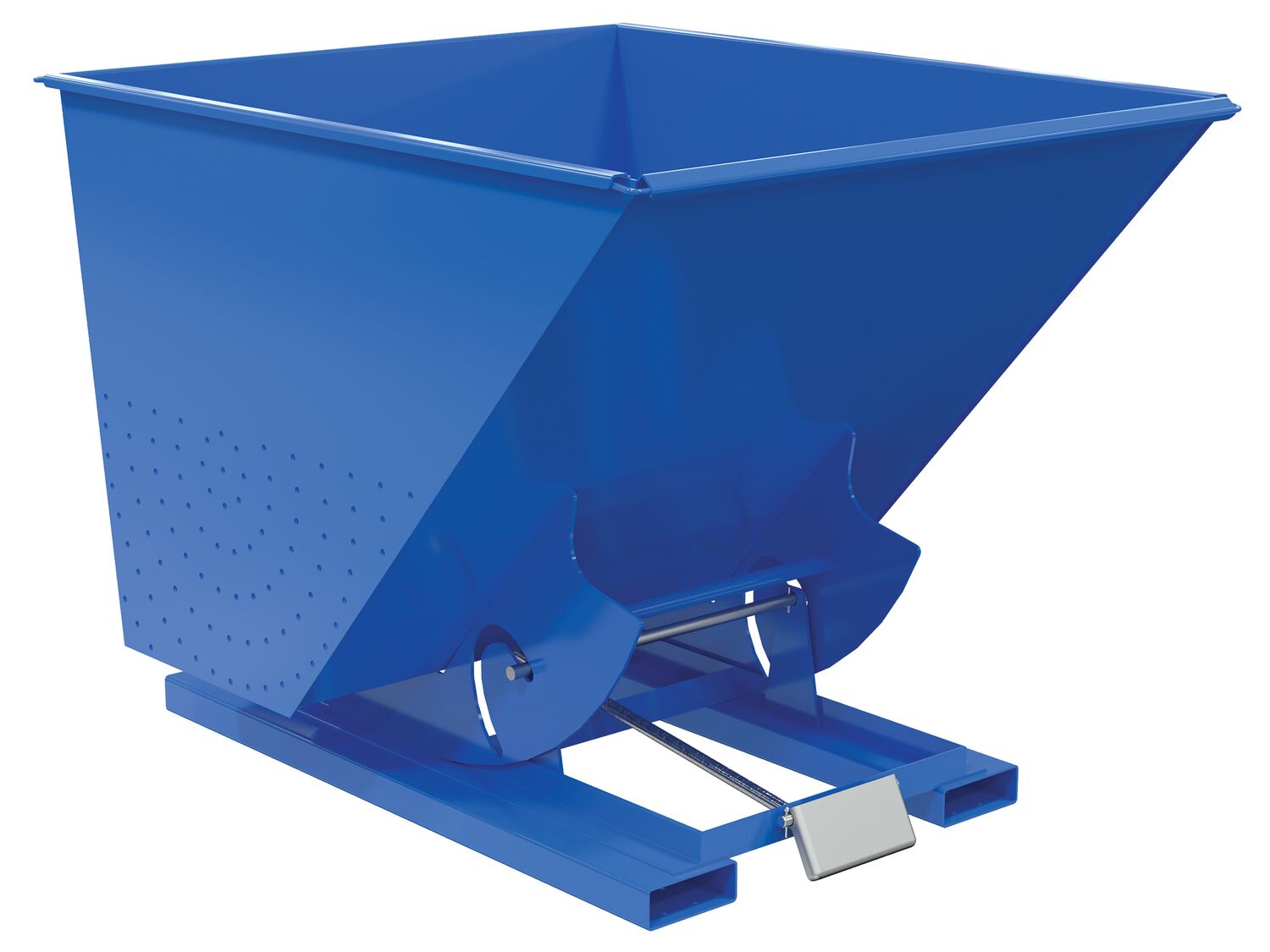

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers

Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.

For more Specialty Designs similar to these... Click Here

Print Friendly

Related or Similar Products:

More From Hoppers

Low Profile Hoppers

Triple-Bin Recycling Hopper

Triple-Bin Recycling Hopper

Open Side Hopper

Open Side Hopper

Rotator Box Hoppers

Rotator Box Hoppers

H Style Bump & Dump Hoppers

H Style Bump & Dump Hoppers

Drop Bottom Hopper

Drop Bottom Hopper

D-Style Hoppers, No Bump &...

Manual Release Steel Self-Dumping Hoppers for Forklift Scrap Handling

Manual release D-style self-dumping hoppers provide a dependable forklift-handled solution for collecting, transporting, and dumping scrap, waste, bulk materials, chips, and debris. Designed for warehouses, manufacturing plants, fabrication shops, construction sites, recycling areas, and maintenance departments, these no bump and dump hoppers allow controlled discharge without relying on bumper-triggered dumping.

Forklift-Controlled Dumping

A pull chain release allows the forklift operator to dump the hopper from the truck seat, helping personnel stay clear of the discharge area. Smooth interior surfaces and contoured edges promote better material flow for cleaner unloading, while fork pockets provide a stable lifting foundation during transport and dumping.

Light, Medium, and Heavy Duty Designs

This family includes light duty 12 gauge, medium duty 10 gauge, and heavy duty 8 gauge steel models to match different load requirements. Capacities range from 2,000 lb. to 6,000 lb., with hopper volumes from 1/4 cubic yard to 5 cubic yards depending on duty class and model size.

Options, Colors, and Application Flexibility

Available options include caster kits, lids, fork retaining pins, leak proof welded seams, drain plugs, lifting lugs, side tilt, and steel mesh side extensions for select models. Multiple color finishes are available to support facility organization, department identification, and safety programs. Each hopper includes a safety restraint for securing the unit to the fork truck during use. Must be attached to fork truck when dumping.

13 Sizes 3 Strength's: LD (Light Duty) 12 Gauge Steel, MD (Medium Duty) 10 Gauge Steel, HD (Heavy Duty) 8 Gauge Steel
D-25-(strength)-NB	.25 Cubic Yard
D-33-(strength)-NB	.33 Cubic Yard
D-50-(strength)-NB	.50 Cubic Yard
D-75-(strength)-NB	.75 Cubic Yard
D-100-(strength)-NB	1 Cubic Yard
D-150-(strength)-NB	1.5 Cubic Yard
D-200-(strength)-NB	2 Cubic Yard
D-250-(strength)-NB	2.5 Cubic Yard
D-300-(strength)-NB	3 Cubic Yard
D-350-(strength)-NB	3.5 Cubic Yard
D-400-(strength)-NB	4 Cubic Yard
D-500-(strength)-NB	5 Cubic Yard

D-Style WITH BUMPER RELEASE

Caster Options | Optional Lids

Model #		Description	Attributes	Net Wt. (lbs)

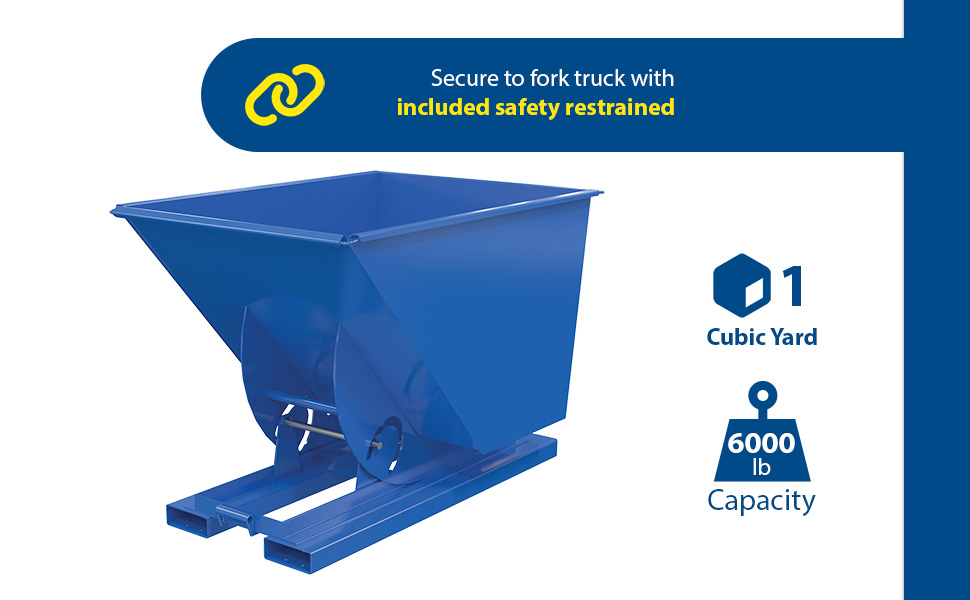

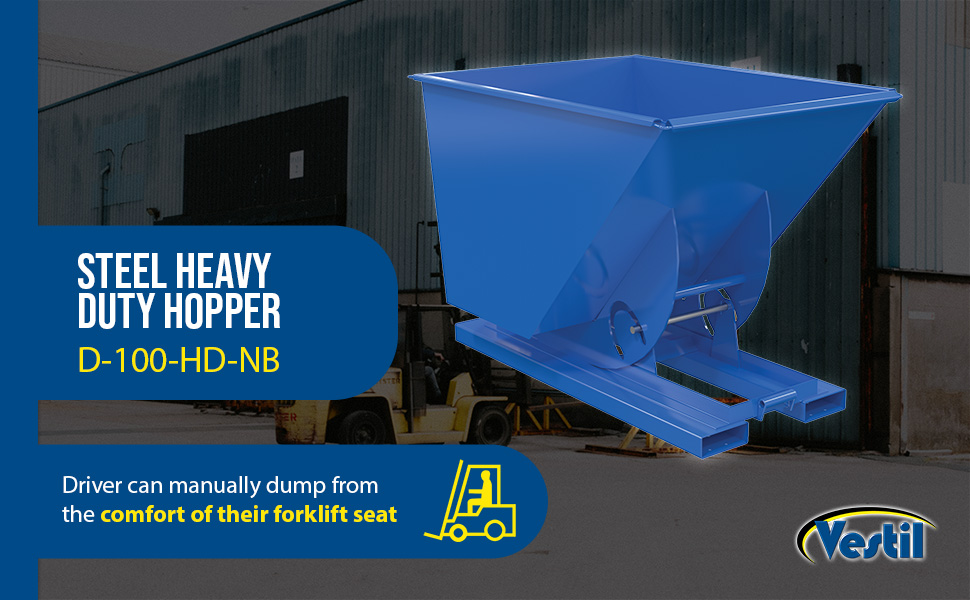

D-100-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 1 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	596
D-100-LD-NB		Steel Light Duty No Bump & Dump Hopper 1 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	482

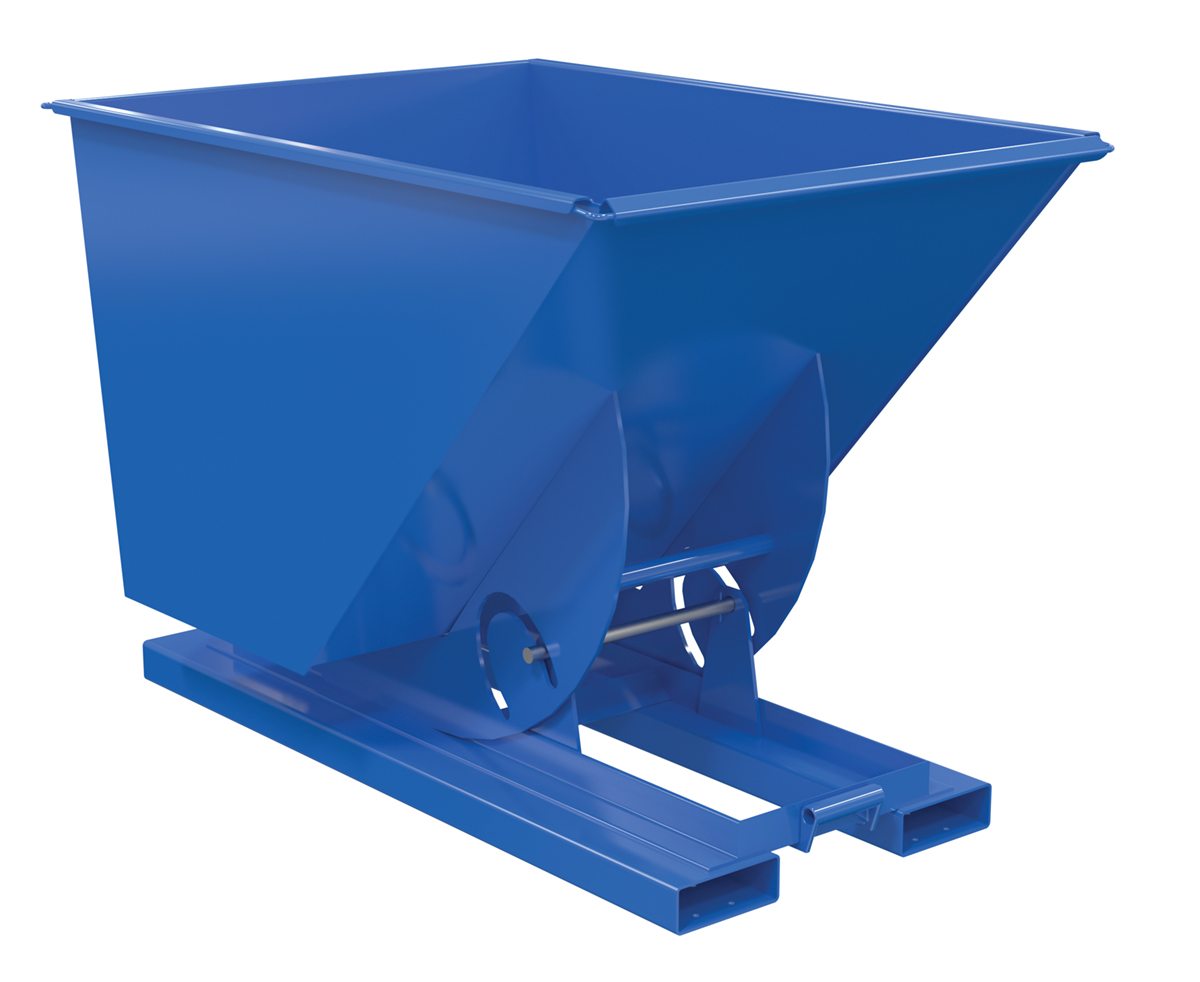

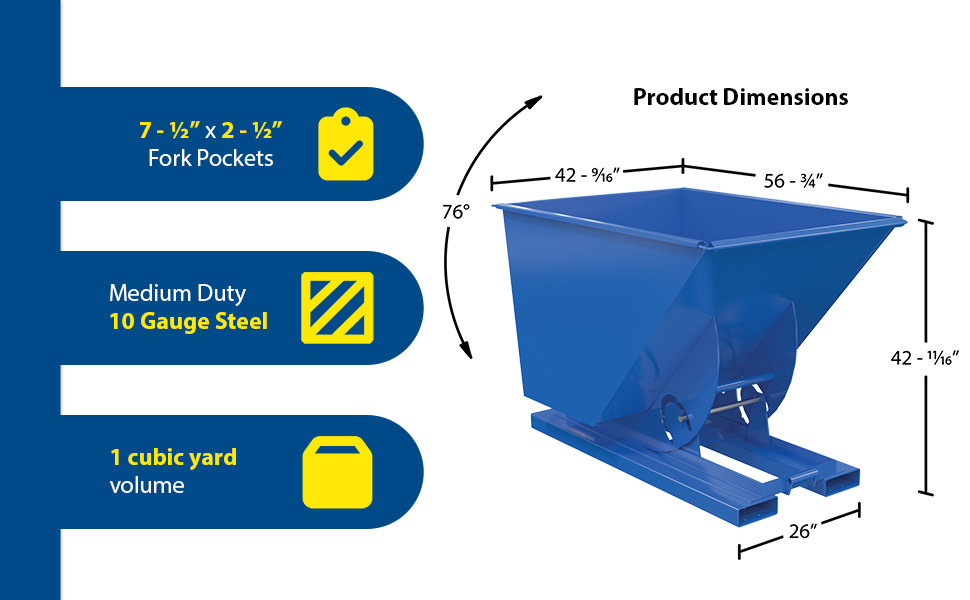

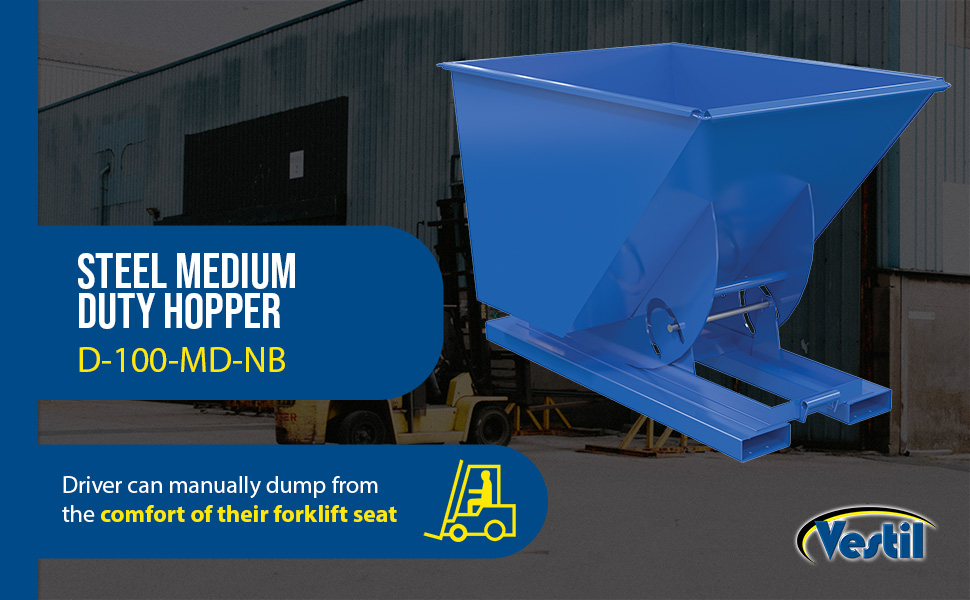

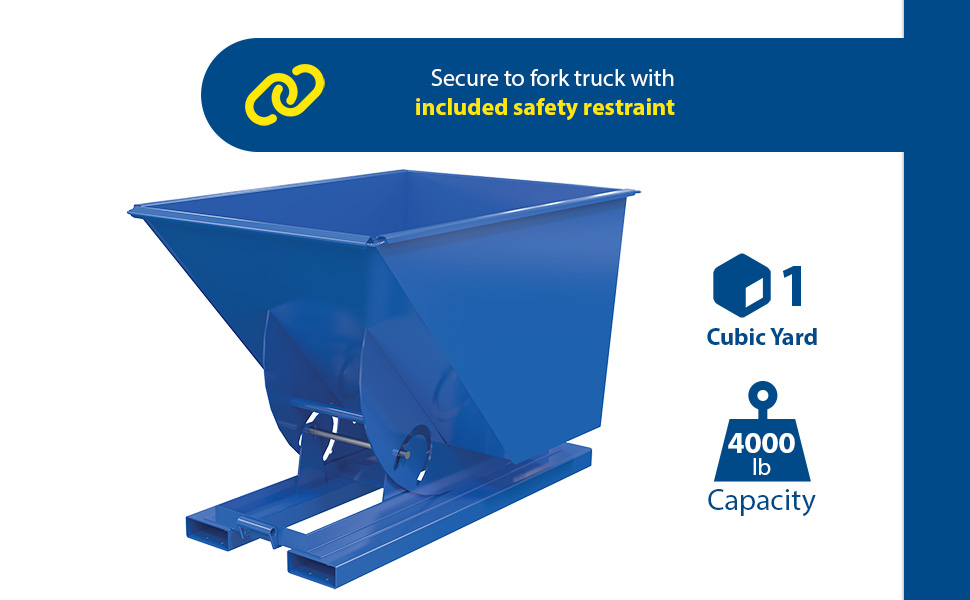

D-100-MD-NB		Steel Medium Duty No Bump & Dump Hopper 1 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	538
D-150-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	671

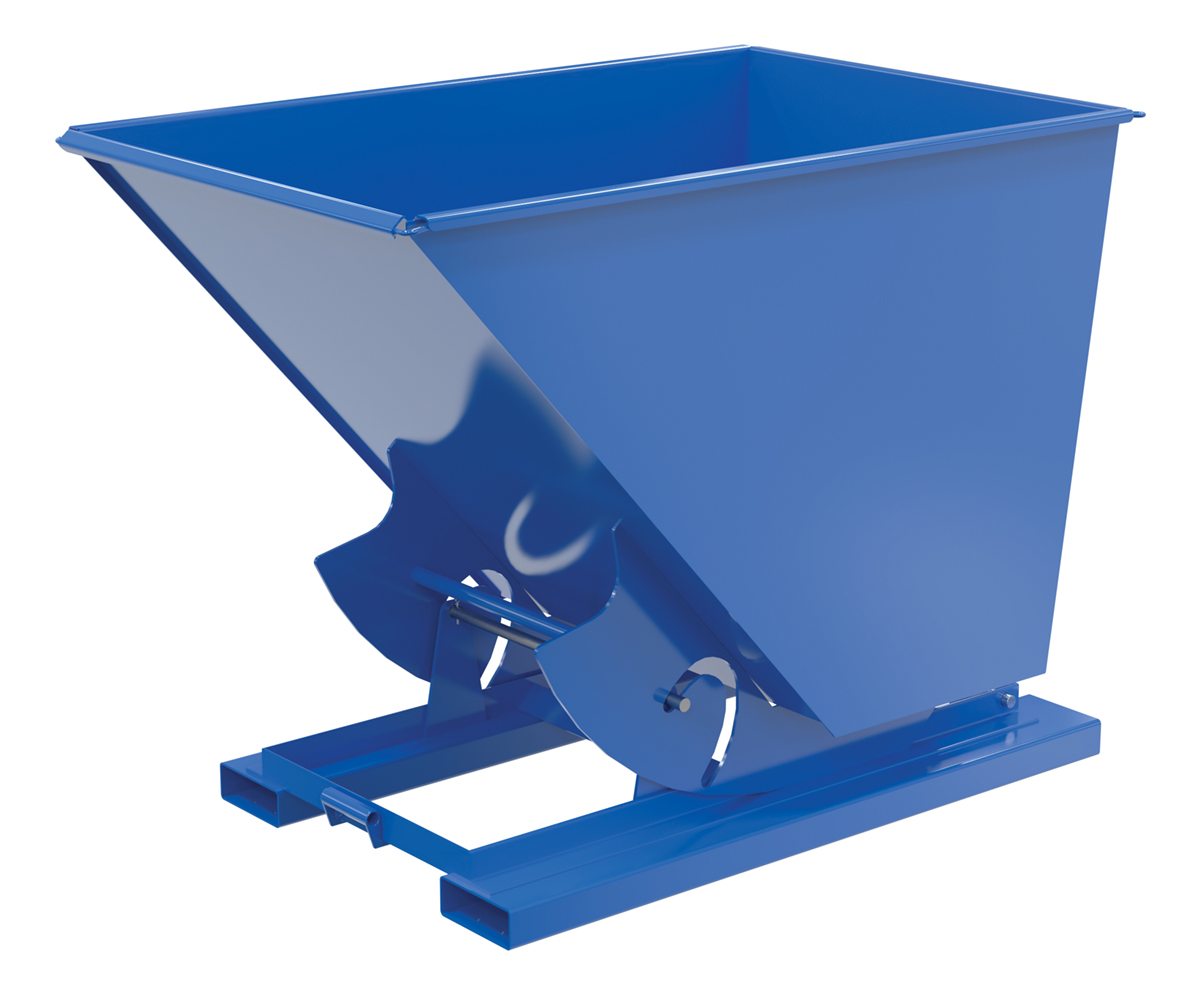

D-150-LD-NB		Steel Light Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	540
D-150-MD-NB		Steel Medium Duty No Bump & Dump Hopper 1-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	669
D-200-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6,000 Fork Pocket Center (in.): 28	778
D-200-LD-NB		Steel Light Duty No Bump & Dump Hopper 2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	601

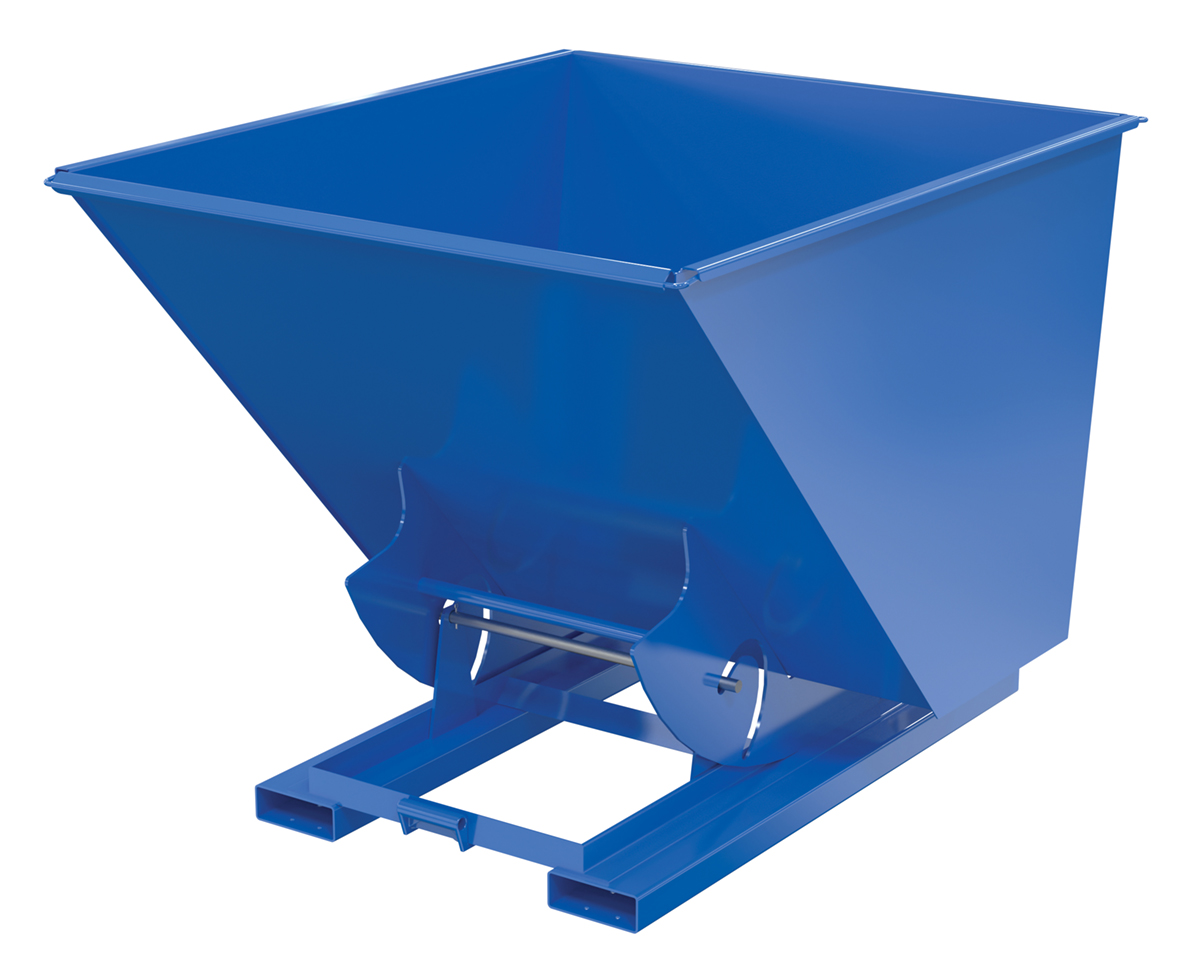

D-200-MD-NB		Steel Medium Duty No Bump & Dump Hopper 2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	703
D-25-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 1/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374

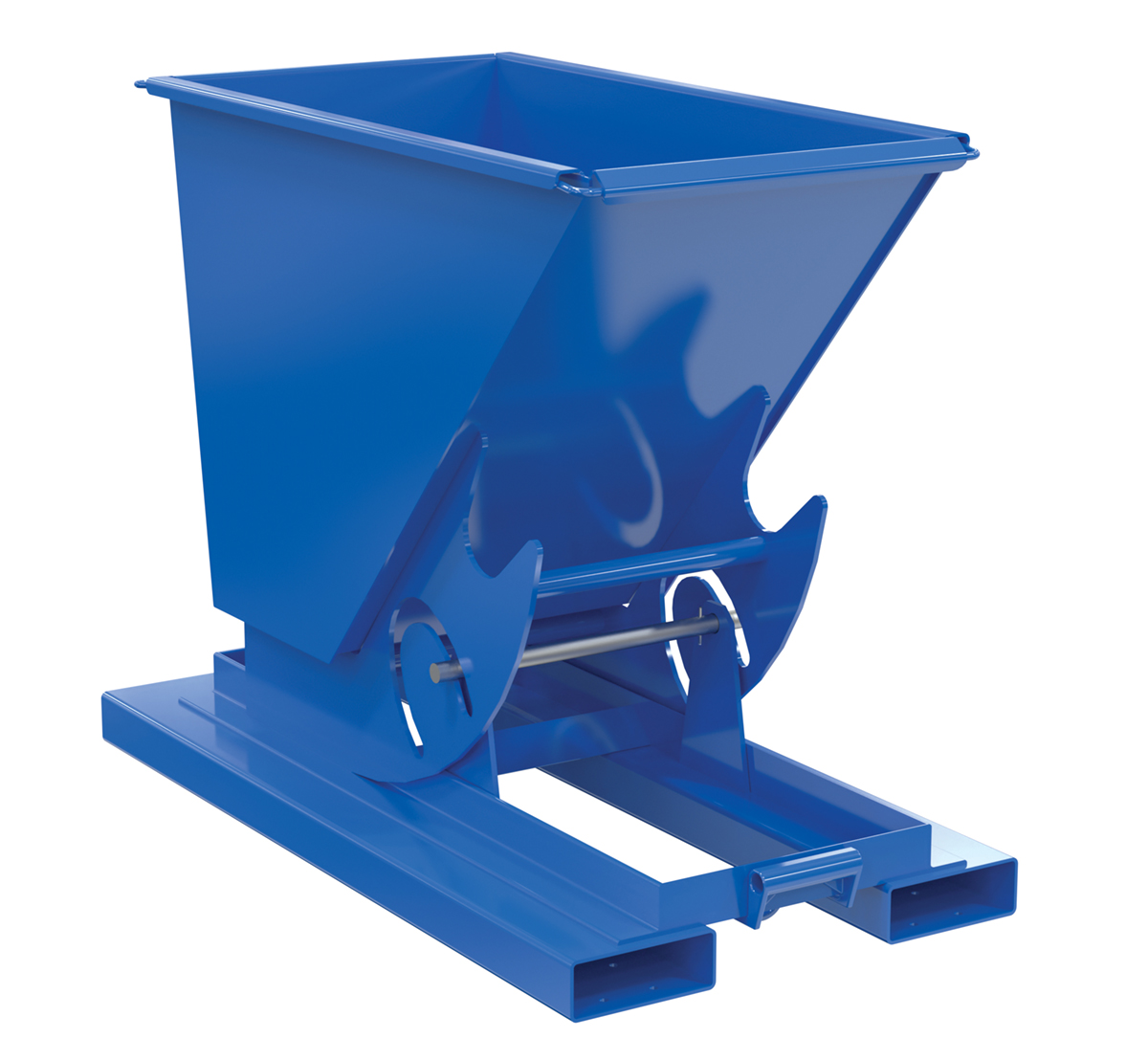

D-25-LD-NB		Steel Light Duty No Bump & Dump Hopper 1/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-25-MD-NB		Steel Medium Duty No Bump & Dump Hopper 1/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374

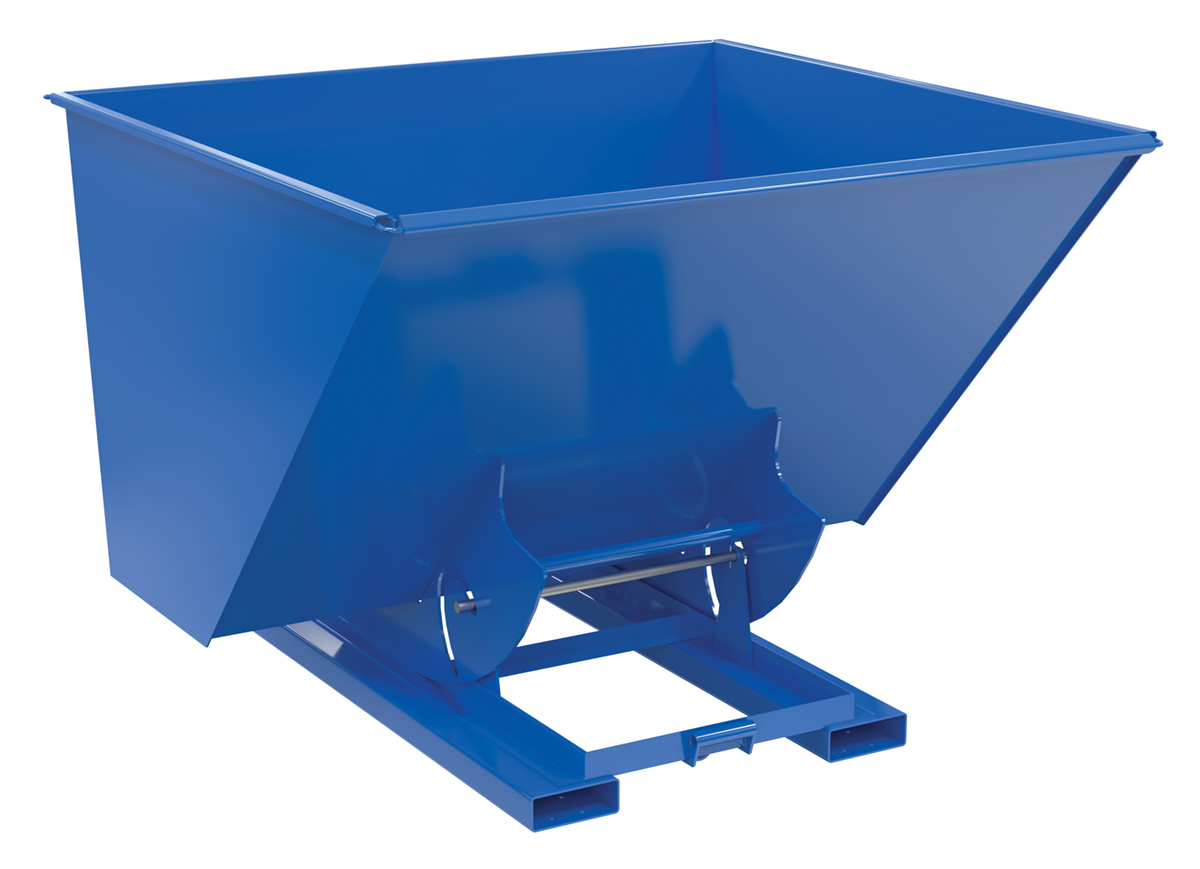

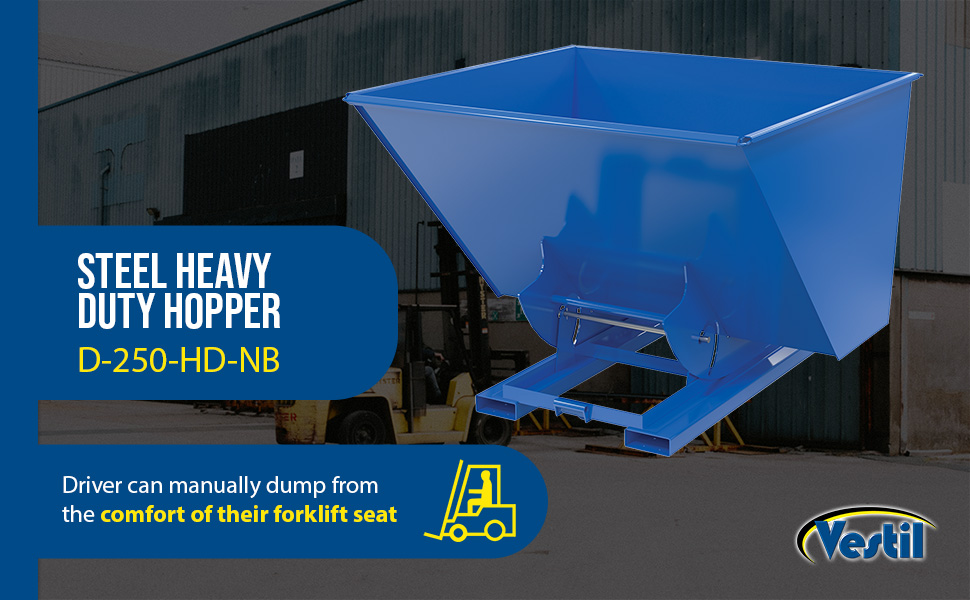

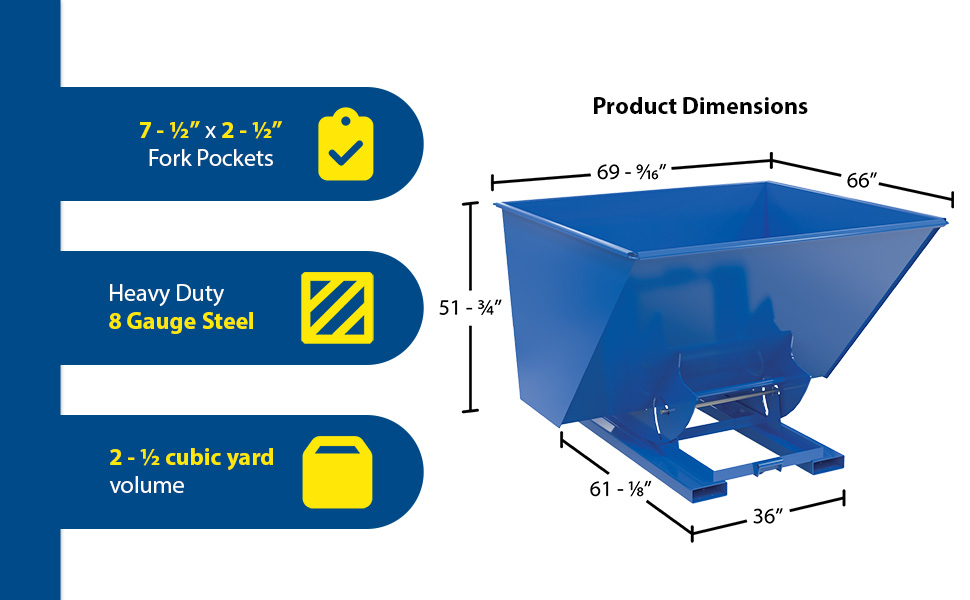

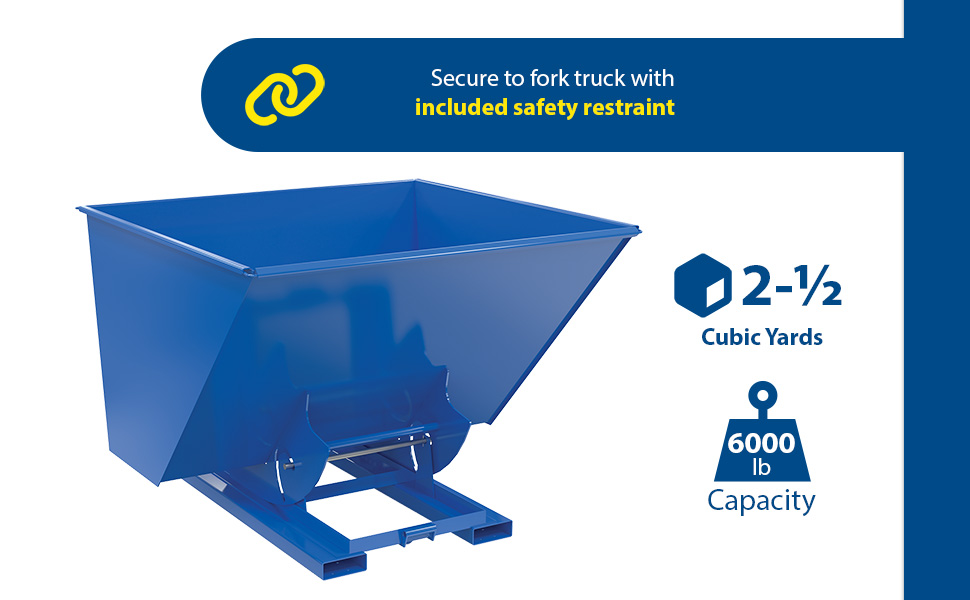

D-250-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	827
D-250-LD-NB		Steel Light Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	827
D-250-MD-NB		Steel Medium Duty No Bump & Dump Hopper 2-1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	827

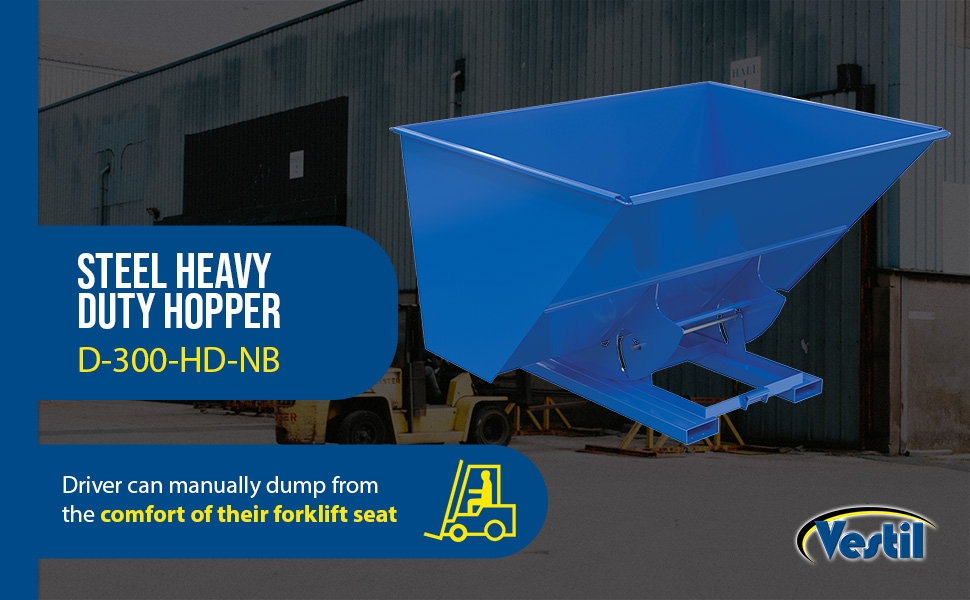

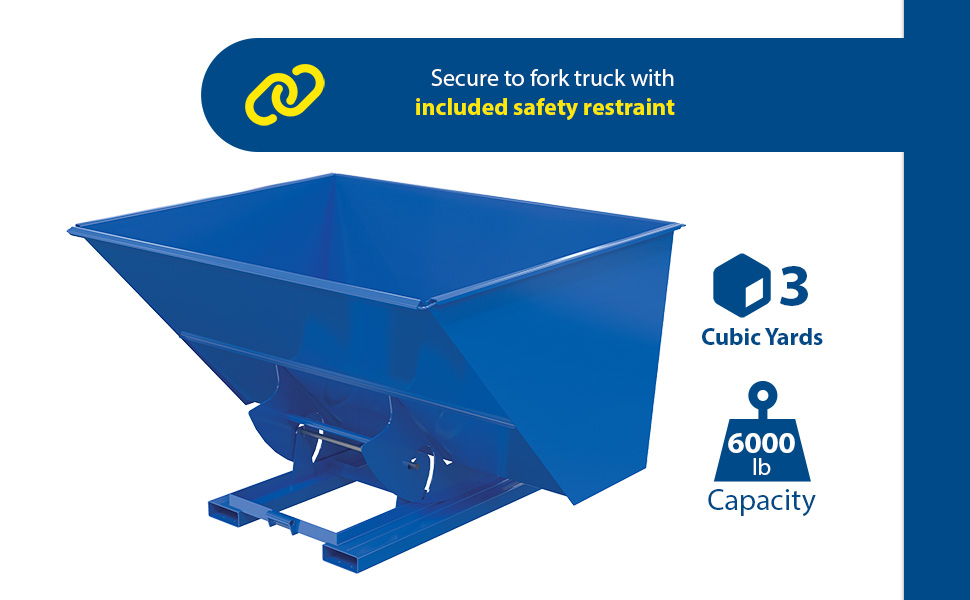

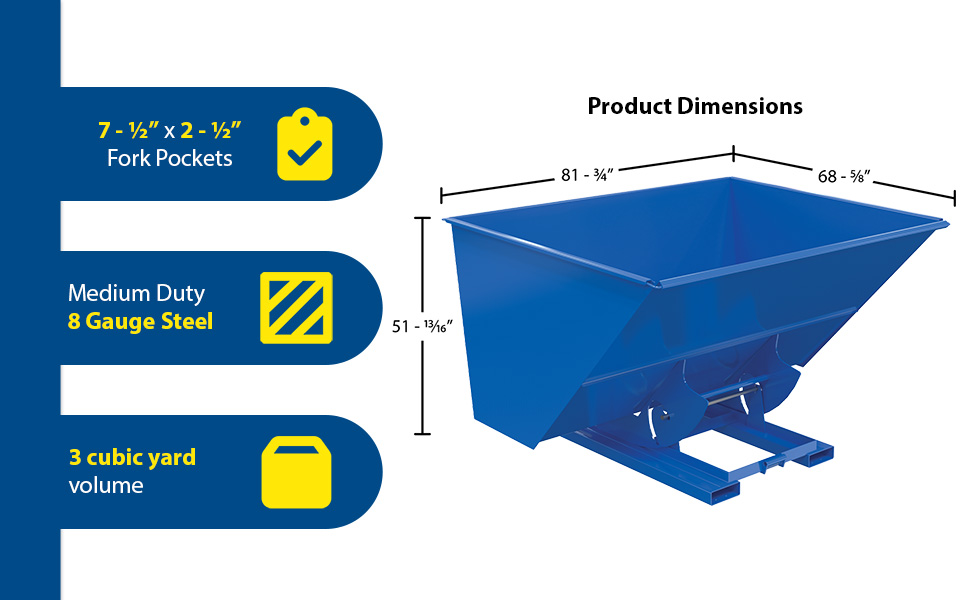

D-300-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	942

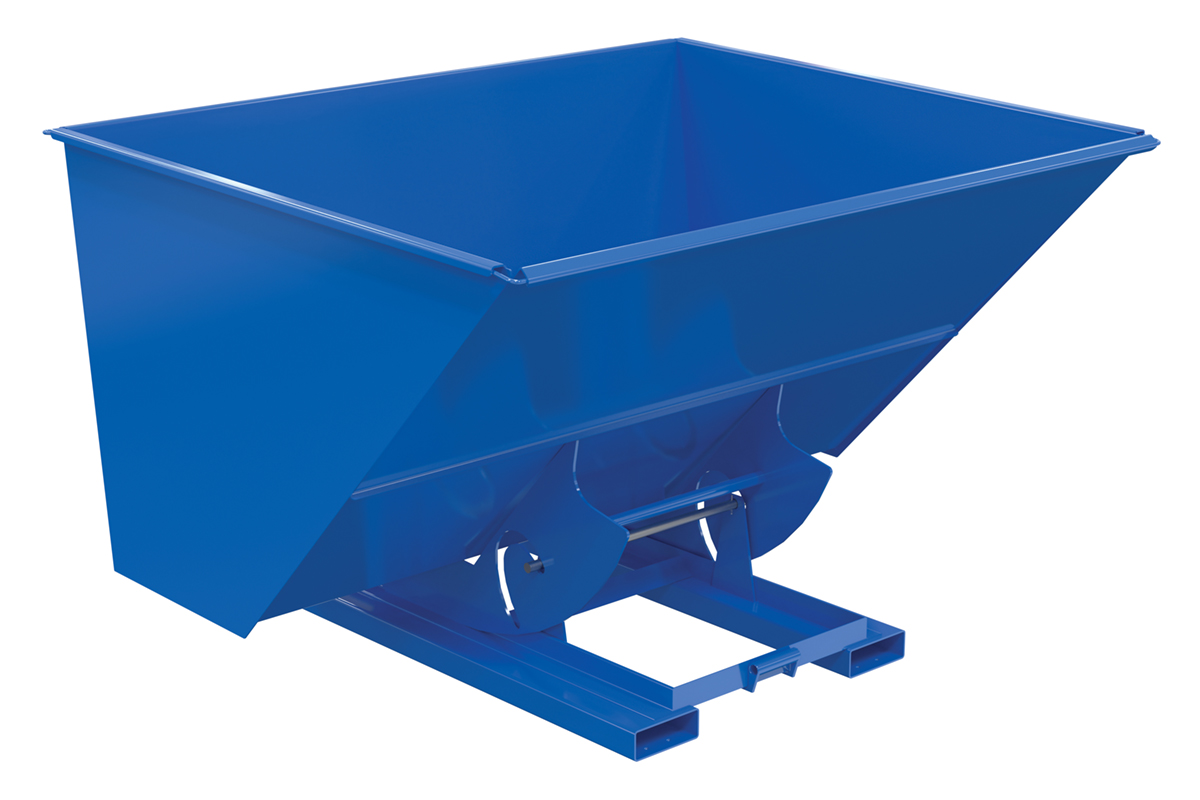

D-300-LD-NB		Steel Light Duty No Bump & Dump Hopper 3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 28	908
D-300-MD-NB		Steel Medium Duty No Bump & Dump Hopper 3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 28	908
D-33-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 1/3 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	374

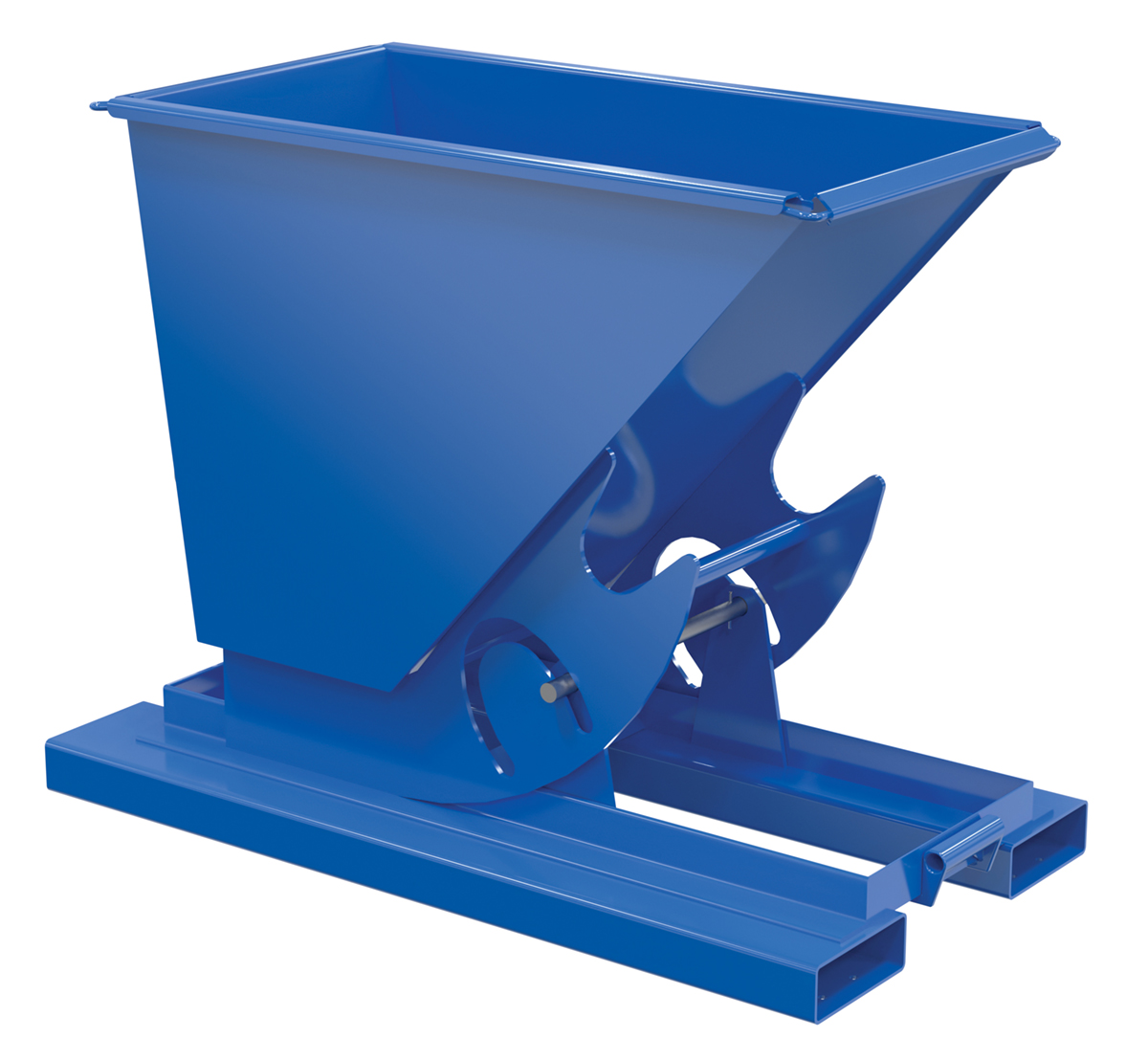

D-33-LD-NB		Steel Light Duty No Bump & Dump Hopper 1/3 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	329
D-33-MD-NB		Steel Medium Duty No Bump & Dump Hopper 1/3 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	374

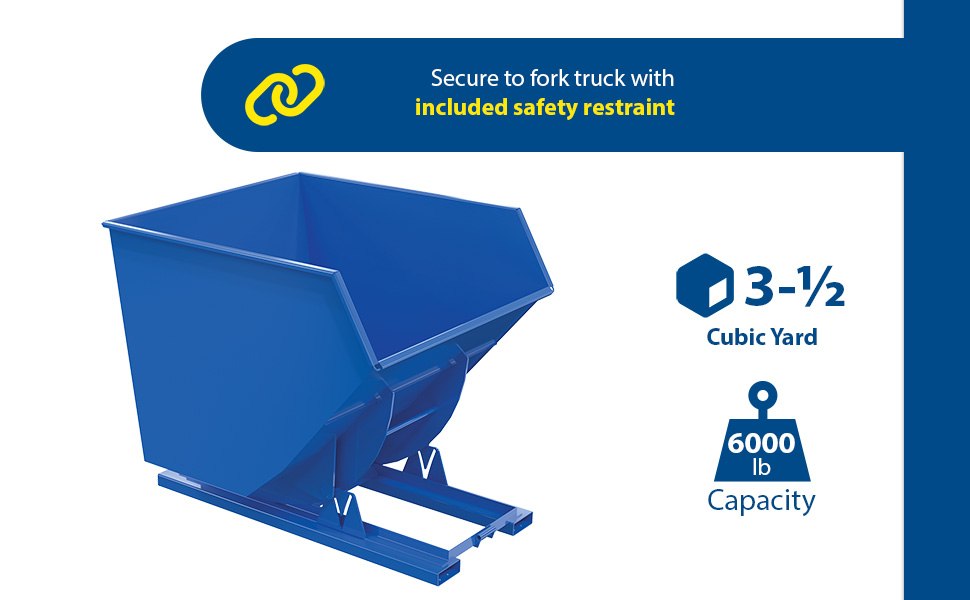

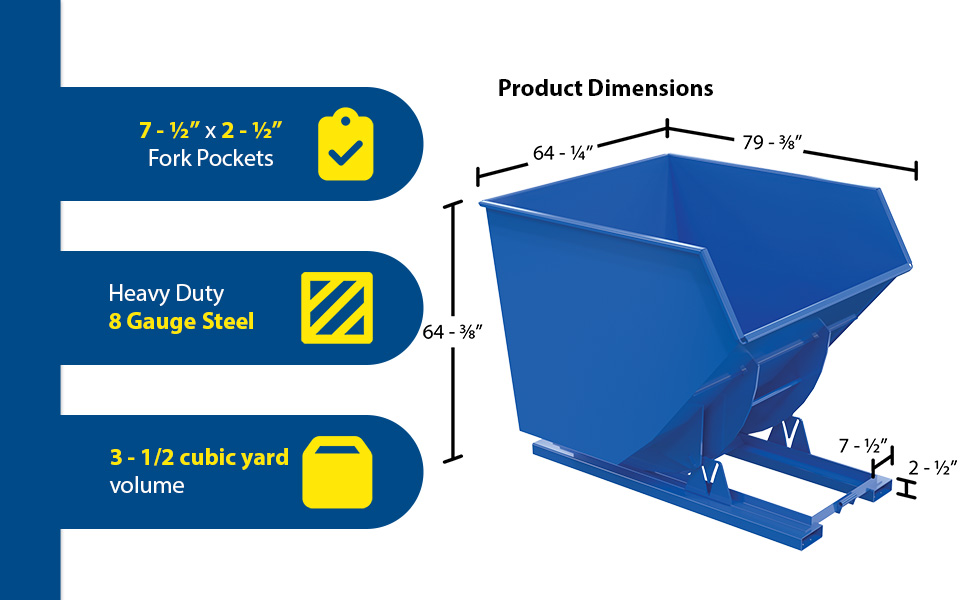

D-350-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 3-1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1128
D-400-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1157
D-50-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 1/2 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	432
D-50-LD-NB		Steel Light Duty No Bump & Dump Hopper 1/2 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	363
D-50-MD-NB		Steel Medium Duty No Bump & Dump Hopper 1/2 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	410

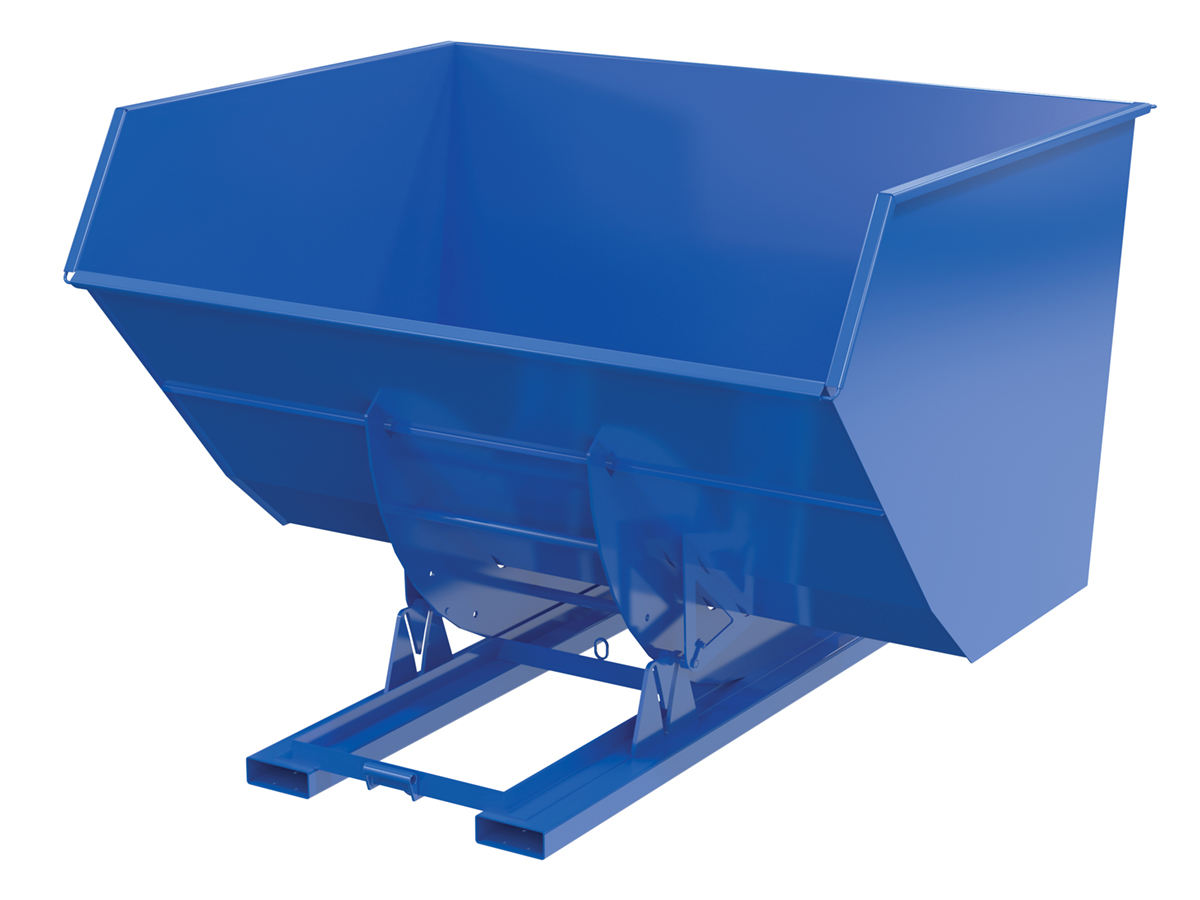

D-500-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 5 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 28	1266
D-75-HD-NB		Steel Heavy Duty No Bump & Dump Hopper 3/4 Cubic Yard 6000 Lb. Capacity Blue	Uniform Capacity (lb.): 6000 Fork Pocket Center (in.): 18	529
D-75-LD-NB		Steel Light Duty No Bump & Dump Hopper 3/4 Cubic Yard 2000 Lb. Capacity Blue	Uniform Capacity (lb.): 2000 Fork Pocket Center (in.): 18	433

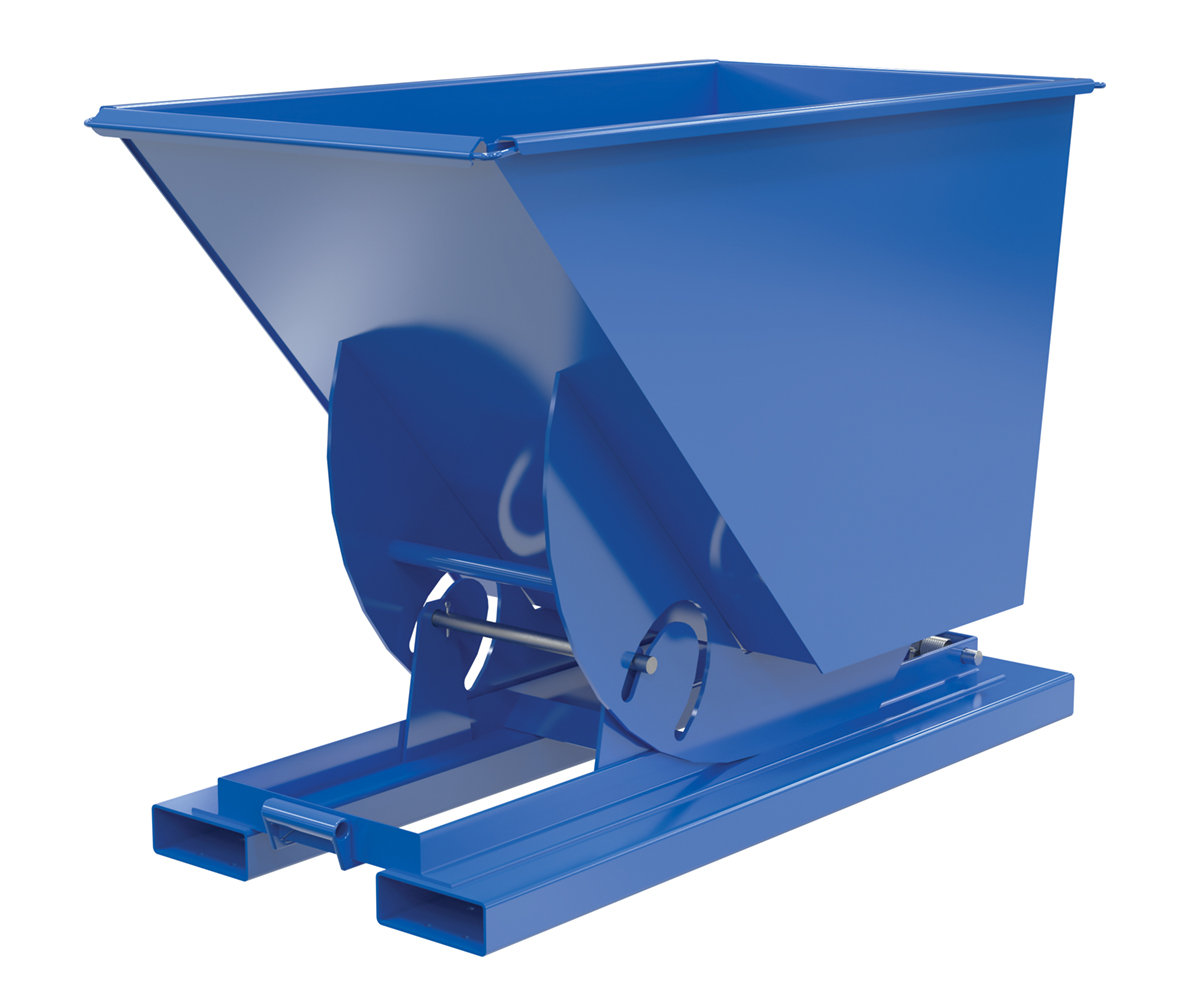

D-75-MD-NB		Steel Medium Duty No Bump & Dump Hopper 3/4 Cubic Yard 4000 Lb. Capacity Blue	Uniform Capacity (lb.): 4000 Fork Pocket Center (in.): 18	529
