Pour-In-Place Handrails

Print Friendly

Model Chart
PDF's
Image Gallery
FEATURED Pour-In-Place Handrails

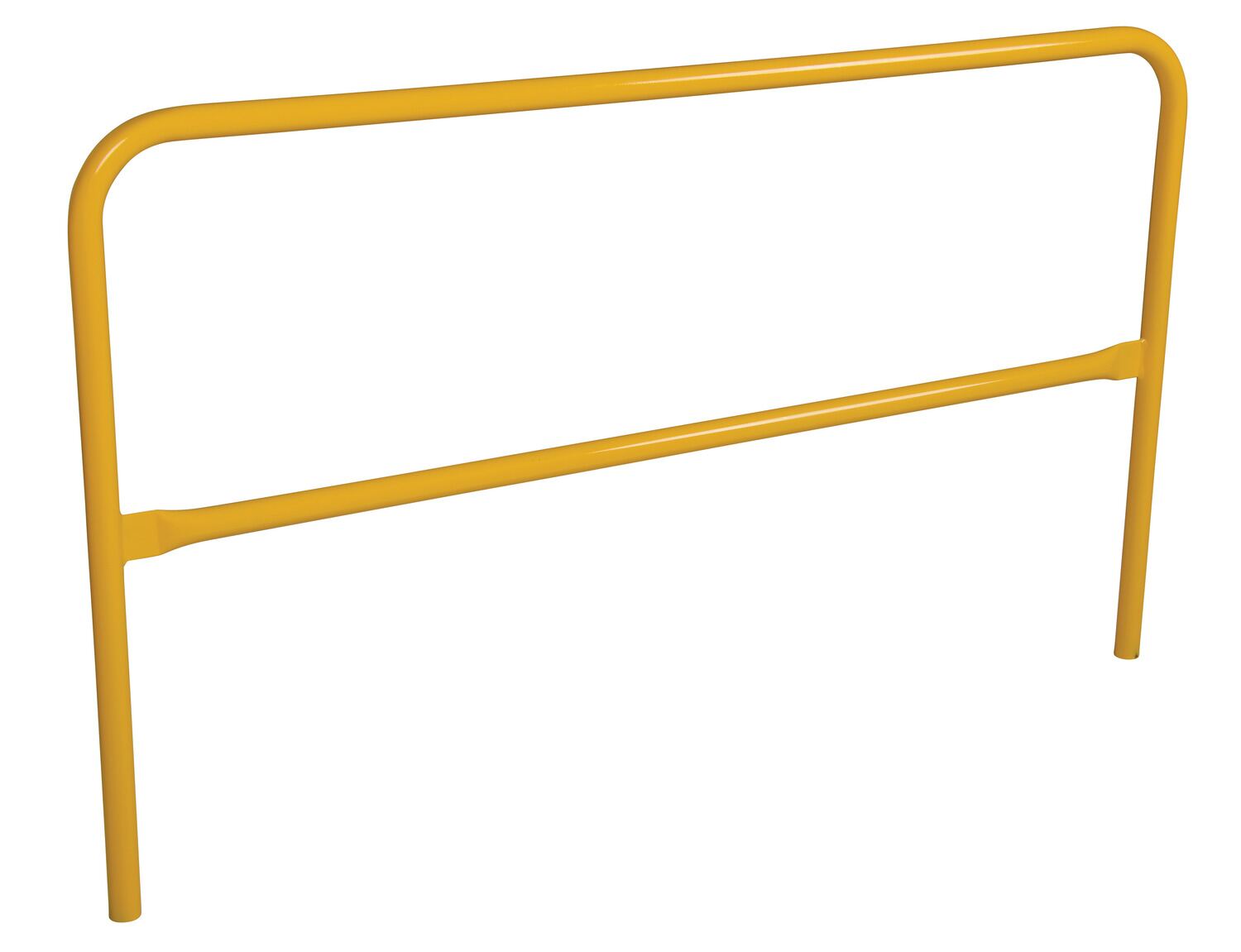

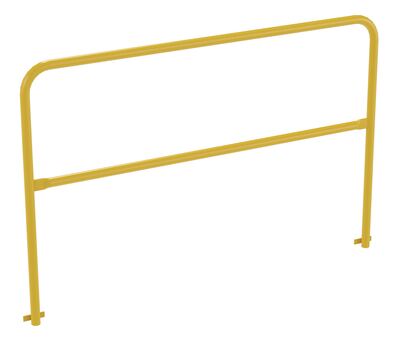

model: VDKR-PP-6

More Images +
Pour-In-Place Handrails
SERIES: VDKR-PP   8Products
New Product Powder Coat Custom Colors Custom Fabrication

Pour-In-Place Steel Safety Handrails for Concrete Guardrail Installation

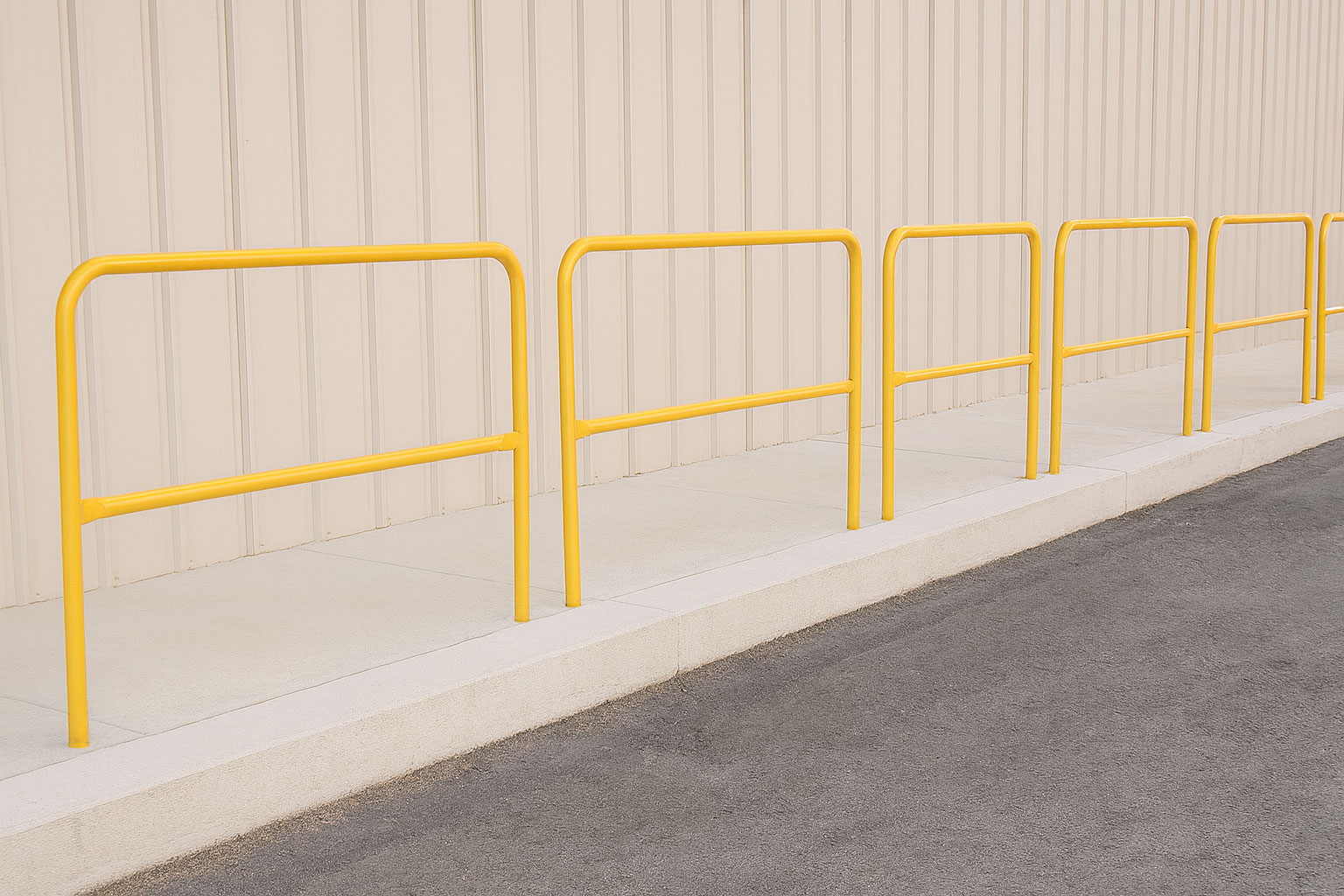

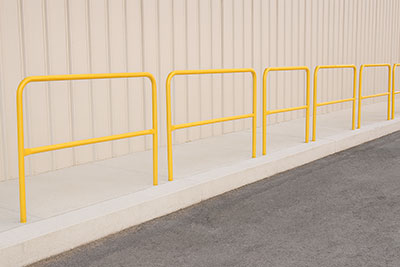

VDKR-PP-6_1.jpgPour-in-place steel safety handrails provide permanent edge protection for elevated walkways, mezzanines, platforms, loading areas, and other drop-off locations. Designed for direct installation into concrete, these guardrail sections help protect personnel in industrial, commercial, warehouse, and facility maintenance environments where a surface-mounted rail is not the preferred solution.

Concrete-Embedded Guardrail Design

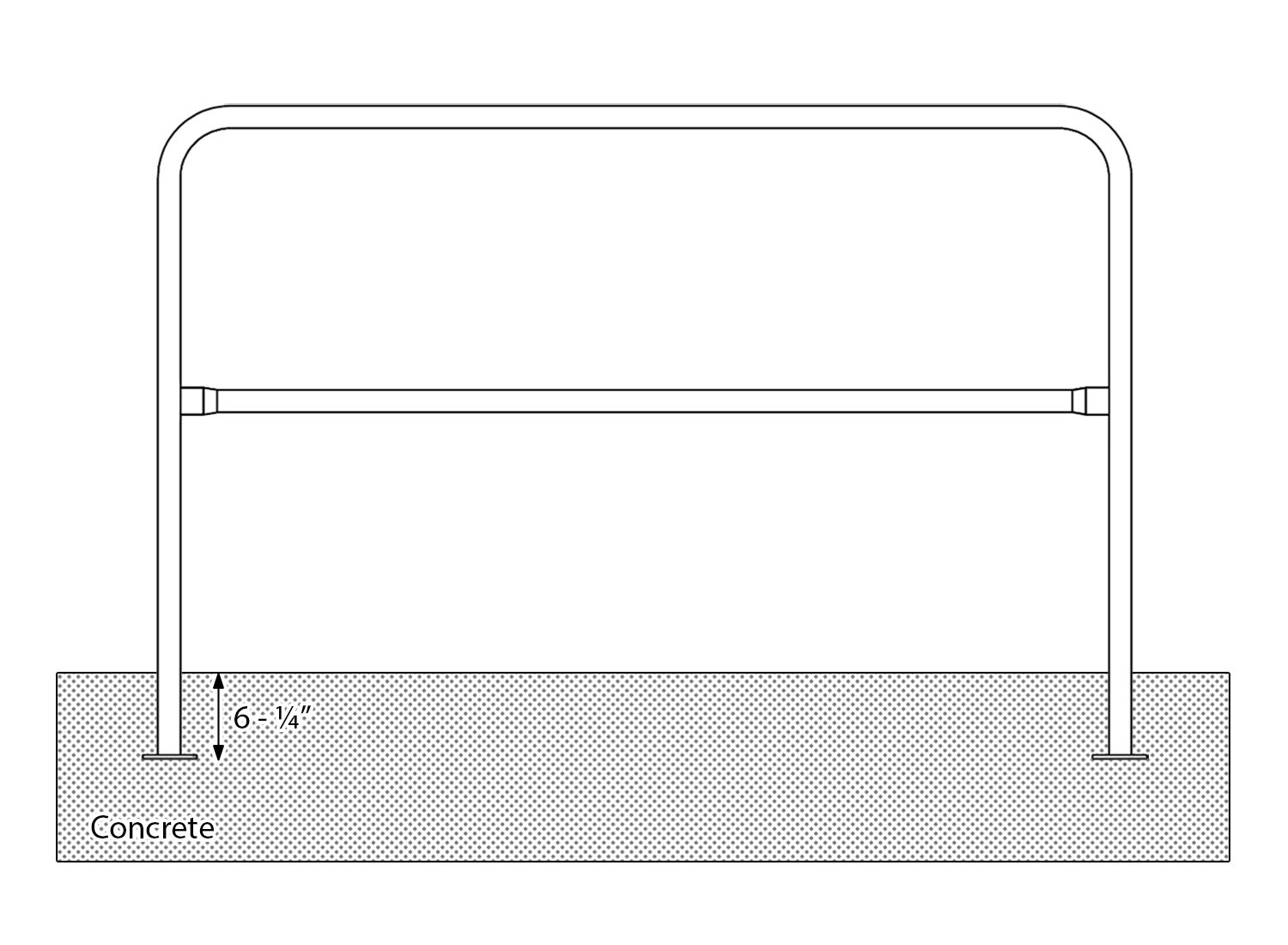

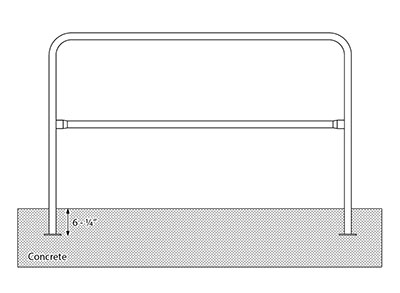

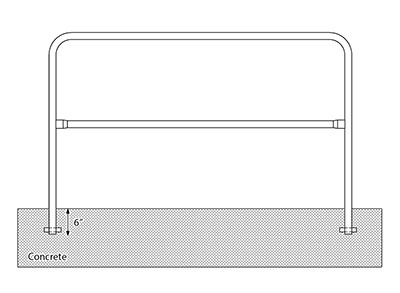

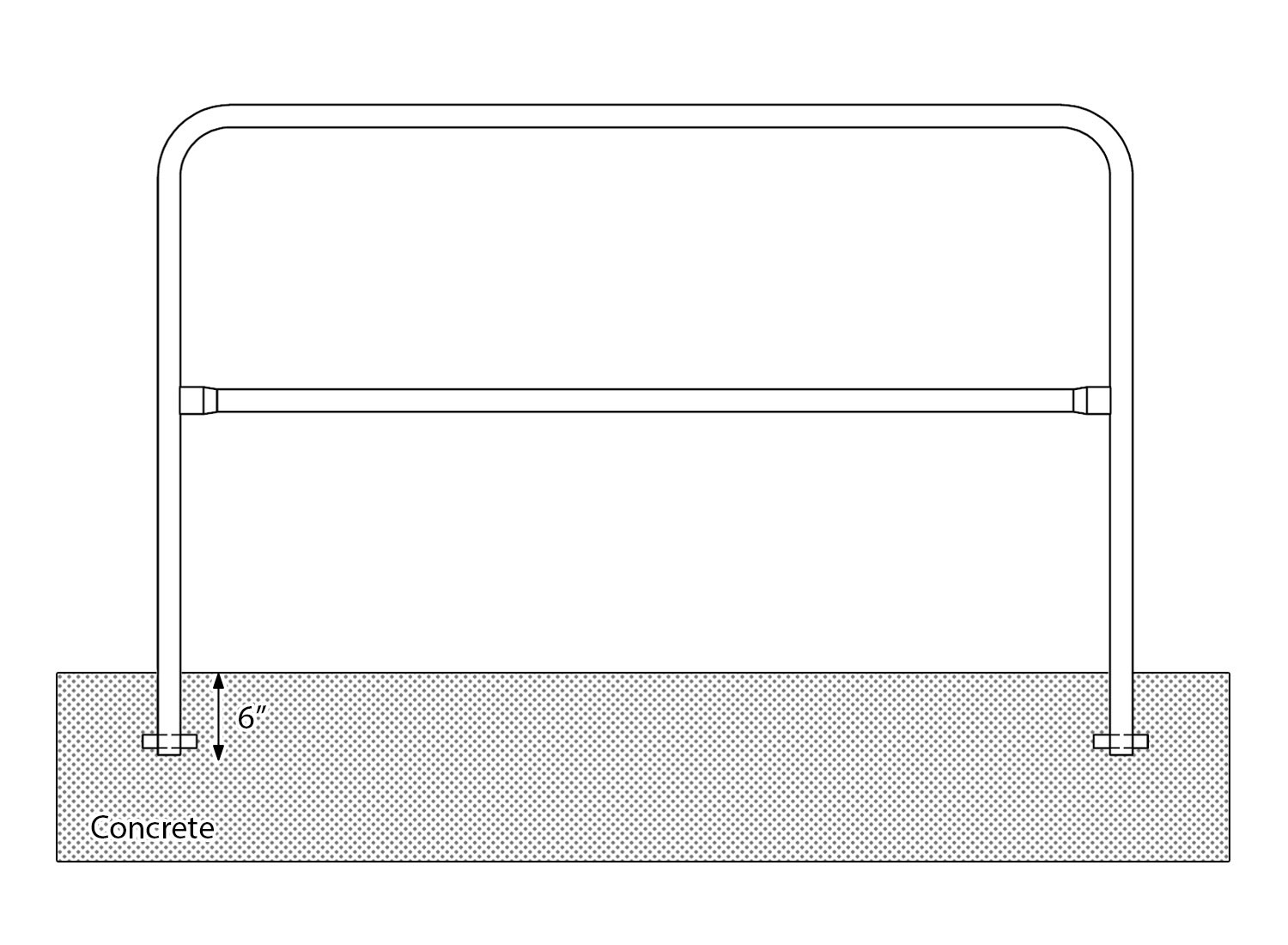

The pour-in-place design includes extended leg length for setting the rail directly into concrete. A 6 inch mounting depth is recommended, giving installers a secure embedded connection without surface mounting plates. This makes the handrail well suited for new construction, concrete pours, and permanent facility safety upgrades.

Durable Schedule 10 Steel Construction

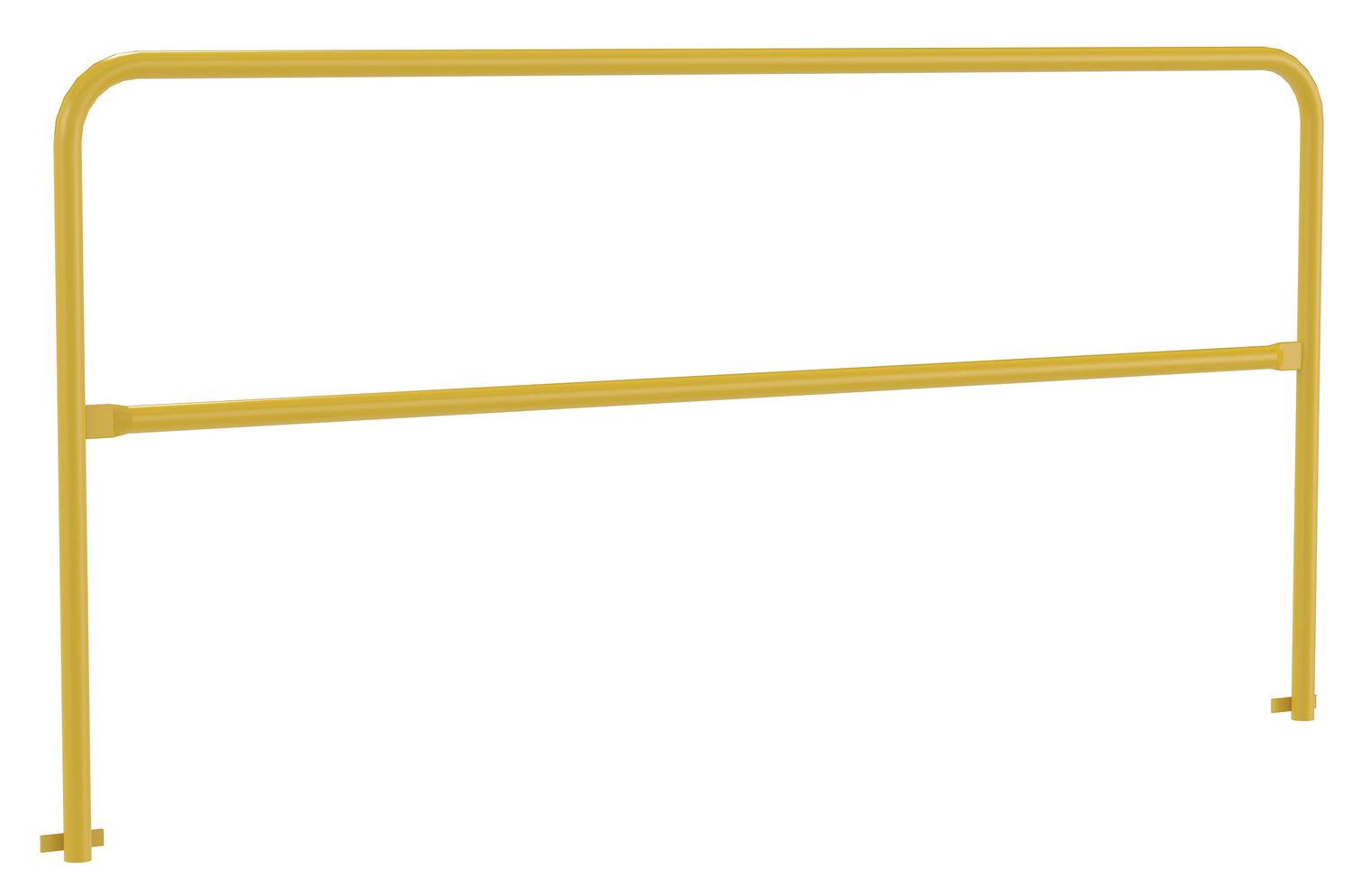

Constructed from schedule 10 steel, each handrail includes both top rail and mid rail protection. The 1-5/8 inch diameter rail provides a strong grip surface, while the durable yellow powder-coated finish improves visibility and adds long-lasting protection in demanding work areas.

Lengths and Safety Compliance

This family includes overall lengths from 26-1/2 inches to 122-1/4 inches, allowing facilities to select rail sections for different walkway, platform, and mezzanine layouts. The VDKR series safety rail products are designed to comply with OSHA General Industry guardrail requirements in 29 CFR 1910.29 and ANSI standards, to help specify reliable fall protection for elevated work areas.

Standard Steel VDKR Railing
Check Out Our Standard Steel Safety Railing
Aluminum ADKR Railing
Check Out Our Aluminum Safety Railing
Pour-In-Place Handrails

model: VDKR-PP-6

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

VDKR-PP-10
VDKR-PP-2
VDKR-PP-3
VDKR-PP-4
VDKR-PP-5
VDKR-PP-6
VDKR-PP-7
VDKR-PP-8
PDFs will open in a new window when clicked.

Owner's Manuals

0
No owner's manuals for this product family.

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

8
VDKR-PP-10
Open Drawing
VDKR-PP-2
Open Drawing
VDKR-PP-3
Open Drawing
VDKR-PP-4
Open Drawing
VDKR-PP-5
Open Drawing
VDKR-PP-6
Open Drawing
VDKR-PP-7
Open Drawing
VDKR-PP-8
Open Drawing

Testing Certificates

8
VDKR-PP-10
Open Certificate
VDKR-PP-2
Open Certificate
VDKR-PP-3
Open Certificate
VDKR-PP-4
Open Certificate
VDKR-PP-5
Open Certificate
VDKR-PP-6
Open Certificate
VDKR-PP-7
Open Certificate
VDKR-PP-8
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

0
No label page PDFs for this product family.

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Safety Railing





Pour-In-Place Handrails




Pour-In-Place Steel Safety Handrails for Concrete Guardrail Installation

VDKR-PP-6_1.jpgPour-in-place steel safety handrails provide permanent edge protection for elevated walkways, mezzanines, platforms, loading areas, and other drop-off locations. Designed for direct installation into concrete, these guardrail sections help protect personnel in industrial, commercial, warehouse, and facility maintenance environments where a surface-mounted rail is not the preferred solution.

Concrete-Embedded Guardrail Design

The pour-in-place design includes extended leg length for setting the rail directly into concrete. A 6 inch mounting depth is recommended, giving installers a secure embedded connection without surface mounting plates. This makes the handrail well suited for new construction, concrete pours, and permanent facility safety upgrades.

Durable Schedule 10 Steel Construction

Constructed from schedule 10 steel, each handrail includes both top rail and mid rail protection. The 1-5/8 inch diameter rail provides a strong grip surface, while the durable yellow powder-coated finish improves visibility and adds long-lasting protection in demanding work areas.

Lengths and Safety Compliance

This family includes overall lengths from 26-1/2 inches to 122-1/4 inches, allowing facilities to select rail sections for different walkway, platform, and mezzanine layouts. The VDKR series safety rail products are designed to comply with OSHA General Industry guardrail requirements in 29 CFR 1910.29 and ANSI standards, to help specify reliable fall protection for elevated work areas.

Standard Steel VDKR Railing
Check Out Our Standard Steel Safety Railing
Aluminum ADKR Railing
Check Out Our Aluminum Safety Railing

Model # Description Attributes Net Wt.
(lbs)

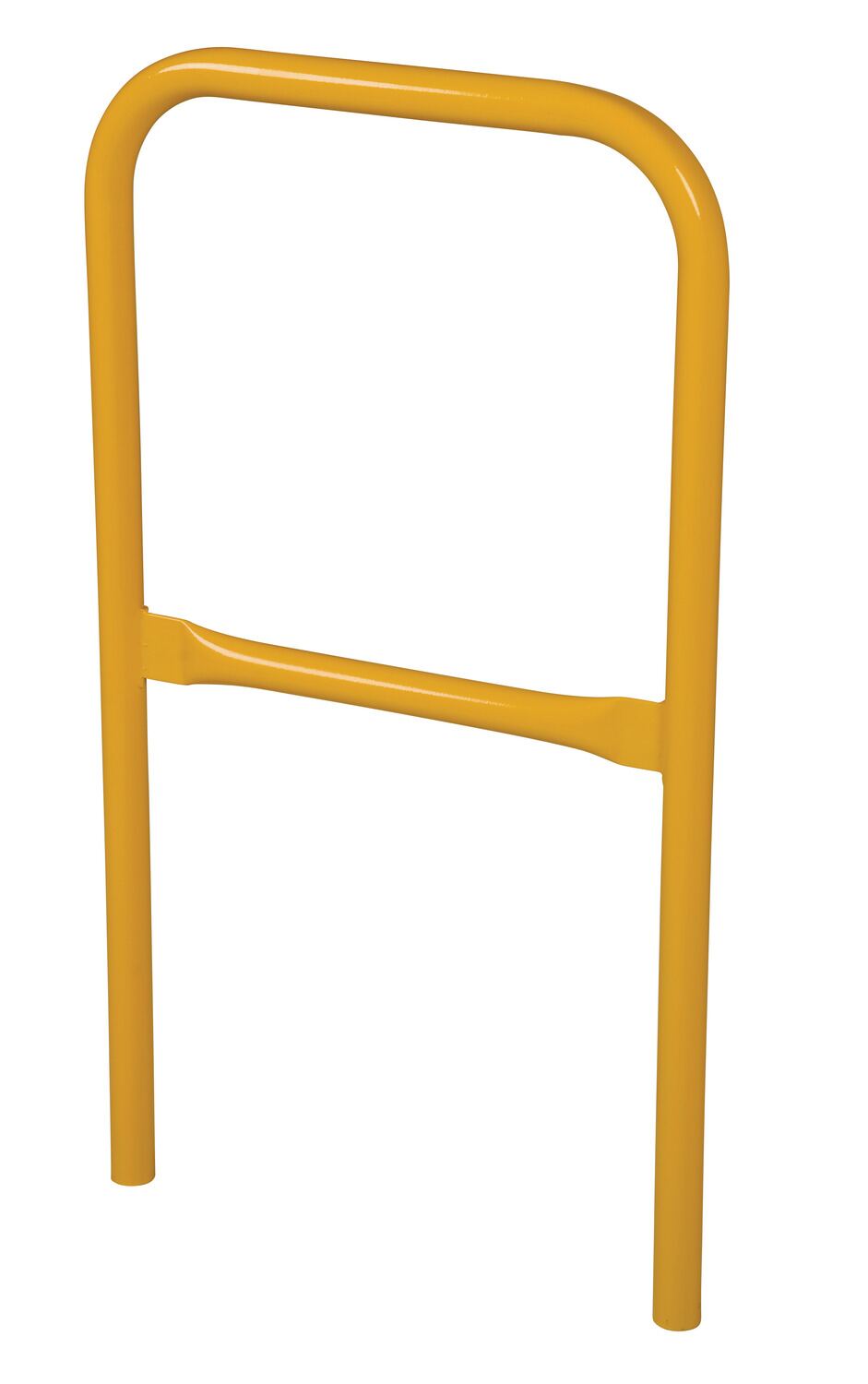

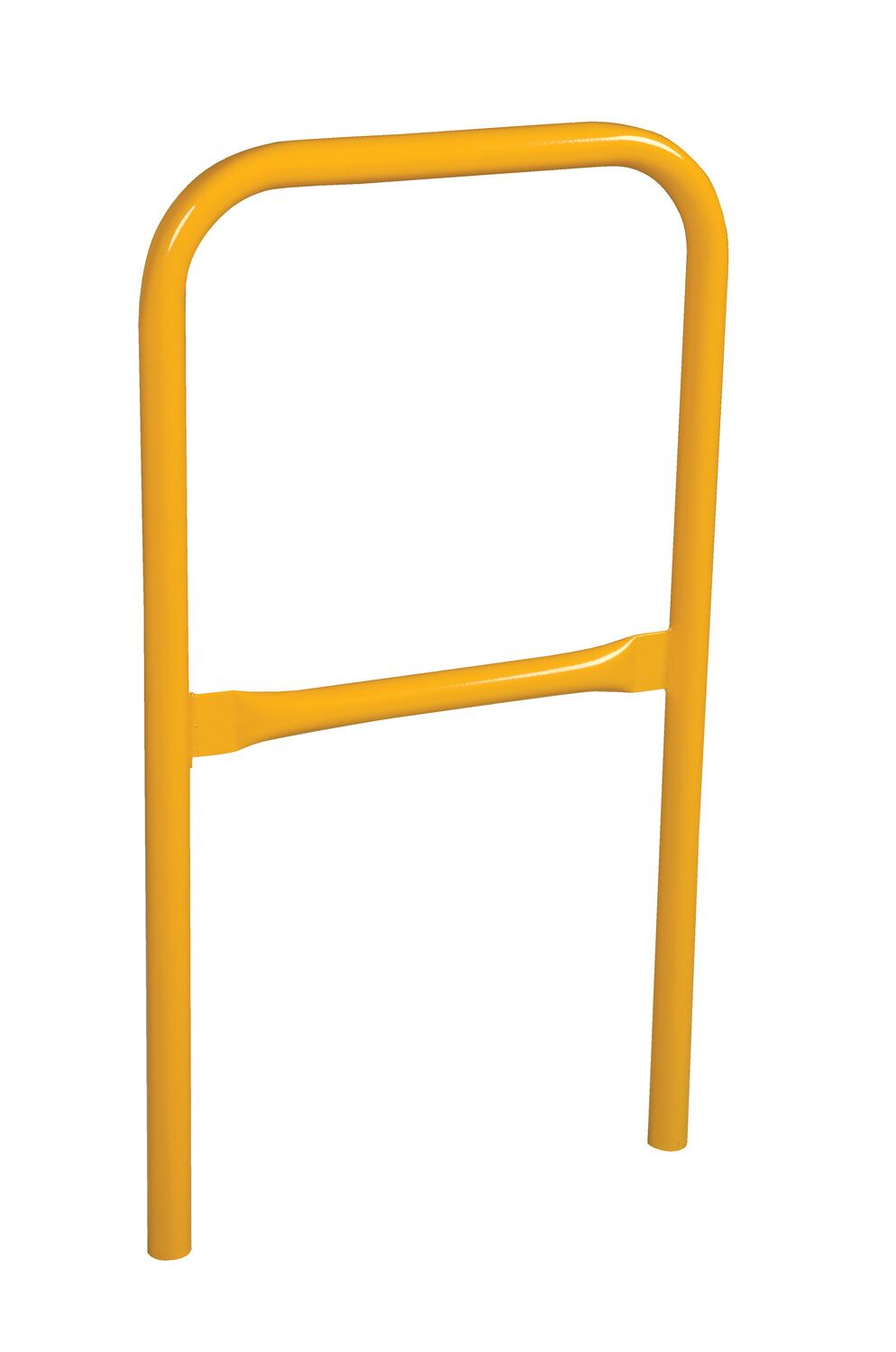

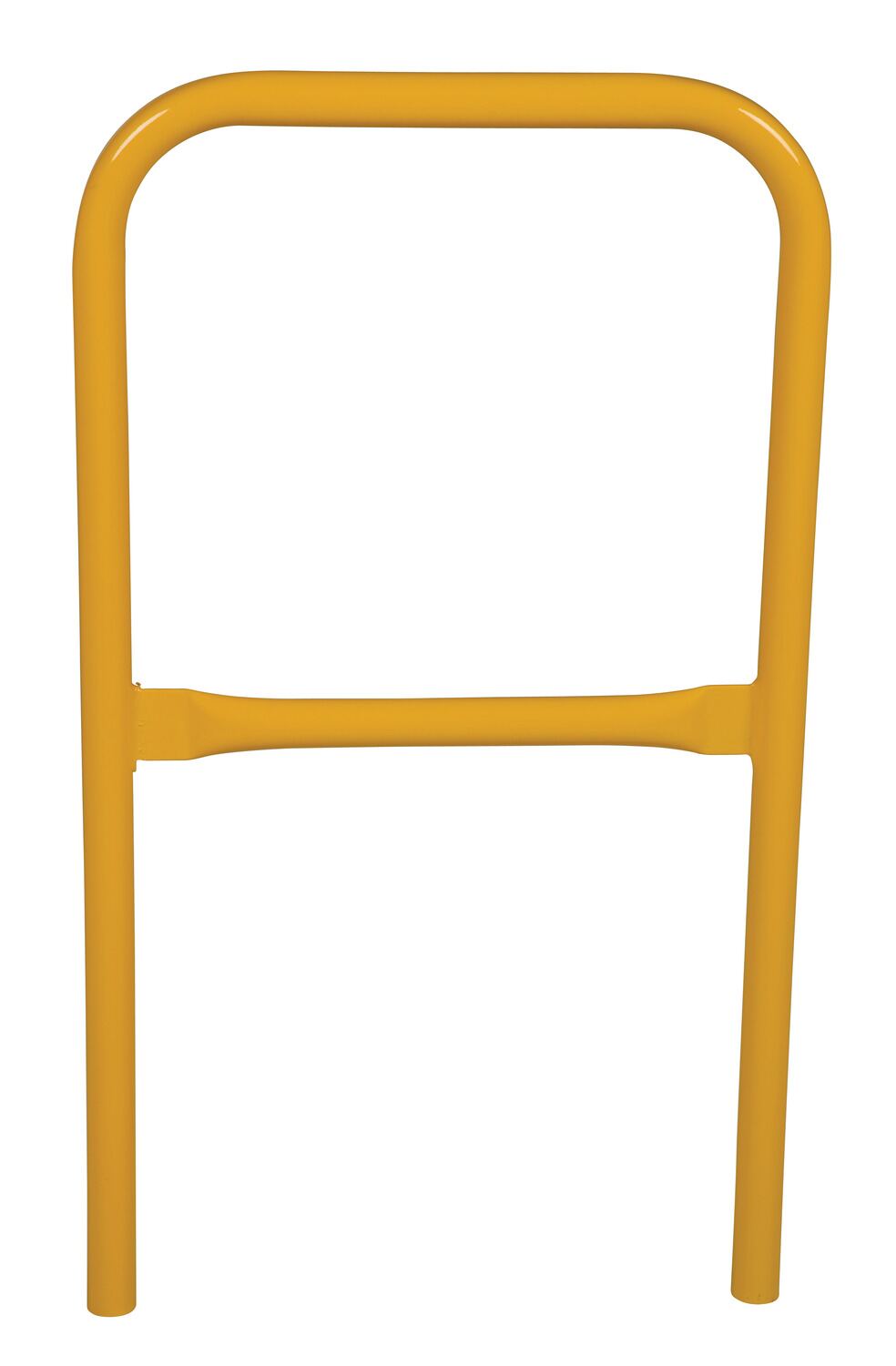

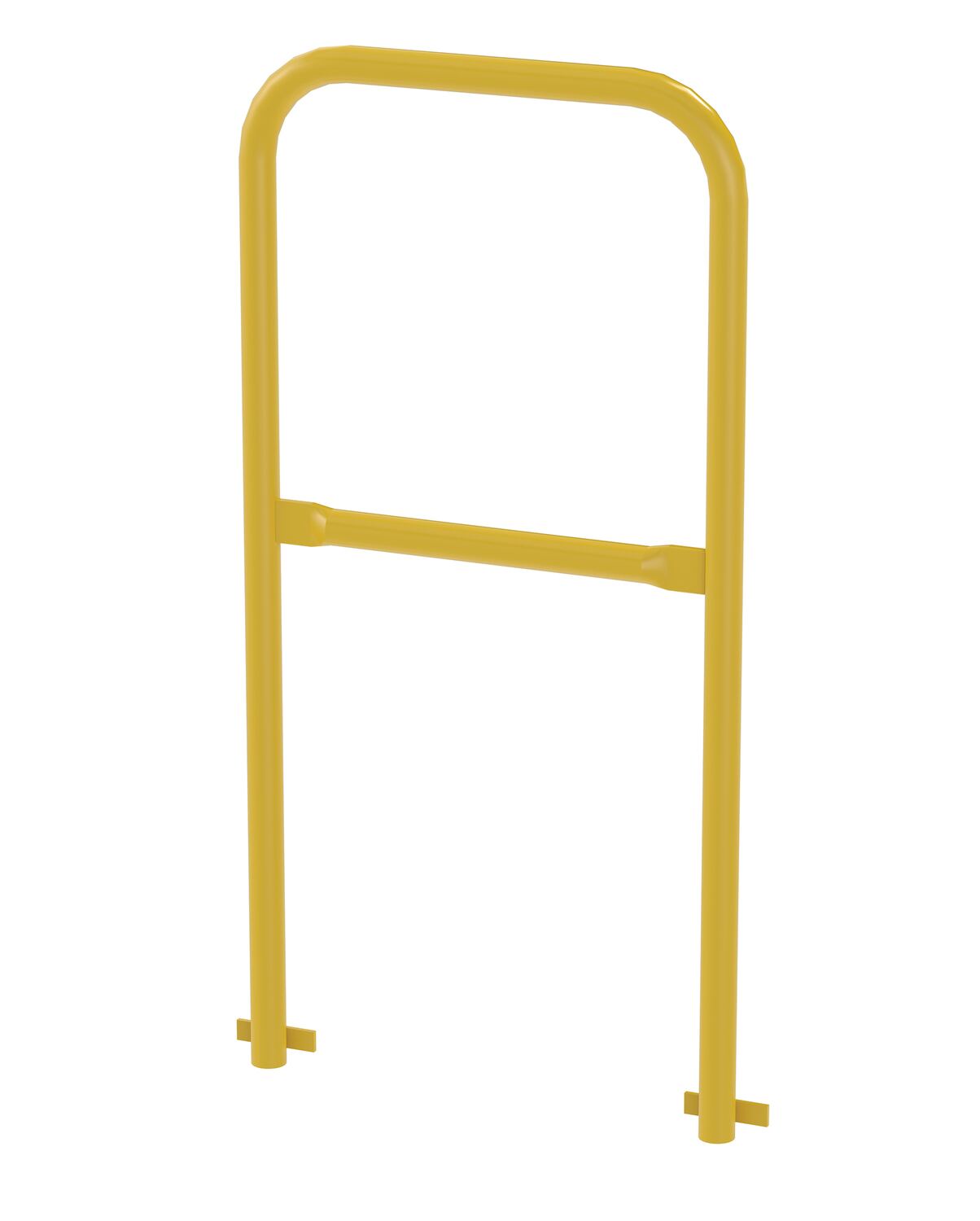

VDKR-PP-2 VDKR-PP-2Steel Safety Railing Pour in Place 2 Ft. Length YellowOverall Length (in.): 26-1/2
Overall Width (in.): 1-1/4		21

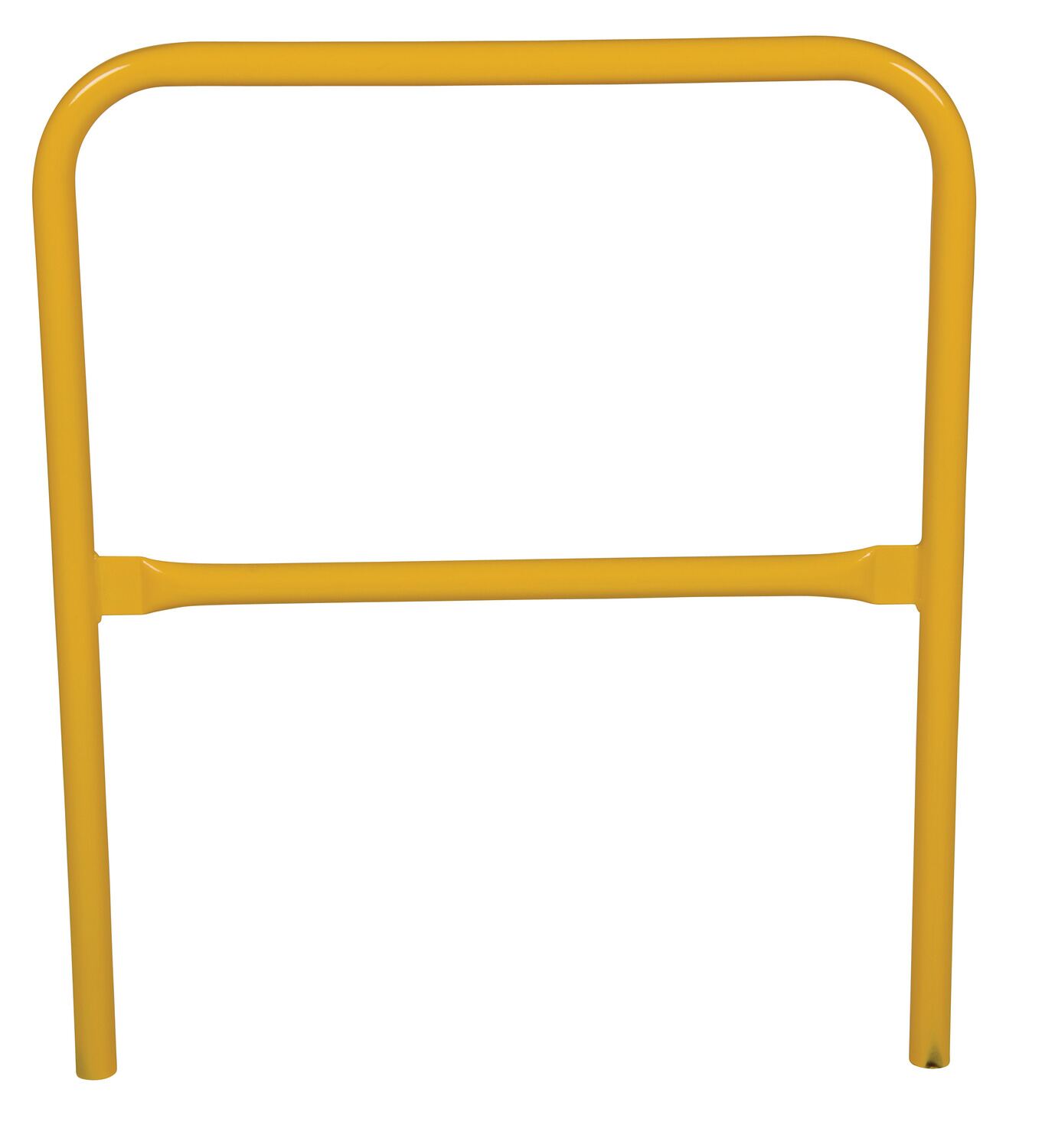

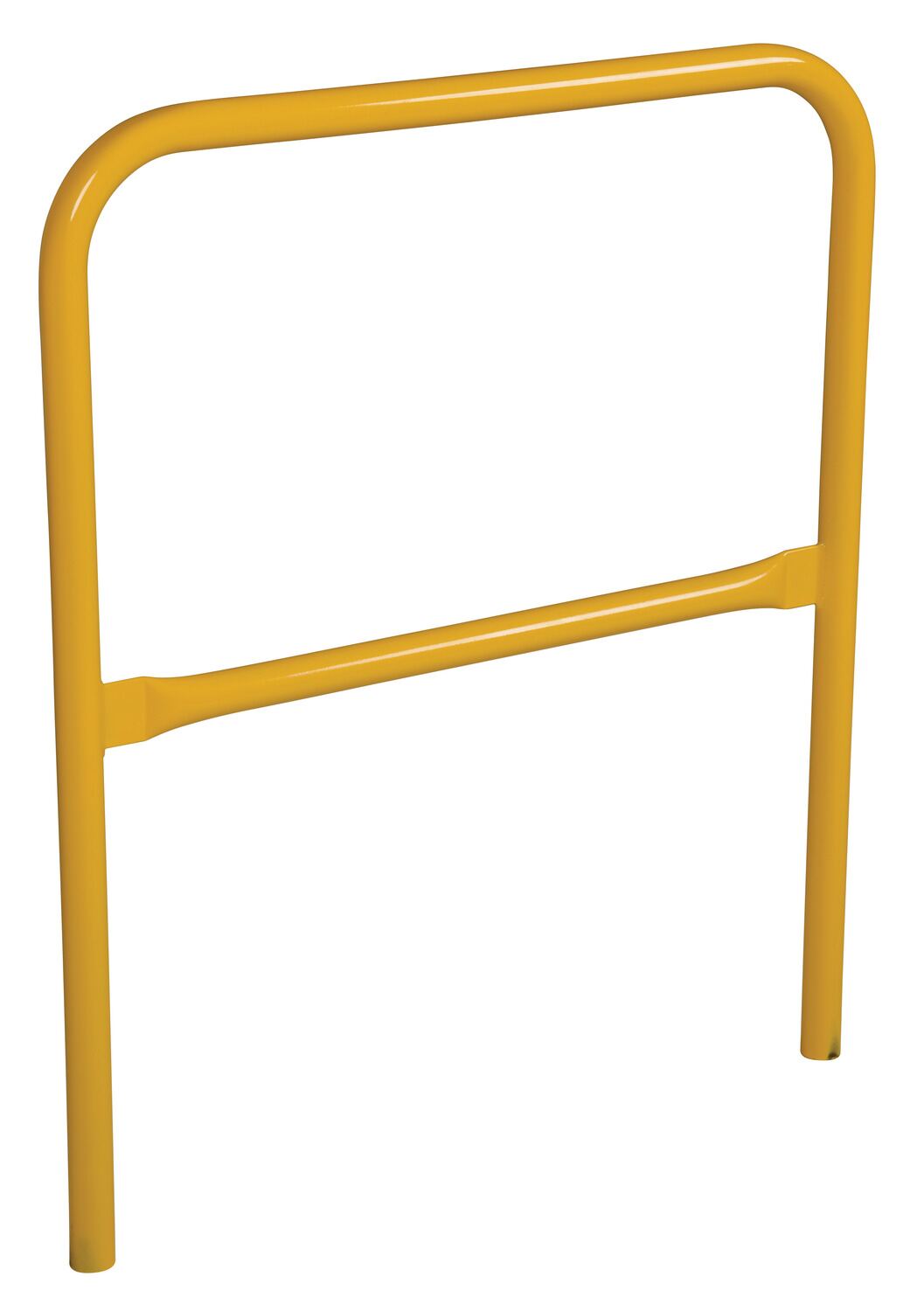

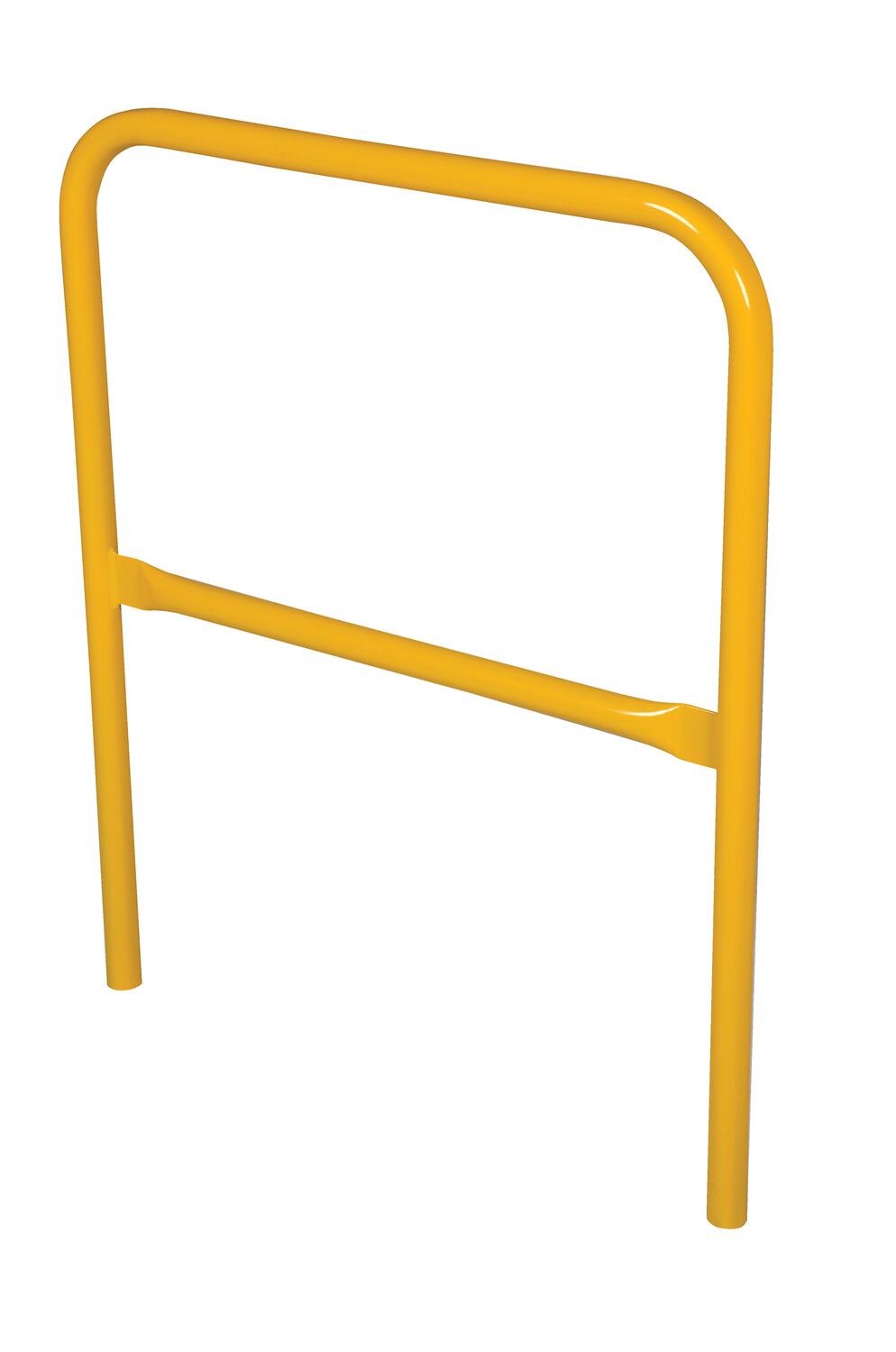

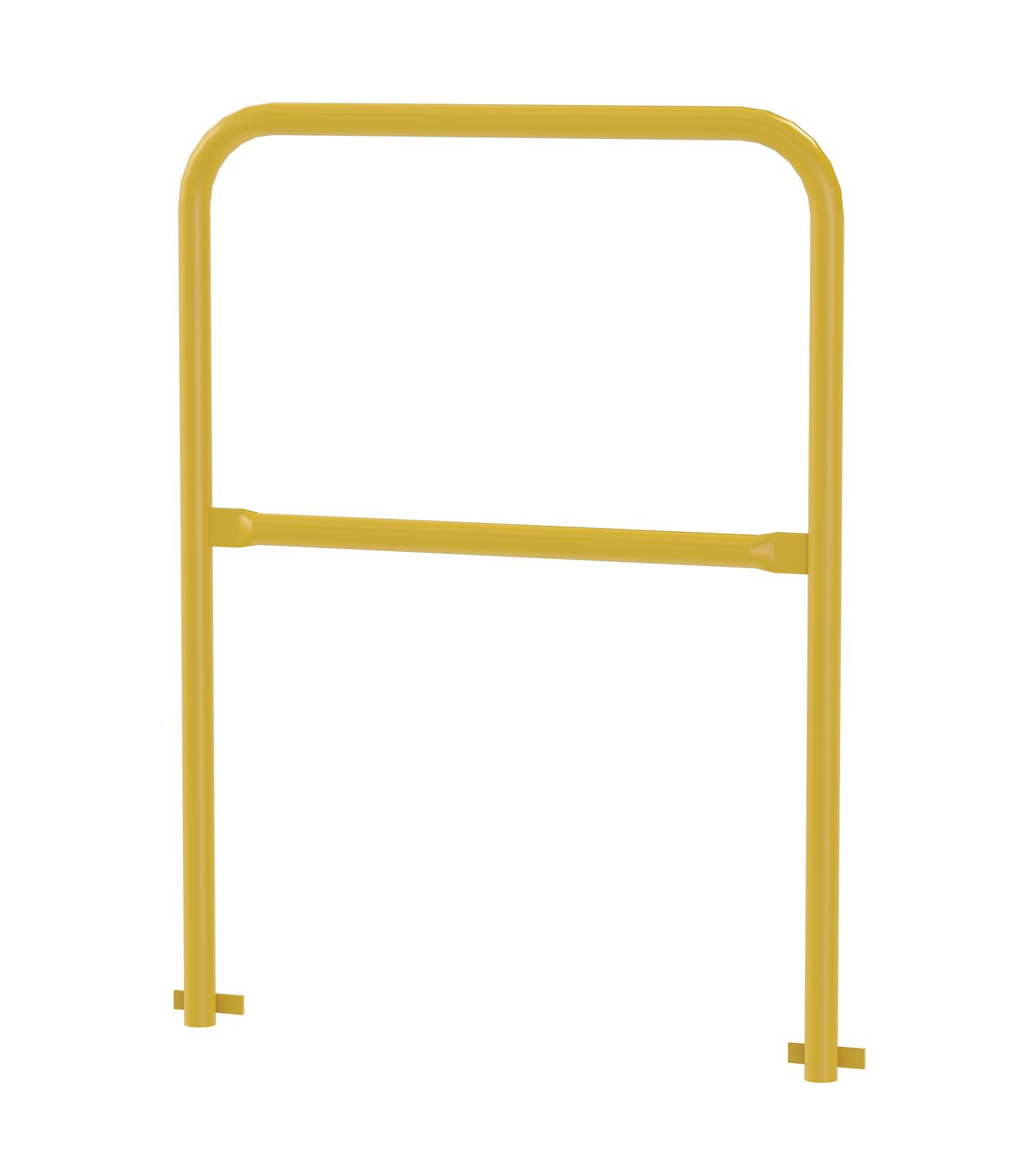

VDKR-PP-3 VDKR-PP-3Steel Safety Railing Pour in Place 3 Ft. Length YellowOverall Length (in.): 38-1/4
Overall Width (in.): 1-1/4		25

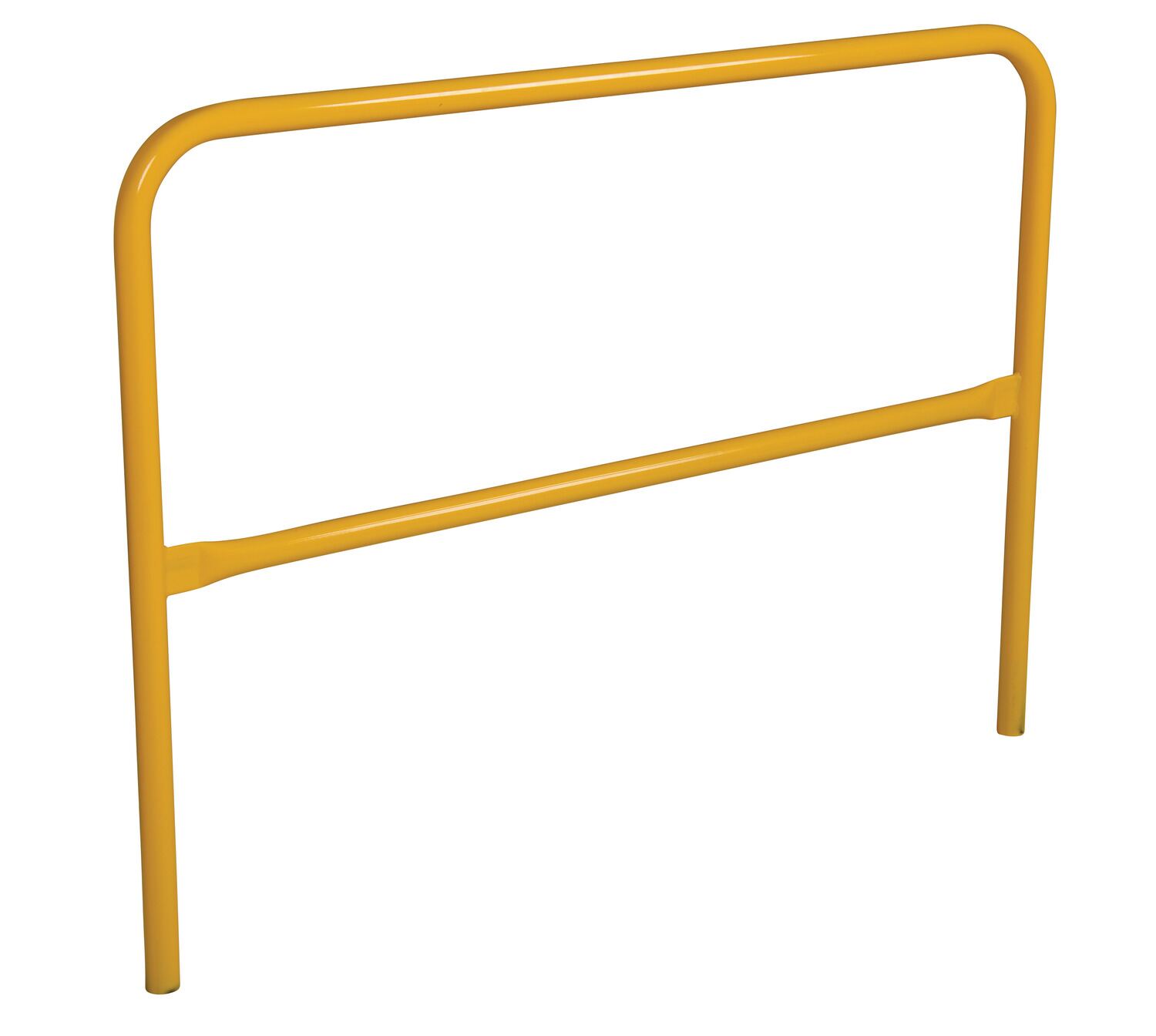

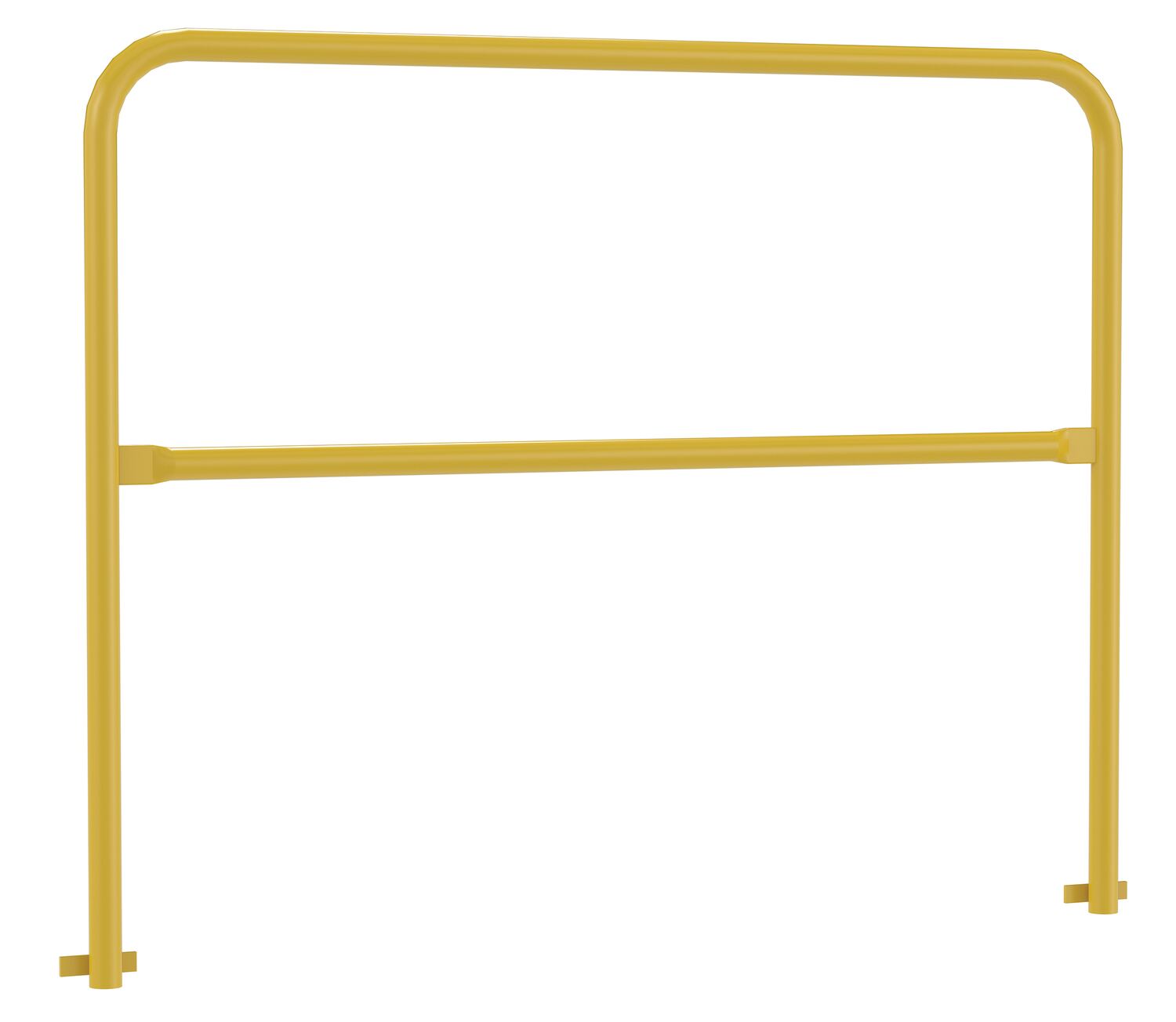

VDKR-PP-5 VDKR-PP-5Steel Safety Railing Pour in Place 5 Ft. Length YellowOverall Length (in.): 62-1/2
Overall Width (in.): 1-1/4		62

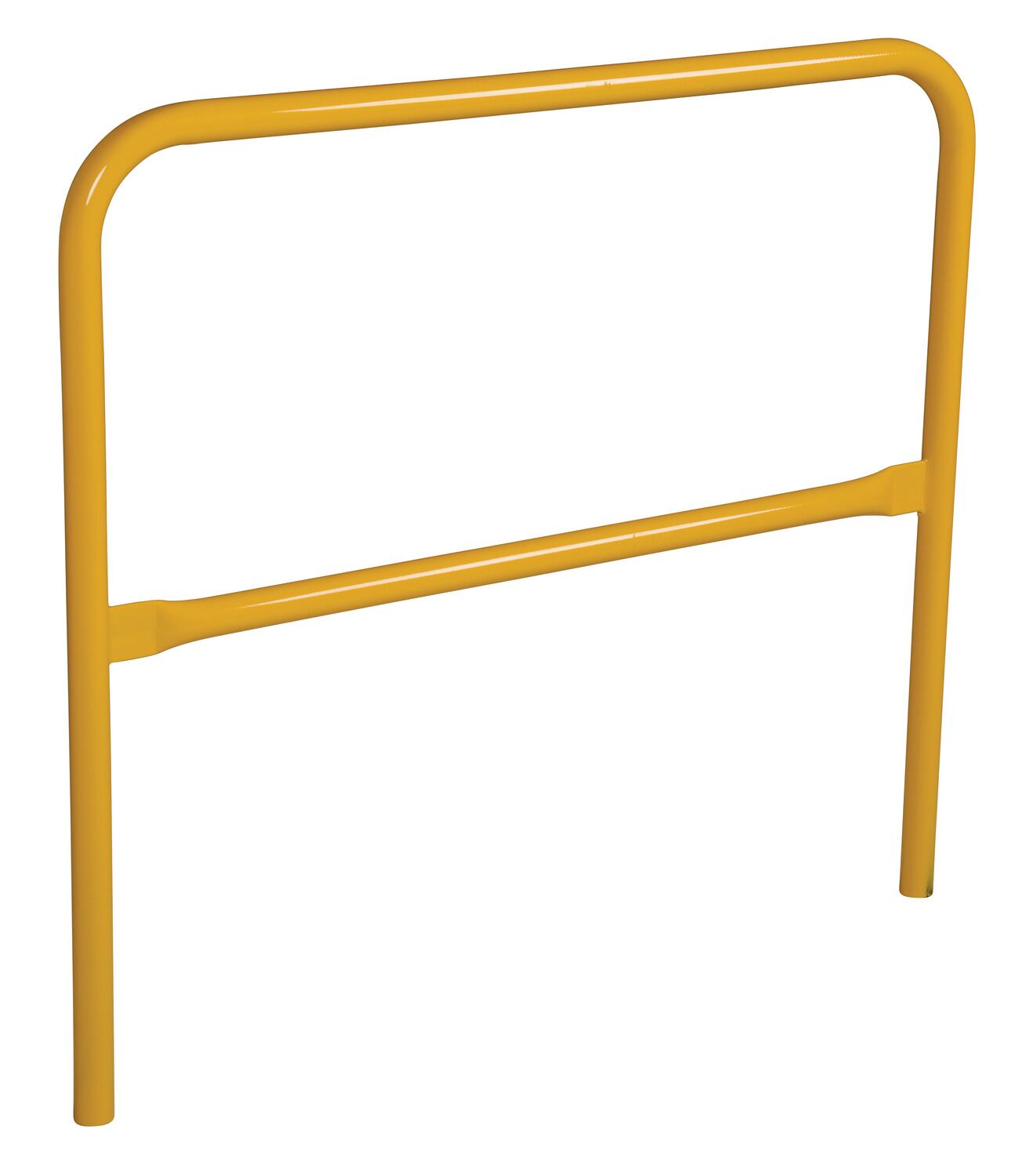

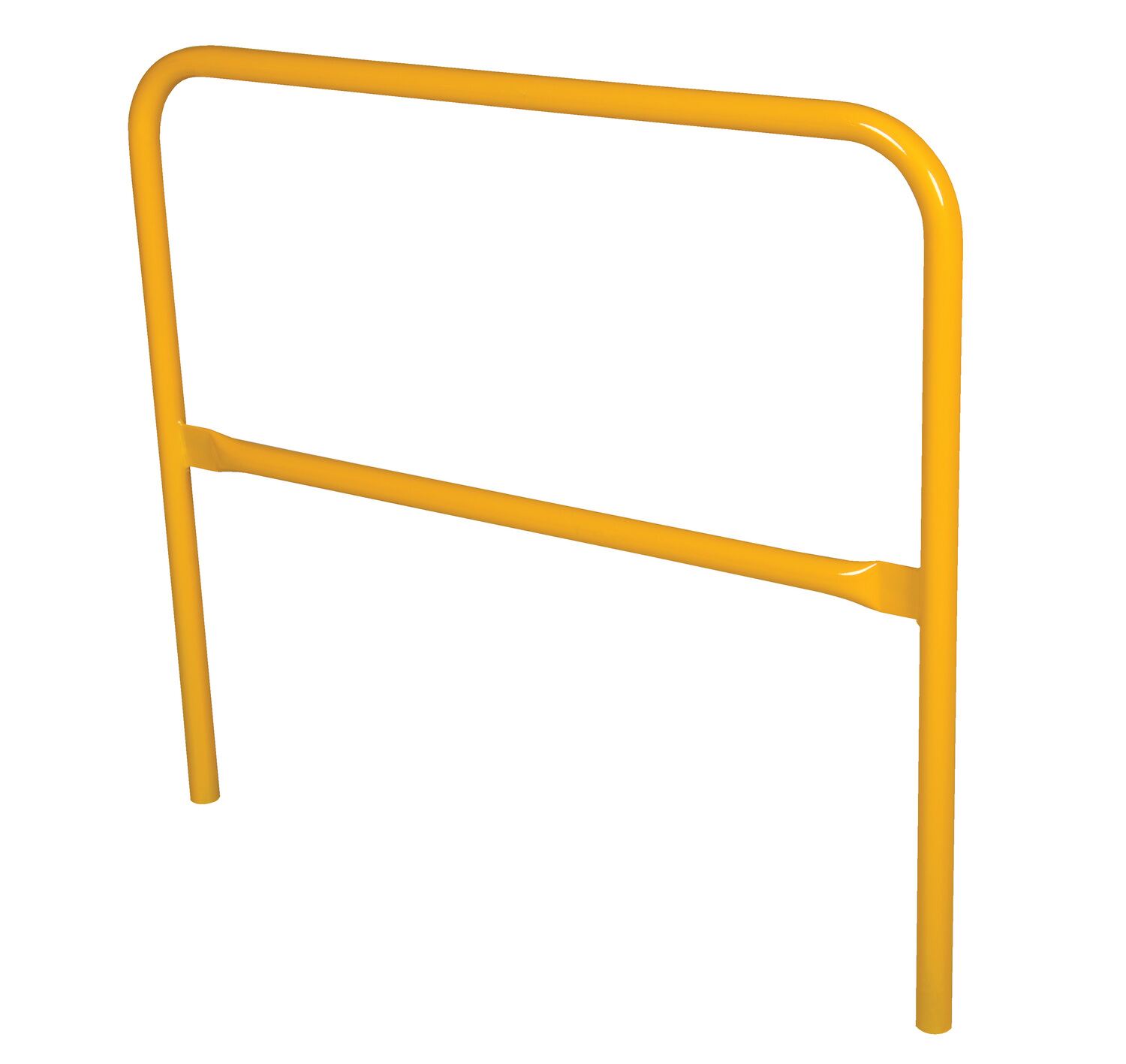

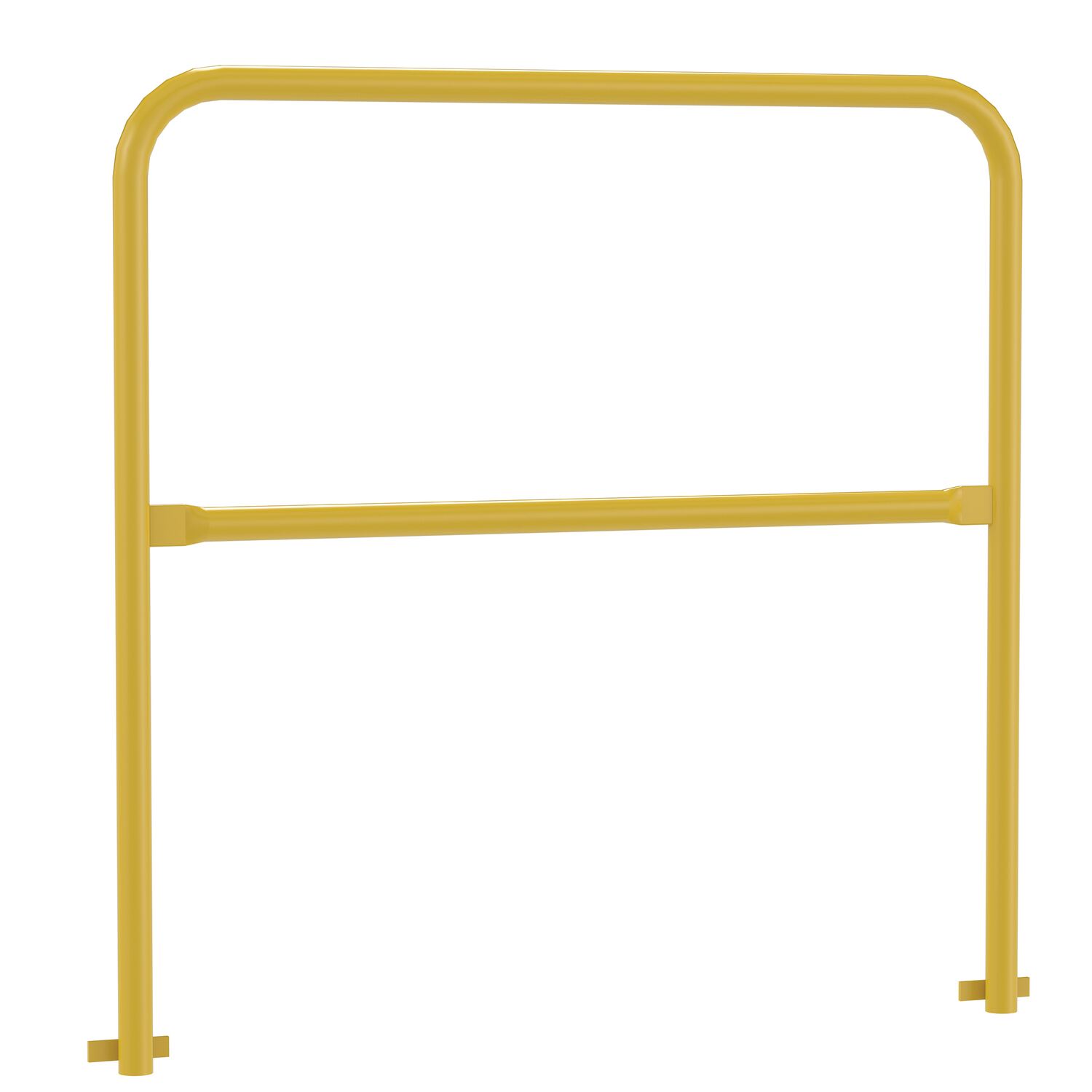

VDKR-PP-4 VDKR-PP-4Steel Safety Railing Pour in Place 4 Ft. Length YellowOverall Length (in.): 50-1/2
Overall Width (in.): 1-1/4		29

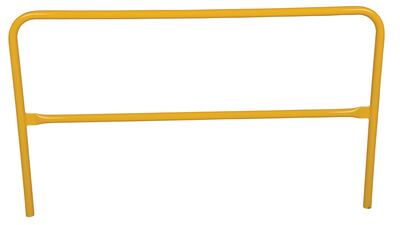

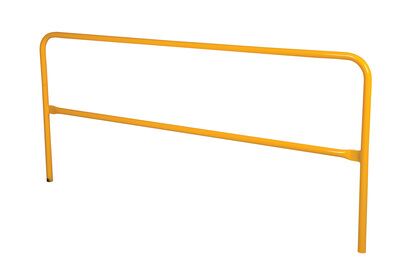

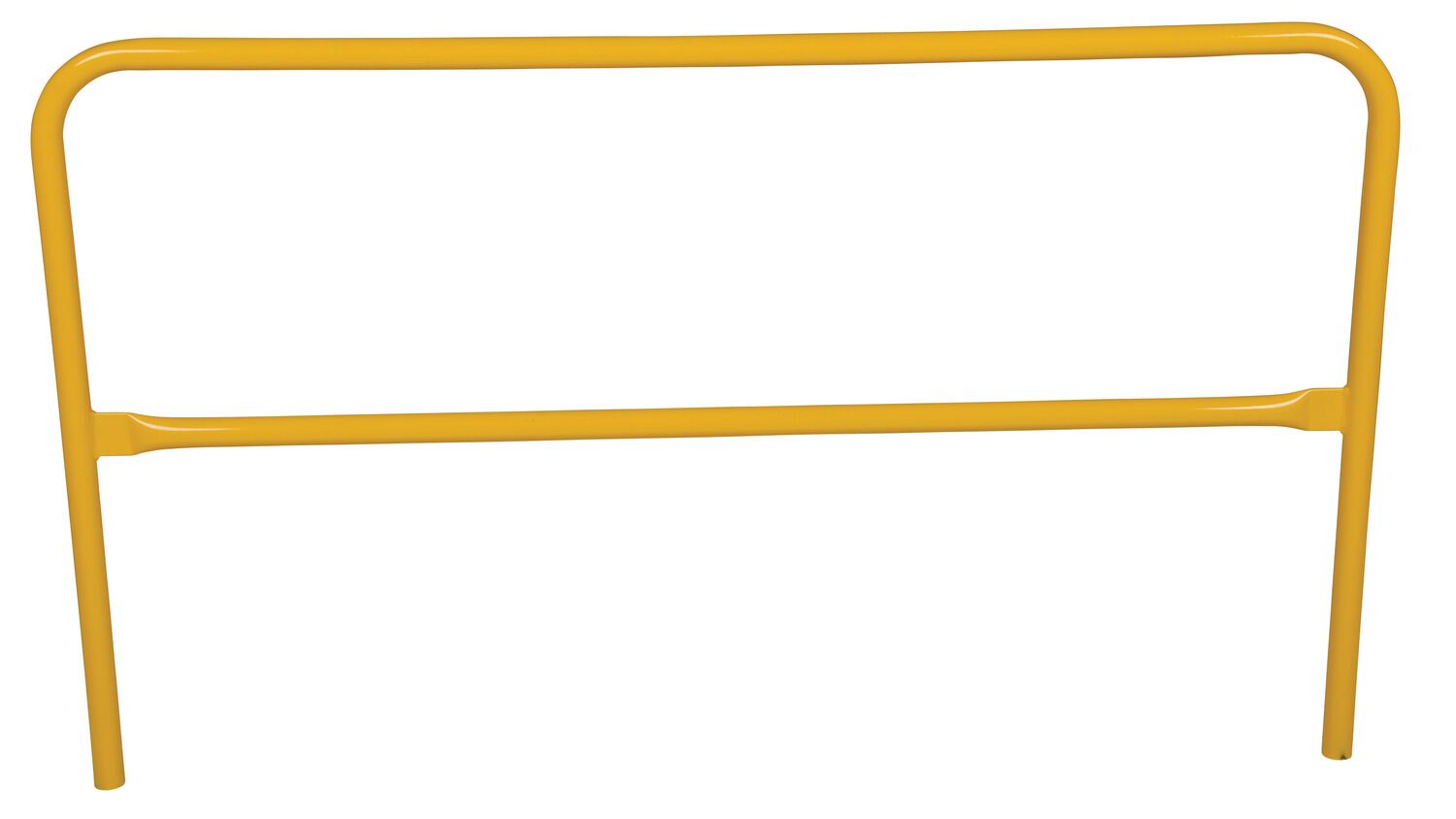

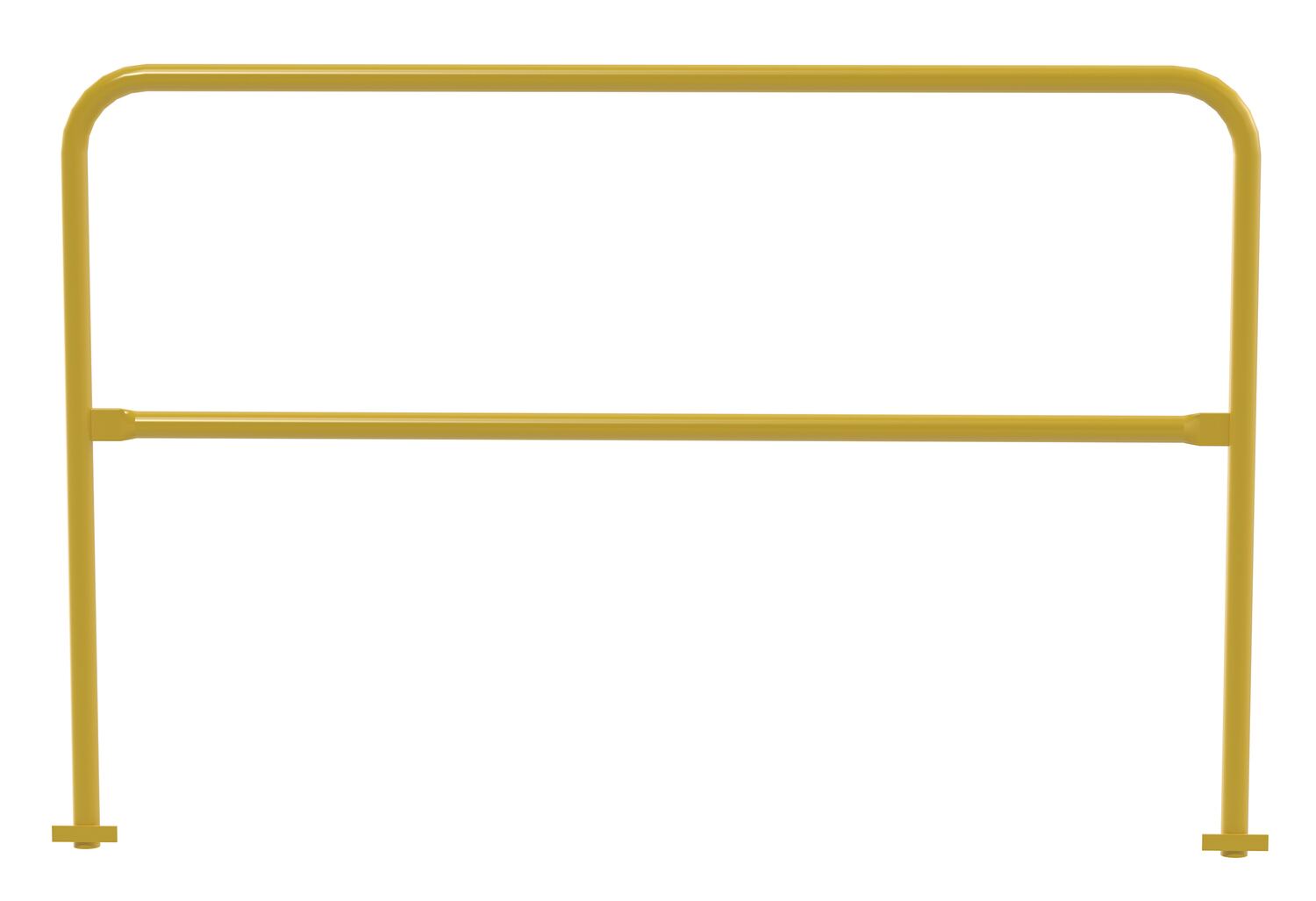

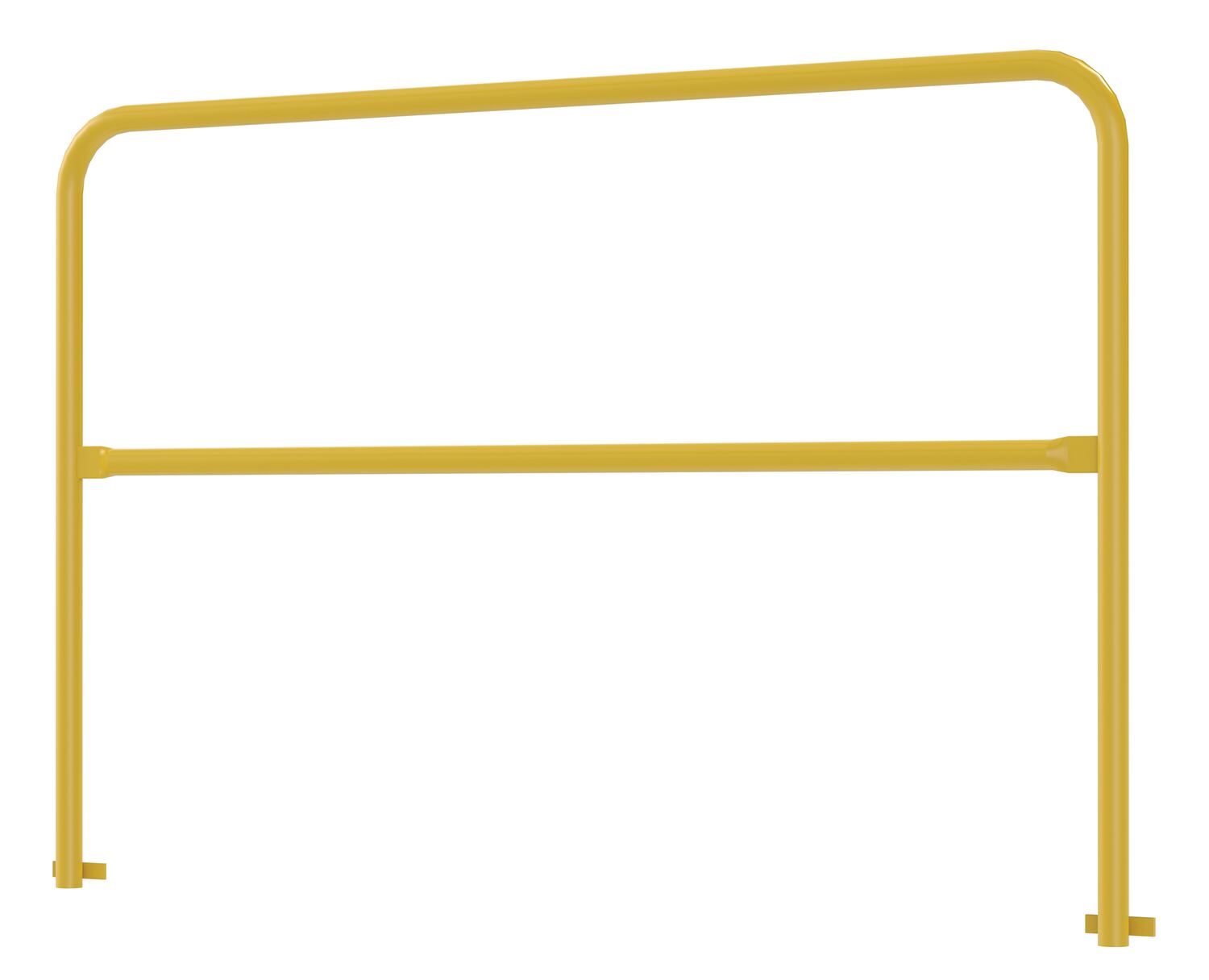

VDKR-PP-6 VDKR-PP-6Steel Safety Railing Pour in Place 6 Ft. Length YellowOverall Length (in.): 74-1/4
Overall Width (in.): 1-1/4		65

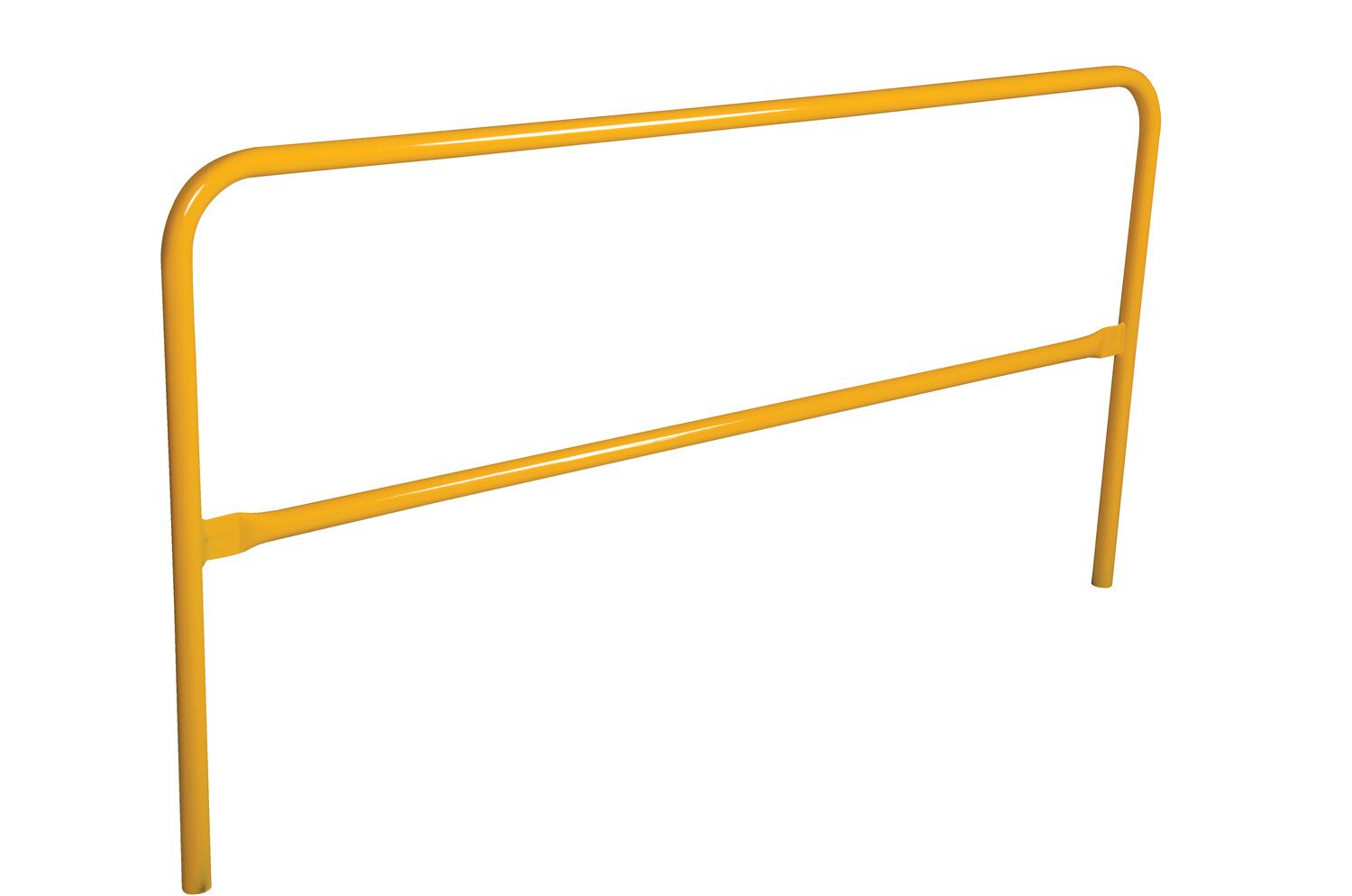

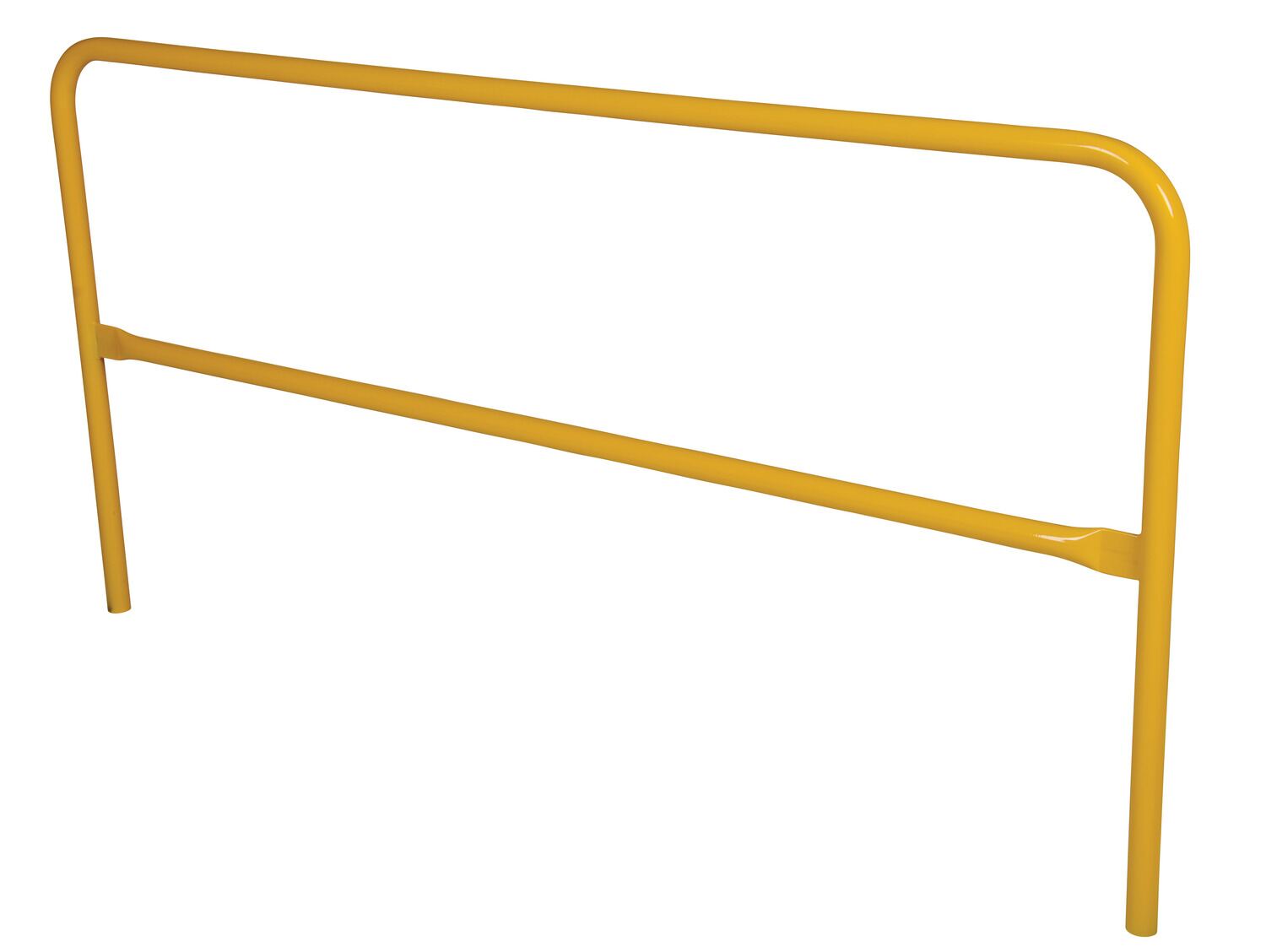

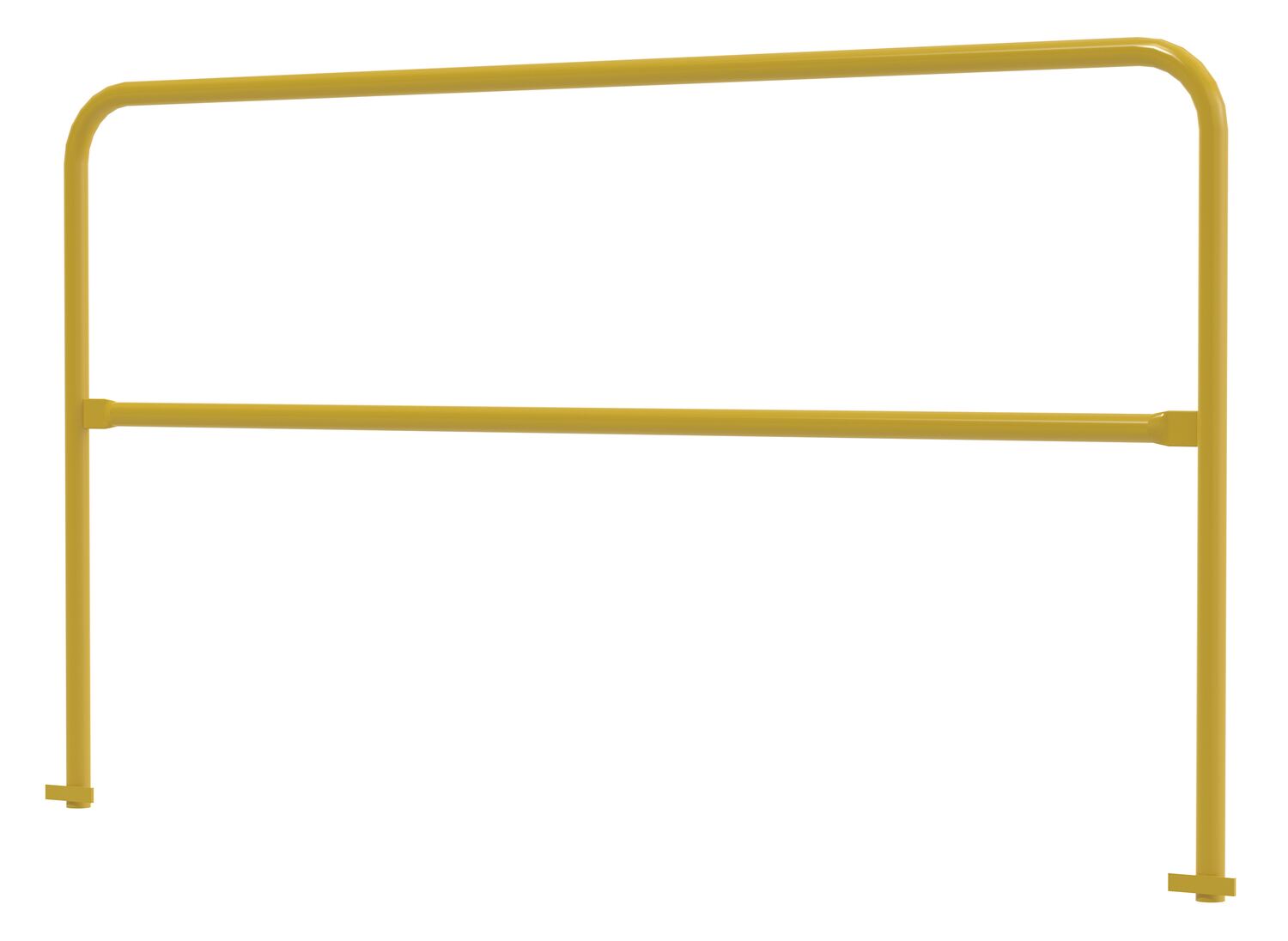

VDKR-PP-7 VDKR-PP-7Steel Safety Railing Pour in Place 7 Ft. Length YellowOverall Length (in.): 86-1/4
Overall Width (in.): 1-1/4		67

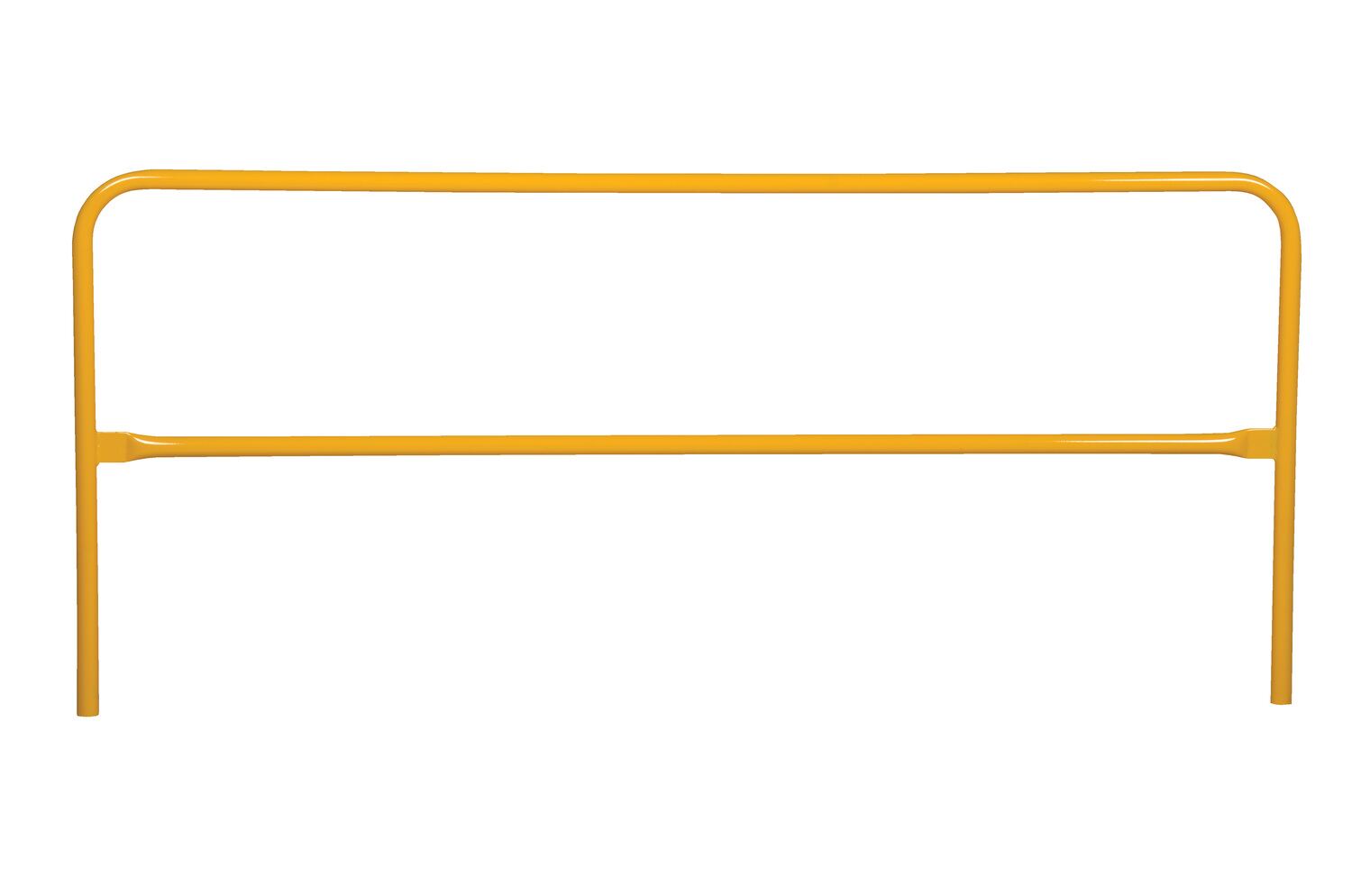

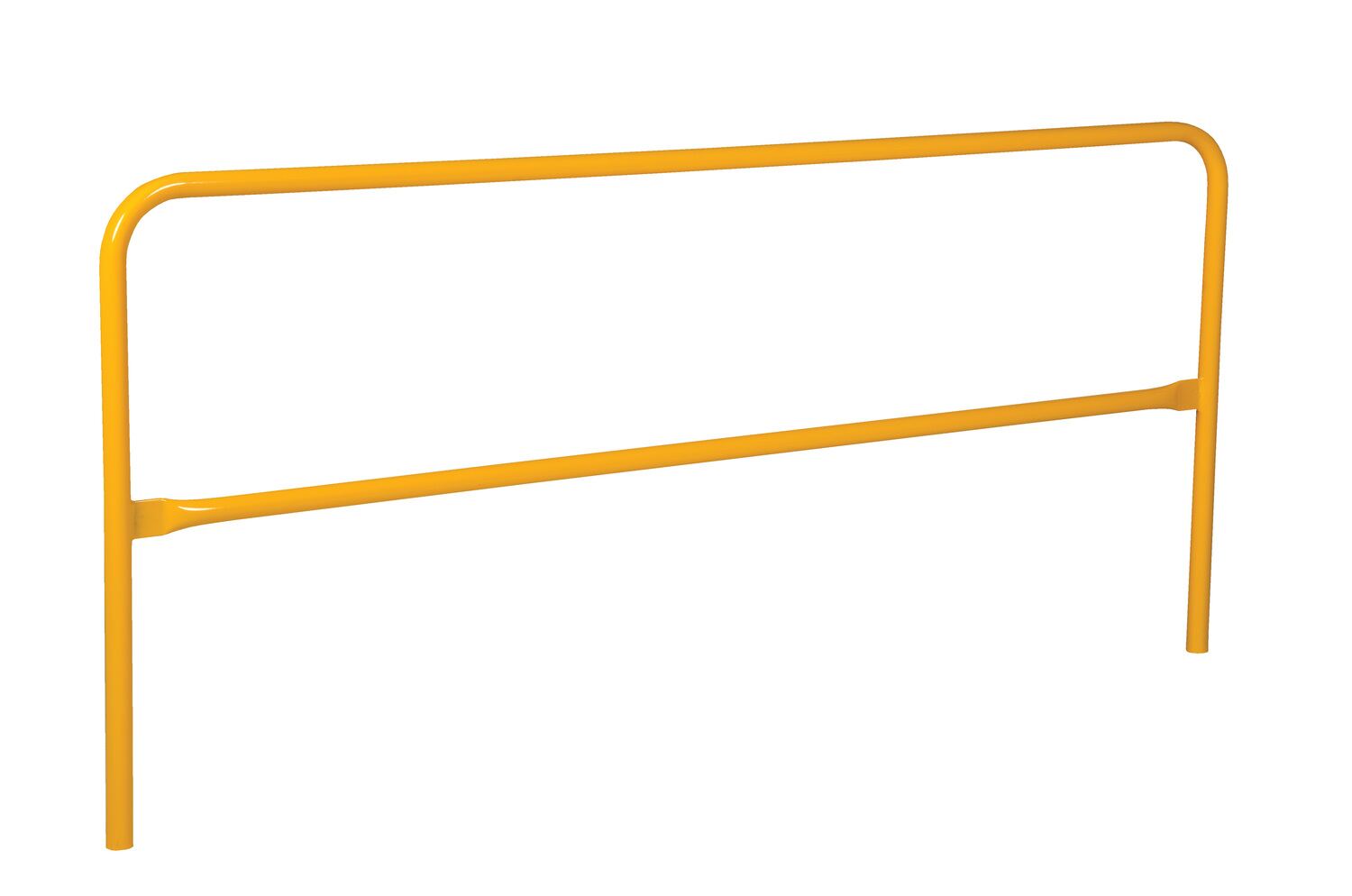

VDKR-PP-8 VDKR-PP-8Steel Safety Railing Pour in Place 8 Ft. Length YellowOverall Length (in.): 98-1/4
Overall Width (in.): 1-1/4		77

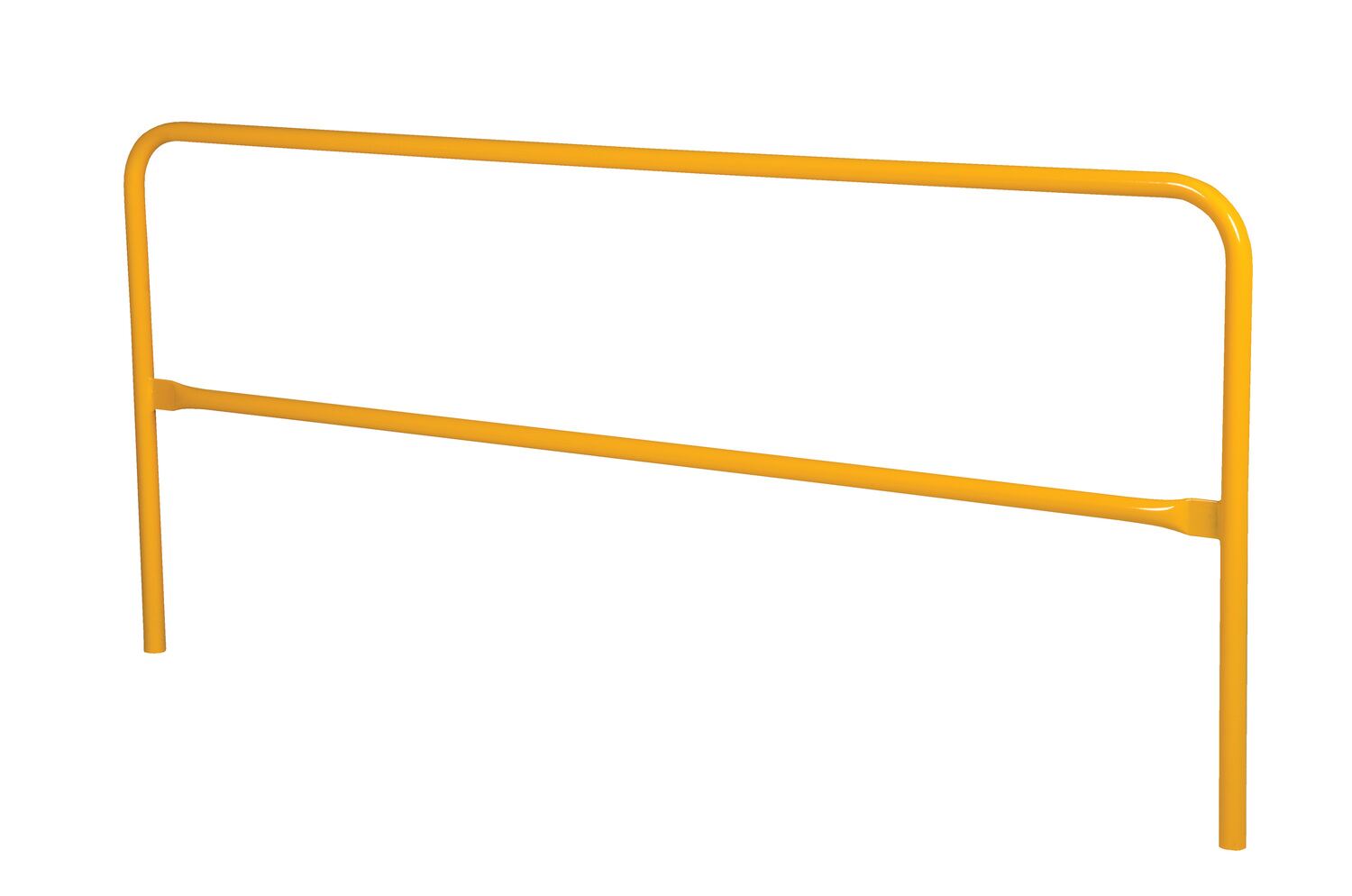

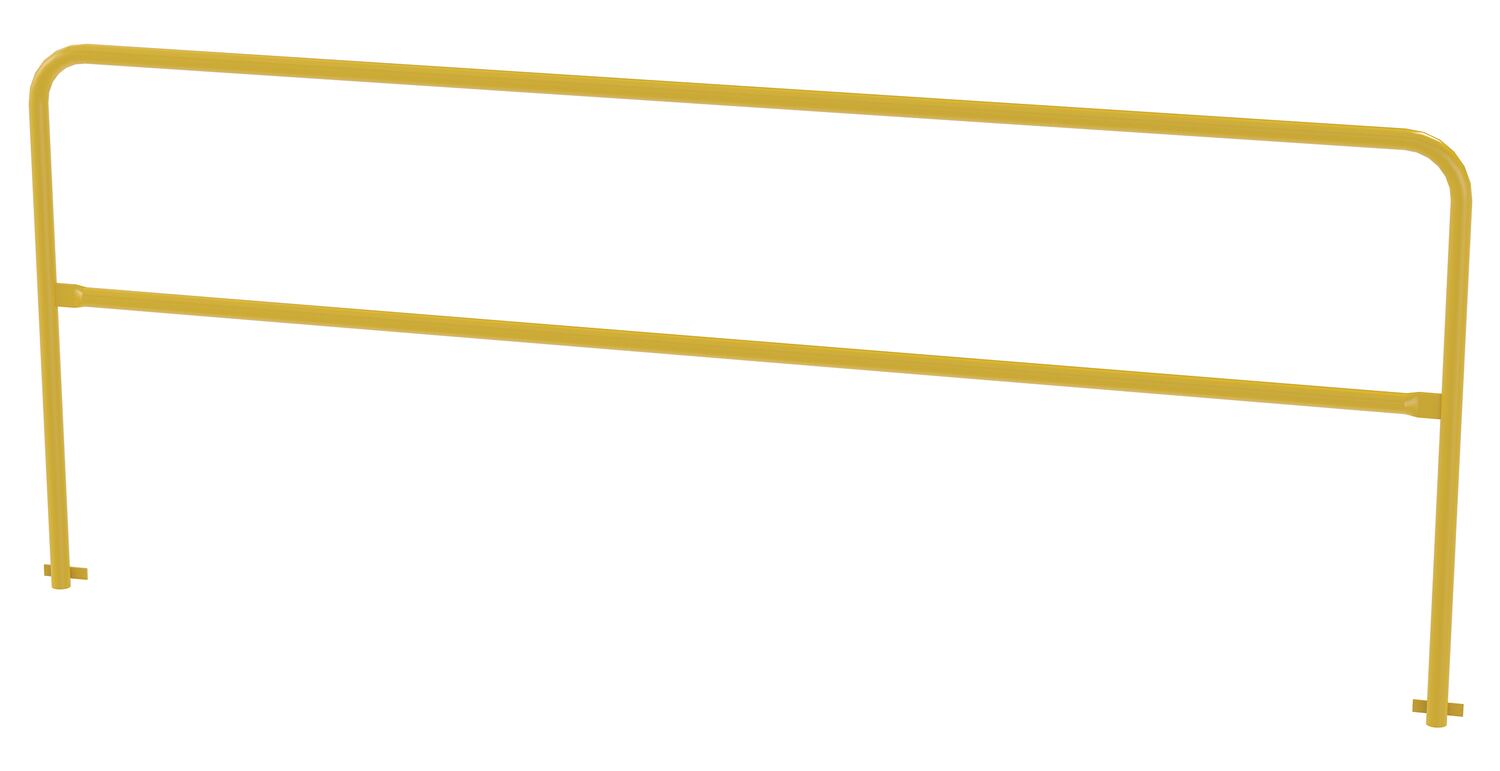

VDKR-PP-10 VDKR-PP-10Steel Safety Railing Pour in Place 10 Ft. Length YellowOverall Length (in.): 122-1/4
Overall Width (in.): 1-1/4		96
