FEATURED Multi-Station Transportable Jib Cranes

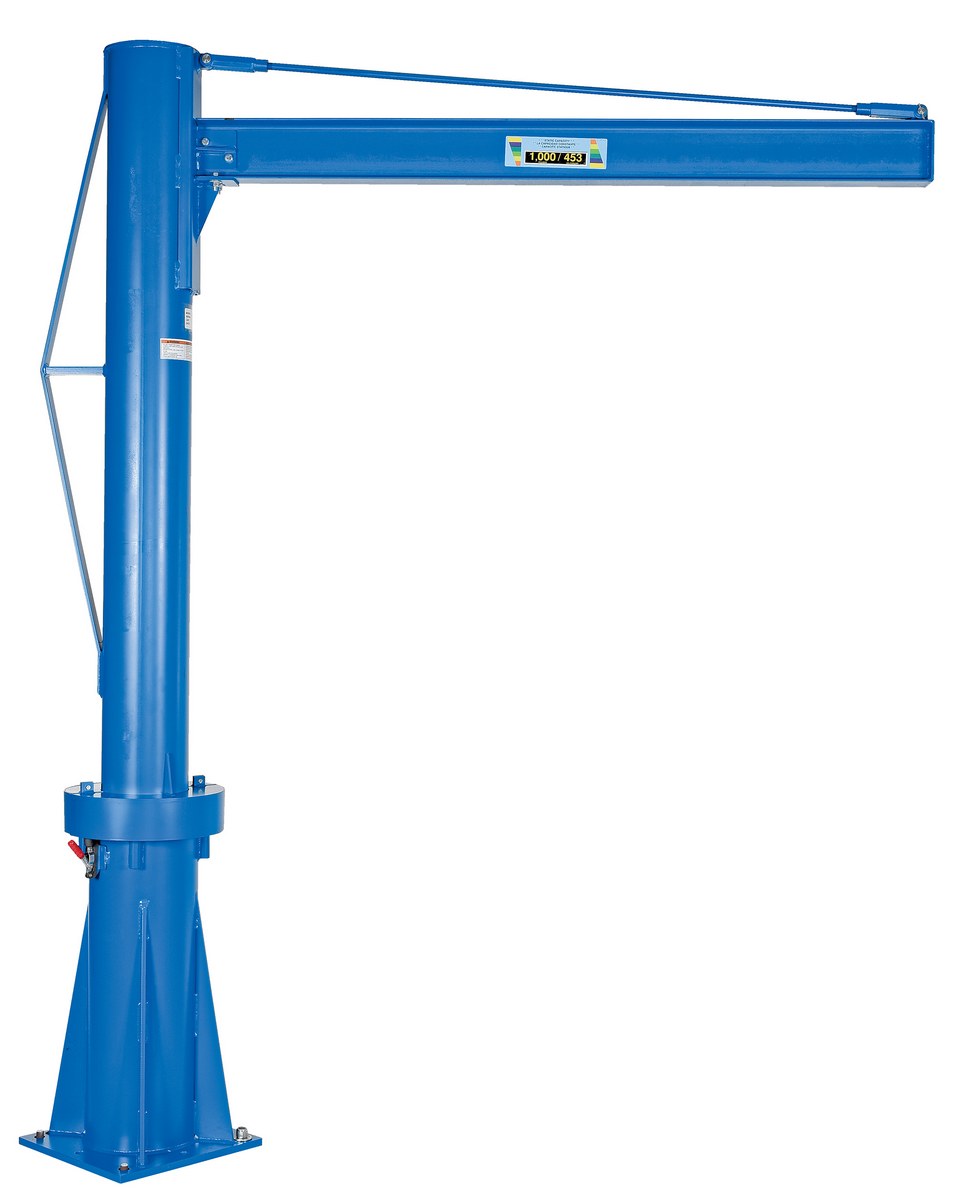

model: JIB-P-10-6-8

JIB-P-10-6-8_A.jpg JIB-P-10-6-8_B.jpg JIB-P-10-6-8_C.jpg JIB-P-10-6-8_D.jpg JIB-P-10-6-8_E.jpg JIB-P-10-6-8_F.jpg More Images +

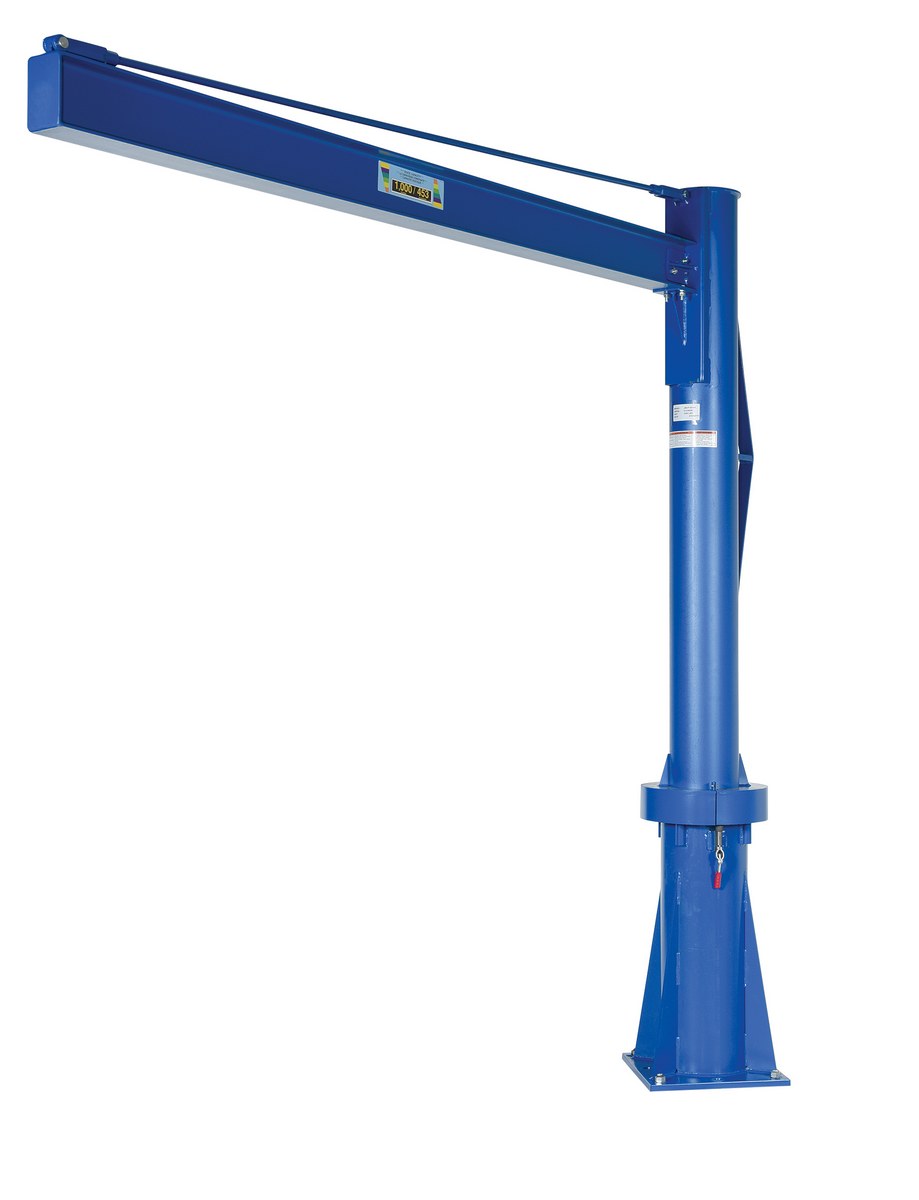

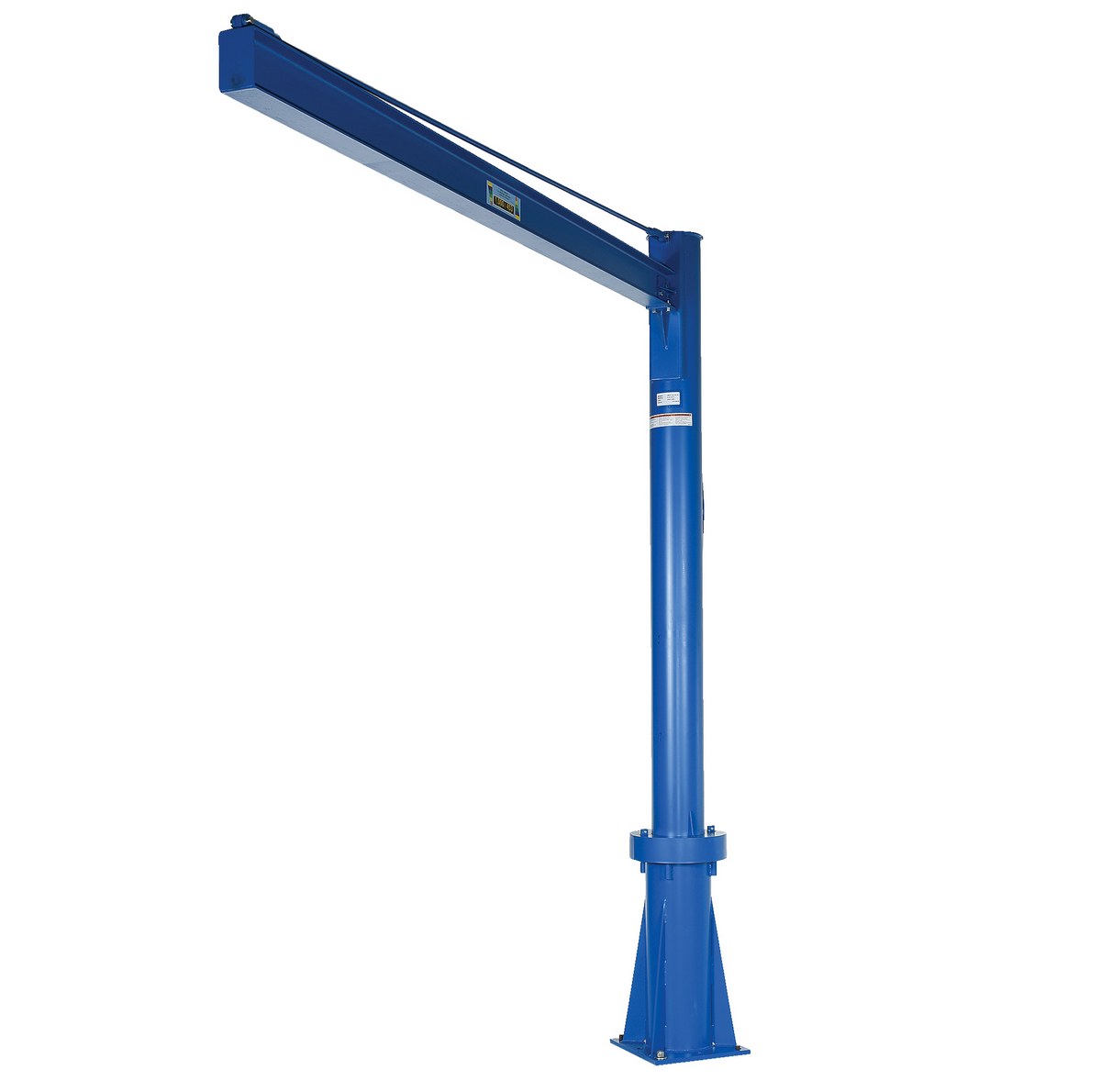

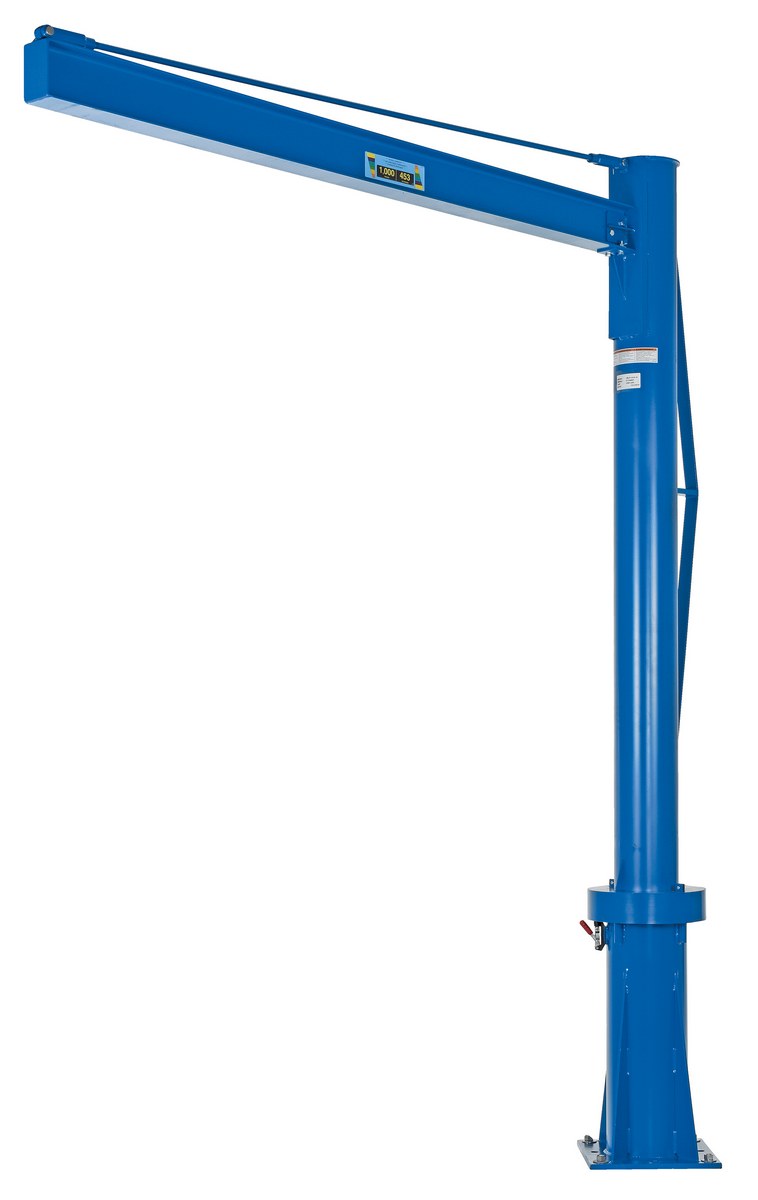

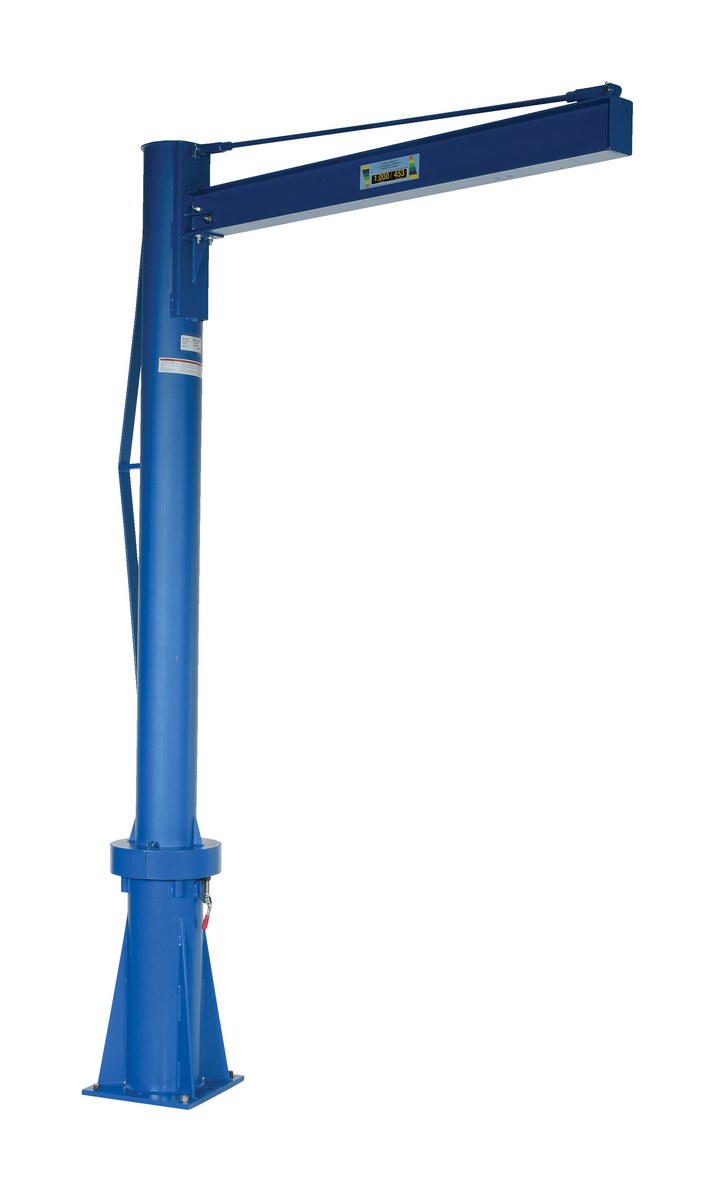

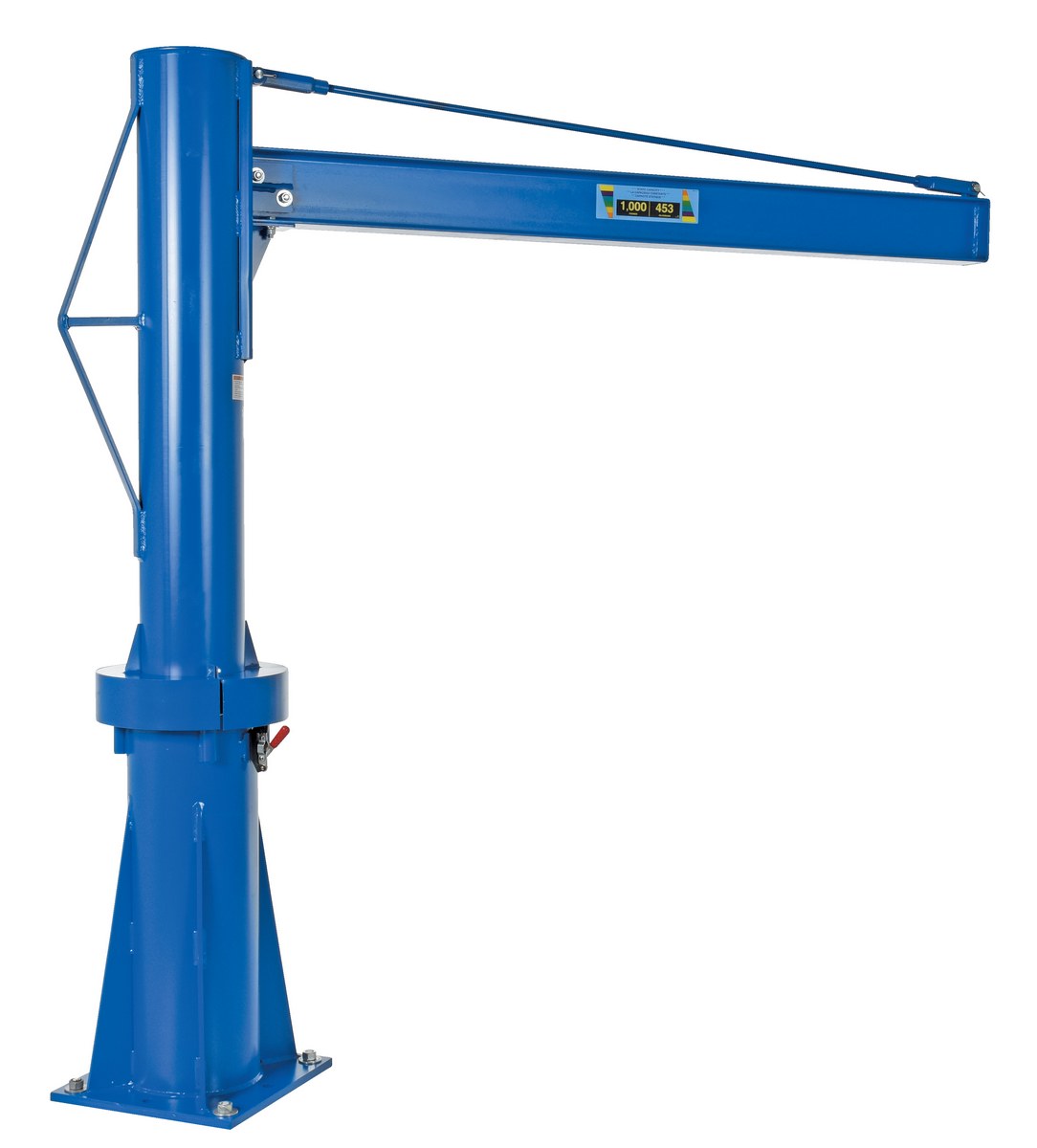

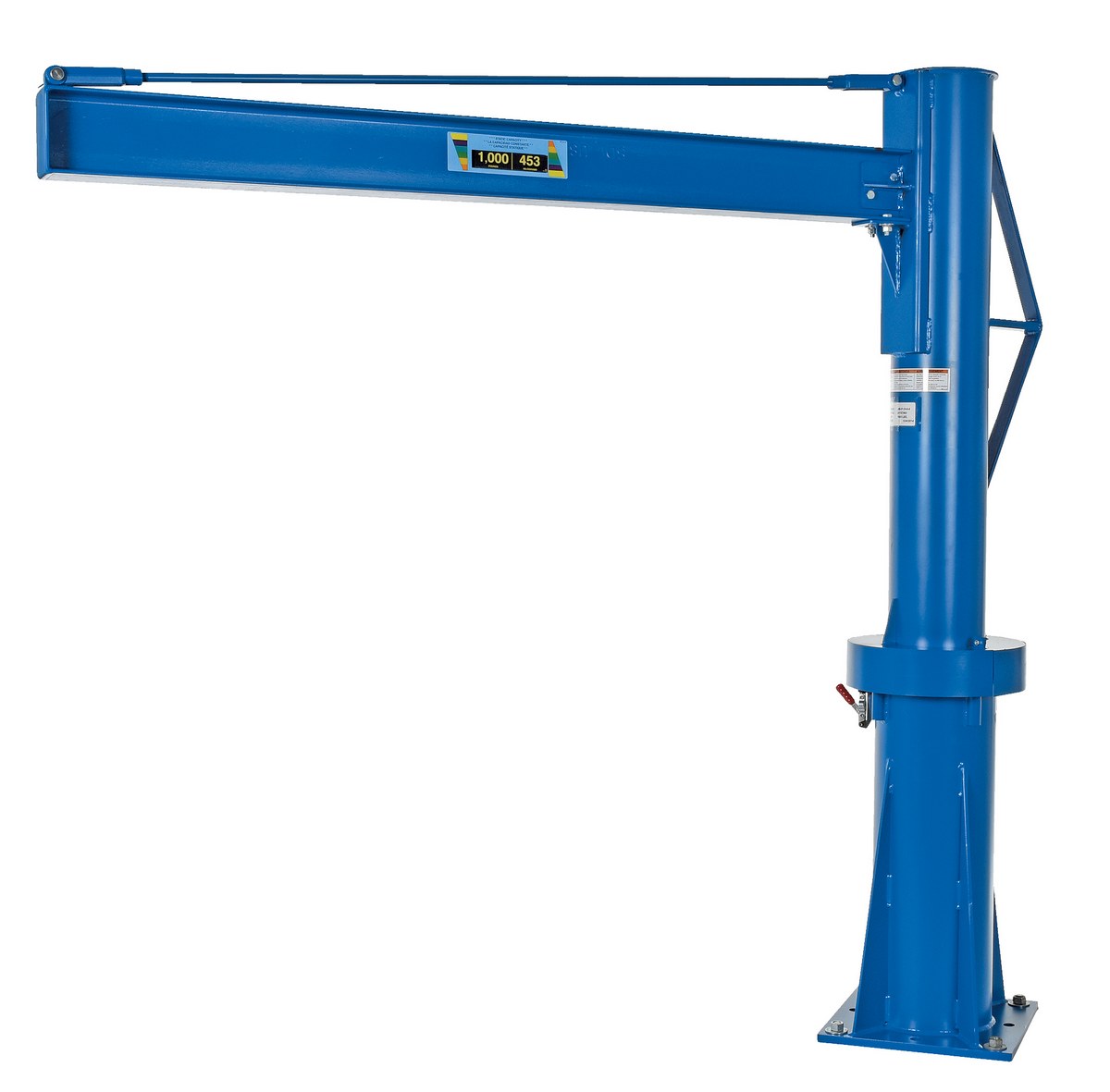

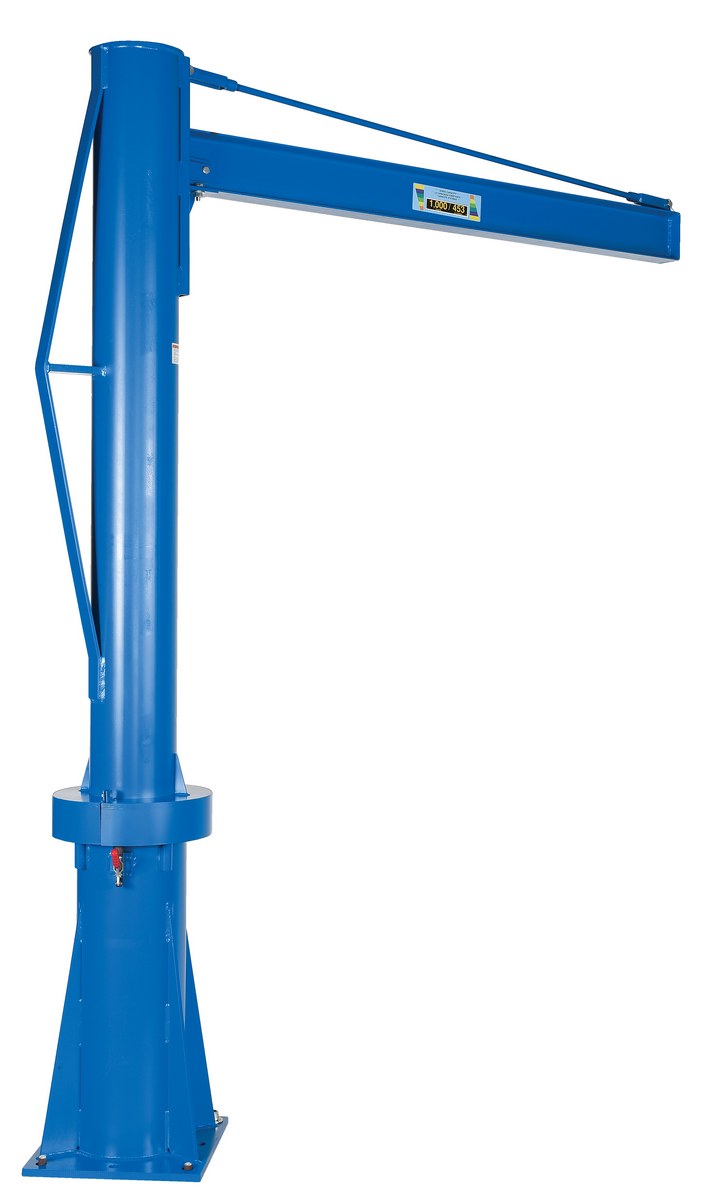

Multi-Station Transportable Jib Cranes
SERIES: JIB-P   10Products 1Options
Custom Fabrication

Portable Multi-Station Jib Cranes for Flexible Overhead Lifting

Portable multi-station jib cranes provide an efficient overhead lifting solution for facilities that need one crane to serve more than one work area. Designed for manufacturing plants, maintenance departments, repair stations, loading areas, and production work cells, these transportable jib cranes help lift, rotate, and position loads where fixed lifting support is needed.

Multi-Location Base Socket Design

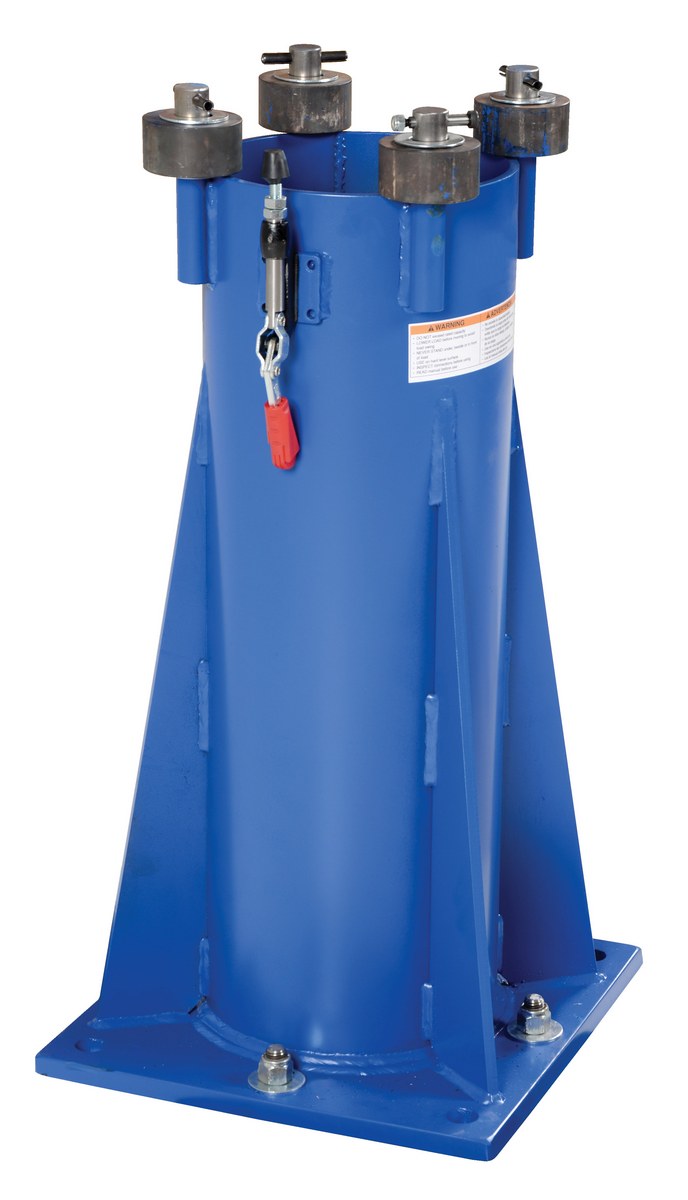

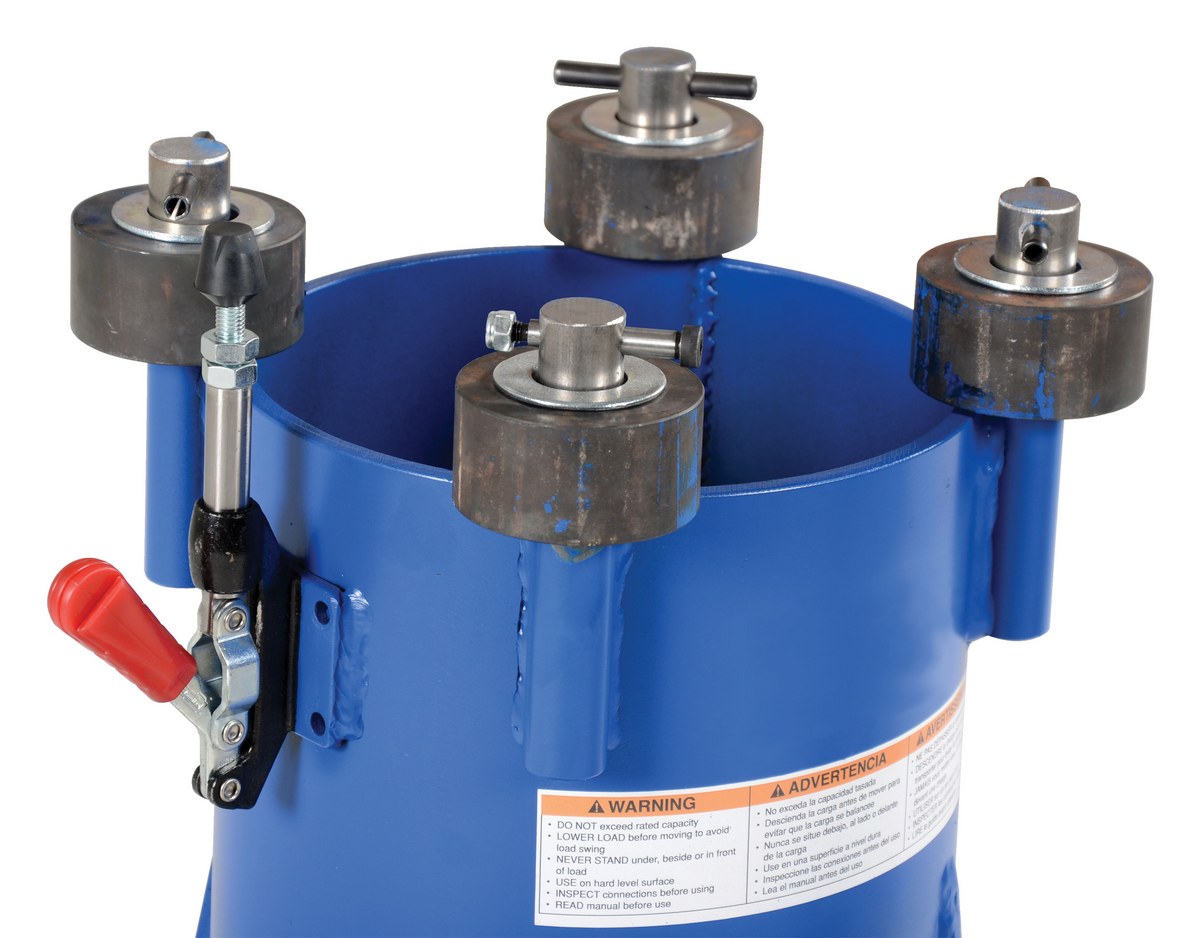

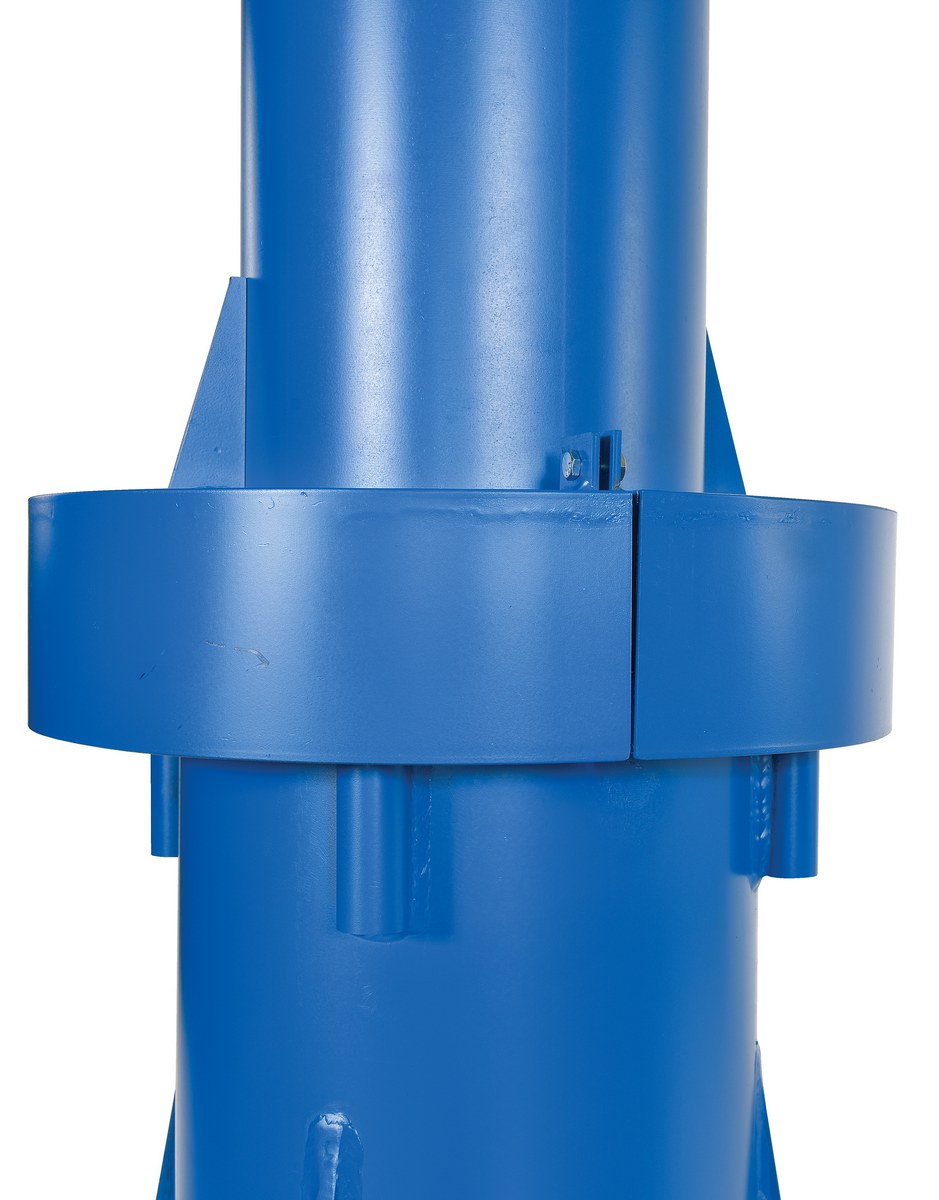

Each unit includes the jib crane and one base socket. Additional base sockets may be purchased for other locations, allowing the same crane assembly to be used across multiple stations instead of installing a complete jib crane at every workstation.

Controlled 360 Degree Rotation

The boom manually rotates 360 degrees for versatile load placement around the work area. A friction brake design provides positive locking and controlled rotation, helping operators manage heavy loads with better positioning control during lifting, transfer, and placement.

Capacity, Reach, and Construction

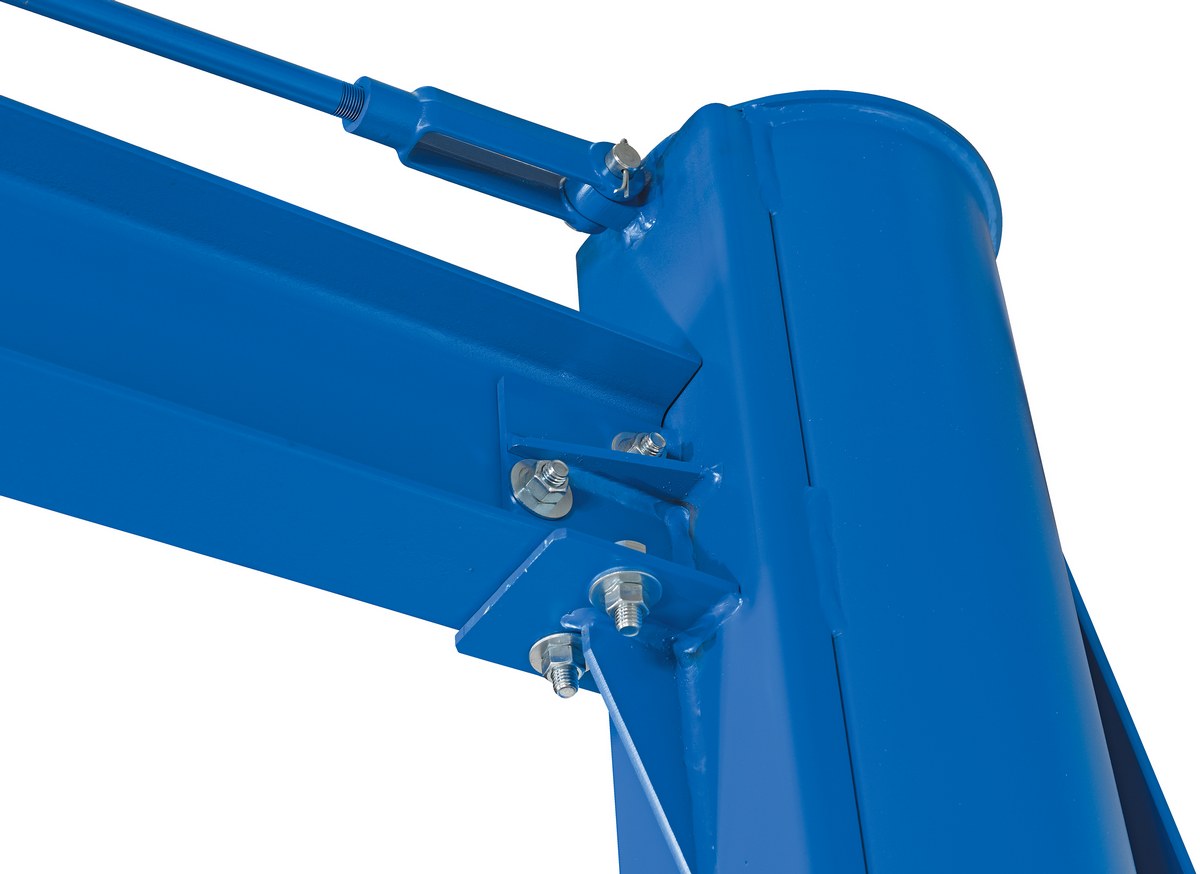

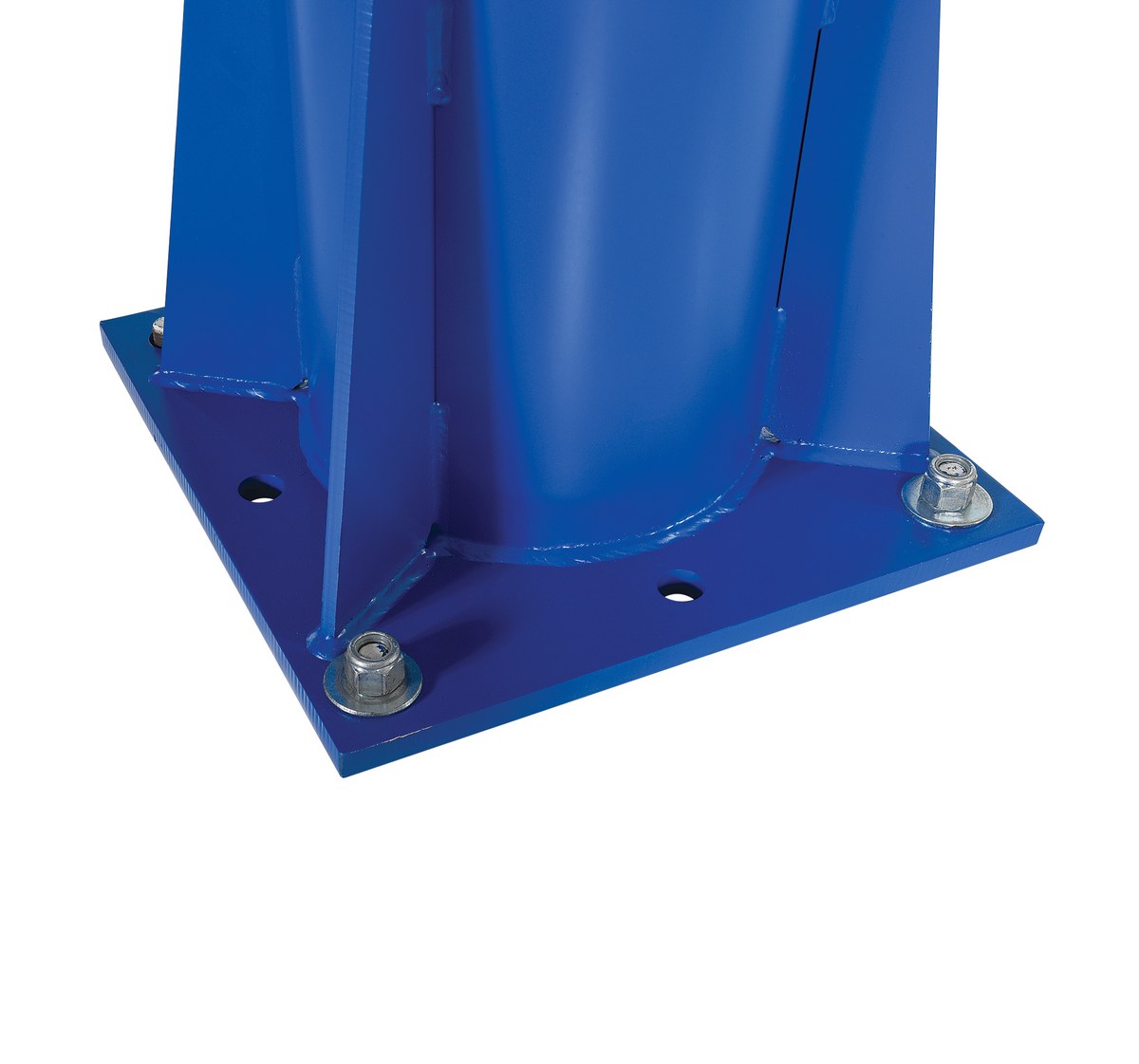

This family supports 1,000 lb. capacity and includes 72 inch, 96 inch, and 120 inch boom lengths with usable heights from 71-13/16 inches to 119-13/16 inches. Rugged welded steel construction, a 6 inch high I-beam with 4 inch flange width, and a durable blue painted finish provide long-lasting industrial performance. Installation requires a reinforced concrete pad. Hoists & Trollies can be ordered seperately.

Multi-Station Transportable Jib Cranes

model: JIB-P-10-6-8

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
JIB-P-10-10-10
JIB-P-10-10-6
JIB-P-10-10-8
JIB-P-10-6-10
JIB-P-10-6-6
JIB-P-10-6-8
JIB-P-10-8-10
JIB-P-10-8-6
JIB-P-10-8-8
JIB-P-B
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.

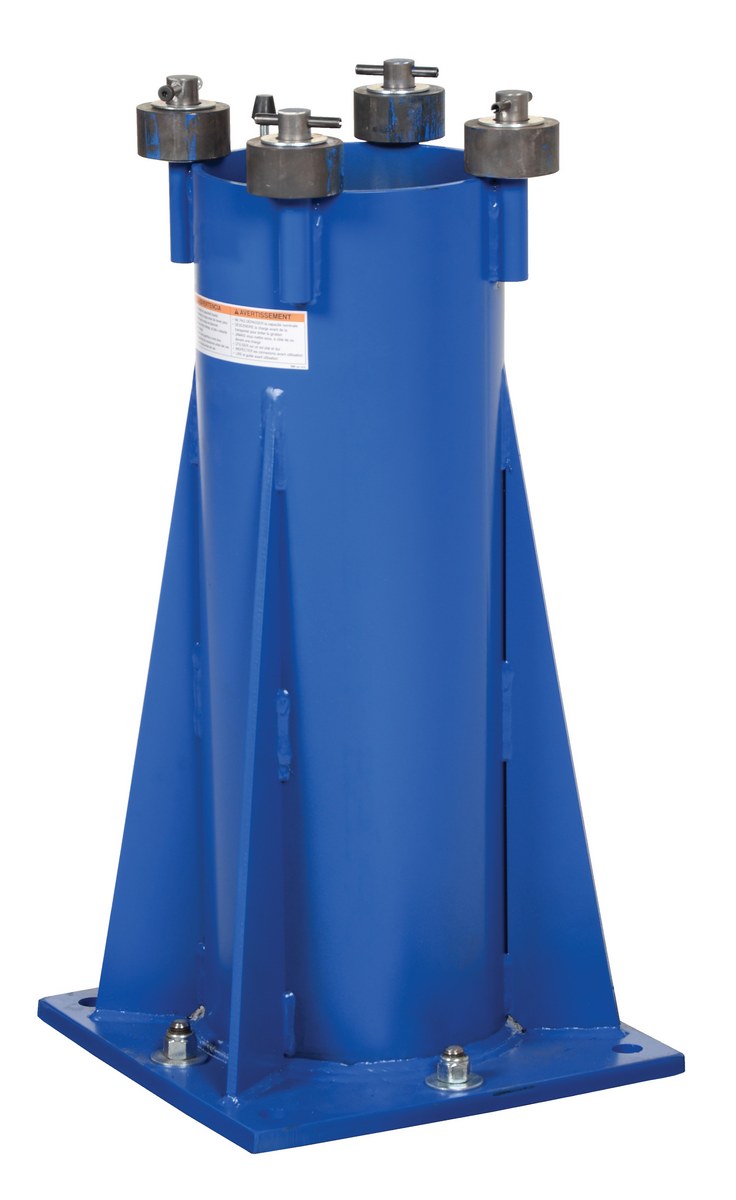

JIB-P-B JIB-P-B Factory Installed Steel Base Socket For Multi Station Transp… 1 Year Limited Warranty 267

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

1
JIB-P, Manual
Open Manual

Survey Sheets

1
JIB-P
Open Survey

Approval Drawings

10
JIB-P-10-10-10
Open Drawing
JIB-P-10-10-6
Open Drawing
JIB-P-10-10-8
Open Drawing
JIB-P-10-6-10
Open Drawing
JIB-P-10-6-6
Open Drawing
JIB-P-10-6-8
Open Drawing
JIB-P-10-8-10
Open Drawing
JIB-P-10-8-6
Open Drawing
JIB-P-10-8-8
Open Drawing
JIB-P-B
Open Drawing

Testing Certificates

10
JIB-P-10-10-10
Open Certificate
JIB-P-10-10-6
Open Certificate
JIB-P-10-10-8
Open Certificate
JIB-P-10-6-10
Open Certificate
JIB-P-10-6-6
Open Certificate
JIB-P-10-6-8
Open Certificate
JIB-P-10-8-10
Open Certificate
JIB-P-10-8-6
Open Certificate
JIB-P-10-8-8
Open Certificate
JIB-P-B
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

0
No label page PDFs for this product family.

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Jib Cranes





Multi-Station Transportable Ji...




Portable Multi-Station Jib Cranes for Flexible Overhead Lifting

Portable multi-station jib cranes provide an efficient overhead lifting solution for facilities that need one crane to serve more than one work area. Designed for manufacturing plants, maintenance departments, repair stations, loading areas, and production work cells, these transportable jib cranes help lift, rotate, and position loads where fixed lifting support is needed.

Multi-Location Base Socket Design

Each unit includes the jib crane and one base socket. Additional base sockets may be purchased for other locations, allowing the same crane assembly to be used across multiple stations instead of installing a complete jib crane at every workstation.

Controlled 360 Degree Rotation

The boom manually rotates 360 degrees for versatile load placement around the work area. A friction brake design provides positive locking and controlled rotation, helping operators manage heavy loads with better positioning control during lifting, transfer, and placement.

Capacity, Reach, and Construction

This family supports 1,000 lb. capacity and includes 72 inch, 96 inch, and 120 inch boom lengths with usable heights from 71-13/16 inches to 119-13/16 inches. Rugged welded steel construction, a 6 inch high I-beam with 4 inch flange width, and a durable blue painted finish provide long-lasting industrial performance. Installation requires a reinforced concrete pad. Hoists & Trollies can be ordered seperately.


Model # Description Attributes Net Wt.
(lbs)

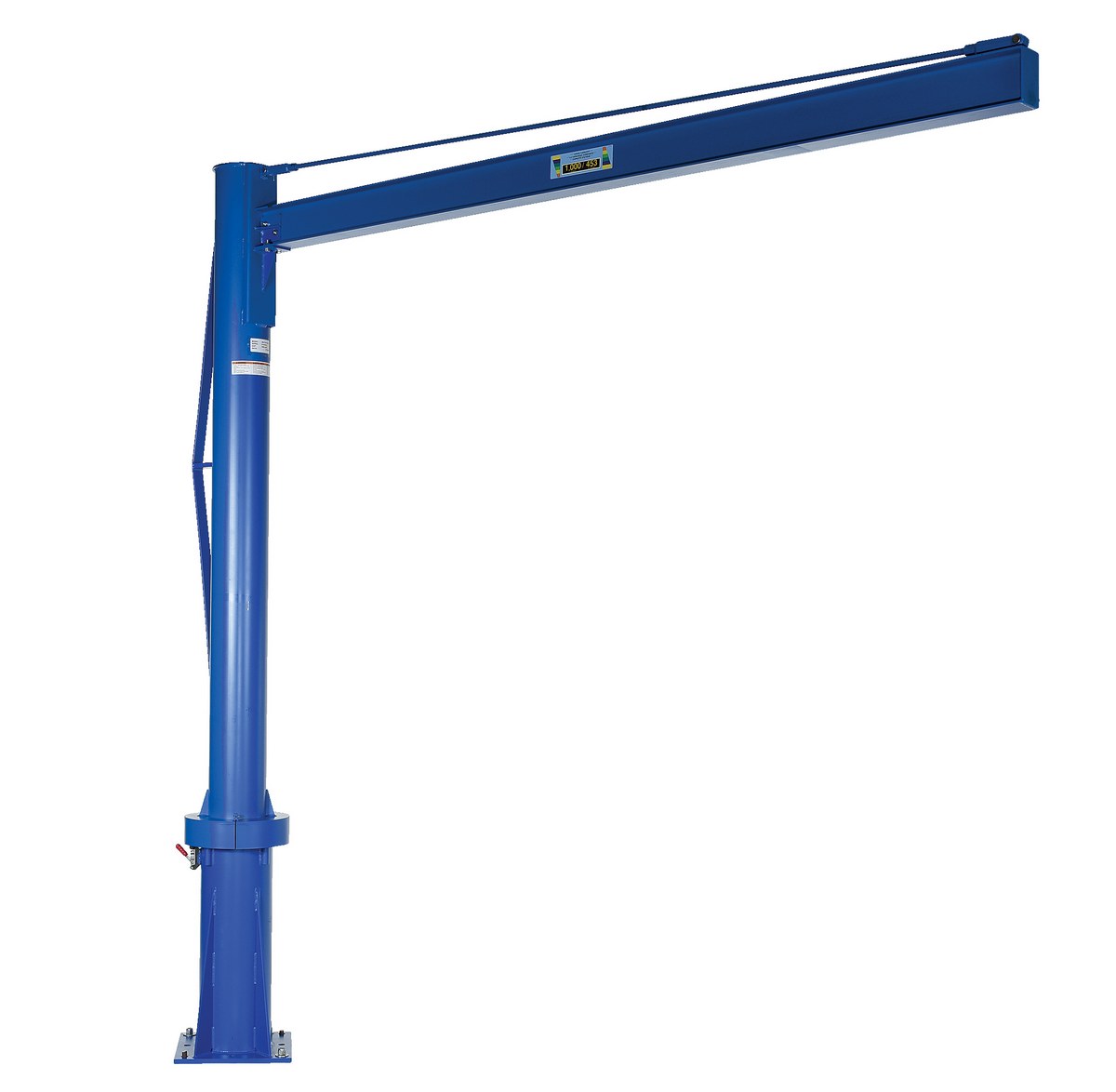

JIB-P-10-10-10 JIB-P-10-10-10Steel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120		640

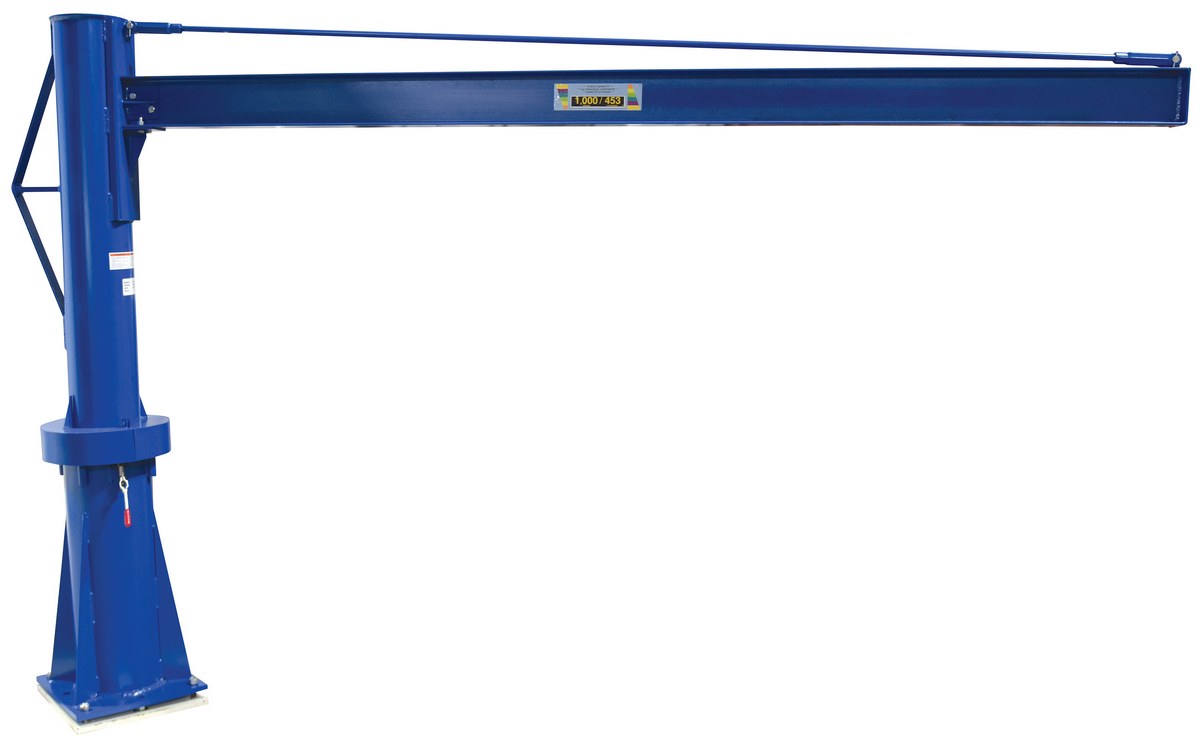

JIB-P-10-10-6 JIB-P-10-10-6Steel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120		710

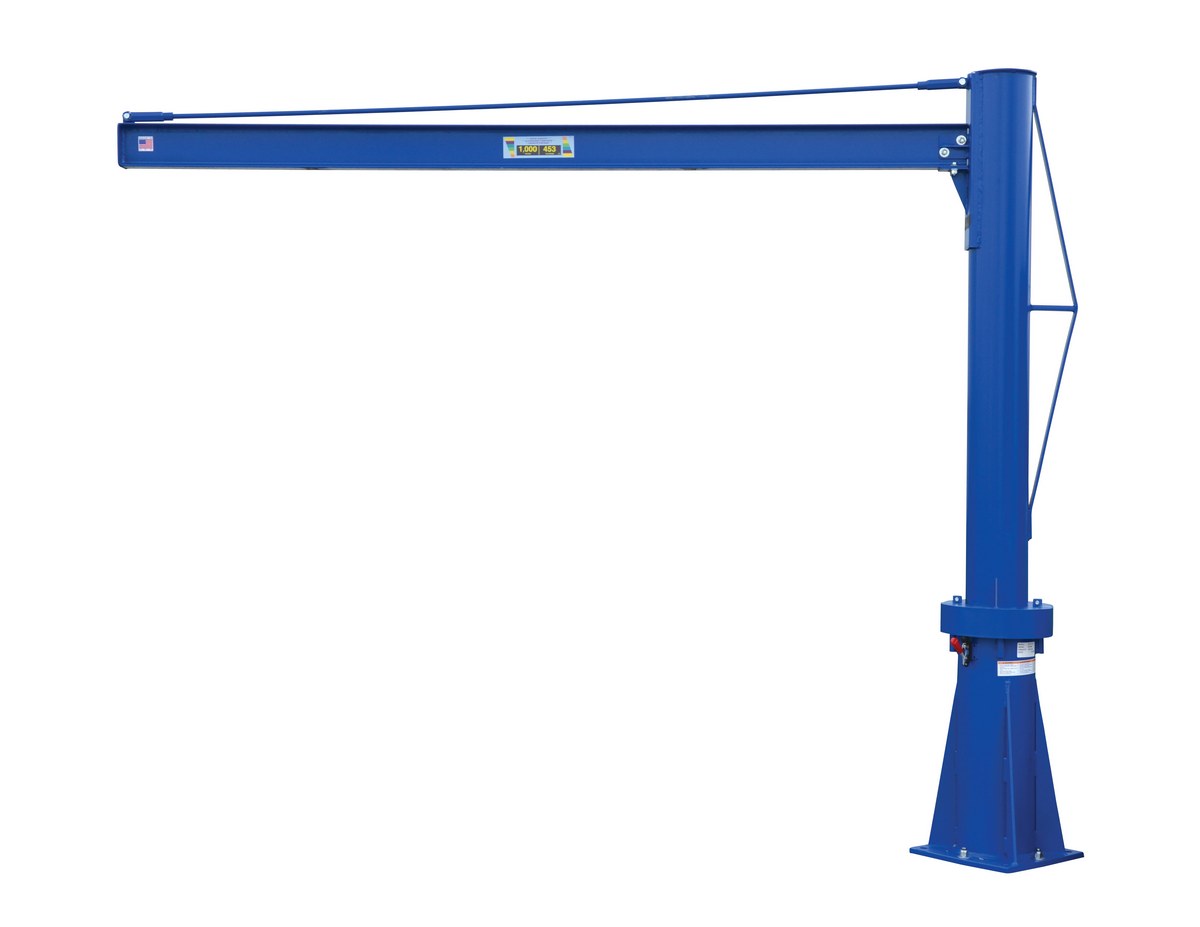

JIB-P-10-10-8 JIB-P-10-10-8Steel Multi Station Jib Crane 120 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 120		790
JIB-P-10-6-10 JIB-P-10-6-10Steel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72		731
JIB-P-10-6-6 JIB-P-10-6-6Steel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72		710

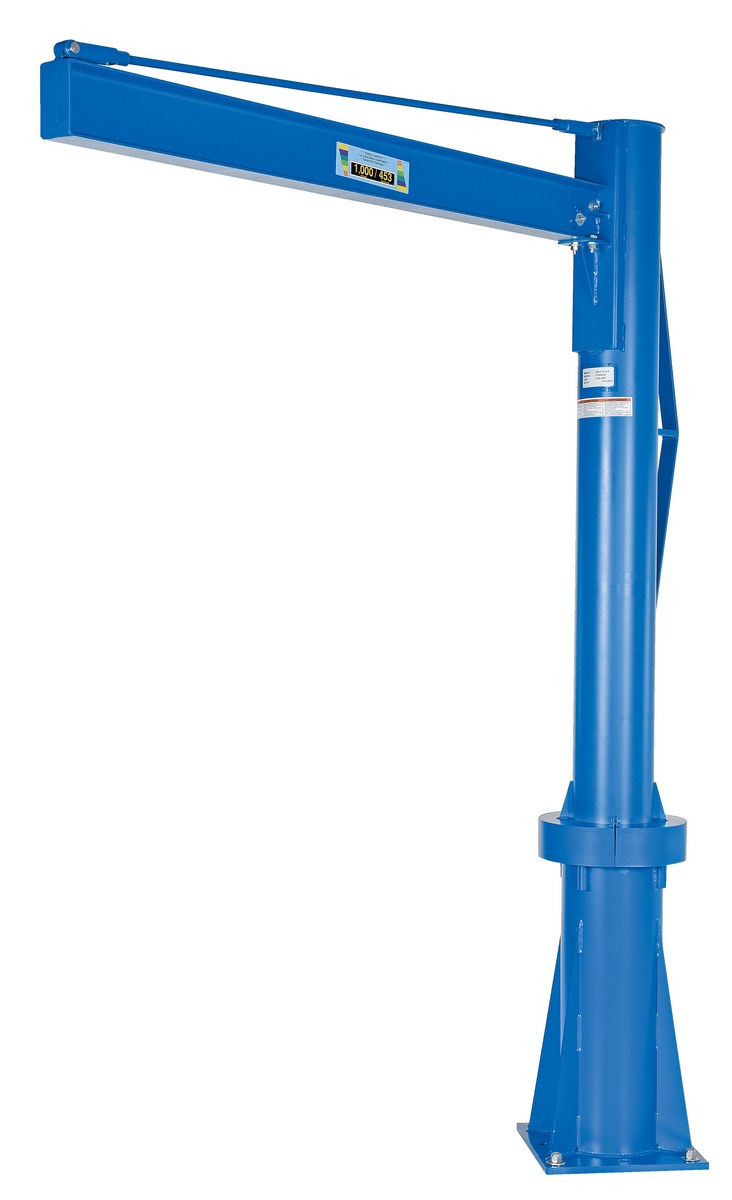

JIB-P-10-6-8 JIB-P-10-6-8Steel Multi Station Jib Crane 72 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 72		716

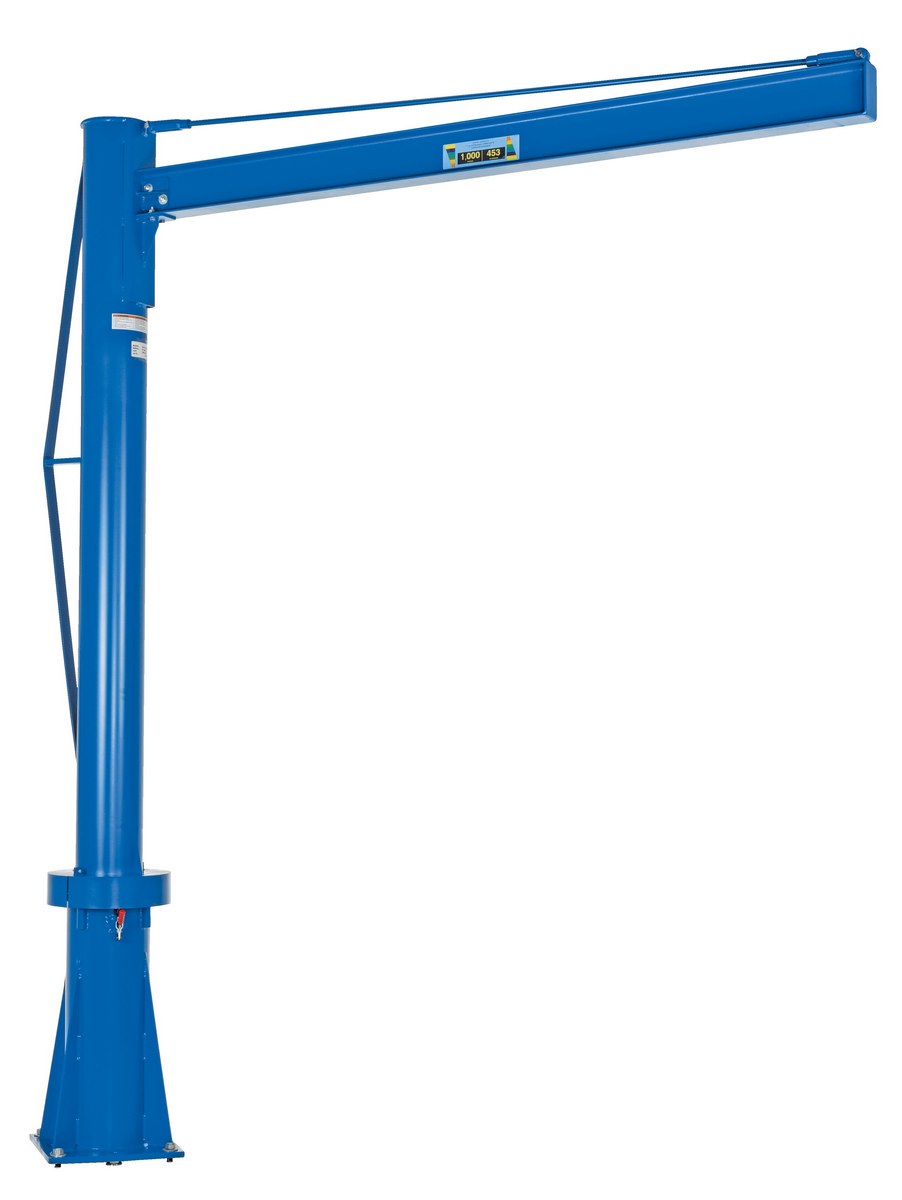

JIB-P-10-8-10 JIB-P-10-8-10Steel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96		773
JIB-P-10-8-6 JIB-P-10-8-6Steel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96		606

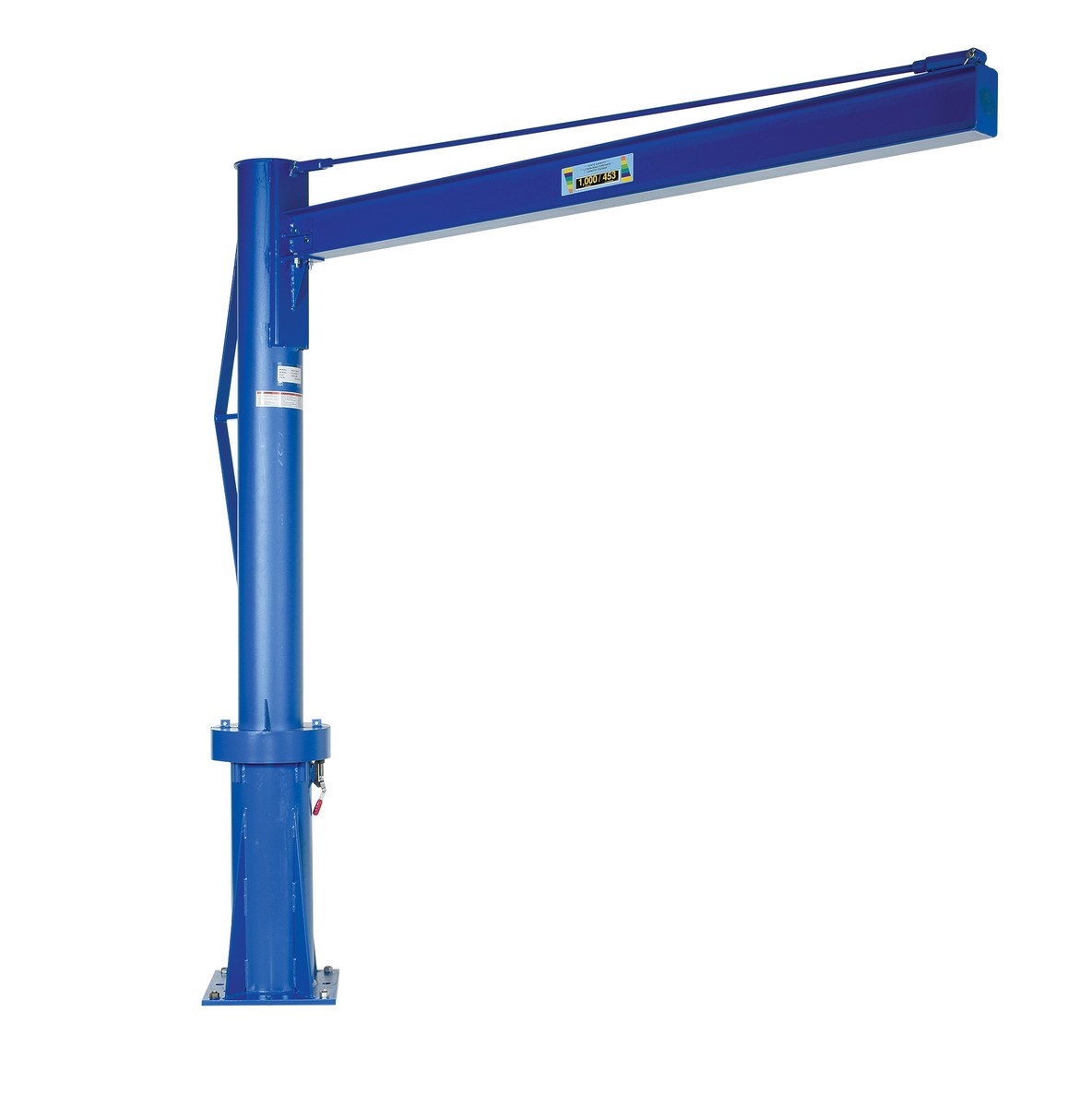

JIB-P-10-8-8 JIB-P-10-8-8Steel Multi Station Jib Crane 96 In. I-Beam 1000 Lb. Capacity BlueUniform Capacity (lb.): 1,000
Overall I-Beam Span (in.): 96		683
