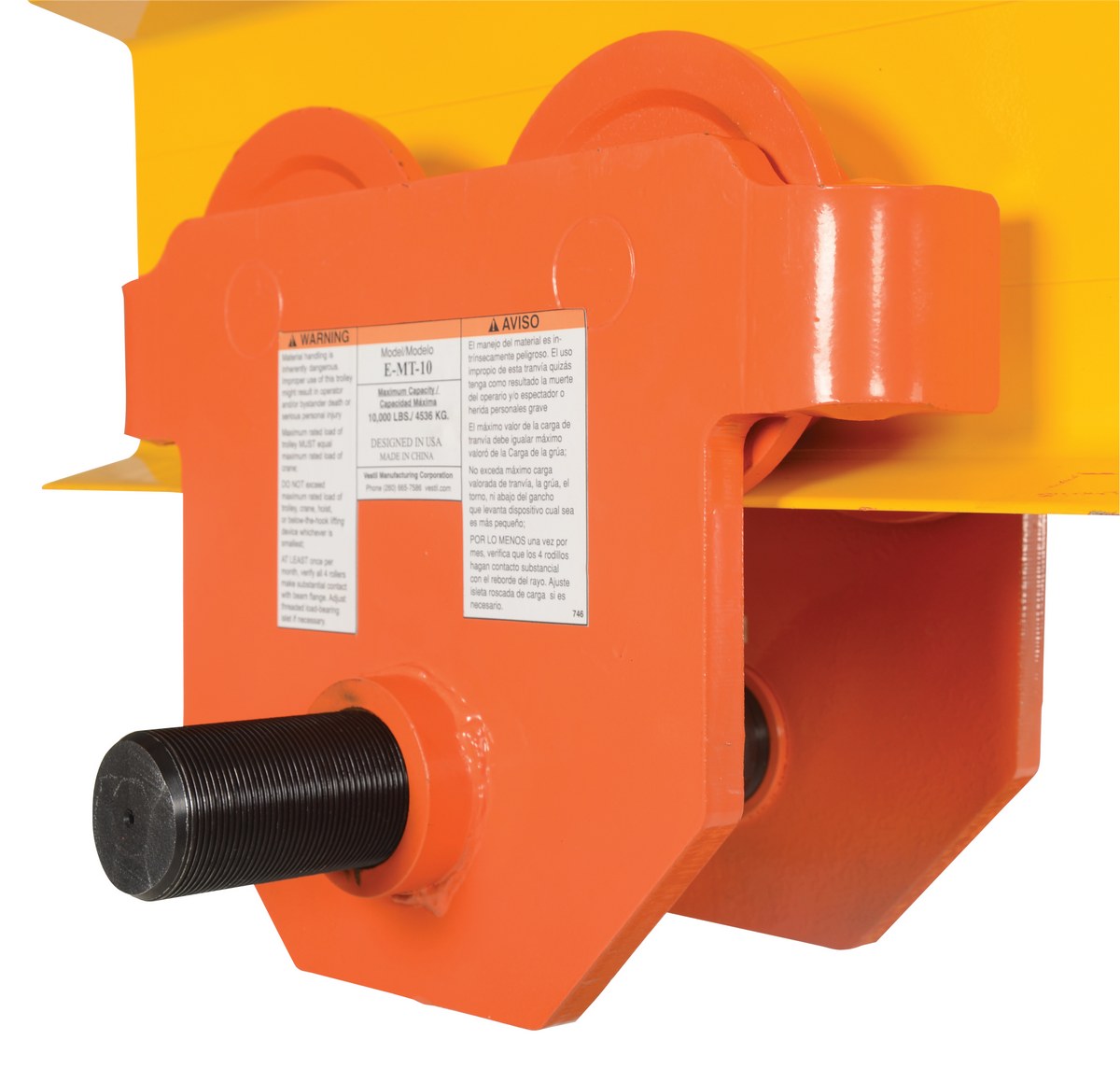

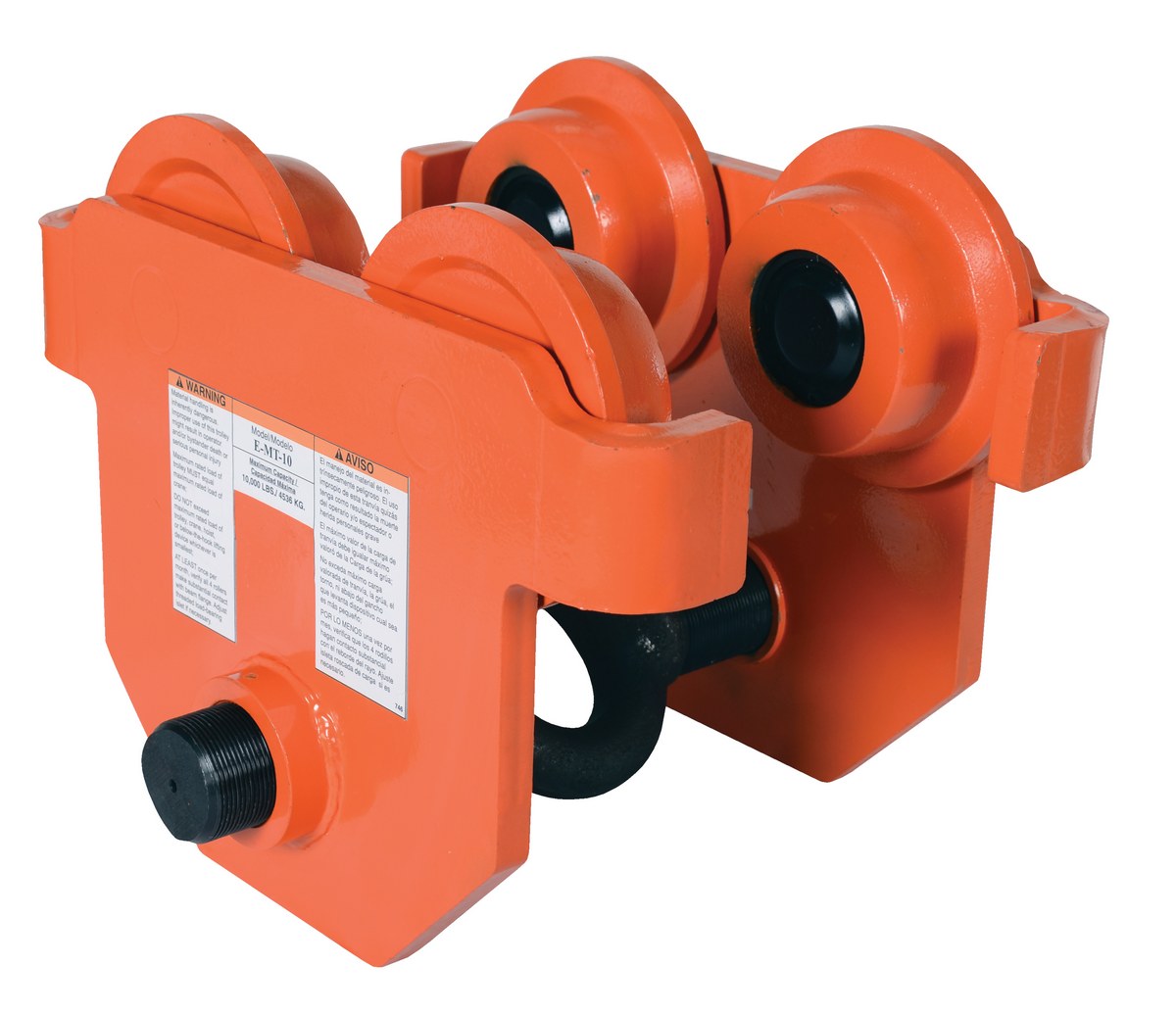

model: E-MT-10

E-MT-10_A.jpg E-MT-10_B.jpg E-MT-10_C.jpg E-MT-10_D.jpg E-MT-10_E.jpg E-MT-10_F.jpg E-MT-10_G.jpg More Images +
Low Profile Manual Trollies
SERIES: E-MT   12Products
Quick Ship

Low Headroom Manual Hoist Trolleys for I-Beam Lifting Systems

Low headroom manual hoist trolleys provide an adjustable beam-mounted travel point for moving loads along compatible overhead beams. Designed for gantry cranes, monorail systems, maintenance areas, fabrication shops, warehouses, and industrial lifting applications, these manual trolleys help users position hoists and suspended loads with controlled horizontal movement.

Adjustable Beam Fit

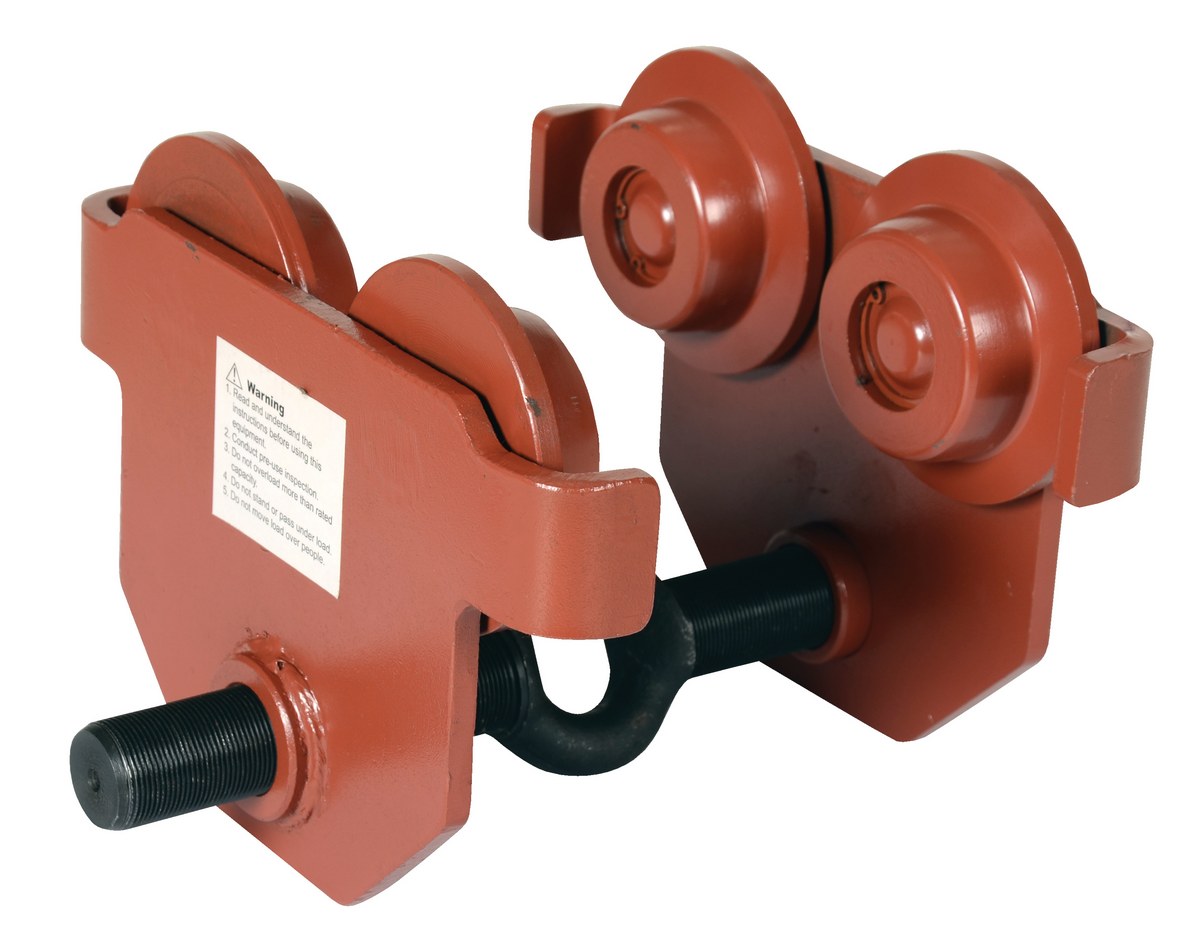

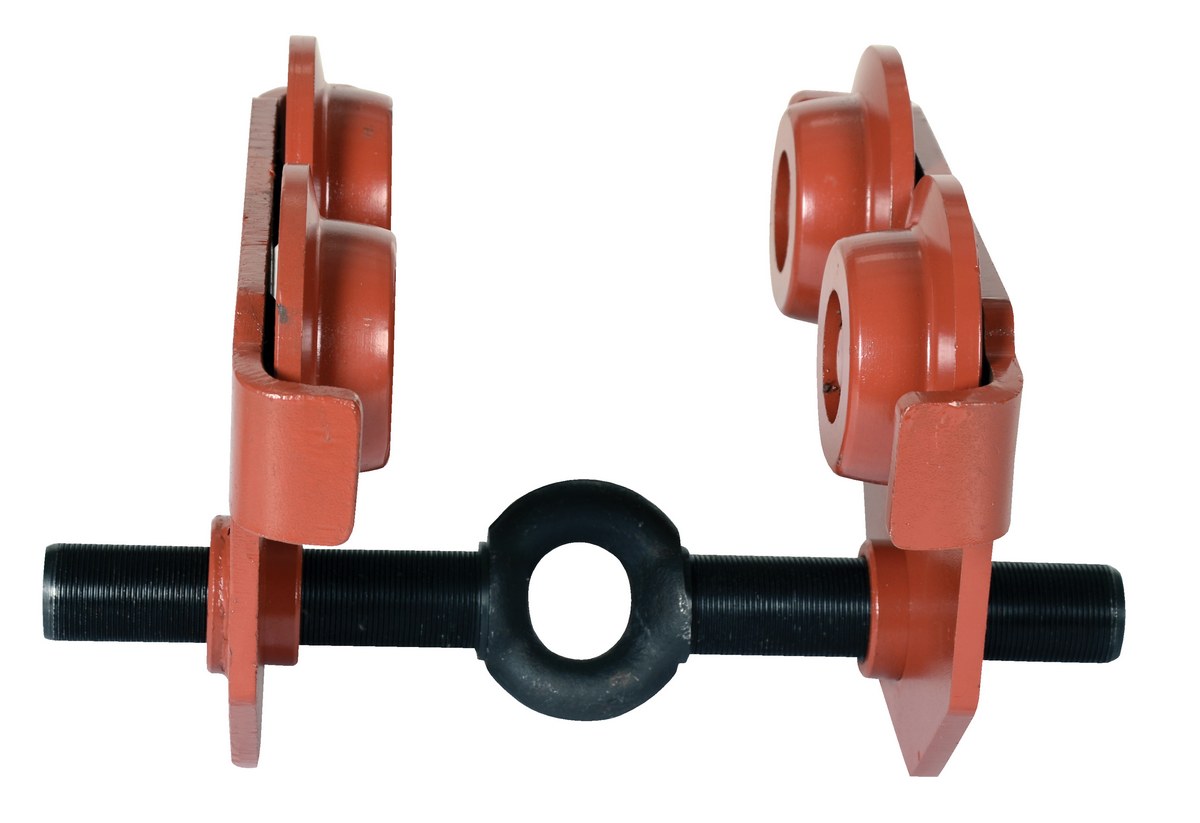

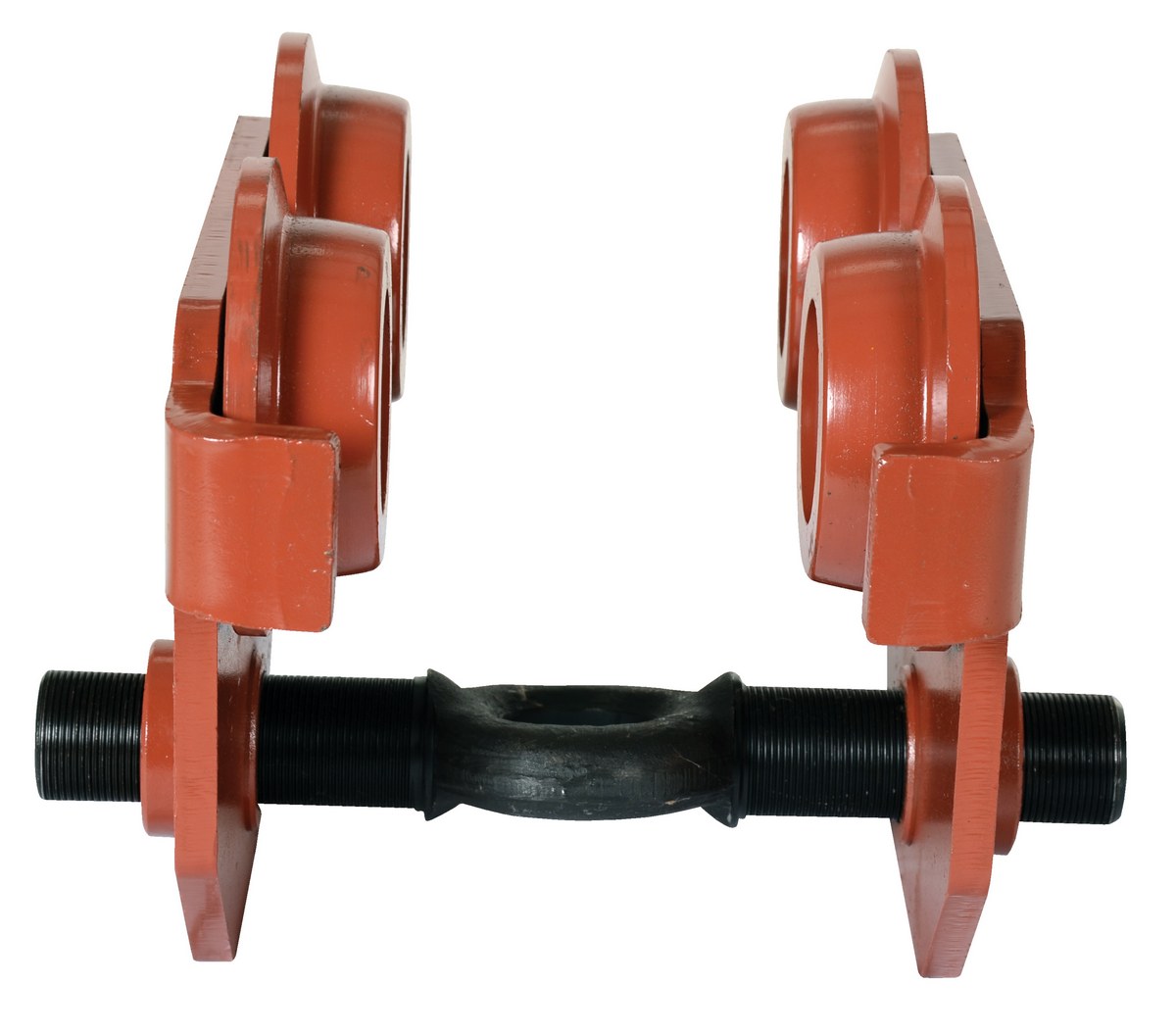

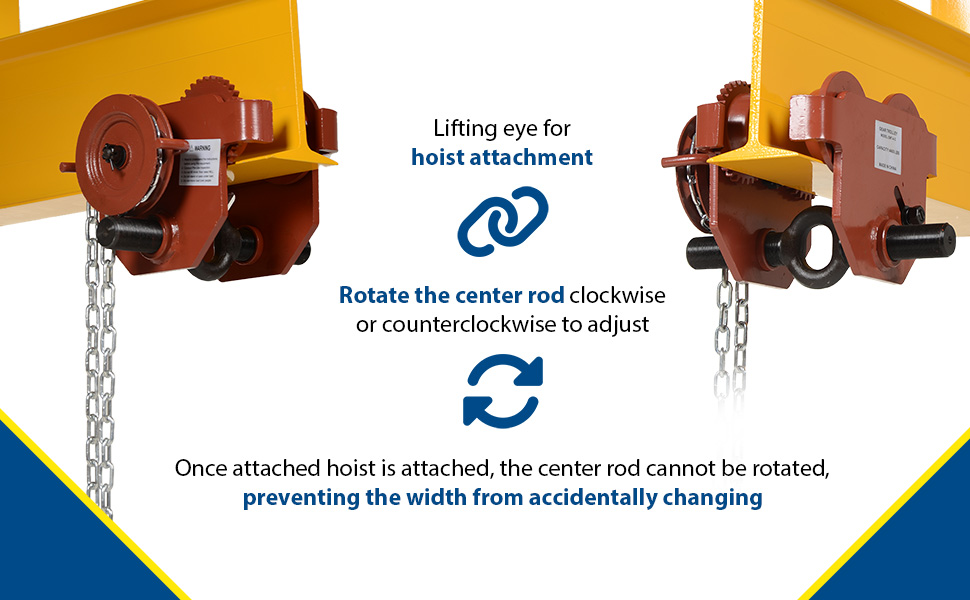

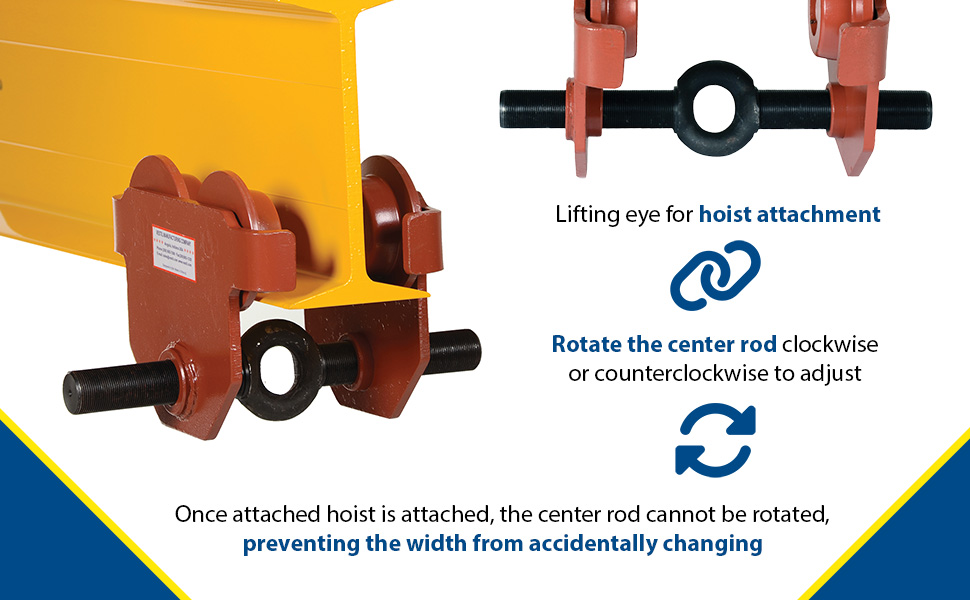

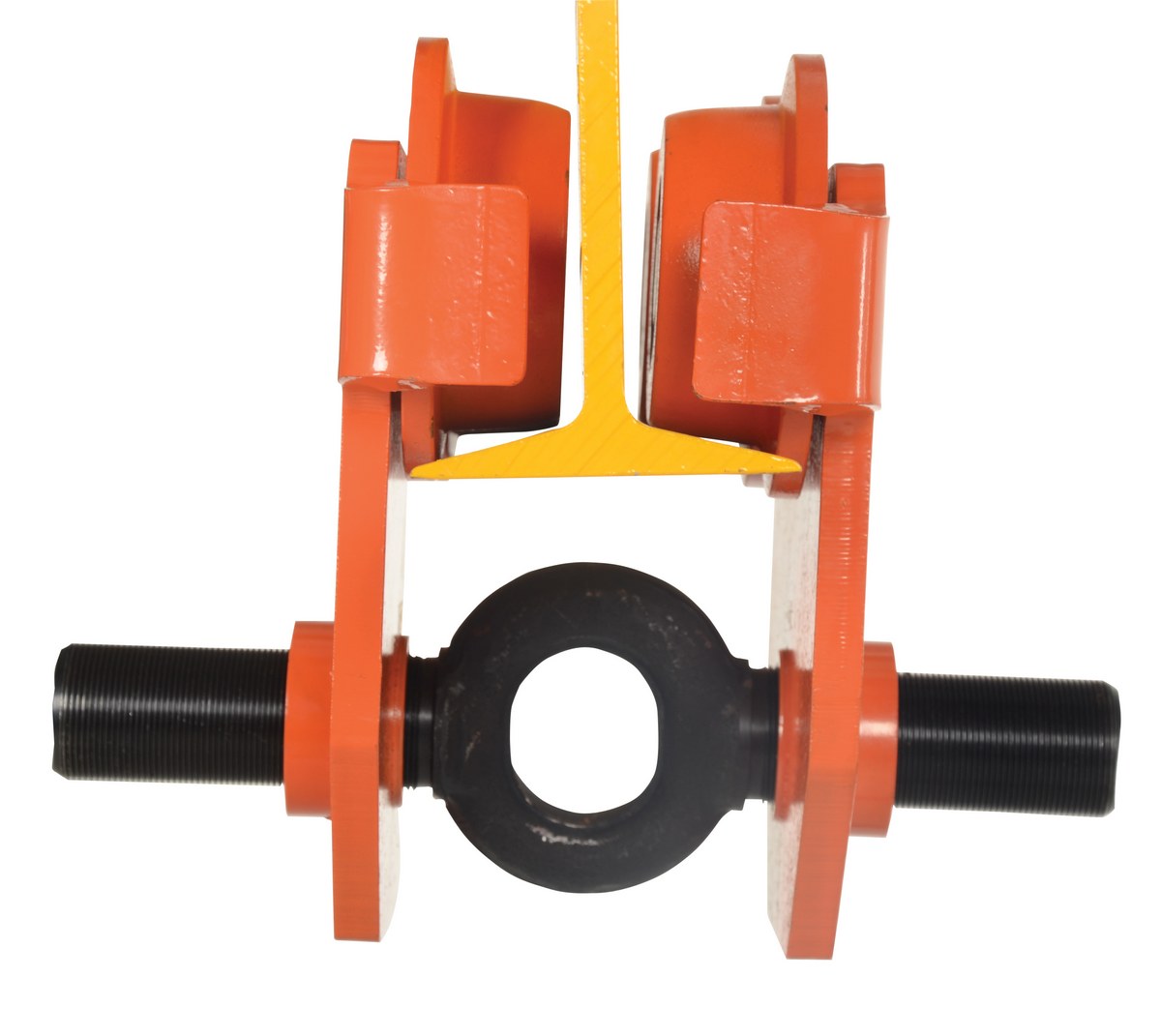

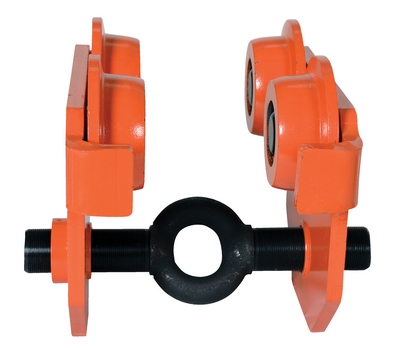

These trolleys fit tapered S and I beams as well as flat-flanged W beams. The center screw with lifting eye allows quick width adjustment to match the beam flange. Once a hoist is attached, the center rod cannot rotate, helping prevent accidental trolley width changes during use.

Push and Geared Options

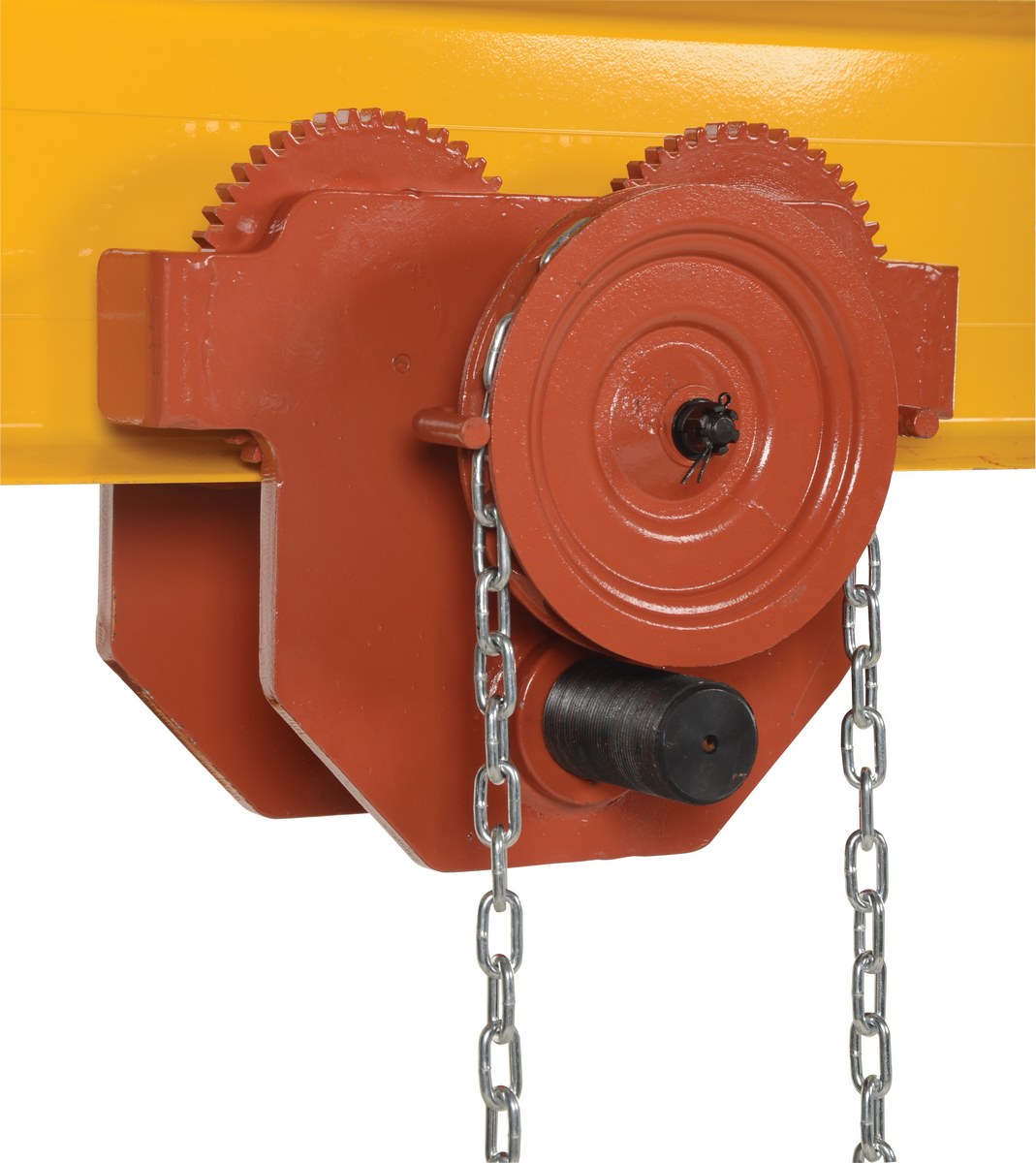

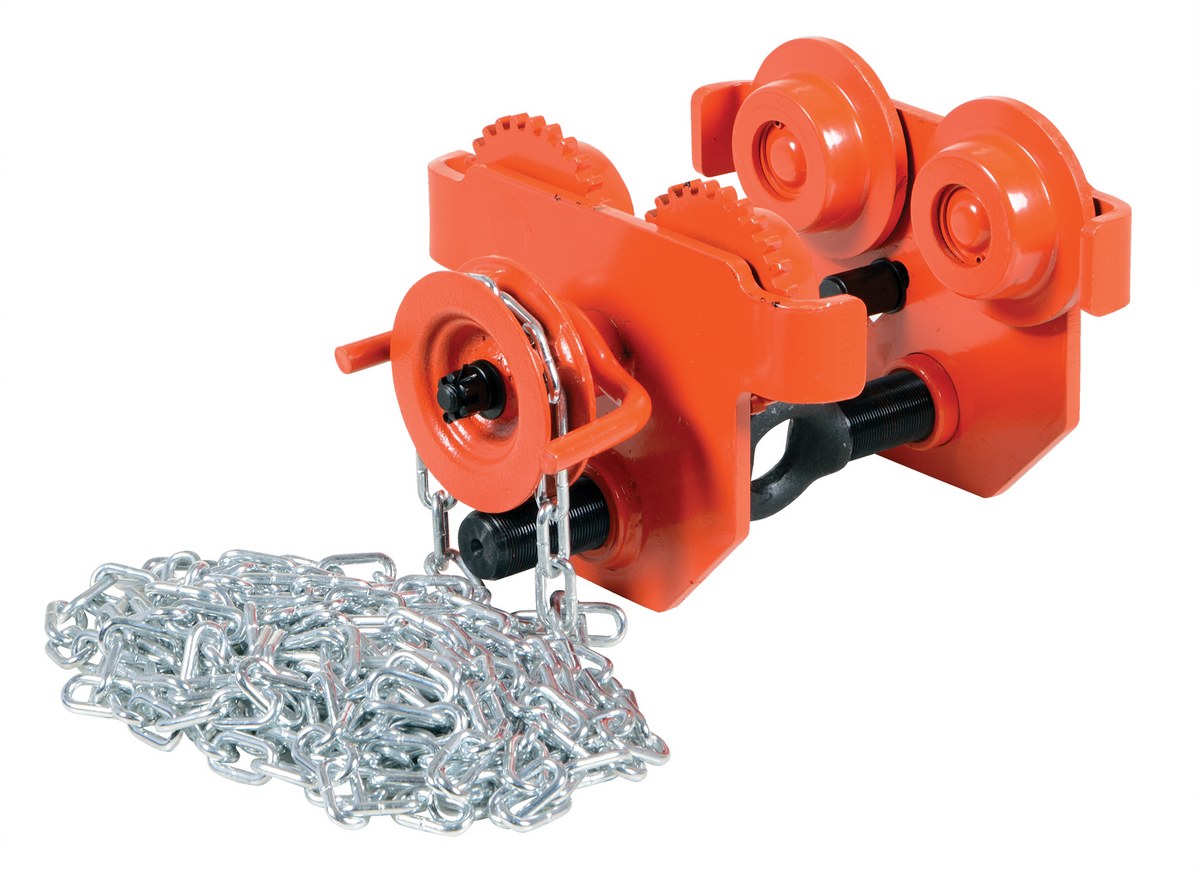

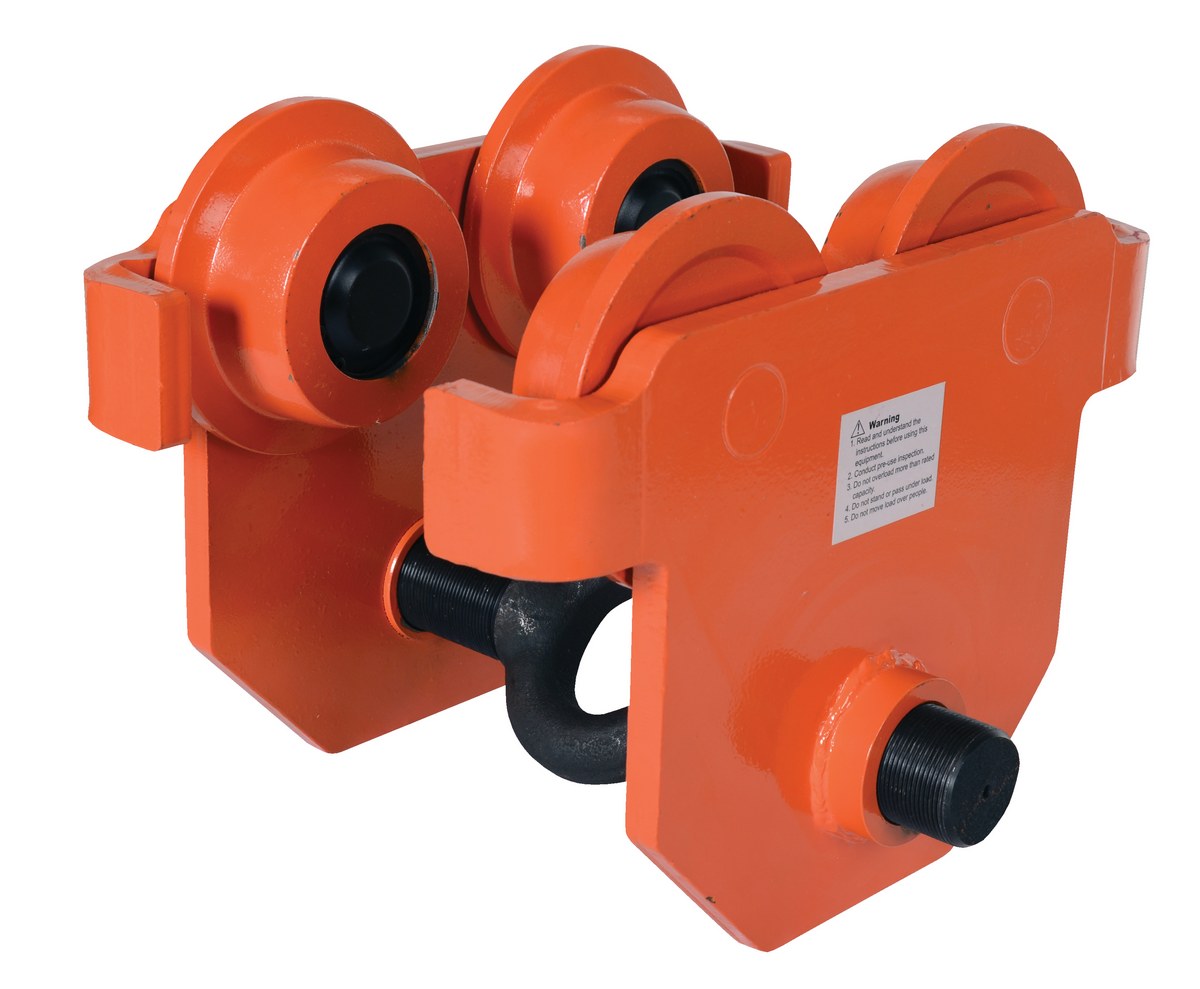

Push trolley models are ideal for straightforward manual movement along the beam. Geared trolley models include chain drive operation for applications that require more precise load positioning, especially when handling heavier loads or working in tighter spaces.

Capacities and Construction

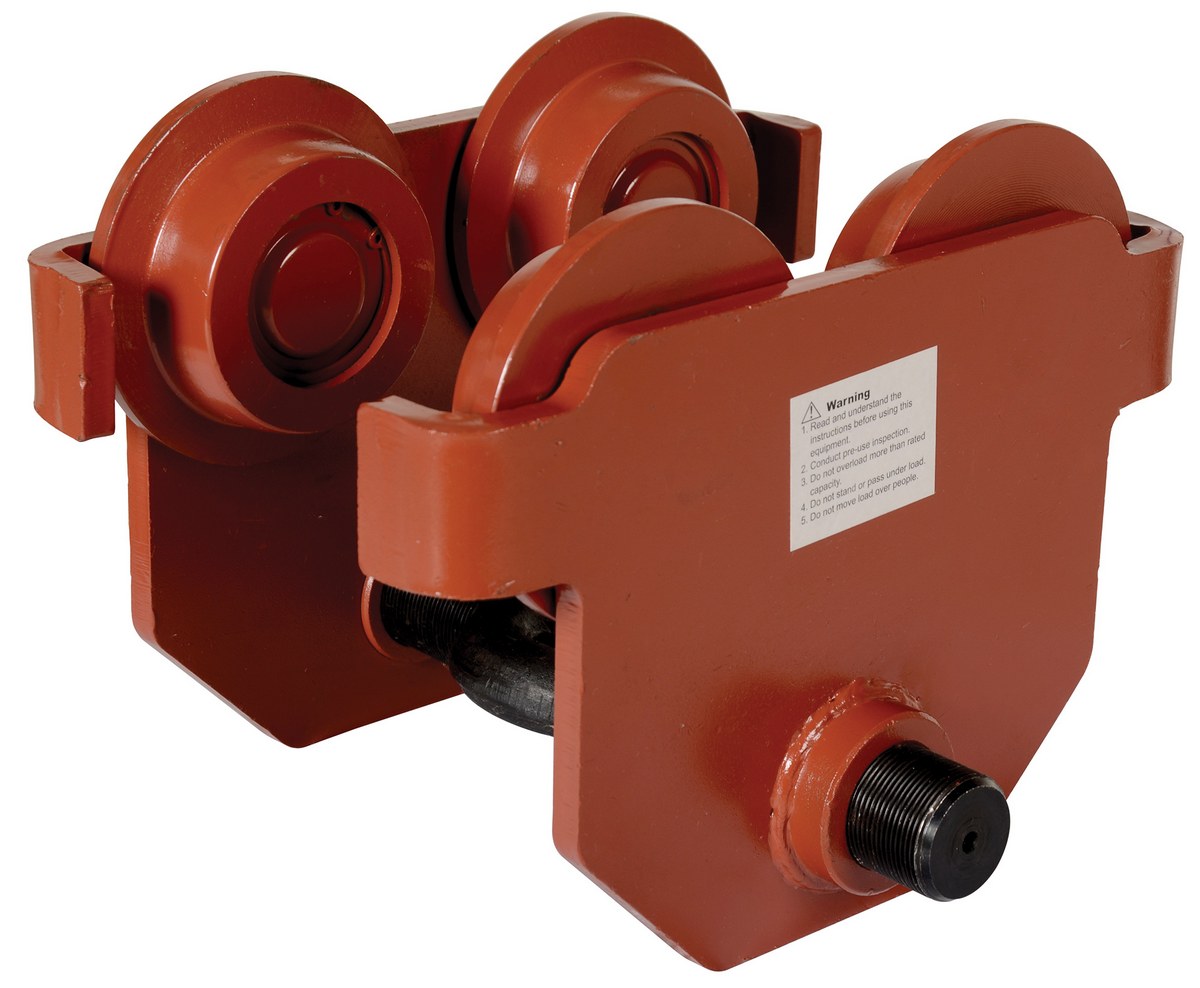

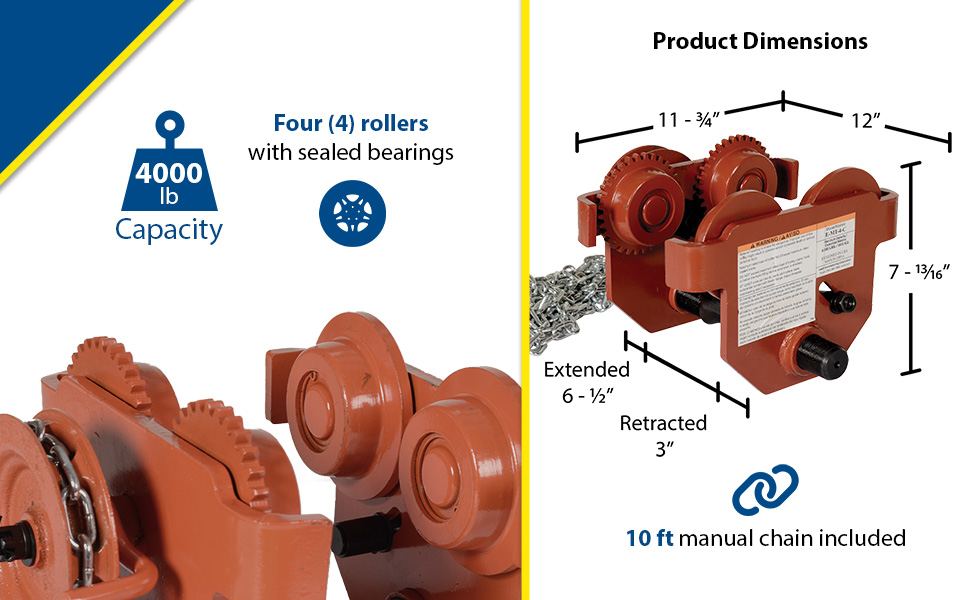

This family includes 1,000 lb. to 10,000 lb. capacity models with flange width ranges up to 10-1/8 inches, depending on model. Four rollers with sealed bearings support long service life, while solid steel construction and a durable orange painted finish provide rugged performance for daily overhead material handling use.

Low Profile Manual Trollies

model: E-MT-10

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

E-MT-1
E-MT-1-C
E-MT-10
E-MT-10-C
E-MT-2
E-MT-2-C
E-MT-4
E-MT-4-C
E-MT-6
E-MT-6-C
E-MT-8
E-MT-8-C
PDFs will open in a new window when clicked.

Owner's Manuals

1
E-MT, MANUAL
Open Manual

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

12
E-MT-1
Open Drawing
E-MT-1-C
Open Drawing
E-MT-10
Open Drawing
E-MT-10-C
Open Drawing
E-MT-2
Open Drawing
E-MT-2-C
Open Drawing
E-MT-4
Open Drawing
E-MT-4-C
Open Drawing
E-MT-6
Open Drawing
E-MT-6-C
Open Drawing
E-MT-8
Open Drawing
E-MT-8-C
Open Drawing

Testing Certificates

12
E-MT-1
Open Certificate
E-MT-1-C
Open Certificate
E-MT-10
Open Certificate
E-MT-10-C
Open Certificate
E-MT-2
Open Certificate
E-MT-2-C
Open Certificate
E-MT-4
Open Certificate
E-MT-4-C
Open Certificate
E-MT-6
Open Certificate
E-MT-6-C
Open Certificate
E-MT-8
Open Certificate
E-MT-8-C
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

0
No label page PDFs for this product family.

Other PDFs

0
No other PDFs for this product family.







Visit Our Youtube Channel For All Available Videos For All Products

Enhanced Product Content

E-MT-2

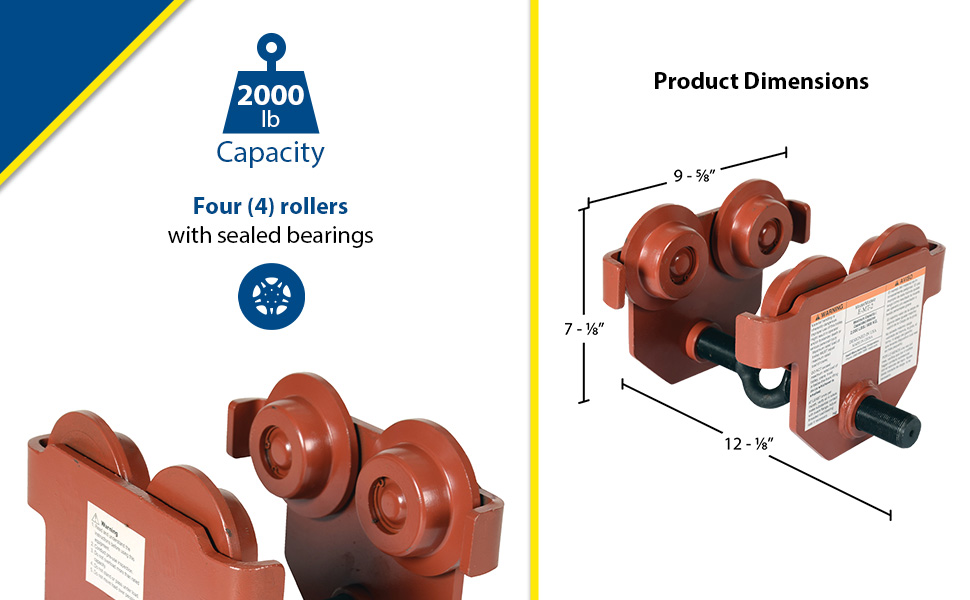

E-MT-2 E-MT-2 A+ Content - 2
E-MT-2 E-MT-2 A+ Content - 1
E-MT-2 E-MT-2 A+ Content - 3
E-MT-4-C

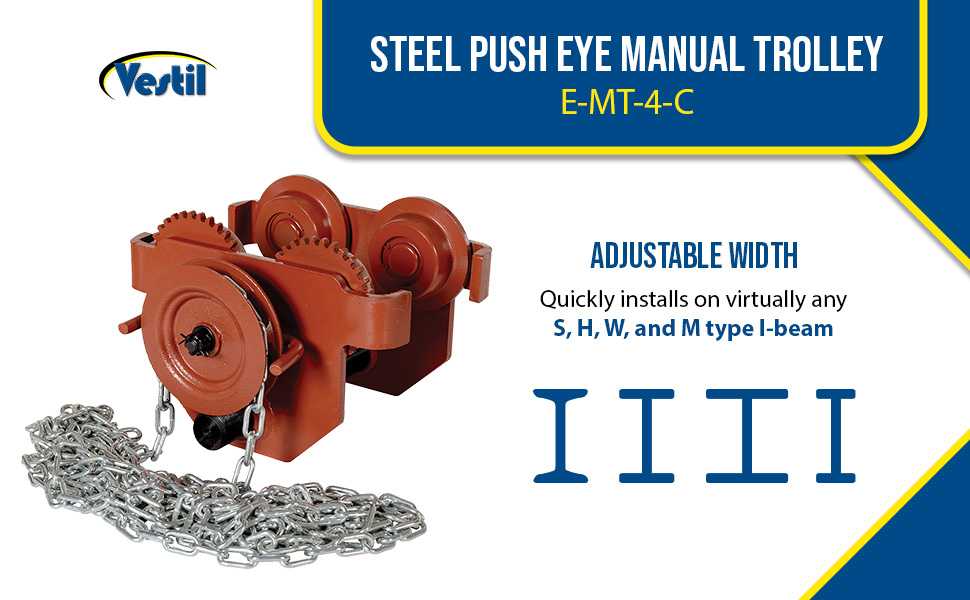

E-MT-4-C E-MT-4-C A+ Content - 3
E-MT-4-C E-MT-4-C A+ Content - 2
E-MT-4-C E-MT-4-C A+ Content - 1

Related or Similar Products:

More From Hoists & Trollies





Low Profile Manual Trollies




Low Headroom Manual Hoist Trolleys for I-Beam Lifting Systems

Low headroom manual hoist trolleys provide an adjustable beam-mounted travel point for moving loads along compatible overhead beams. Designed for gantry cranes, monorail systems, maintenance areas, fabrication shops, warehouses, and industrial lifting applications, these manual trolleys help users position hoists and suspended loads with controlled horizontal movement.

Adjustable Beam Fit

These trolleys fit tapered S and I beams as well as flat-flanged W beams. The center screw with lifting eye allows quick width adjustment to match the beam flange. Once a hoist is attached, the center rod cannot rotate, helping prevent accidental trolley width changes during use.

Push and Geared Options

Push trolley models are ideal for straightforward manual movement along the beam. Geared trolley models include chain drive operation for applications that require more precise load positioning, especially when handling heavier loads or working in tighter spaces.

Capacities and Construction

This family includes 1,000 lb. to 10,000 lb. capacity models with flange width ranges up to 10-1/8 inches, depending on model. Four rollers with sealed bearings support long service life, while solid steel construction and a durable orange painted finish provide rugged performance for daily overhead material handling use.


Model # Description Attributes Net Wt.
(lbs)

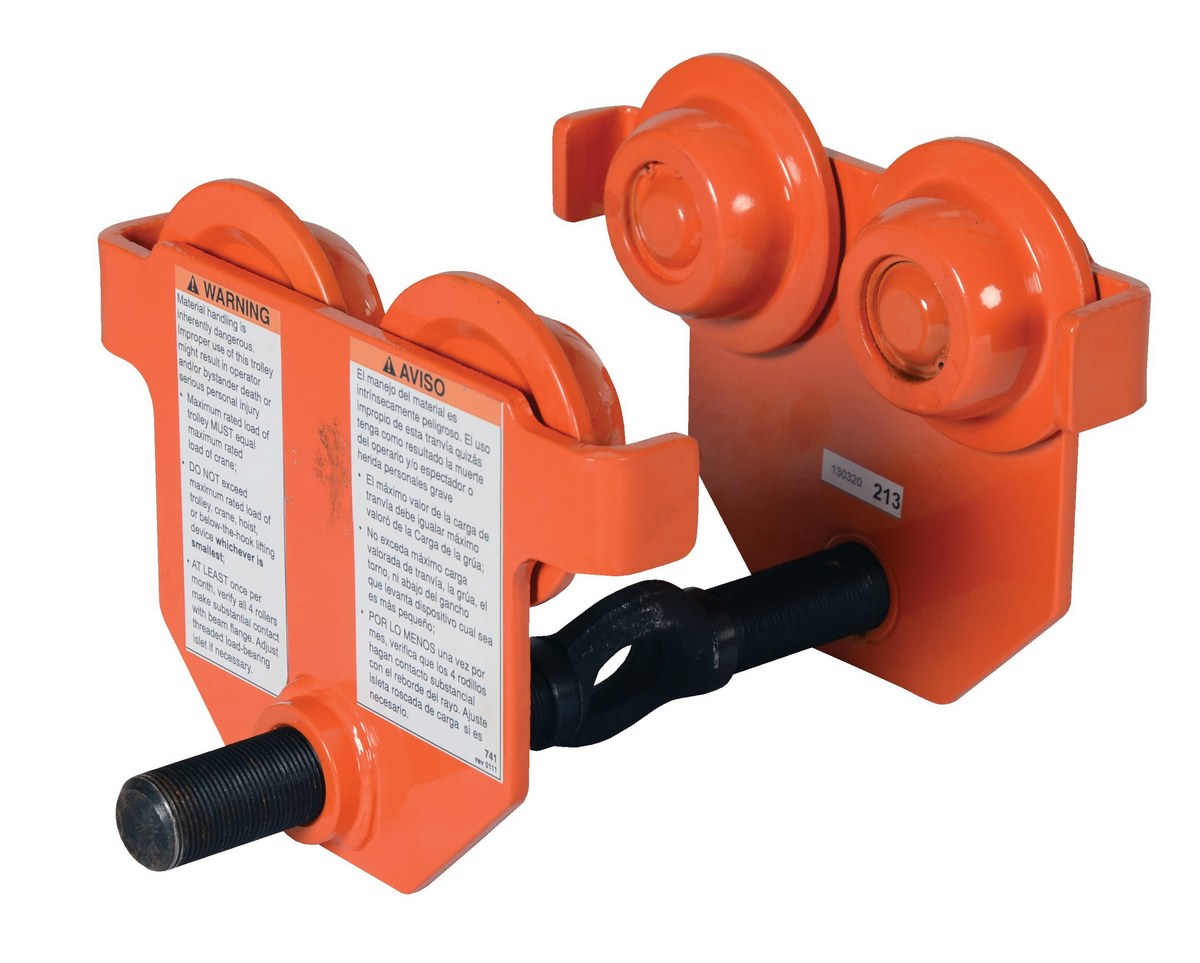

E-MT-1 E-MT-1Steel Push Eye Manual Trolley 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2 to 8-5/8		12

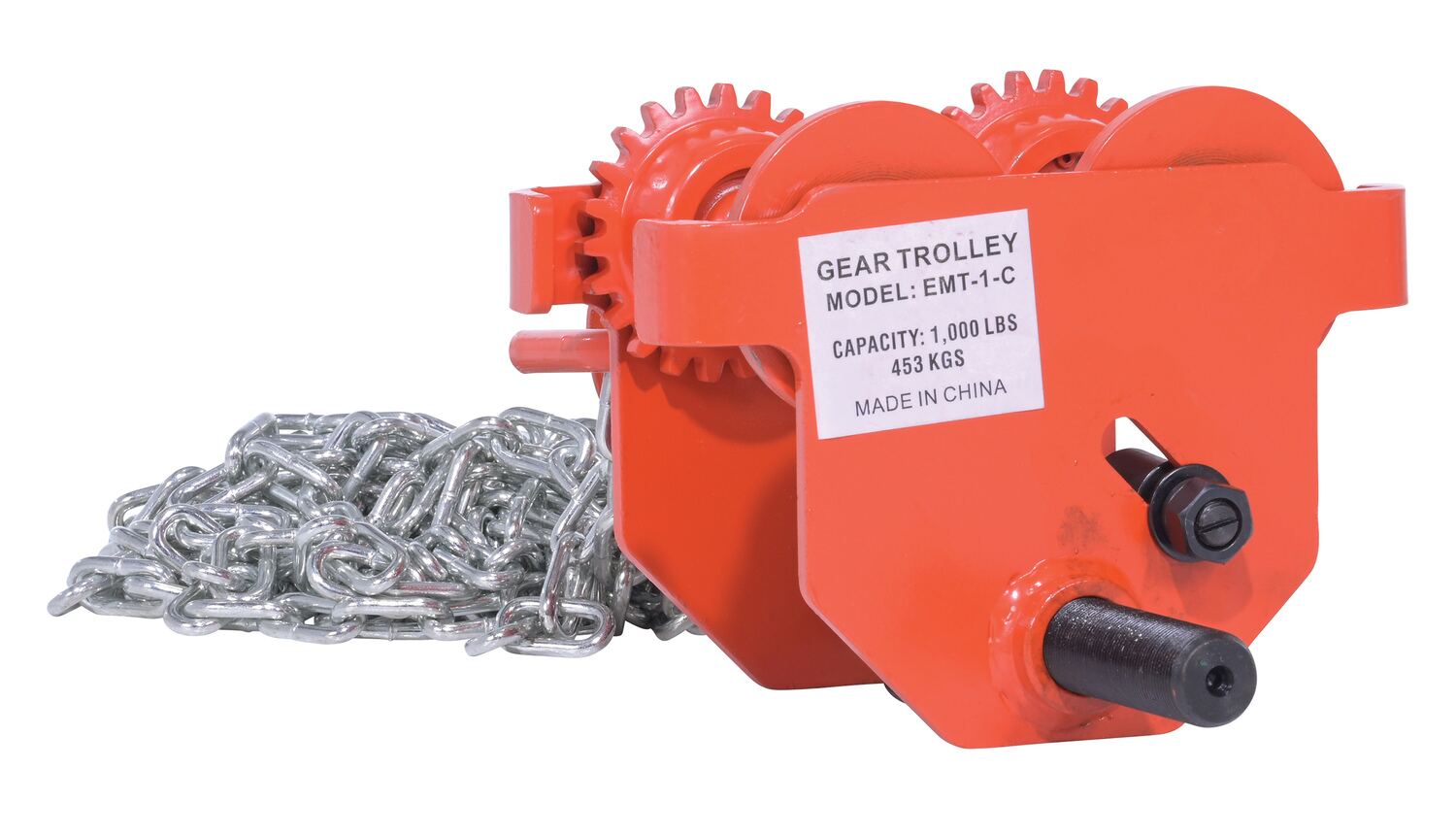

E-MT-1-C E-MT-1-CSteel Geared Eye Manual Trolley 1000 Lb. Capacity OrangeUniform Capacity (lb.): 1,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2		21

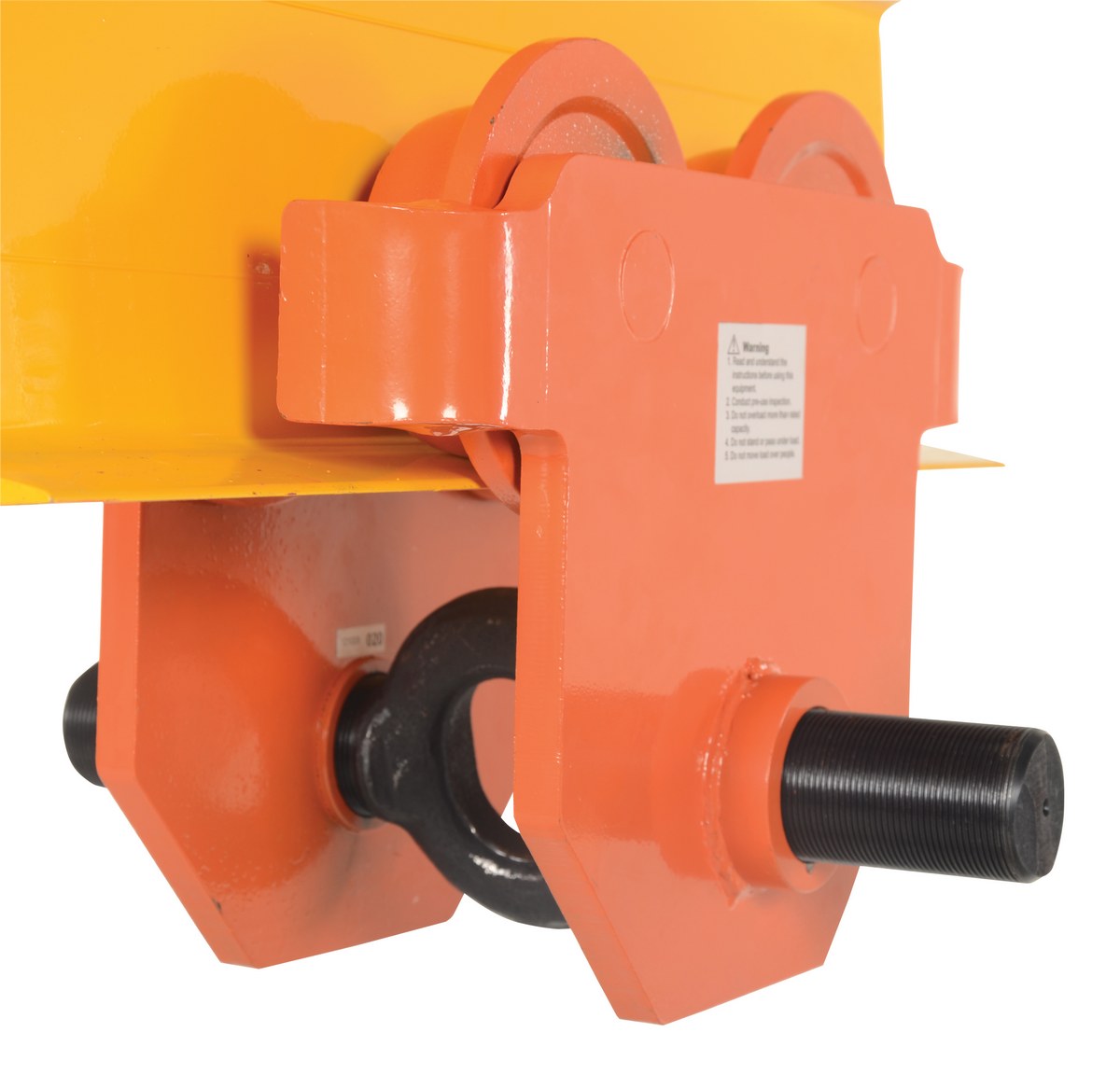

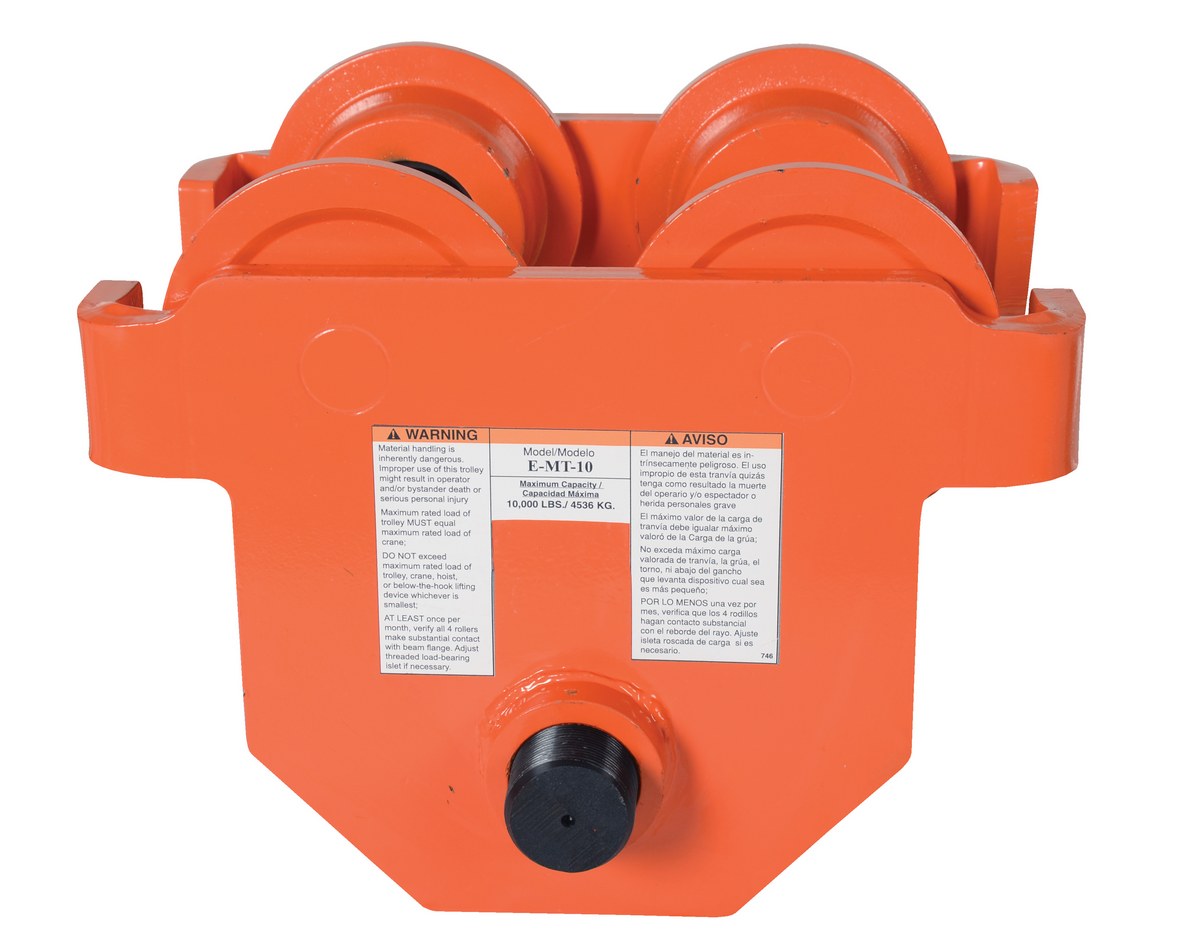

E-MT-10 E-MT-10Steel Push Eye Manual Trolley 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9		82

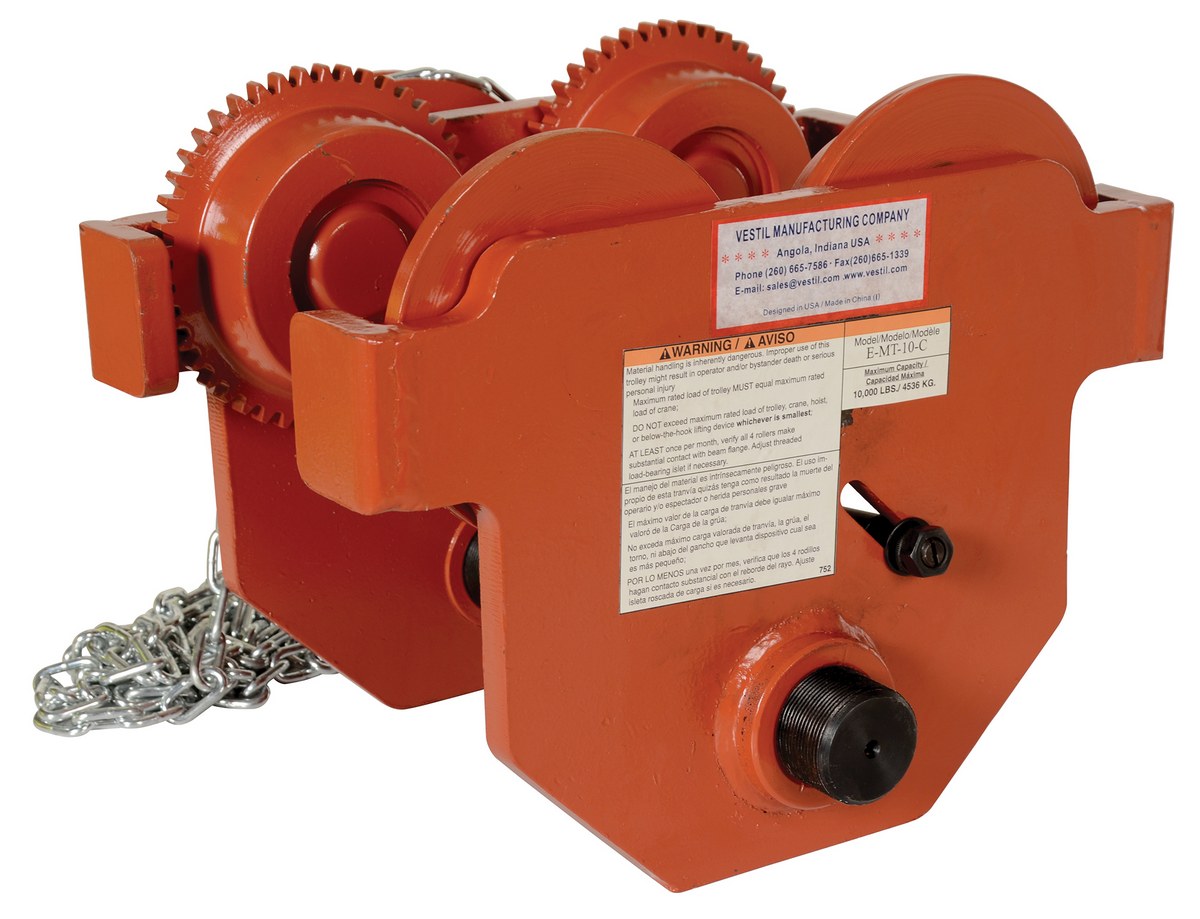

E-MT-10-C E-MT-10-CSteel Geared Eye Manual Trolley 10000 Lb. Capacity OrangeUniform Capacity (lb.): 10,000
Fits Beam Flange Width (in.): 3 to 9		103

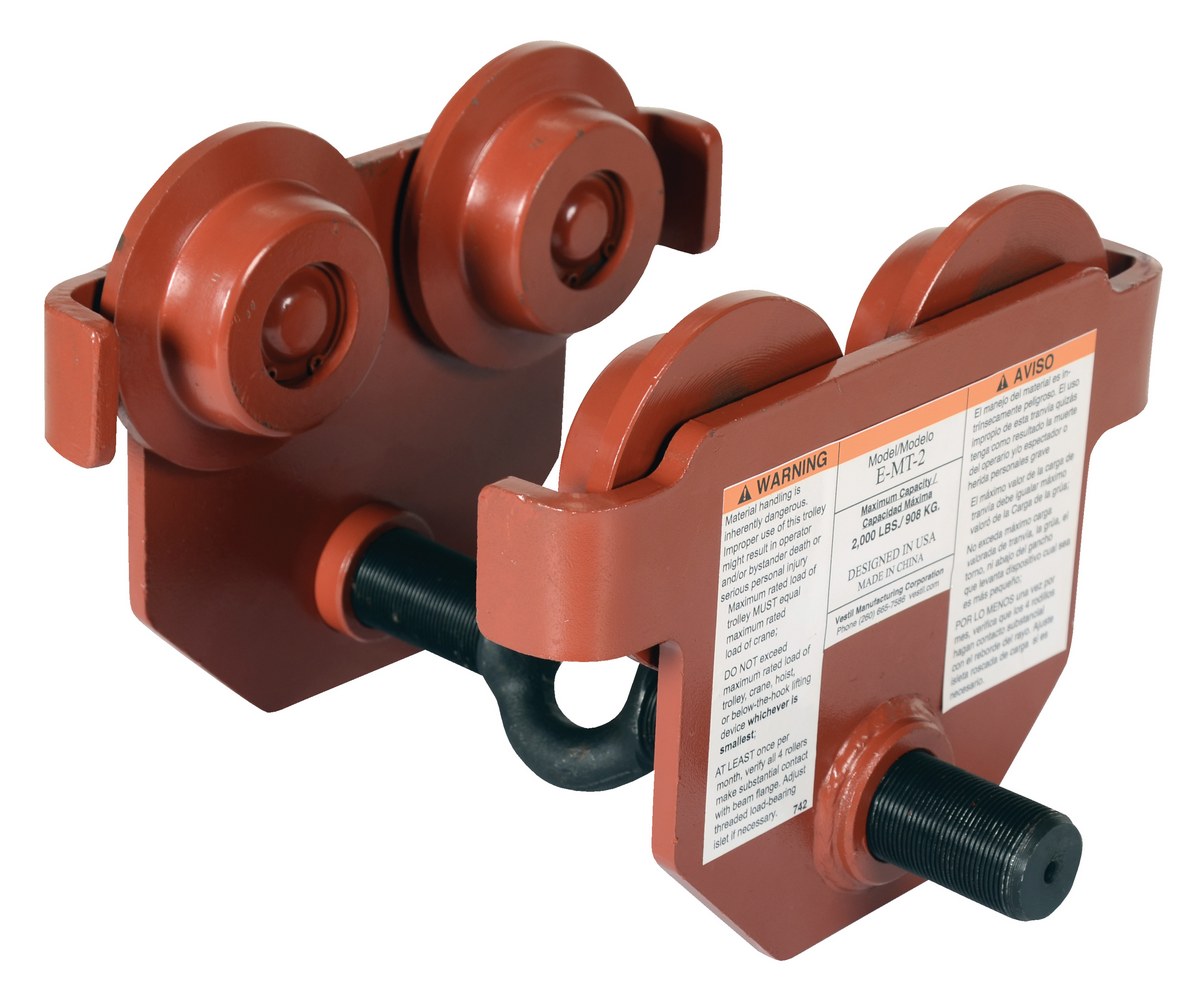

E-MT-2 E-MT-2Steel Push Eye Manual Trolley 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 10-1/8		20

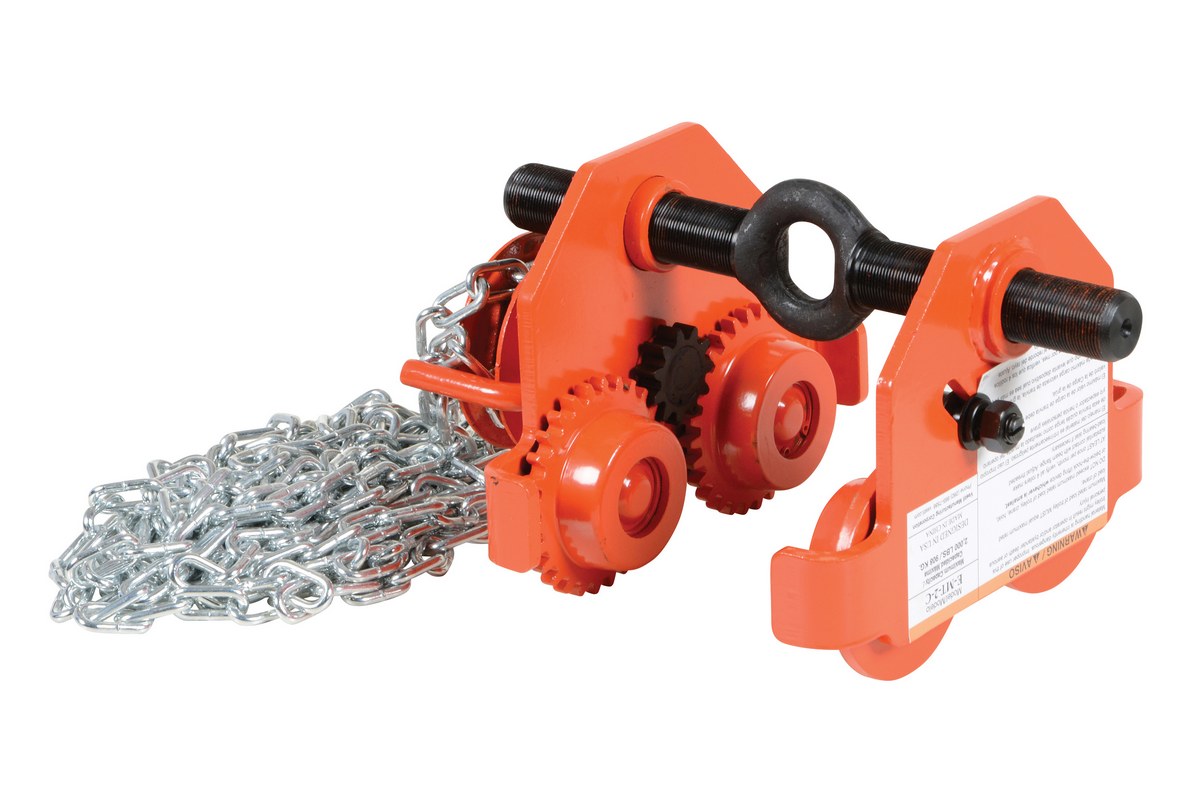

E-MT-2-C E-MT-2-CSteel Geared Eye Manual Trolley 2000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Fits Beam Flange Width (in.): 2-1/2 to 5-1/2		29

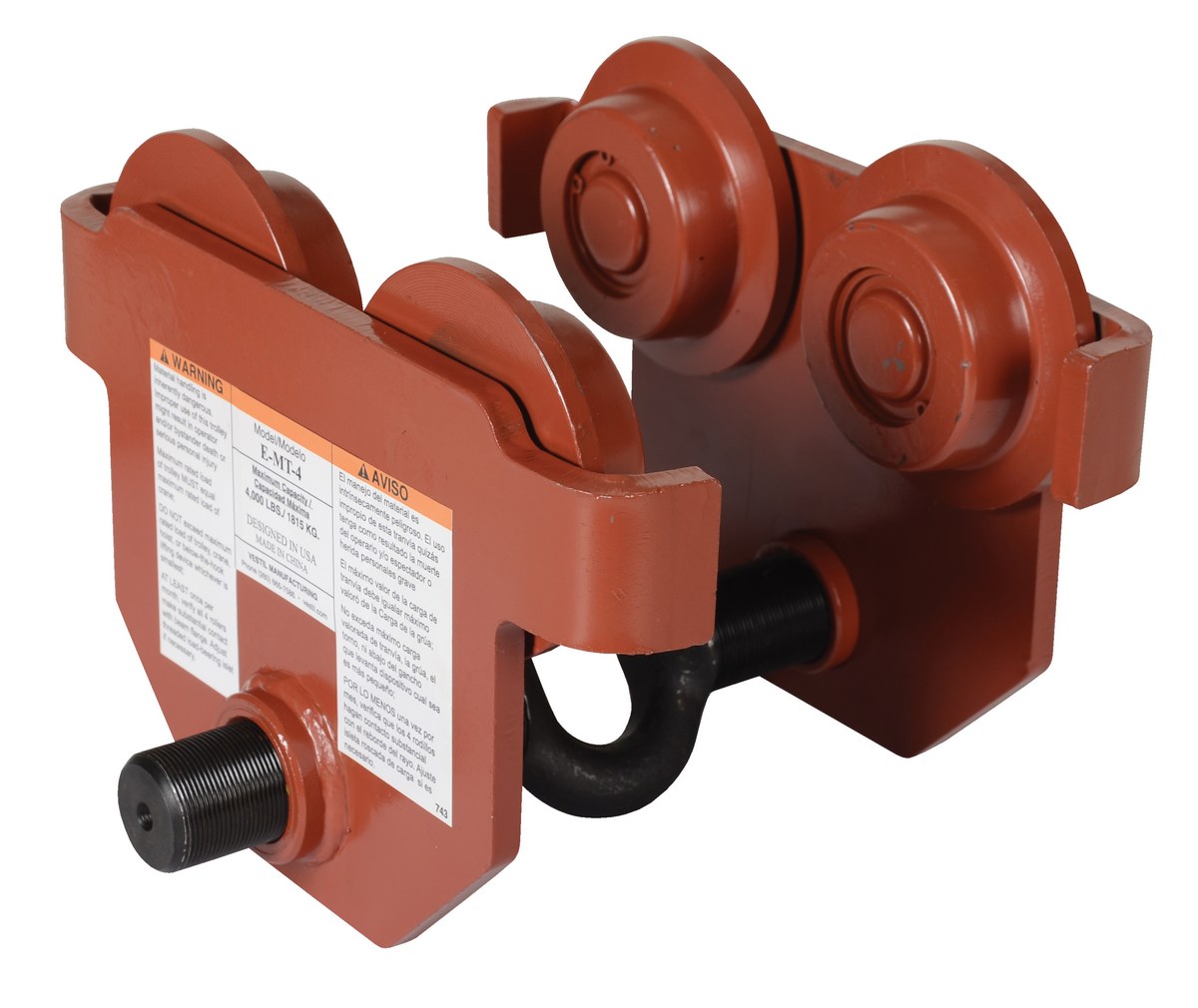

E-MT-4 E-MT-4Steel Push Eye Manual Trolley 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 2-1/2 to 8-5/8		31

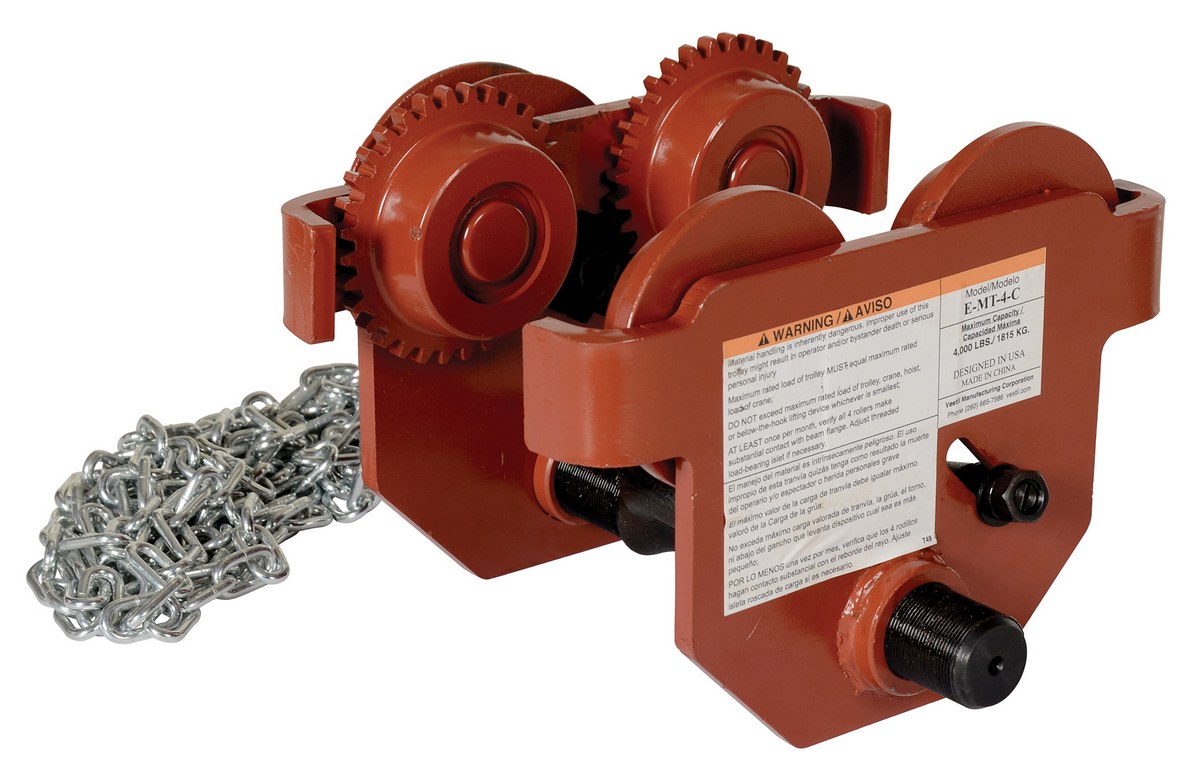

E-MT-4-C E-MT-4-CSteel Geared Eye Manual Trolley 4000 Lb. Capacity OrangeUniform Capacity (lb.): 4,000
Fits Beam Flange Width (in.): 3 to 6-1/2		41

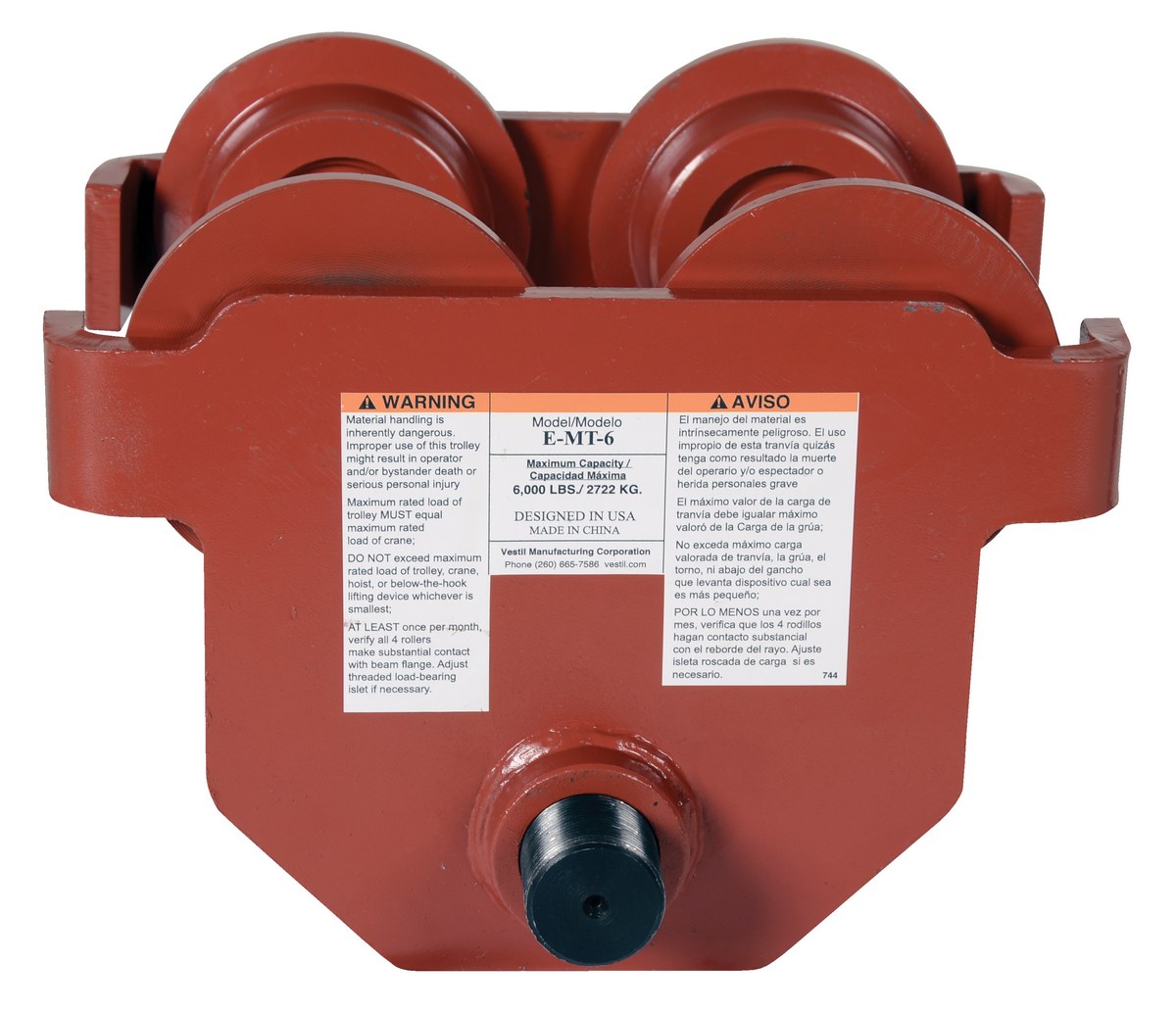

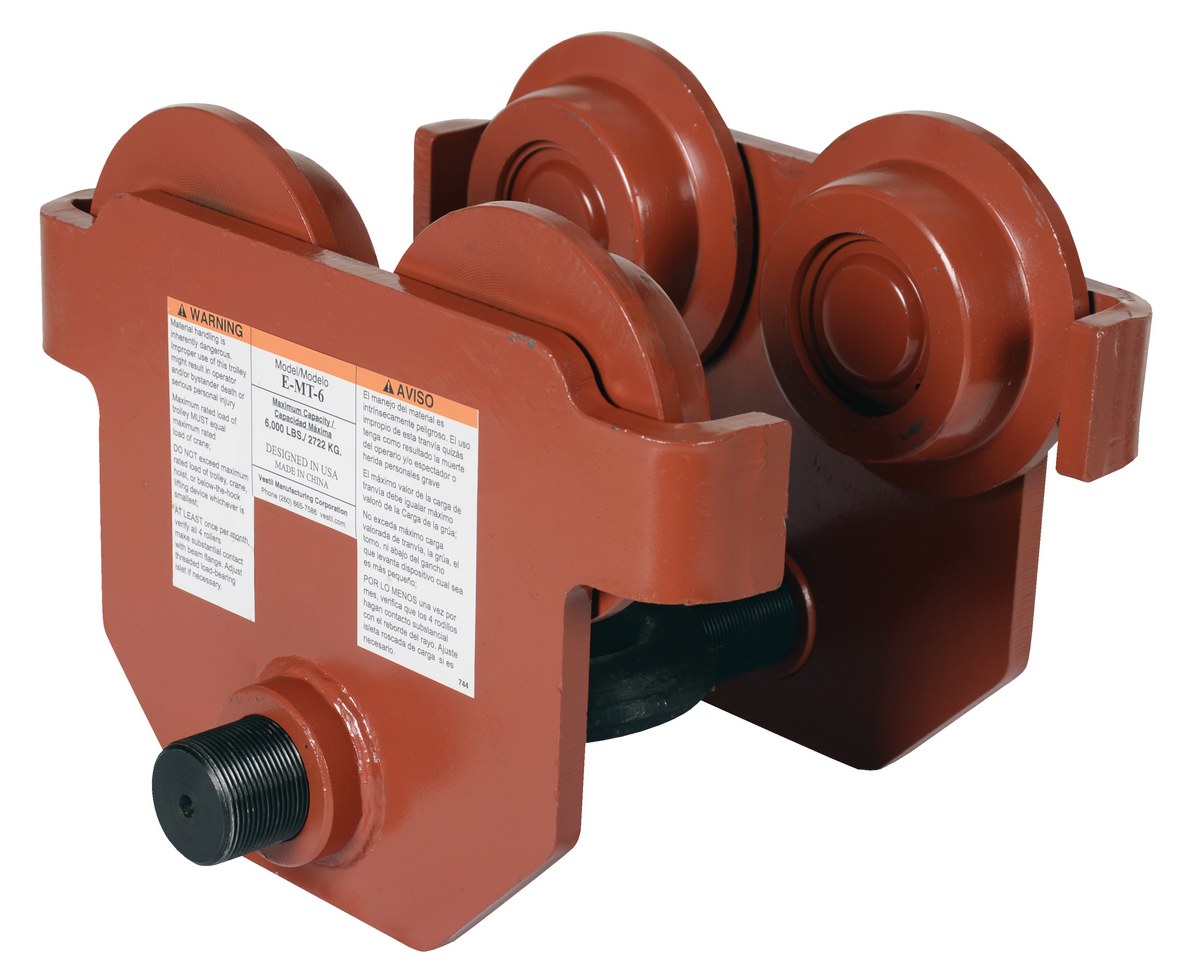

E-MT-6 E-MT-6Steel Push Eye Manual Trolley 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8-5/8		52

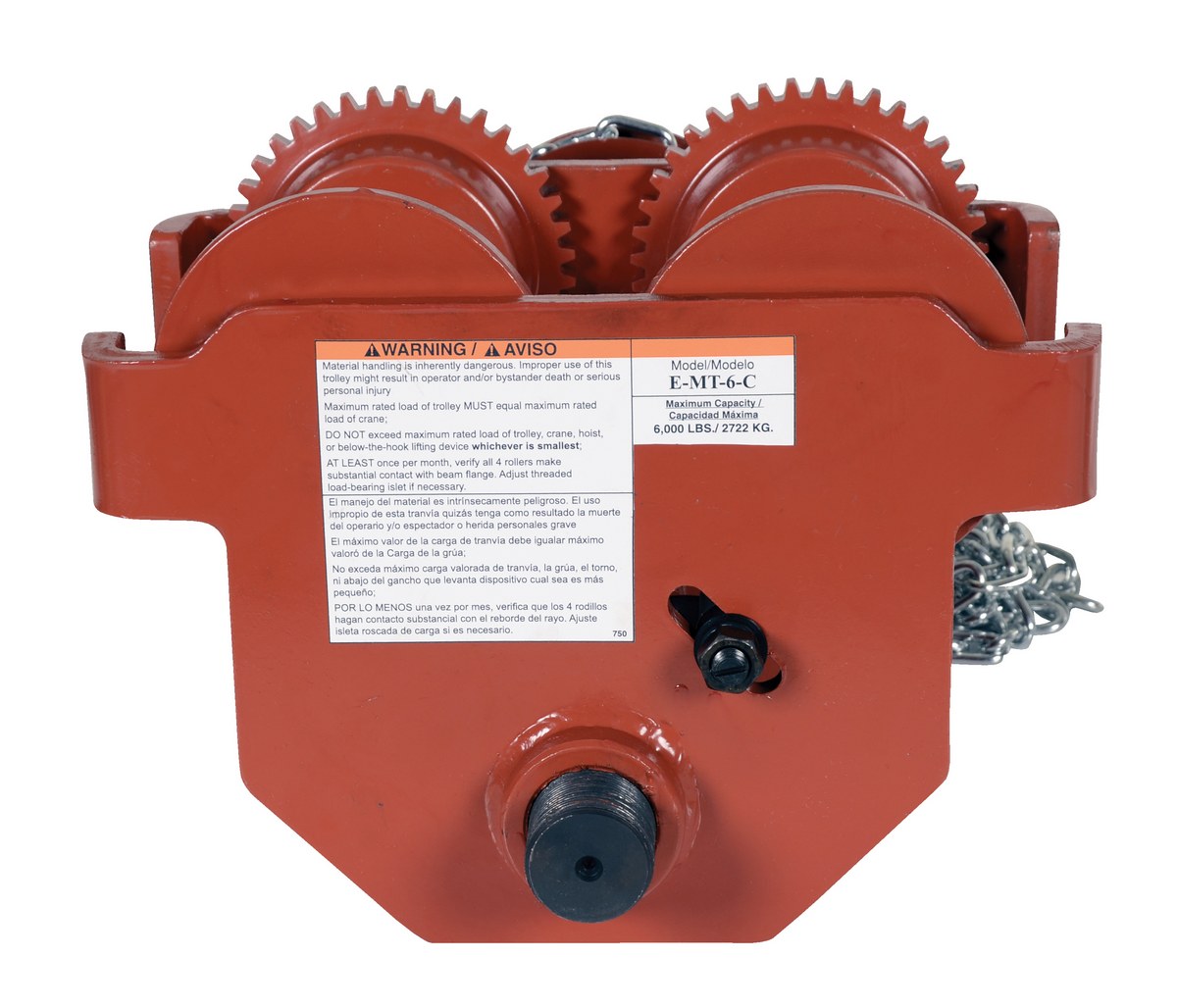

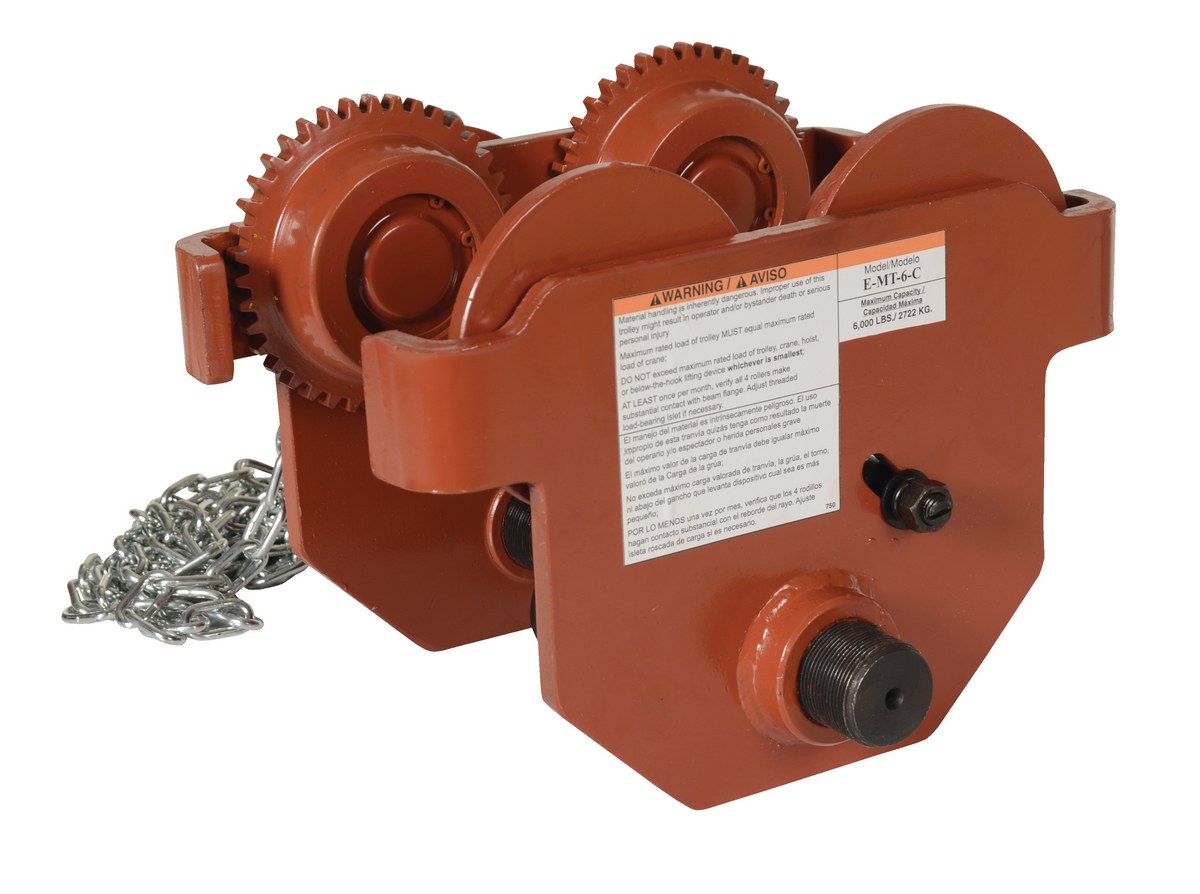

E-MT-6-C E-MT-6-CSteel Geared Eye Manual Trolley 6000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Fits Beam Flange Width (in.): 3 to 8		62

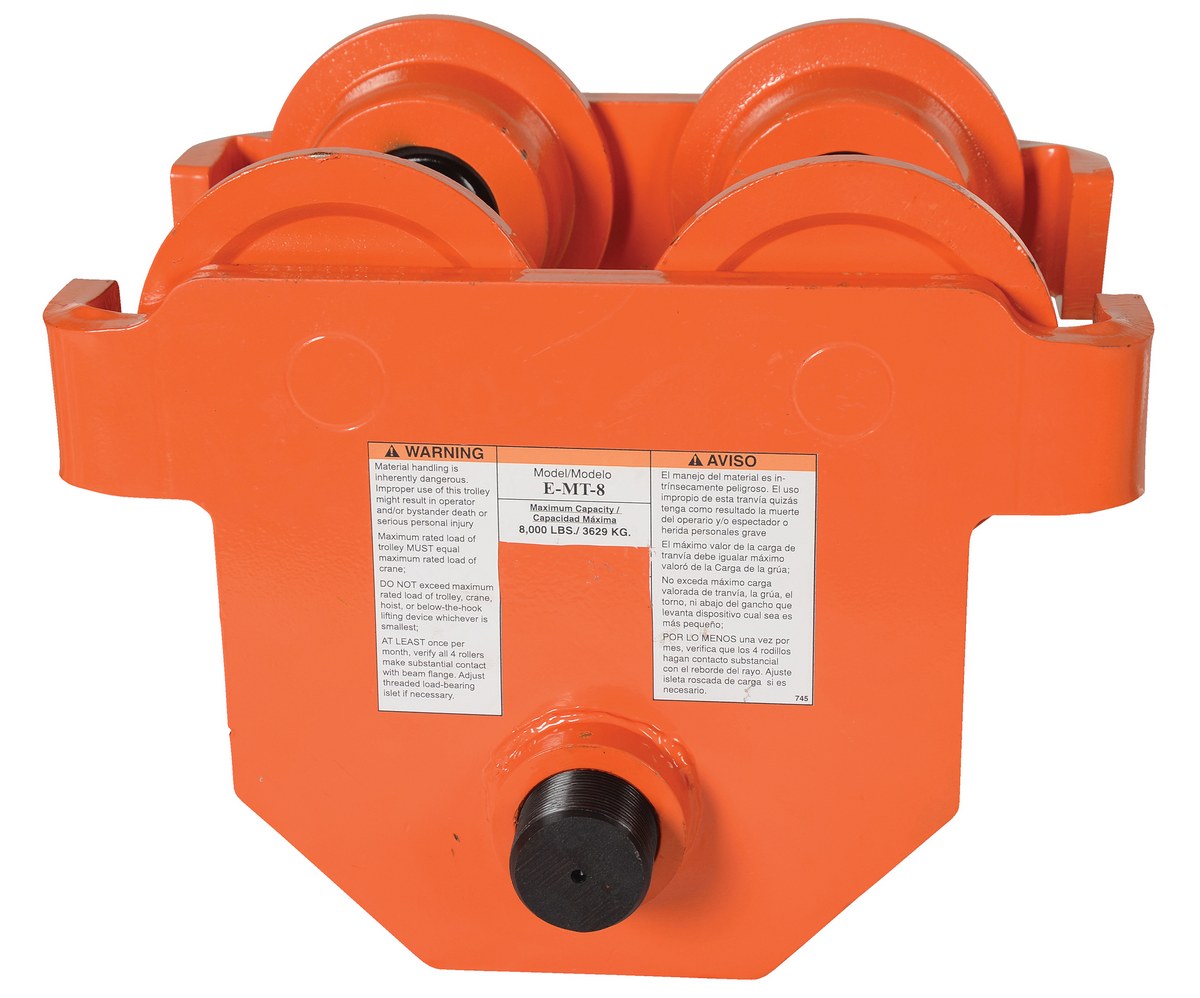

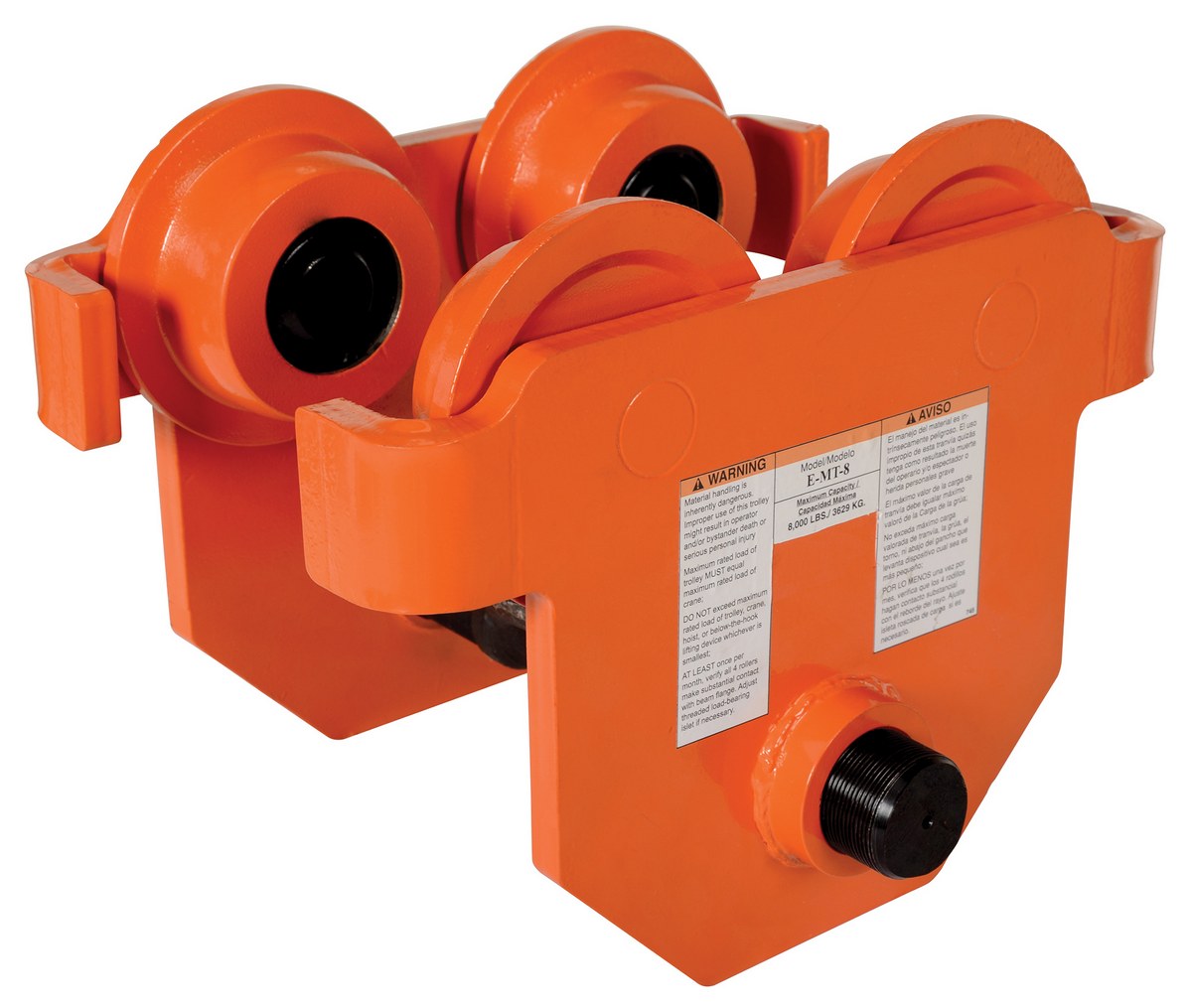

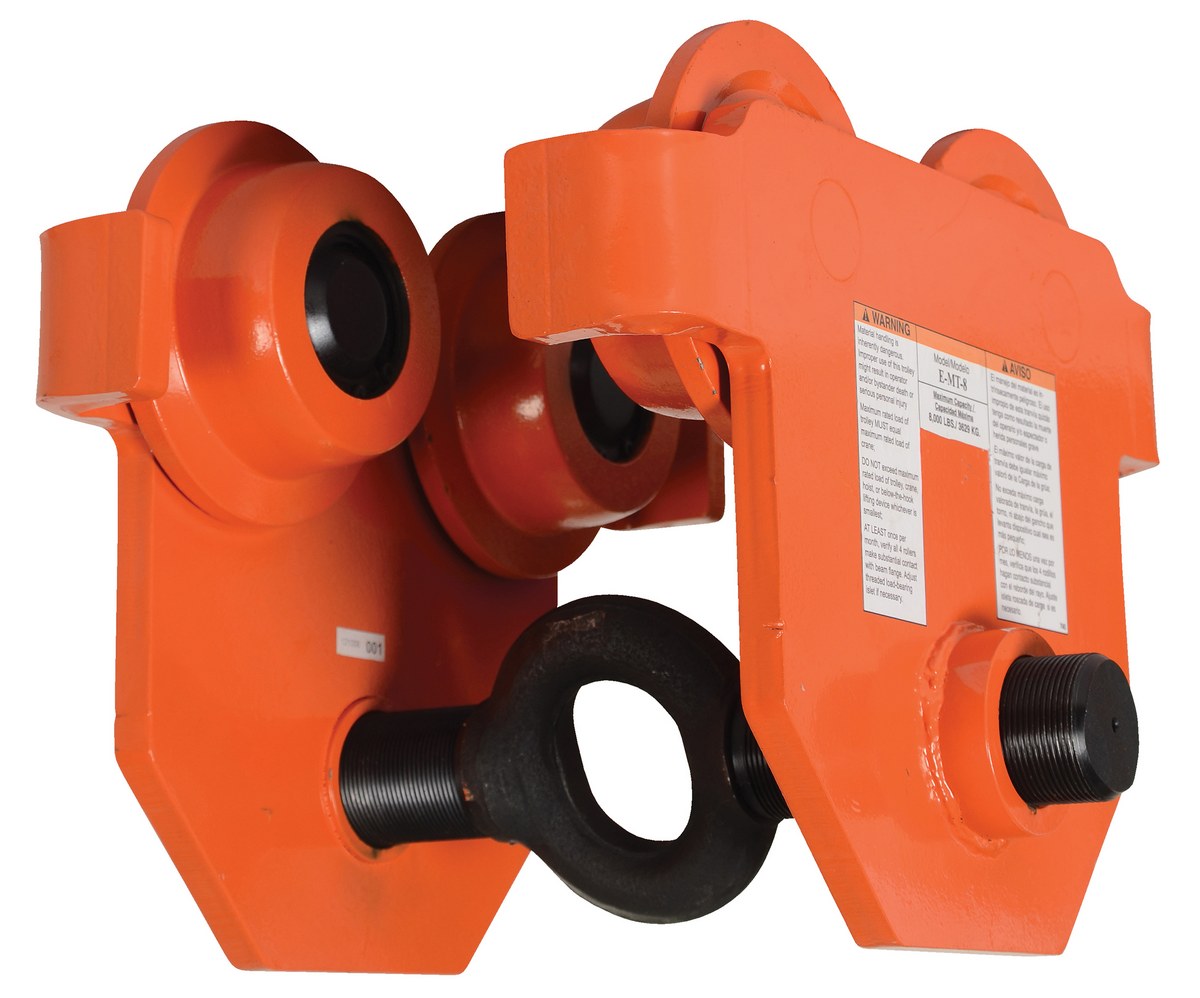

E-MT-8 E-MT-8Steel Push Eye Manual Trolley 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9		62

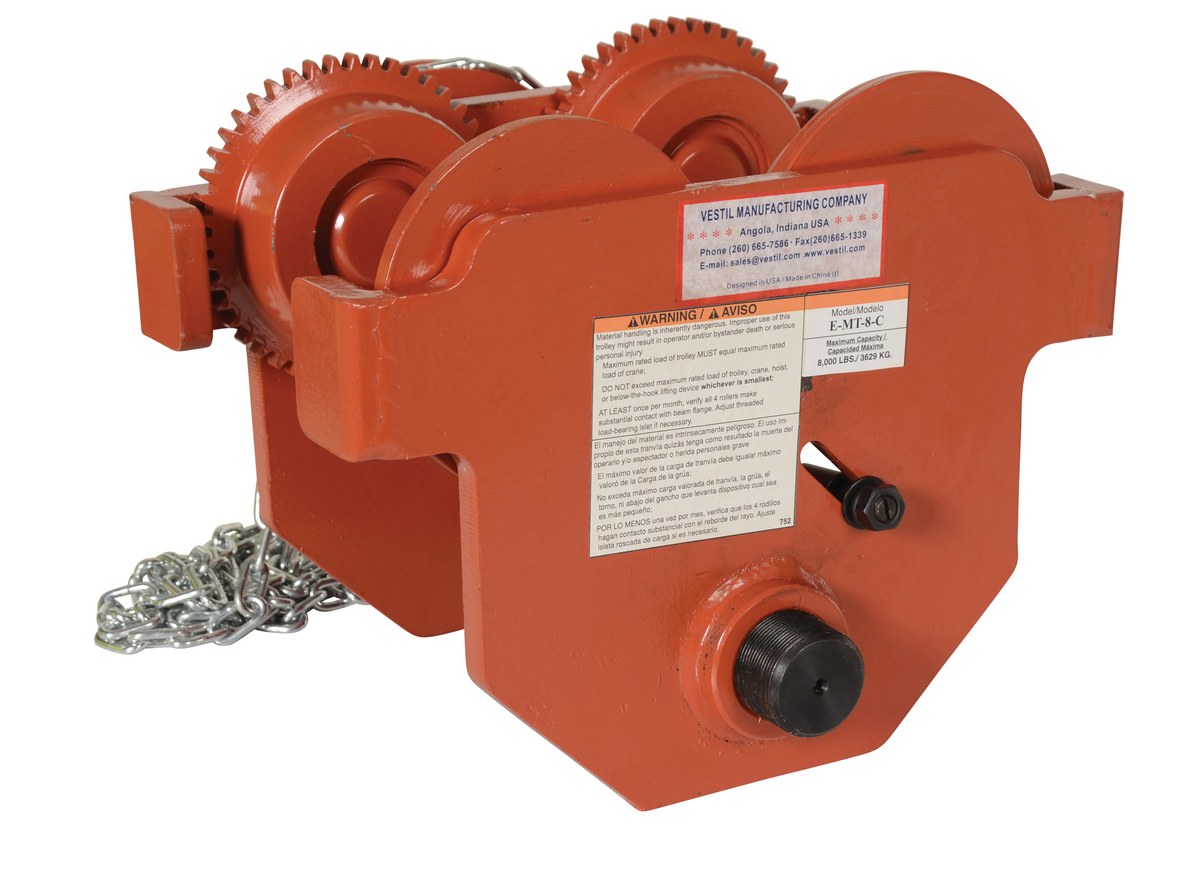

E-MT-8-C E-MT-8-CSteel Geared Eye Manual Trolley 8000 Lb. Capacity OrangeUniform Capacity (lb.): 8,000
Fits Beam Flange Width (in.): 3 to 9		100
