FEATURED Mini Cable Hoists

model: MINI-2

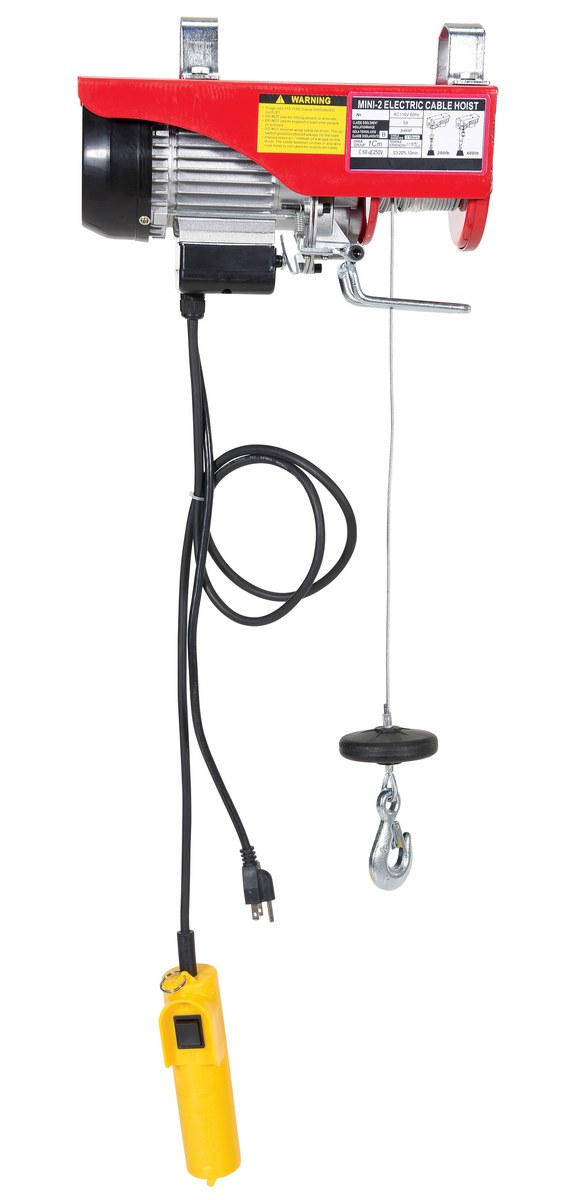

Mini Cable Hoists

SERIES: MINI 8Products 4Options

Quick Ship

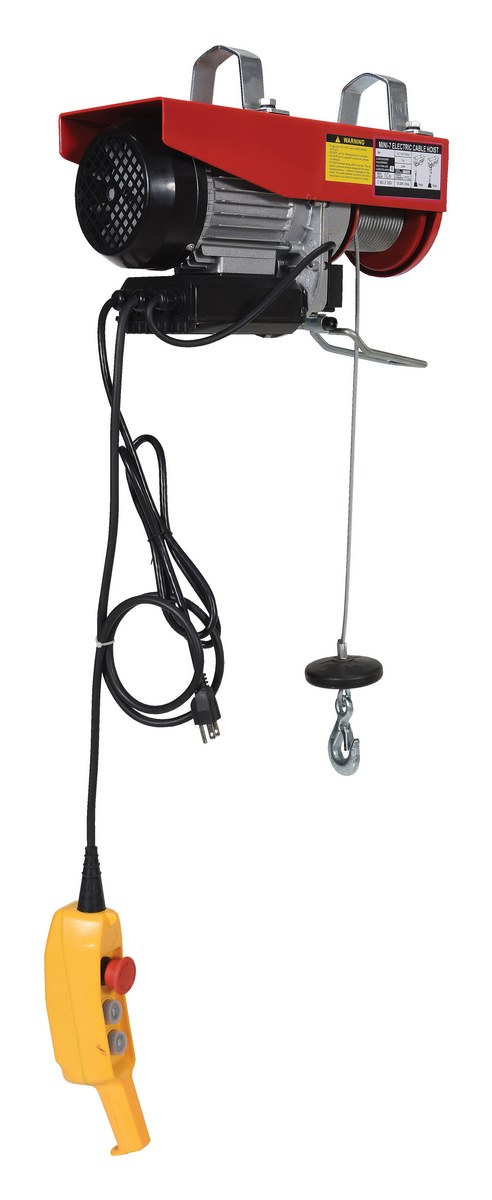

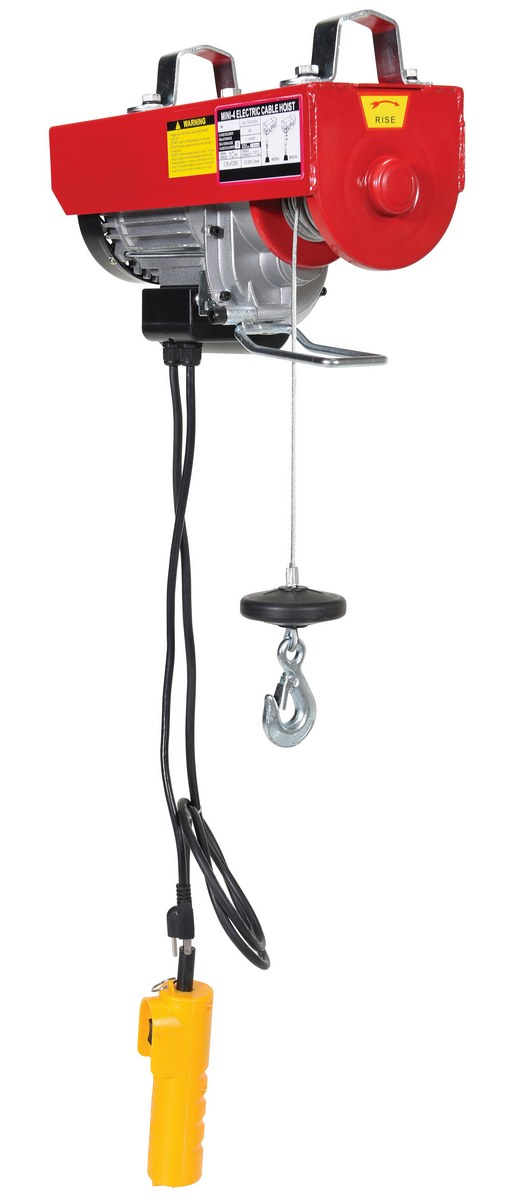

Electric Mini Cable Hoists for Single and Double Line Lifting

Electric mini cable hoists provide an economical lifting solution for light-duty material handling, maintenance, assembly, and shop applications. Designed for use in single-line or double-line lifting configurations, these compact cable hoists help raise and position loads with less manual effort in warehouses, garages, production areas, repair shops, and workstation lifting setups.

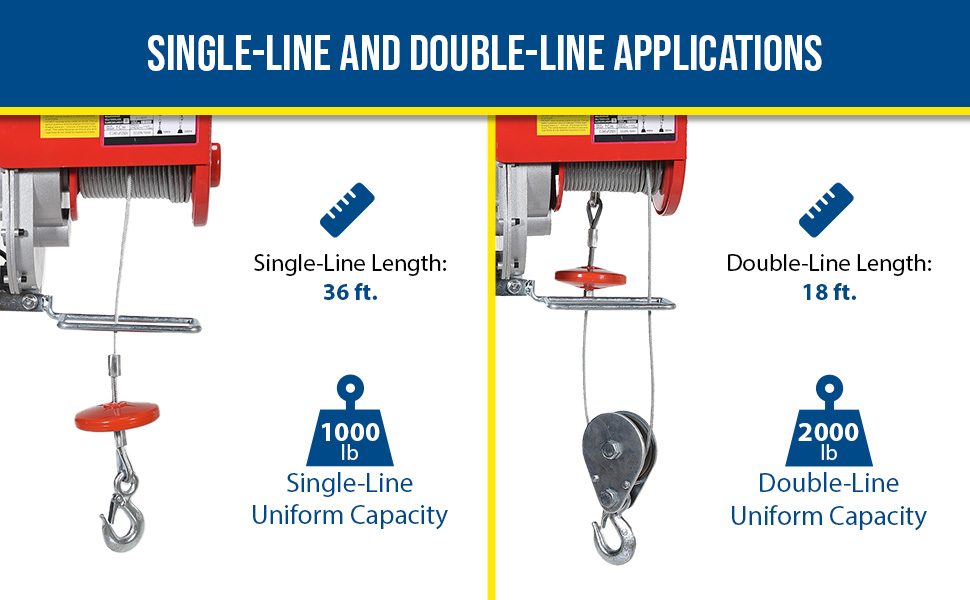

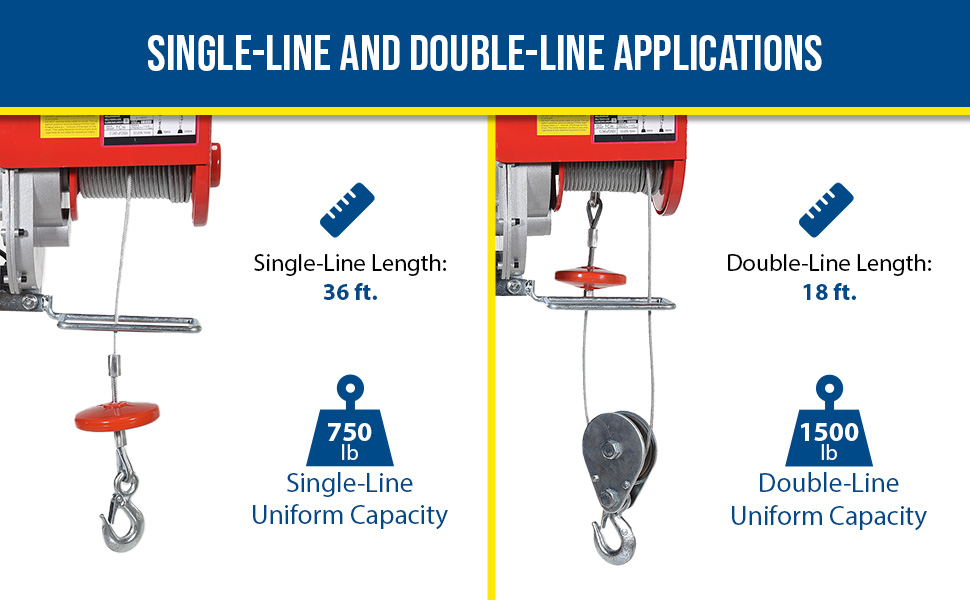

Single and Double Line Operation

Each hoist can be configured for single-line lifting when longer cable reach is needed or double-line lifting when higher capacity is required. Single-line cable length is 36 feet, while double-line cable length is 18 feet. Lifting speed is 30 feet per minute across the available models.

Powered Lifting Control

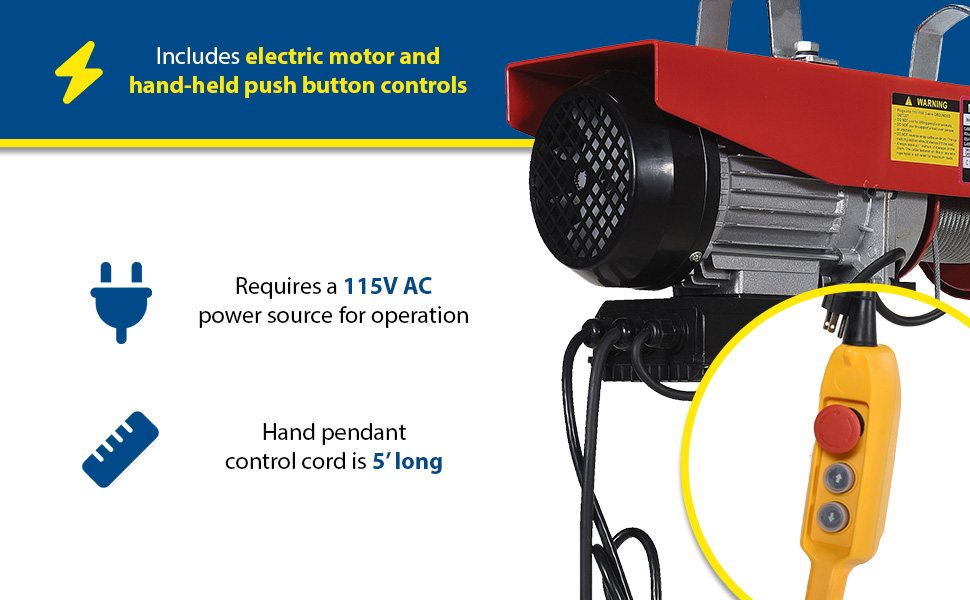

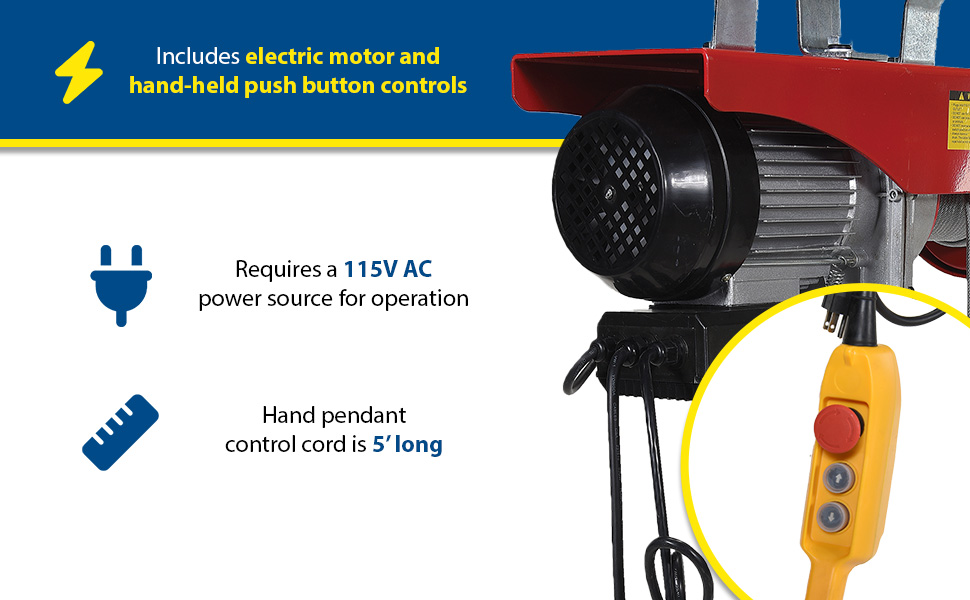

The electric motor operates from a 115V AC, single-phase power source. A handheld push button control with a 5 foot cord allows operators to raise and lower loads from a convenient position, supporting efficient lifting for repetitive or occasional handling tasks.

Capacities and Mounting Options

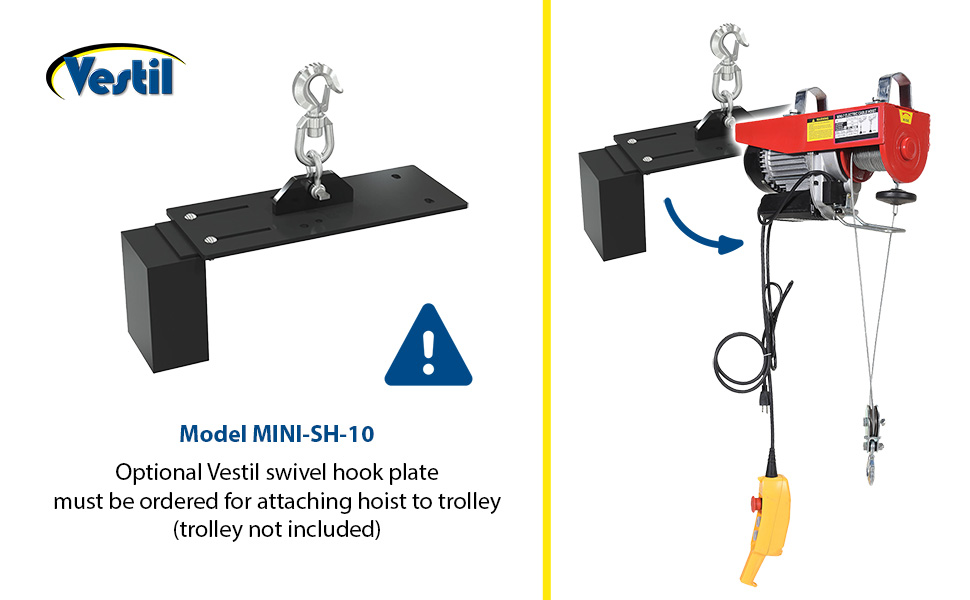

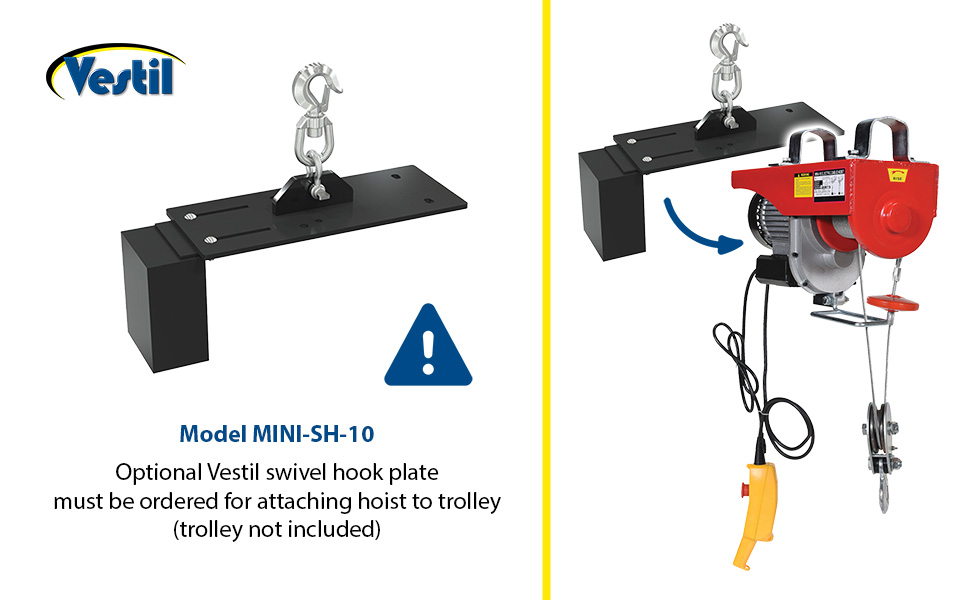

This family includes single-line capacities from 200 lb. to 1,000 lb. and double-line capacities from 400 lb. to 2,000 lb. The installation bracket fits 1-5/8 inch round pipe or 1-5/8 inch square tubing. Optional swivel hook plates are available for attaching the hoist to a compatible trolley, sold separately.

Mini Cable Hoists

model: MINI-2

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below

For More Details of the Option Click the Red Model Button

Model	Image	Details	Icons	Wt.

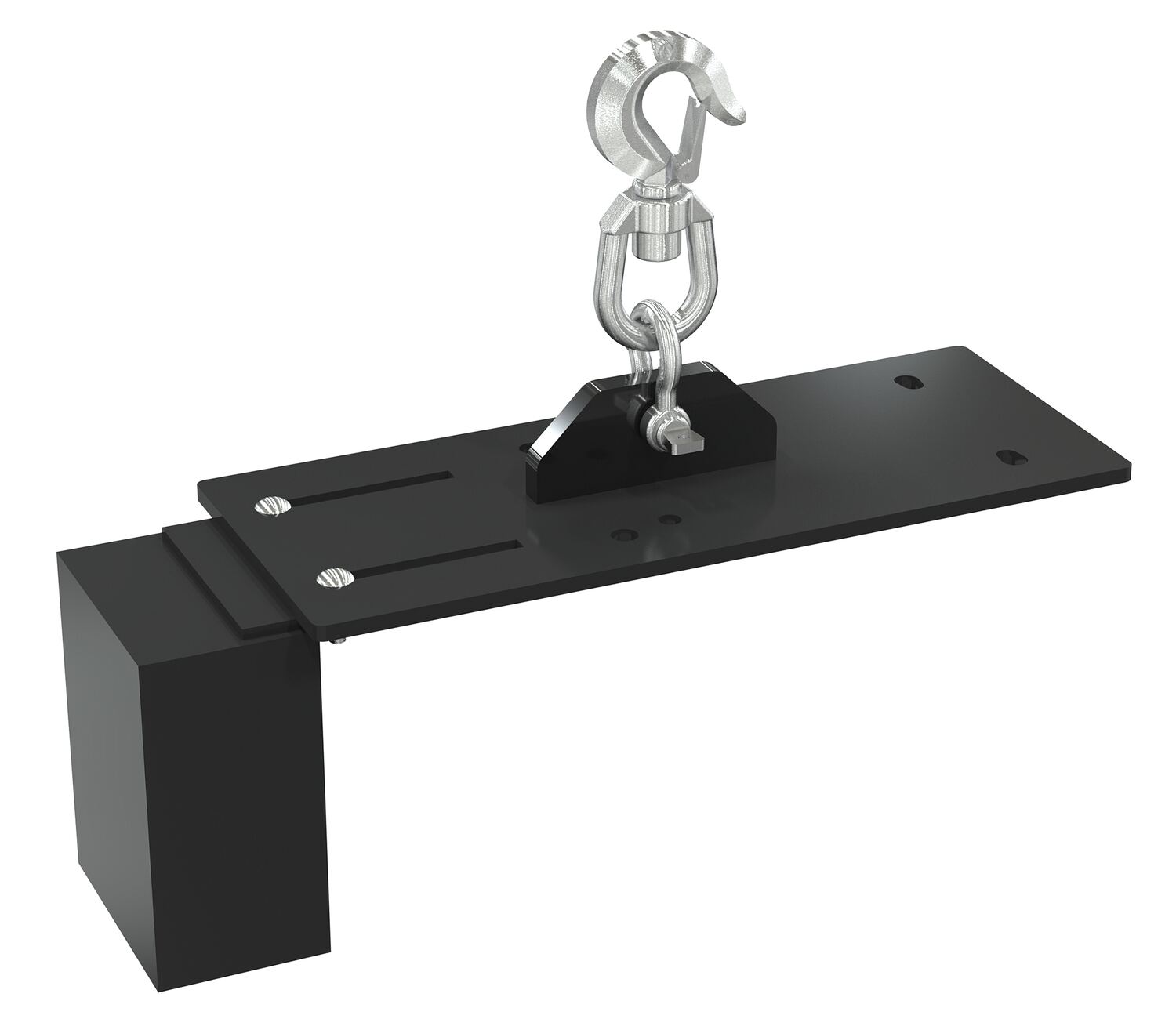

MINI-SH-10		Swivel Hook Plate 23-9/16 In. x 8 In. x 19-1/8 In. 2000 Lb. …	30 Days Limited Warranty	78

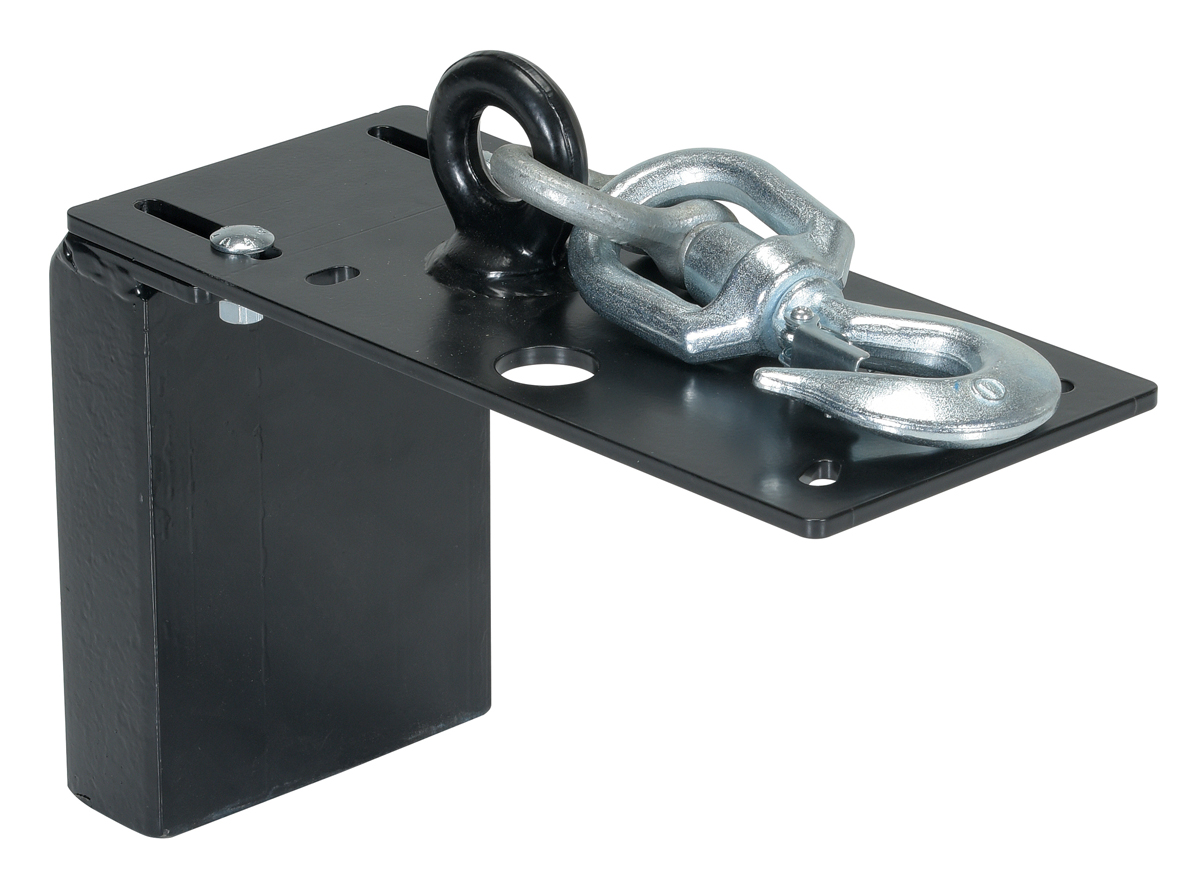

MINI-SH-2		Swivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 440 Lb. Ca…	30 Days Limited Warranty	42

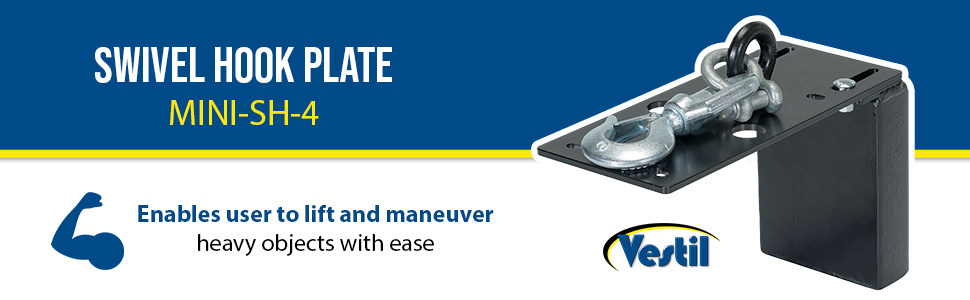

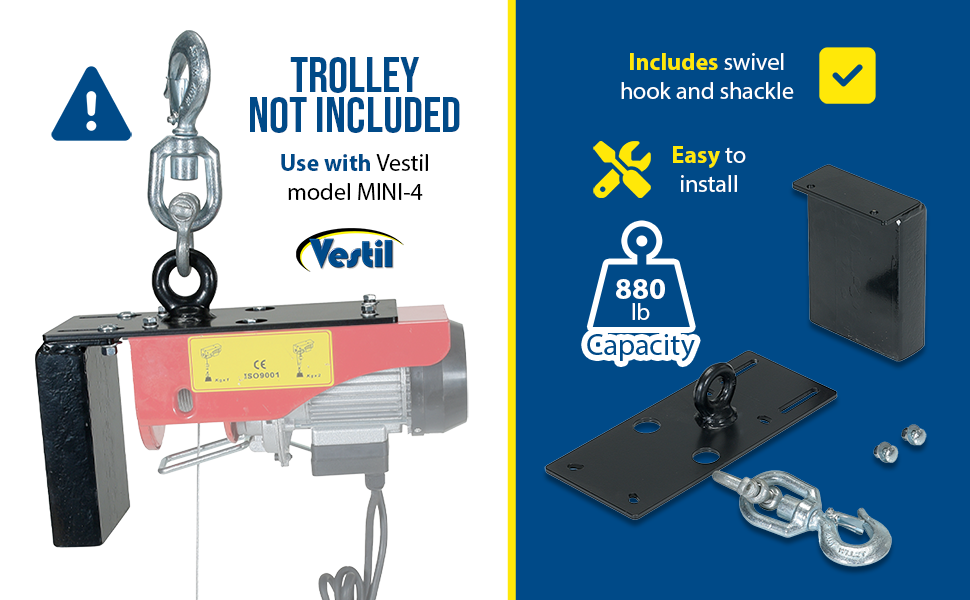

MINI-SH-4		Swivel Hook Plate 15-7/8 In. x 6 In. x 19-1/8 In. 880 Lb. Ca…	30 Days Limited Warranty	42

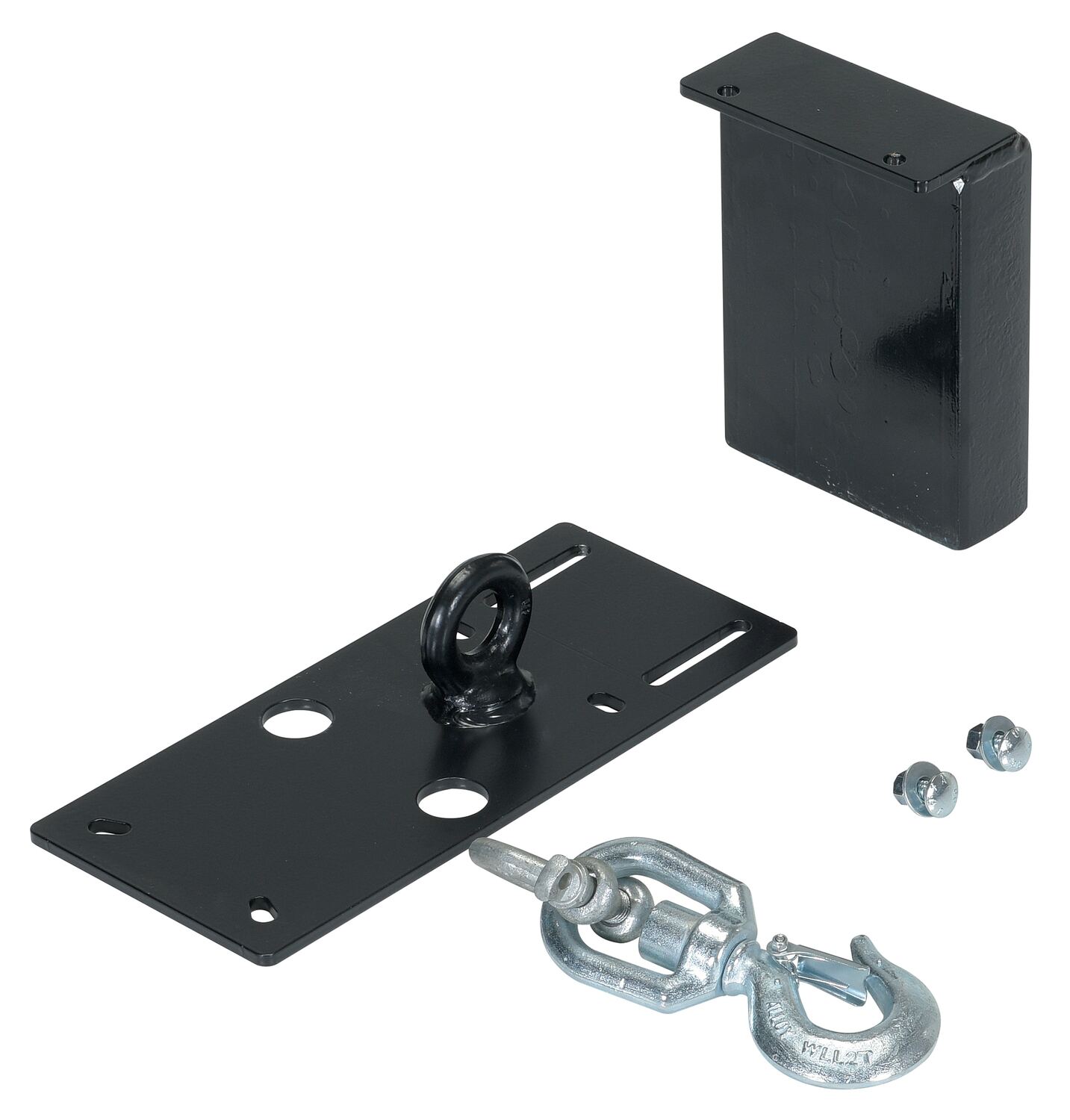

MINI-SH-7		Swivel Hook Plate 21-9/16 In. x 8 In. x 19-1/8 In. 1500 Lb. …	30 Days Limited Warranty	50

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above

PDFs will open in a new window when clicked.

Owner's Manuals

5

MINI-SH, MANUAL

MINI-10, MANUAL

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

6

Testing Certificates

8

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

0

No label page PDFs for this product family.

Other PDFs

0

No other PDFs for this product family.

Enhanced Product Content

MINI-10

MINI-10 A+ Content - 3

MINI-10 A+ Content - 1

MINI-10 A+ Content - 2

MINI-10 A+ Content - 4

MINI-7

MINI-7 - A+ Content 2

MINI-7 - A+ Content 4

MINI-7 - A+ Content 1

MINI-7 - A+ Content 3

MINI-SH-4

MINI-SH-4 - A+ Content 2

MINI-SH-4 - A+ Content 1

Print Friendly

Related or Similar Products:

More From Hoists & Trollies

Professional Hand Chain Hoists

Professional Hand Chain Hoists

Manipulator Style Control Electric Chain Hoist

Manipulator Style Control Electric Chain Hoist

Hand Chain Hoists

Hand Chain Hoists

High Speed Electric Chain Hoist

High Speed Electric Chain Hoist

Electric Chain Hoists

Electric Chain Hoists

Mighty Mini Lever Hoists (disc brake)

Mighty Mini Lever Hoists (disc brake)

Mini Cable Hoists

Electric Mini Cable Hoists for Single and Double Line Lifting

Electric mini cable hoists provide an economical lifting solution for light-duty material handling, maintenance, assembly, and shop applications. Designed for use in single-line or double-line lifting configurations, these compact cable hoists help raise and position loads with less manual effort in warehouses, garages, production areas, repair shops, and workstation lifting setups.

Single and Double Line Operation

Each hoist can be configured for single-line lifting when longer cable reach is needed or double-line lifting when higher capacity is required. Single-line cable length is 36 feet, while double-line cable length is 18 feet. Lifting speed is 30 feet per minute across the available models.

Powered Lifting Control

The electric motor operates from a 115V AC, single-phase power source. A handheld push button control with a 5 foot cord allows operators to raise and lower loads from a convenient position, supporting efficient lifting for repetitive or occasional handling tasks.

Capacities and Mounting Options

This family includes single-line capacities from 200 lb. to 1,000 lb. and double-line capacities from 400 lb. to 2,000 lb. The installation bracket fits 1-5/8 inch round pipe or 1-5/8 inch square tubing. Optional swivel hook plates are available for attaching the hoist to a compatible trolley, sold separately.

Model #		Description	Attributes	Net Wt. (lbs)

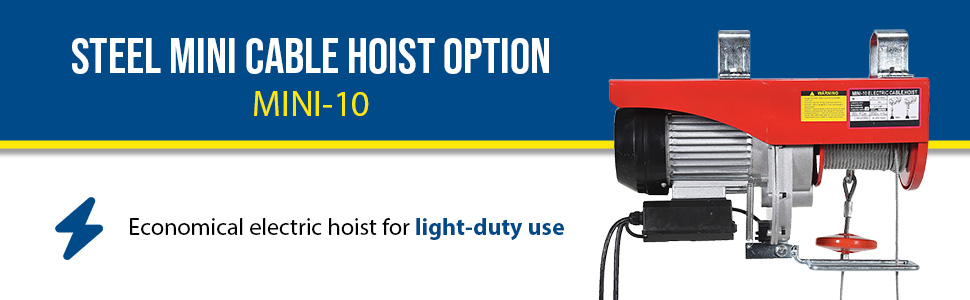

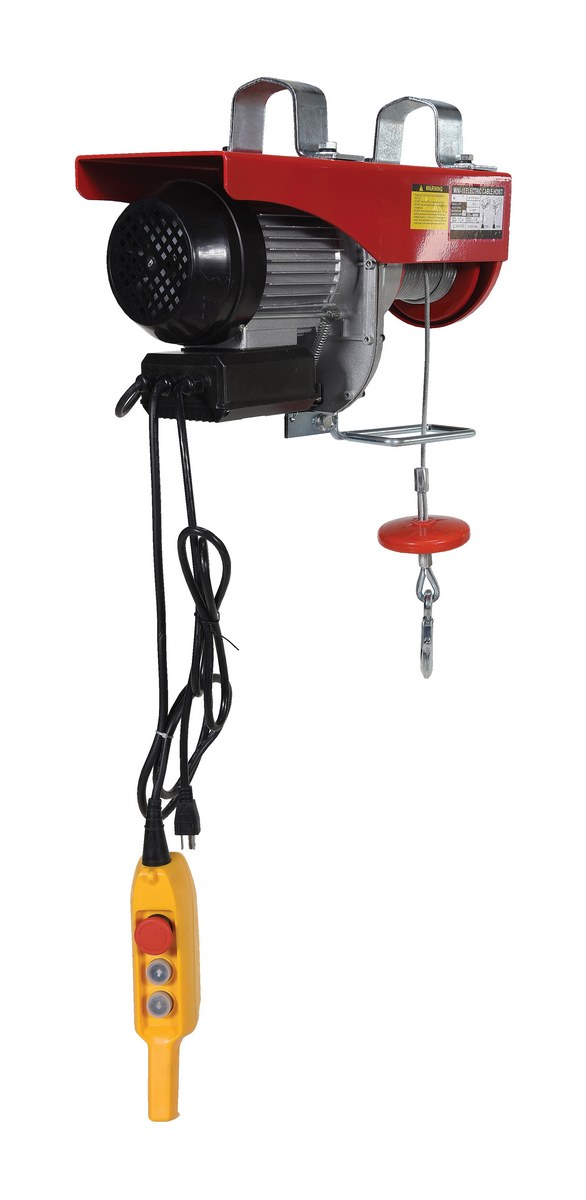

MINI-10		Steel Mini Cable Hoist Option 19-1/4 In. x 8 In. x 11-3/4 In. 1000 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 1,000 Double-Line Uniform Capacity (lb.): 2,000	83

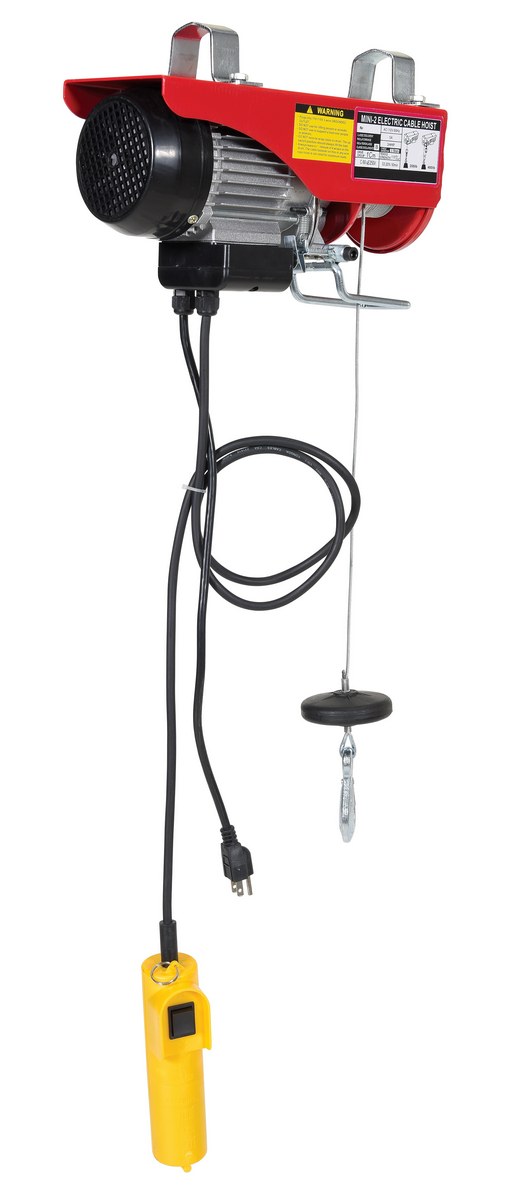

MINI-2		Steel Mini Cable Hoist Option 15-3/16 In. x 5-7/8 In. x 8-13/16 In. 200 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 200 Double-Line Uniform Capacity (lb.): 400	26
MINI-4		Steel Mini Cable Hoist Option 15-1/8 In. x 5-3/4 In. x 8-7/8 In. 400 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 400 Double-Line Uniform Capacity (lb.): 800	38
MINI-7		Steel Mini Cable Hoist Option 16 In. x 6-1/4 In. x 10 In. 750 Lb. Capacity Red	Single-Line Uniform Capacity (lb.): 750 Double-Line Uniform Capacity (lb.): 1,500	47

Options

.
