FEATURED Professional Hand Chain Hoists

model: PHCH-4-10

Professional Hand Chain Hoists

SERIES: PHCH 18Products

Quick Ship

Professional Manual Chain Hoists for Precision Industrial Lifting

Professional manual chain hoists provide durable, low-effort lifting for warehouses, maintenance departments, fabrication shops, construction sites, machine repair, and industrial material handling applications. Their compact design and low headroom make them well suited for confined areas where reliable overhead lifting is needed without powered equipment.

Smooth Hand Chain Operation

Heat-treated spur gears are designed for efficient load handling and low hand chain pull, helping operators raise and position loads with better control. The reinforced double pawl brake system and larger diameter pawl springs support dependable braking during lifting and lowering tasks.

High-Strength Construction

Lightweight, high strength grade 100 alloy steel load chain provides added strength compared to grade 80 chain. Forged steel upper and lower hooks with safety latches support secure attachment, while the rugged hoist body is built for long service life in demanding work environments.

Capacities and Lift Heights

This family includes capacities from 1,000 lb. to 10,000 lb. with 10 foot, 15 foot, and 20 foot lift heights. Each hoist is designed with a safety factor of four times rated capacity, individually tested at 150 percent of rated capacity, and built to meet ANSI B30.16-2003 requirements.

Professional Hand Chain Hoists

model: PHCH-4-10

	Model #				Description	Attributes	Net Wt. (lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

PDFs will open in a new window when clicked.

Owner's Manuals

0

No owner's manuals for this product family.

Survey Sheets

0

No survey sheets for this product family.

Approval Drawings

0

No approval drawings for this product family.

Testing Certificates

18

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

Open Certificate

SDS Sheets

0

No SDS sheets for this product family.

Label Page PDFs

0

No label page PDFs for this product family.

Other PDFs

0

No other PDFs for this product family.

Print Friendly

Related or Similar Products:

More From Hoists & Trollies

Beam Clamps

Mini Cable Hoists

Mini Cable Hoists

Low Headroom Combination Chain Hoist/Trolley

Low Headroom Combination Chain Hoist/Trolley

Compact & Lightweight Lever Hoist (disc brake)

Compact & Lightweight Lever Hoist (disc brake)

Variable Speed Electric Chain Hoists

Variable Speed Electric Chain Hoists

Manipulator Style Control Electric Chain Hoist

Manipulator Style Control Electric Chain Hoist

Professional Hand Chain Hoists

Professional Manual Chain Hoists for Precision Industrial Lifting

Professional manual chain hoists provide durable, low-effort lifting for warehouses, maintenance departments, fabrication shops, construction sites, machine repair, and industrial material handling applications. Their compact design and low headroom make them well suited for confined areas where reliable overhead lifting is needed without powered equipment.

Smooth Hand Chain Operation

Heat-treated spur gears are designed for efficient load handling and low hand chain pull, helping operators raise and position loads with better control. The reinforced double pawl brake system and larger diameter pawl springs support dependable braking during lifting and lowering tasks.

High-Strength Construction

Lightweight, high strength grade 100 alloy steel load chain provides added strength compared to grade 80 chain. Forged steel upper and lower hooks with safety latches support secure attachment, while the rugged hoist body is built for long service life in demanding work environments.

Capacities and Lift Heights

This family includes capacities from 1,000 lb. to 10,000 lb. with 10 foot, 15 foot, and 20 foot lift heights. Each hoist is designed with a safety factor of four times rated capacity, individually tested at 150 percent of rated capacity, and built to meet ANSI B30.16-2003 requirements.

Model #		Description	Attributes	Net Wt. (lbs)

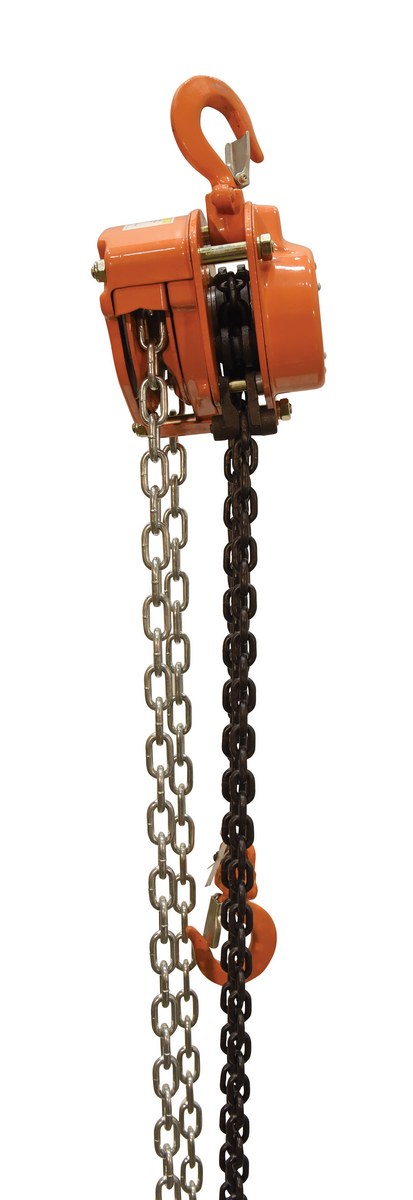

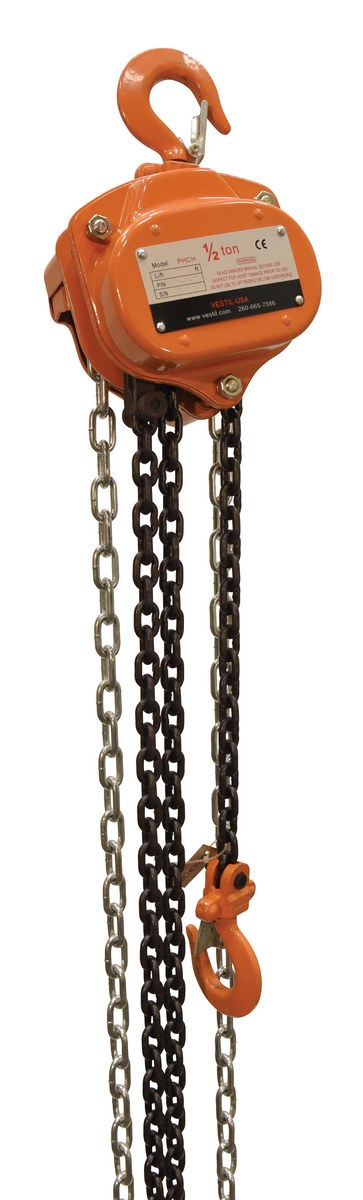

PHCH-1-10		Professional Hand Chain Hoist 10 Ft. Lift Height 1,000 Lb. Capacity Orange	Uniform Capacity (lb.): 1,000 Lift (ft.): 10	27

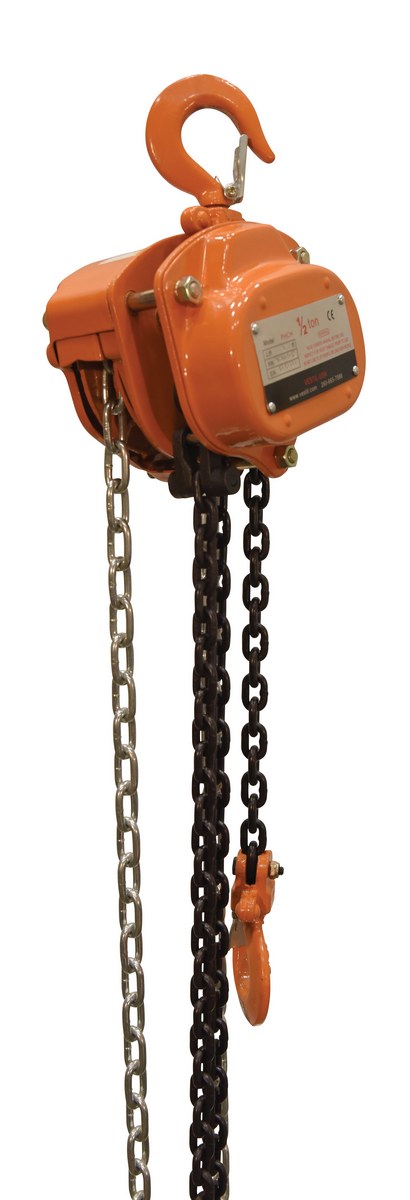

PHCH-1-15		Professional Hand Chain Hoist 15 Ft. Lift Height 1,000 Lb. Capacity Orange	Uniform Capacity (lb.): 1,000 Lift (ft.): 15	35

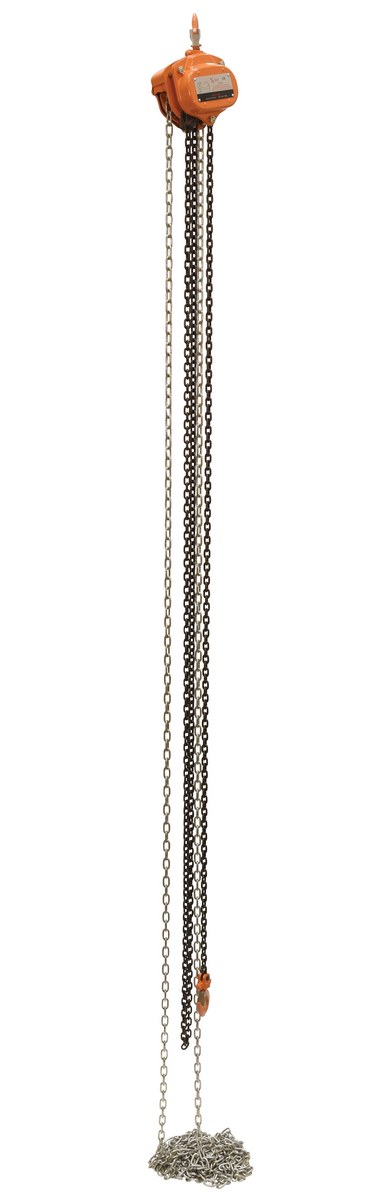

PHCH-1-20		Professional Hand Chain Hoist 20 Ft. Lift Height 1,000 Lb. Capacity Orange	Uniform Capacity (lb.): 1,000 Lift (ft.): 20	39

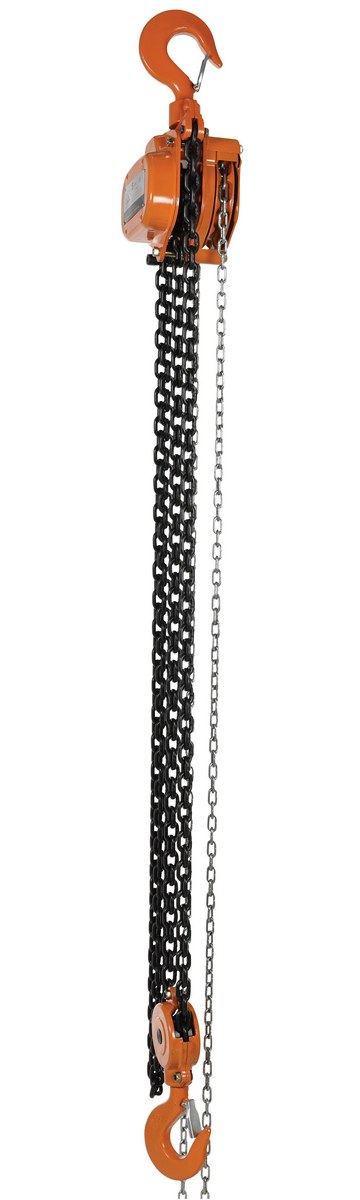

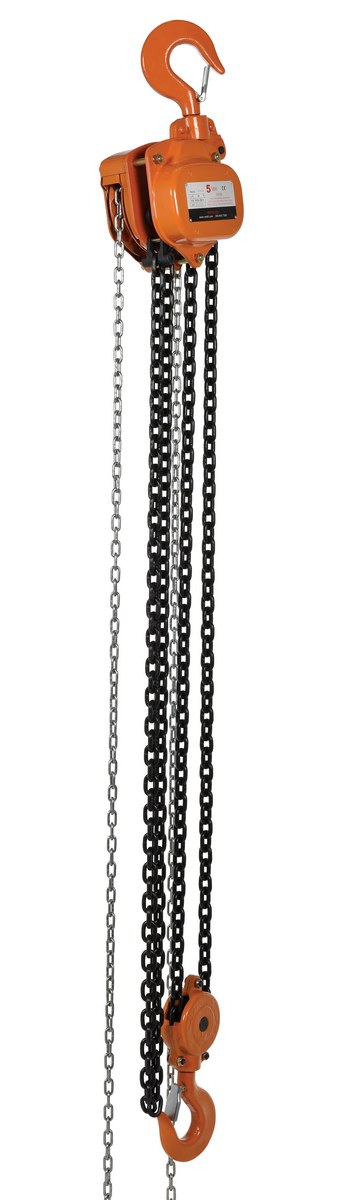

PHCH-10-10		Professional Hand Chain Hoist 10 Ft. Lift Height 10,000 Lb. Capacity Orange	Uniform Capacity (lb.): 10,000 Lift (ft.): 10	111

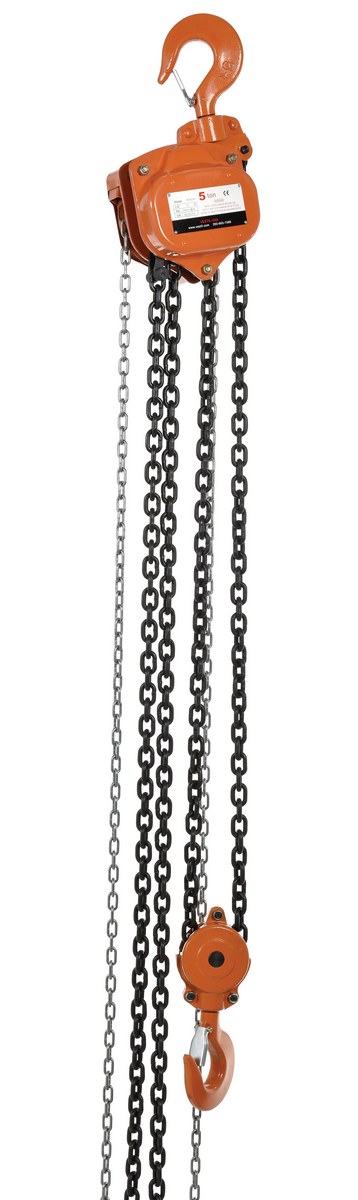

PHCH-10-15		Professional Hand Chain Hoist 15 Ft. Lift Height 10,000 Lb. Capacity Orange	Uniform Capacity (lb.): 10,000 Lift (ft.): 15	114

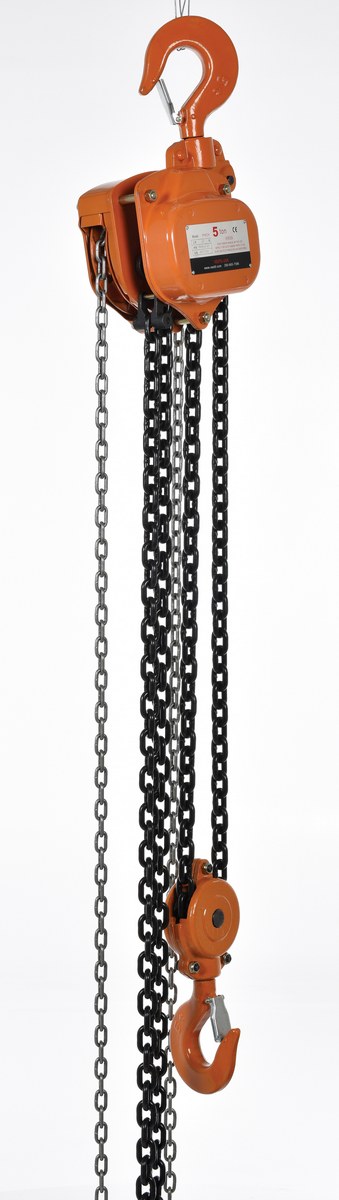

PHCH-10-20		Professional Hand Chain Hoist 20 Ft. Lift Height 10,000 Lb. Capacity Orange	Uniform Capacity (lb.): 10,000 Lift (ft.): 20	125

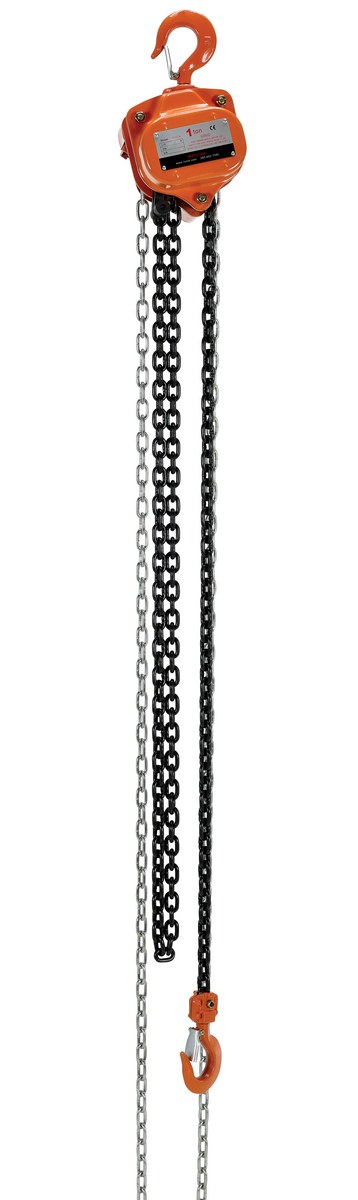

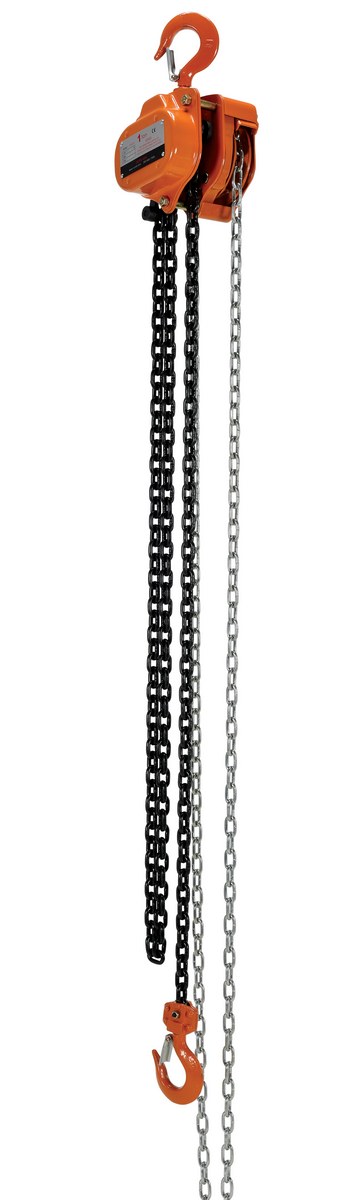

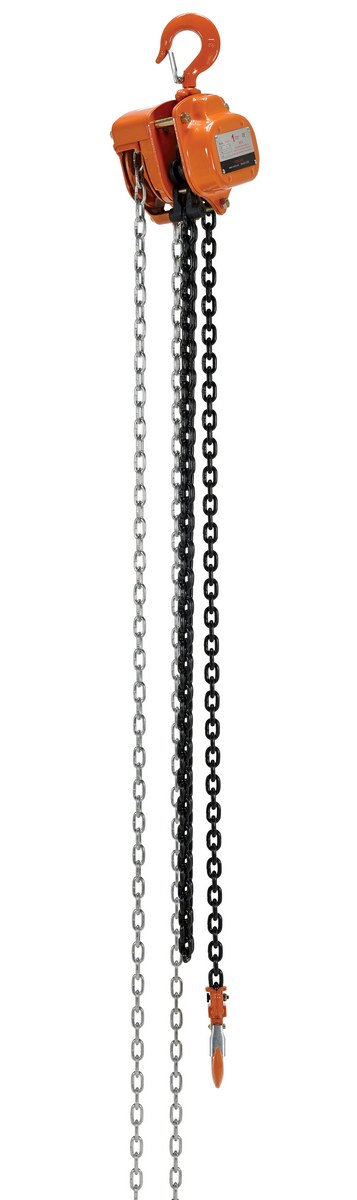

PHCH-2-10		Professional Hand Chain Hoist 10 Ft. Lift Height 2,000 Lb. Capacity Orange	Uniform Capacity (lb.): 2,000 Lift (ft.): 10	34

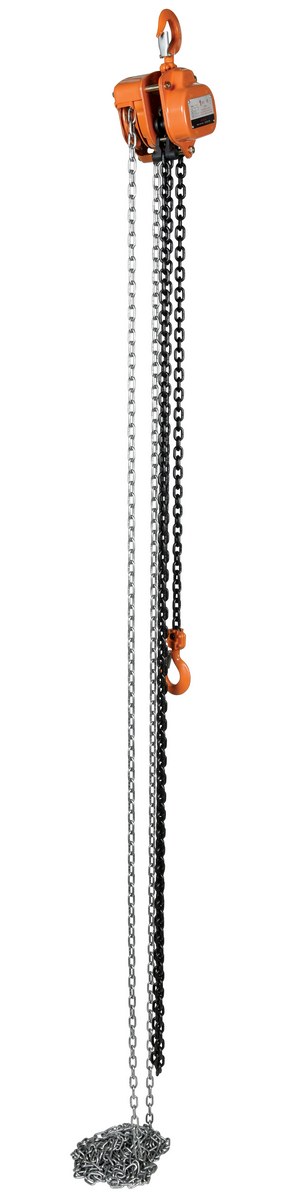

PHCH-2-15		Professional Hand Chain Hoist 15 Ft. Lift Height 2,000 Lb. Capacity Orange	Uniform Capacity (lb.): 2,000 Lift (ft.): 15	39

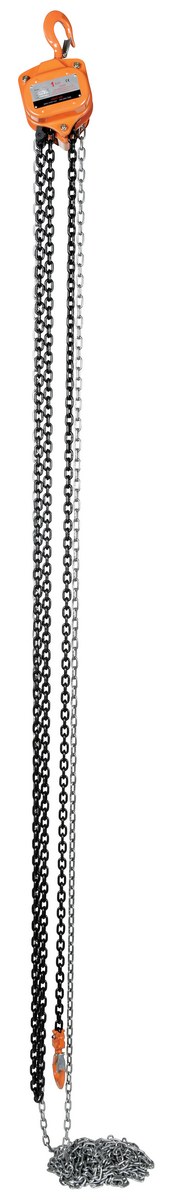

PHCH-2-20		Professional Hand Chain Hoist 20 Ft. Lift Height 2,000 Lb. Capacity Orange	Uniform Capacity (lb.): 2,000 Lift (ft.): 20	46

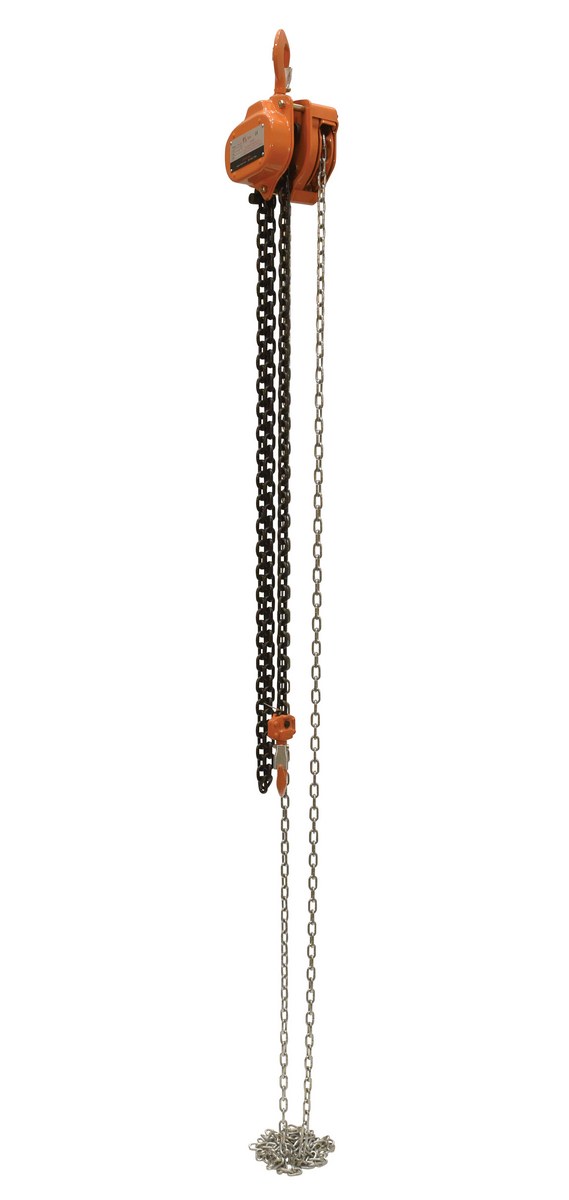

PHCH-3-10		Professional Hand Chain Hoist 10 Ft. Lift Height 3,000 Lb. Capacity Orange	Uniform Capacity (lb.): 3,000 Lift (ft.): 10	39

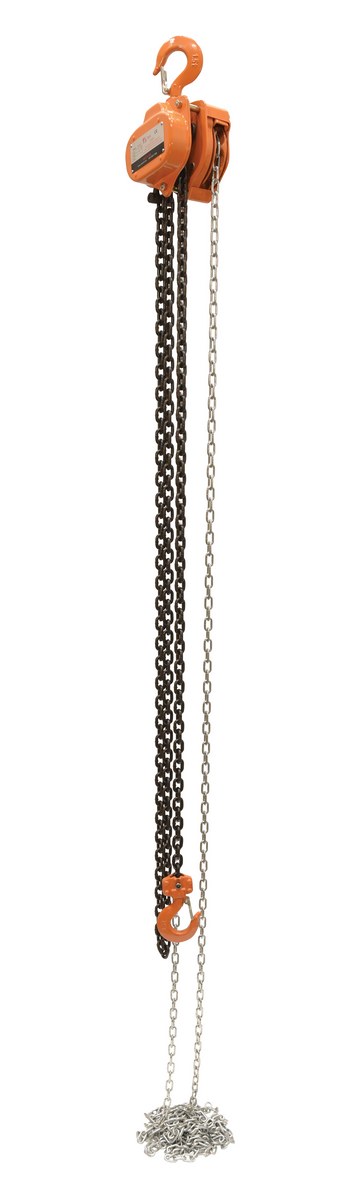

PHCH-3-15		Professional Hand Chain Hoist 15 Ft. Lift Height 3,000 Lb. Capacity Orange	Uniform Capacity (lb.): 3,000 Lift (ft.): 15	45

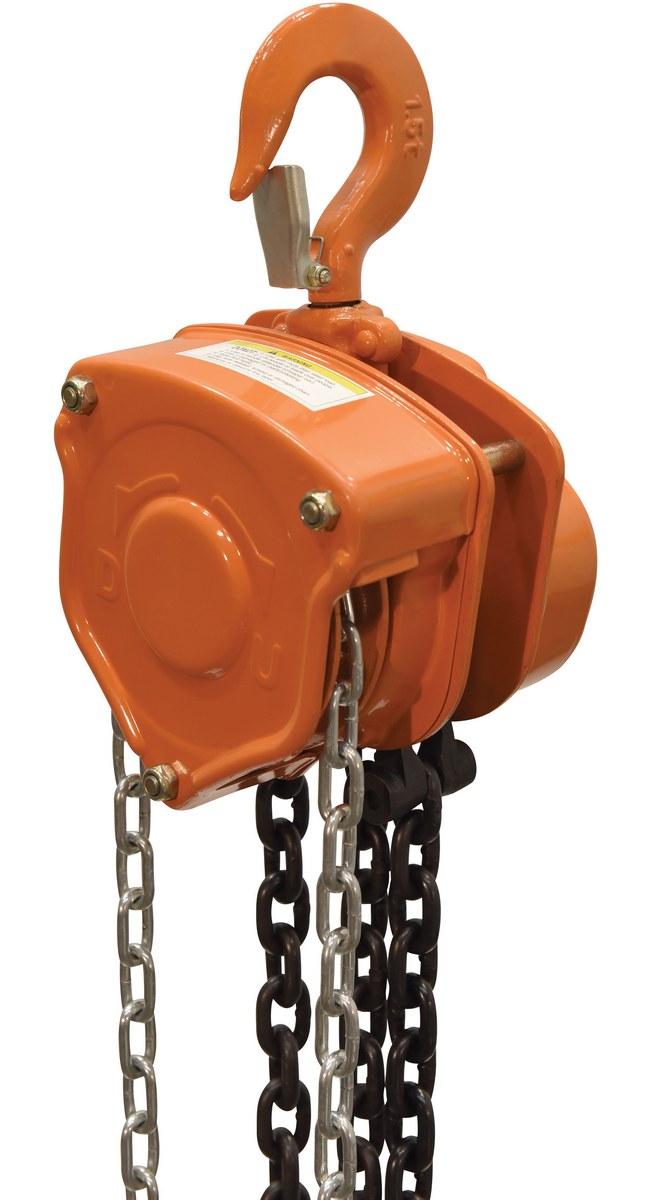

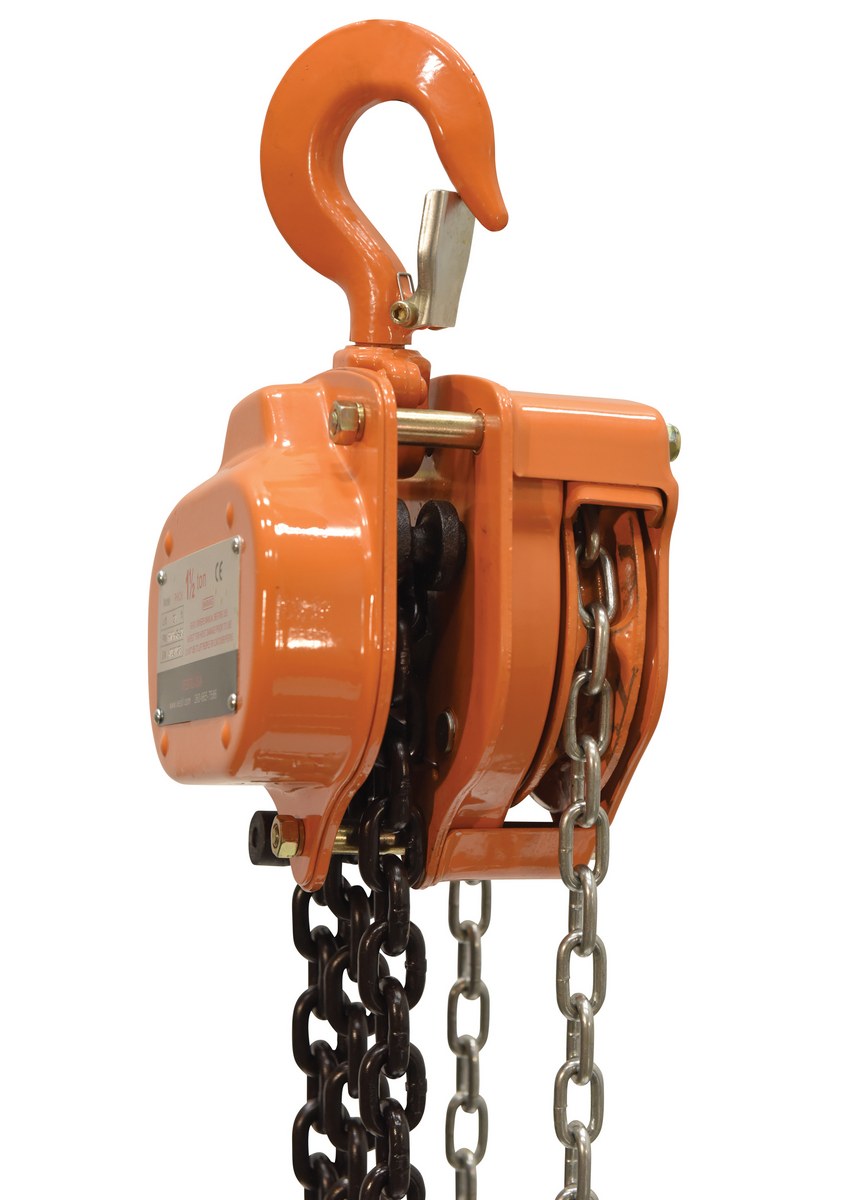

PHCH-3-20		Professional Hand Chain Hoist 20 Ft. Lift Height 3,000 Lb. Capacity Orange	Uniform Capacity (lb.): 3,000 Lift (ft.): 20	51

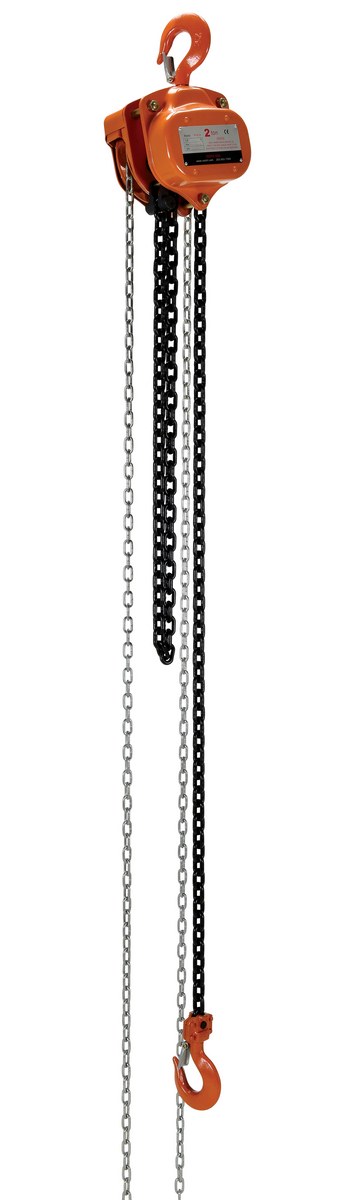

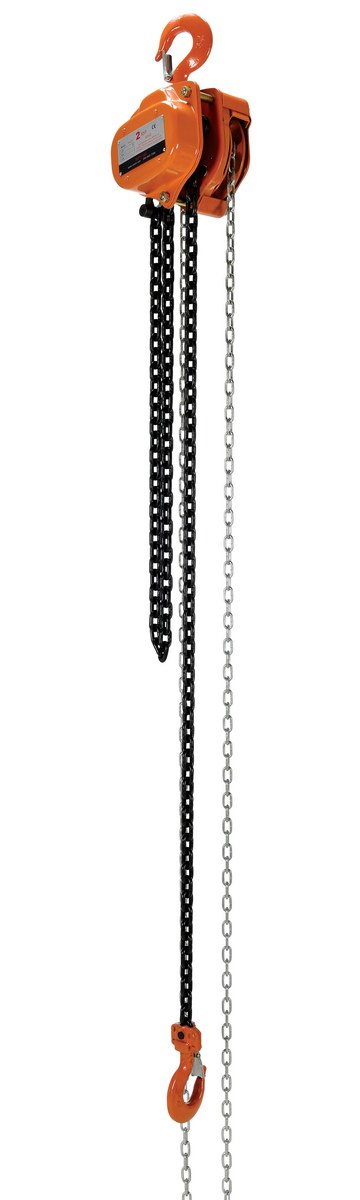

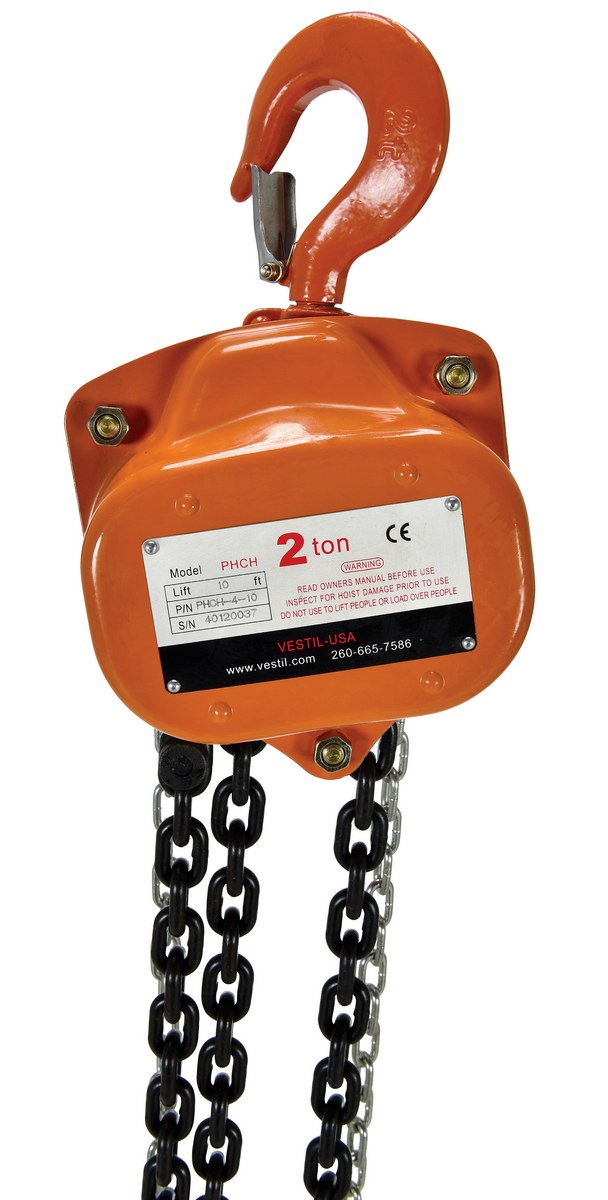

PHCH-4-10		Professional Hand Chain Hoist 10 Ft. Lift Height 4,000 Lb. Capacity Orange	Uniform Capacity (lb.): 4,000 Lift (ft.): 10	41

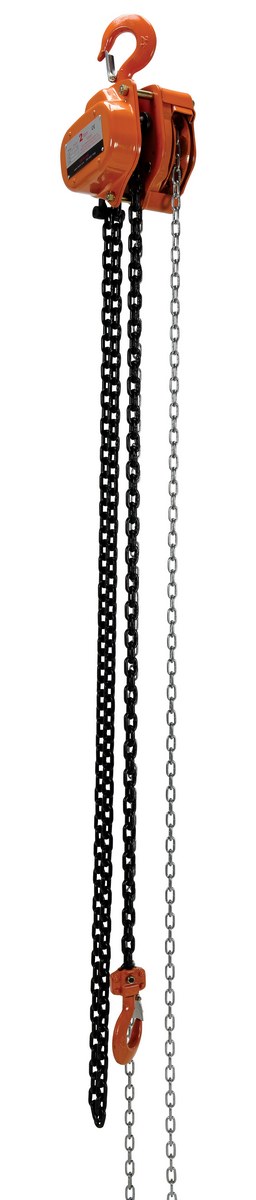

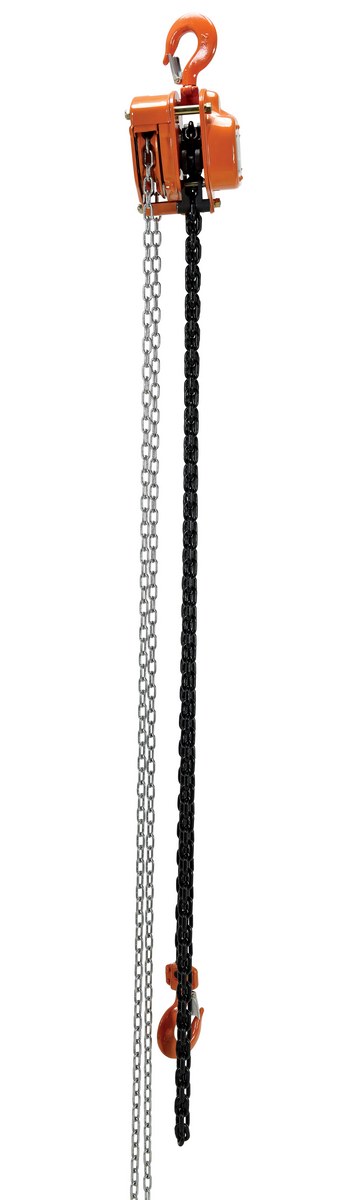

PHCH-4-15		Professional Hand Chain Hoist 15 Ft. Lift Height 4,000 Lb. Capacity Orange	Uniform Capacity (lb.): 4,000 Lift (ft.): 15	48

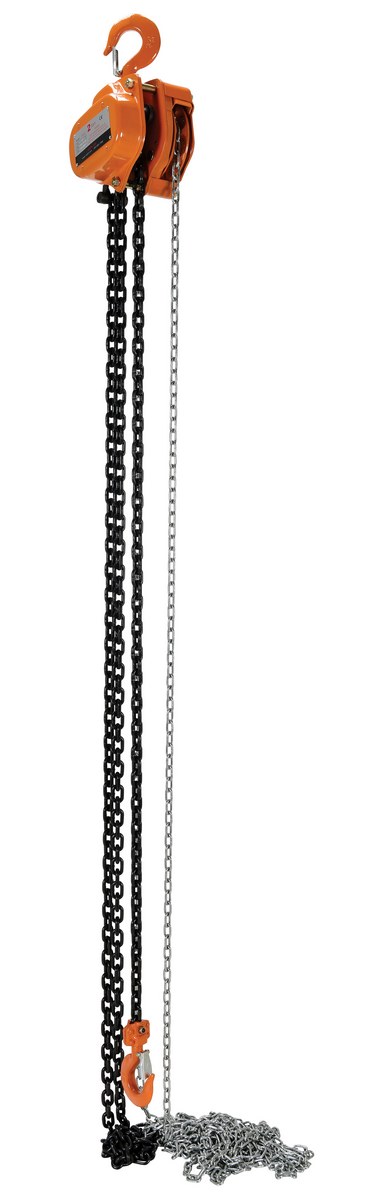

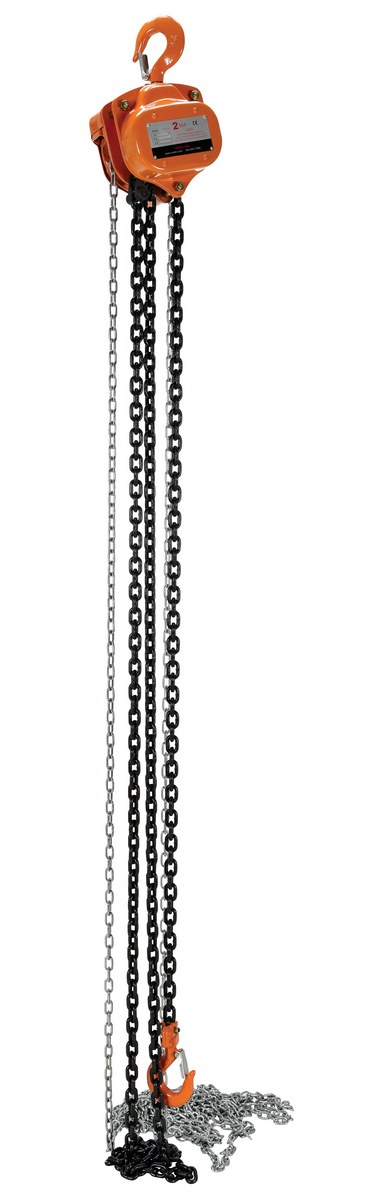

PHCH-4-20		Professional Hand Chain Hoist 20 Ft. Lift Height 4,000 Lb. Capacity Orange	Uniform Capacity (lb.): 4,000 Lift (ft.): 20	53

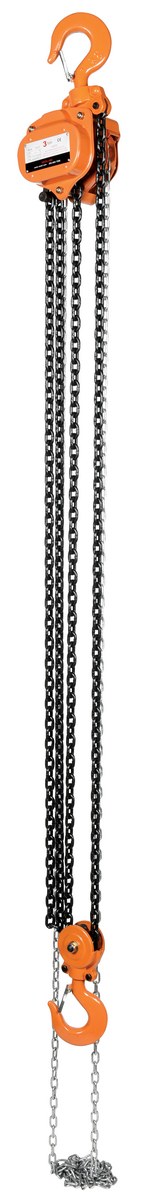

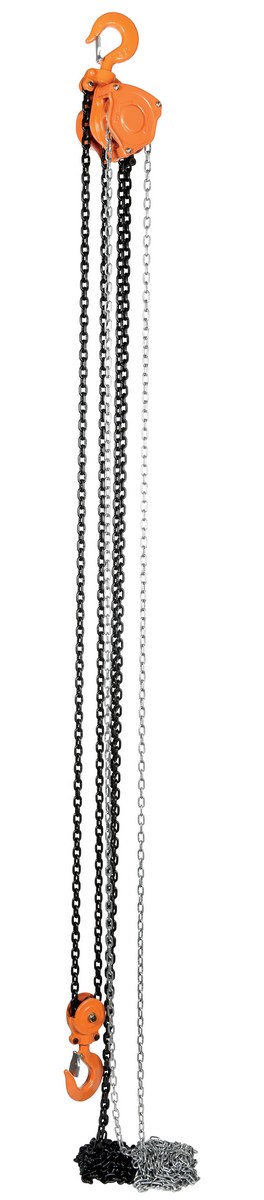

PHCH-6-10		Professional Hand Chain Hoist 10 Ft. Lift Height 6,000 Lb. Capacity Orange	Uniform Capacity (lb.): 6,000 Lift (ft.): 10	56

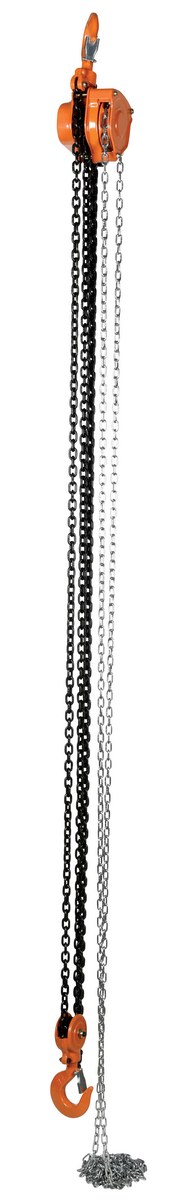

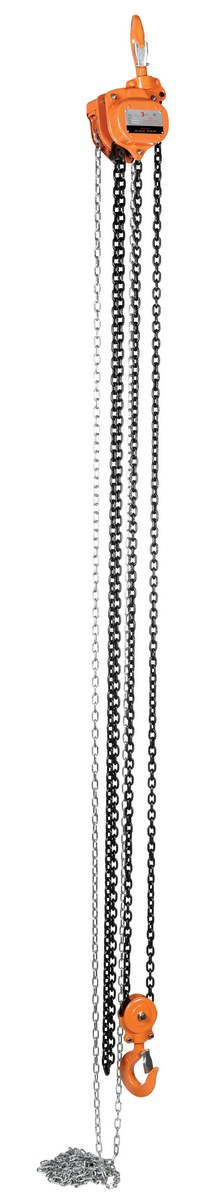

PHCH-6-15		Professional Hand Chain Hoist 15 Ft. Lift Height 6,000 Lb. Capacity Orange	Uniform Capacity (lb.): 6,000 Lift (ft.): 15	62

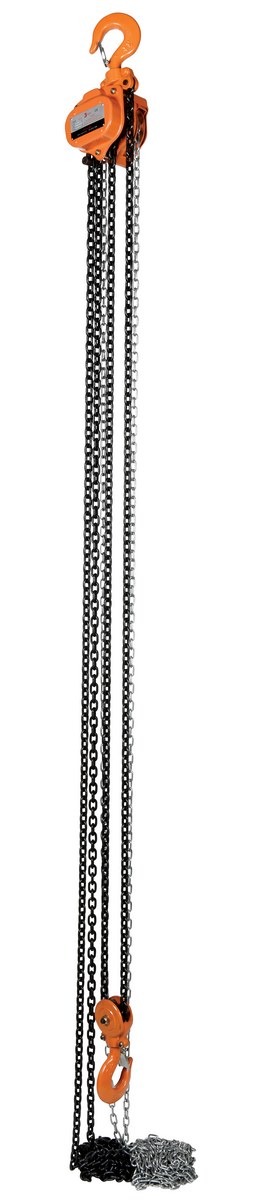

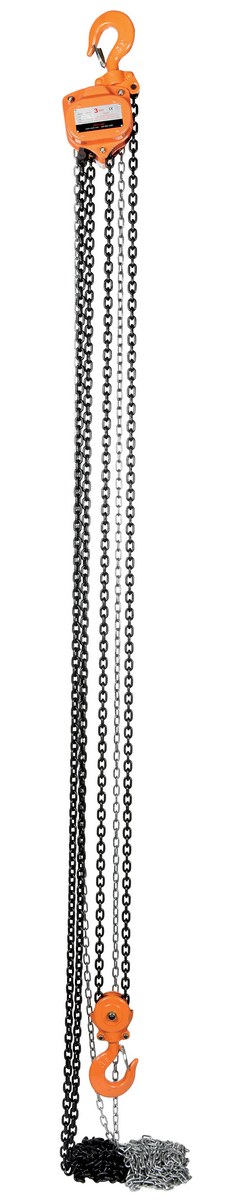

PHCH-6-20		Professional Hand Chain Hoist 20 Ft. Lift Height 6,000 Lb. Capacity Orange	Uniform Capacity (lb.): 6,000 Lift (ft.): 20	70
