Professional Lever Hoists (disc brake)

Print Friendly

Model Chart
PDF's
Options
Image Gallery
FEATURED Professional Lever Hoists (disc brake)

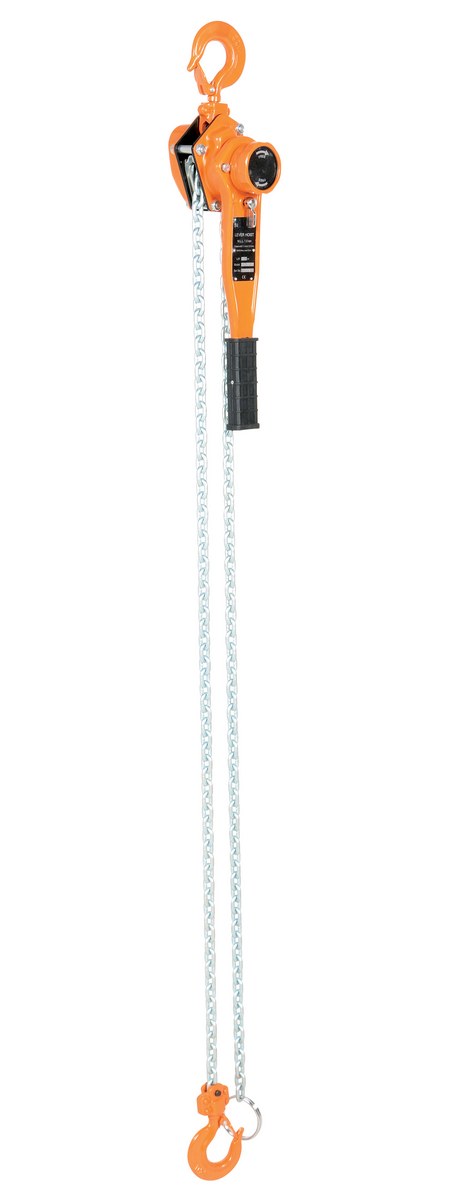

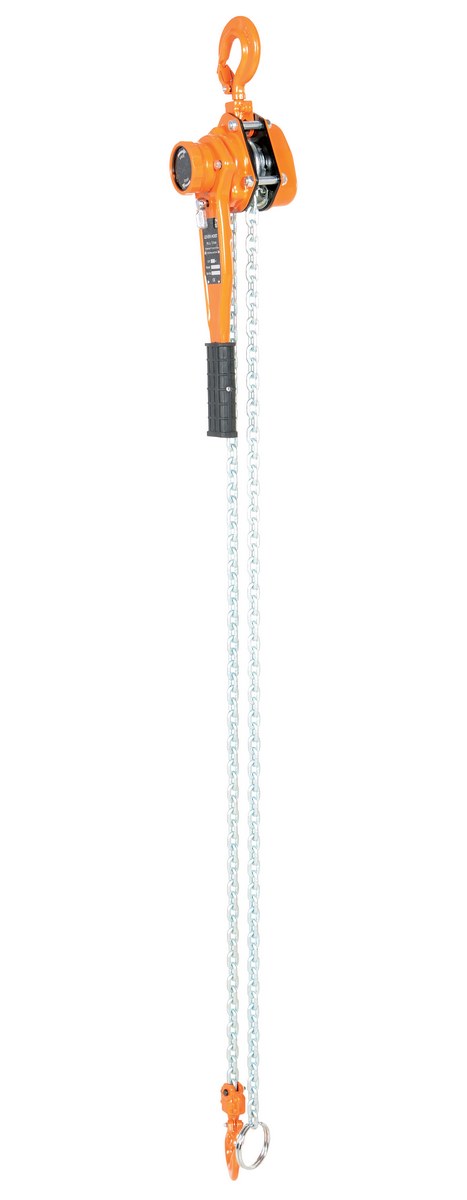

model: PLH-30-10

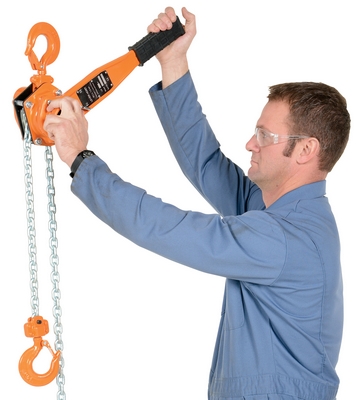

PLH-30-10_A.jpg PLH-30-10_B.jpg PLH-30-10_C.jpg PLH-30-10_D.jpg PLH-30-10_E.jpg More Images +
Professional Lever Hoists (disc brake)
SERIES: PLH   16Products 1Options
Quick Ship

Professional Ratchet Lever Hoists for Multi-Angle Load Positioning

Professional ratchet lever hoists provide rugged lifting, pulling, tensioning, and load positioning for maintenance departments, construction sites, rigging work, fabrication shops, warehouses, and industrial material handling applications. Designed for use at any angle, these lever hoists are well suited for vertical, horizontal, and angled load control where strength and precise handling are required.

Built for Demanding Operation

A 50 percent wider ratchet gear, high impact restraint gear case, and brake cover support dependable performance in tough work environments. The load chain guide system allows operation in the horizontal position, making these hoists useful for equipment alignment, machinery positioning, tie-down work, and confined-space handling.

Secure Hook and Brake Design

Upper and lower swivel hooks include deformation indicators to support inspection and proper use. The disc brake design helps provide controlled lifting and lowering, while the rugged construction is manufactured to ISO-9002 quality standards for consistent performance.

Capacities, Lift Lengths, and Storage

This family includes capacities from 1,500 lb. to 12,000 lb. with standard lift lengths of 5 feet, 10 feet, and 20 feet. Each unit has a minimum breaking load of four times rated capacity and is tested to 150 percent of rated capacity with an individual test certificate. Lever hoists under 6,000 lb. include a rugged storage bag.

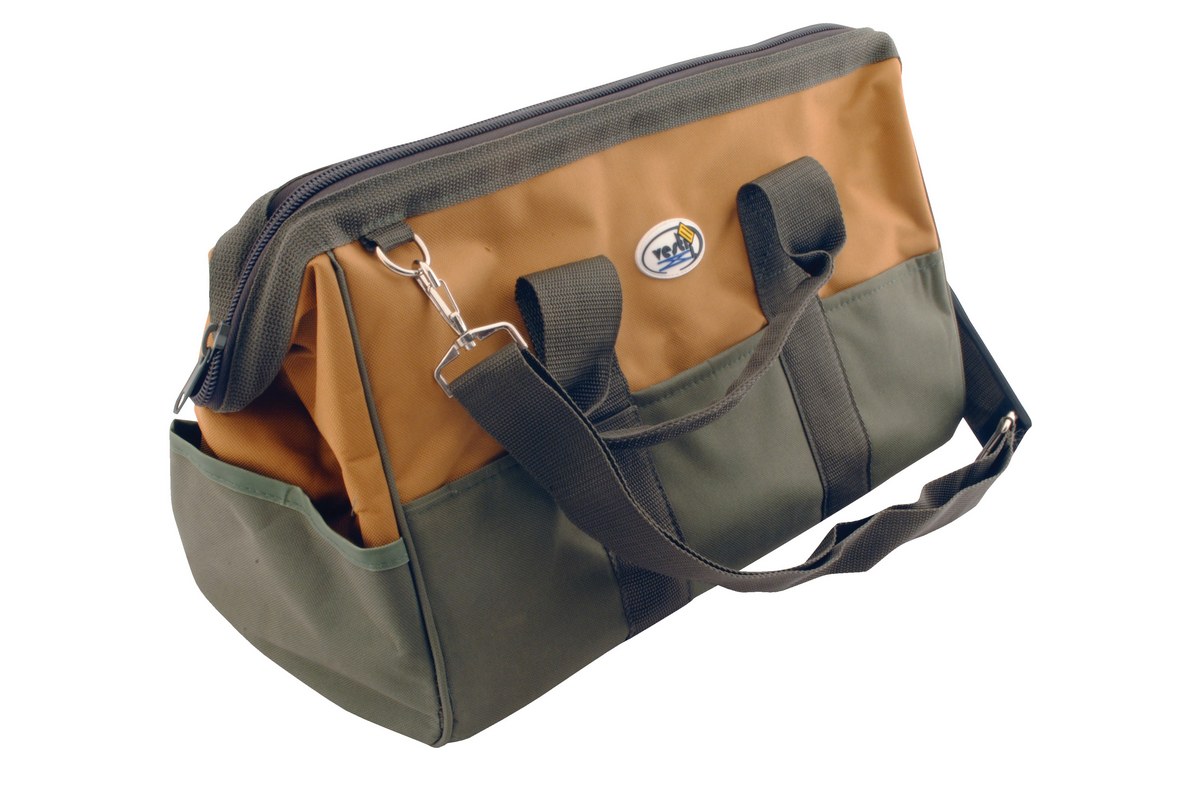

Rugged storage bag included with lever hoists under 6,000 lbs.
Additional bags are available, model BAG-12

Professional Lever Hoists (disc brake)

model: PLH-30-10

Model # Description Attributes Net Wt.
(lbs)

* Units with a capacity under 6,000 lbs. come standard with rugged storage bag. (model BAG-12)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
BAG-12
PLH-120-10
PLH-120-20
PLH-120-5
PLH-15-10
PLH-15-20
PLH-15-5
PLH-20-10
PLH-20-20
PLH-20-5
PLH-30-10
PLH-30-20
PLH-30-5
PLH-60-10
PLH-60-20
PLH-60-5
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
BAG-12 BAG-12 Canvas Additional 16 Pocket Tool Storage Bag For Economy Lev… 30 Days Limited Warranty 3

.

If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

0
No owner's manuals for this product family.

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

0
No approval drawings for this product family.

Testing Certificates

16
BAG-12
Open Certificate
PLH-120-10
Open Certificate
PLH-120-20
Open Certificate
PLH-120-5
Open Certificate
PLH-15-10
Open Certificate
PLH-15-20
Open Certificate
PLH-15-5
Open Certificate
PLH-20-10
Open Certificate
PLH-20-20
Open Certificate
PLH-20-5
Open Certificate
PLH-30-10
Open Certificate
PLH-30-20
Open Certificate
PLH-30-5
Open Certificate
PLH-60-10
Open Certificate
PLH-60-20
Open Certificate
PLH-60-5
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

0
No label page PDFs for this product family.

Other PDFs

0
No other PDFs for this product family.

Related or Similar Products:

More From Hoists & Trollies





Professional Lever Hoists (dis...




Professional Ratchet Lever Hoists for Multi-Angle Load Positioning

Professional ratchet lever hoists provide rugged lifting, pulling, tensioning, and load positioning for maintenance departments, construction sites, rigging work, fabrication shops, warehouses, and industrial material handling applications. Designed for use at any angle, these lever hoists are well suited for vertical, horizontal, and angled load control where strength and precise handling are required.

Built for Demanding Operation

A 50 percent wider ratchet gear, high impact restraint gear case, and brake cover support dependable performance in tough work environments. The load chain guide system allows operation in the horizontal position, making these hoists useful for equipment alignment, machinery positioning, tie-down work, and confined-space handling.

Secure Hook and Brake Design

Upper and lower swivel hooks include deformation indicators to support inspection and proper use. The disc brake design helps provide controlled lifting and lowering, while the rugged construction is manufactured to ISO-9002 quality standards for consistent performance.

Capacities, Lift Lengths, and Storage

This family includes capacities from 1,500 lb. to 12,000 lb. with standard lift lengths of 5 feet, 10 feet, and 20 feet. Each unit has a minimum breaking load of four times rated capacity and is tested to 150 percent of rated capacity with an individual test certificate. Lever hoists under 6,000 lb. include a rugged storage bag.


Rugged storage bag included with lever hoists under 6,000 lbs.
Additional bags are available, model BAG-12


Model # Description Attributes Net Wt.
(lbs)

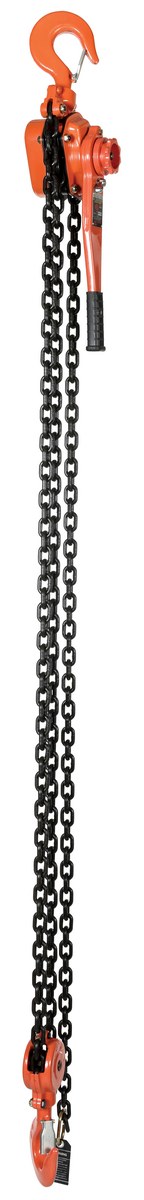

PLH-120-10 PLH-120-10Steel Professional Lever Hoist 10 Ft. Lift Height 12,000 Lb. Capacity OrangeUniform Capacity (lb.): 12,000
Handle Length (in.): 14"		94

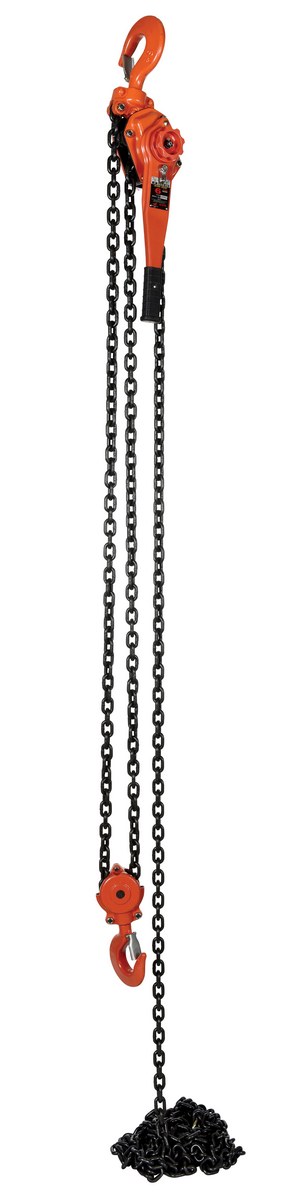

PLH-120-20 PLH-120-20Steel Professional Lever Hoist 20 Ft. Lift Height 12,000 Lb. Capacity OrangeUniform Capacity (lb.): 12,000
Handle Length (in.): 14"		98

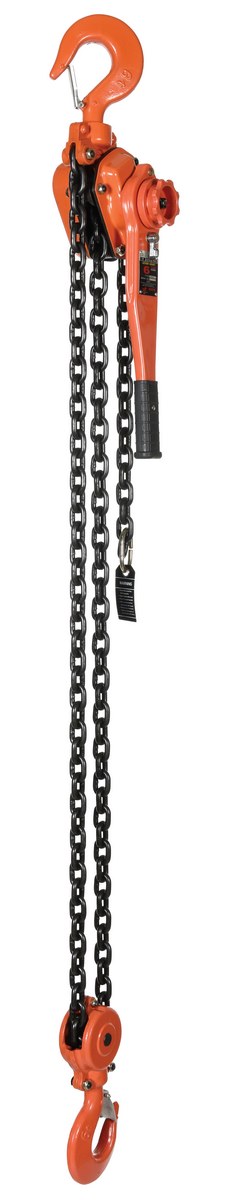

PLH-120-5 PLH-120-5Steel Professional Lever Hoist 5 Ft. Lift Height 12,000 Lb. Capacity OrangeUniform Capacity (lb.): 12,000
Handle Length (in.): 14"		68

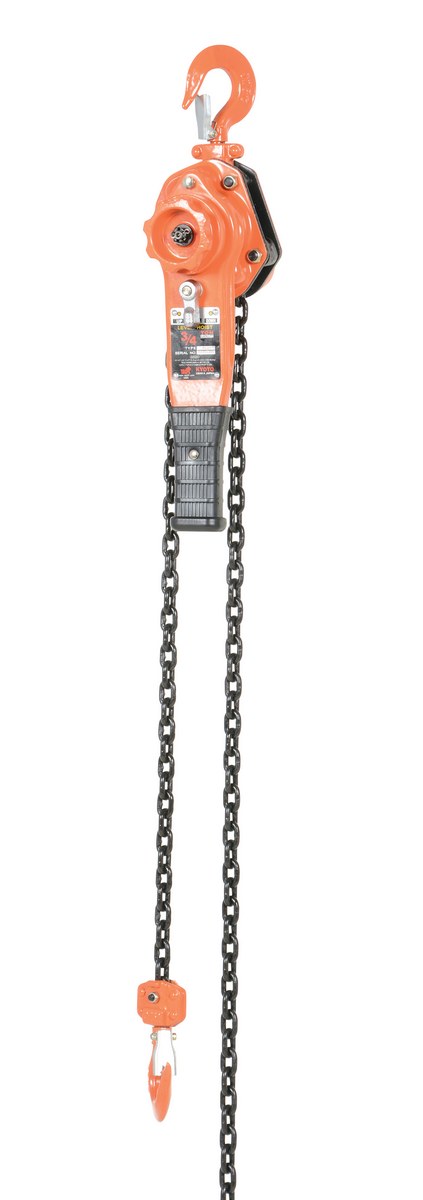

PLH-15-10 PLH-15-10Steel Professional Lever Hoist 10 Ft. Lift Height 1,500 Lb. Capacity OrangeUniform Capacity (lb.): 1,500
Standard Lift (ft.): 10		19

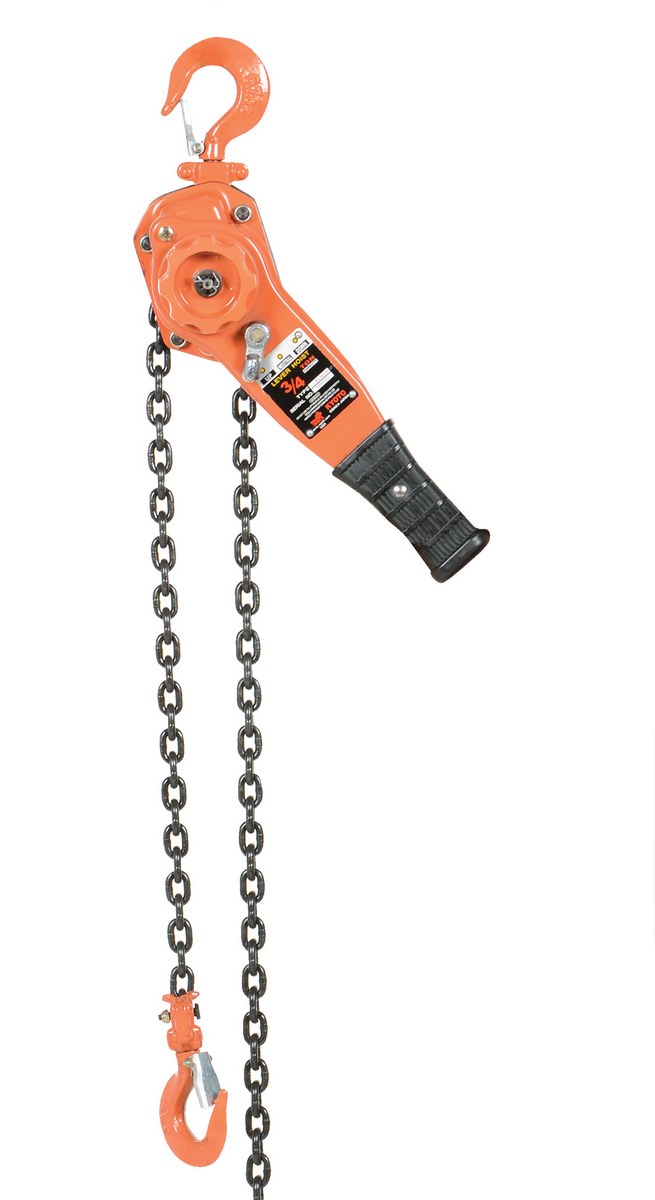

PLH-15-20 PLH-15-20Steel Professional Lever Hoist 20 Ft. Lift Height 1,500 Lb. Capacity OrangeUniform Capacity (lb.): 1,500
Standard Lift (ft.): 20		26

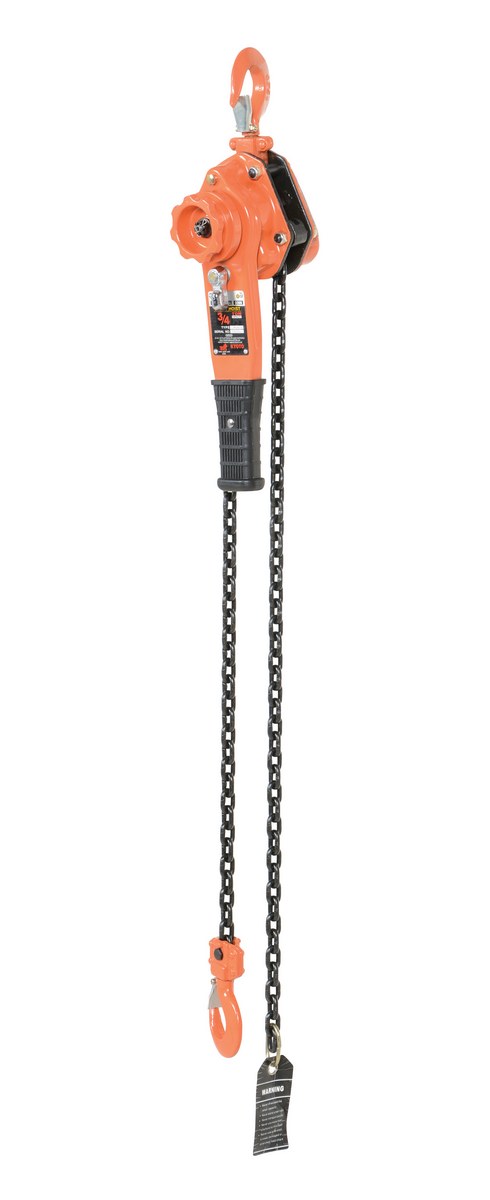

PLH-15-5 PLH-15-5Steel Professional Lever Hoist 5 Ft. Lift Height 1,500 Lb. Capacity OrangeUniform Capacity (lb.): 1,500
Standard Lift (ft.): 5		19

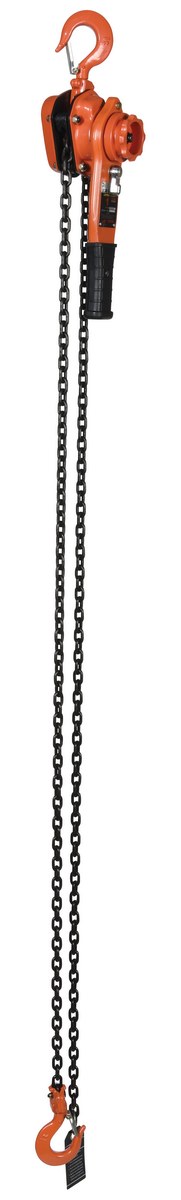

PLH-20-10 PLH-20-10Steel Professional Lever Hoist 10 Ft. Lift Height 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Handle Length (in.): 10		26

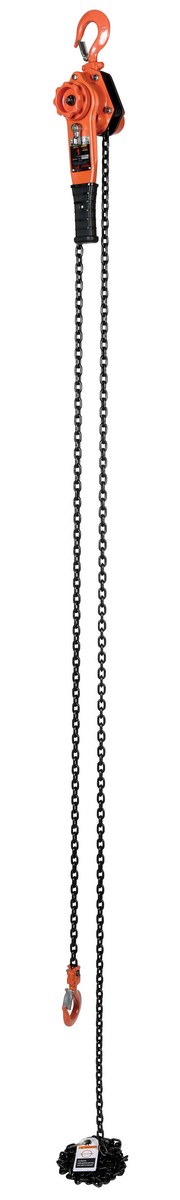

PLH-20-20 PLH-20-20Steel Professional Lever Hoist 20 Ft. Lift Height 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Handle Length (in.): 10		38

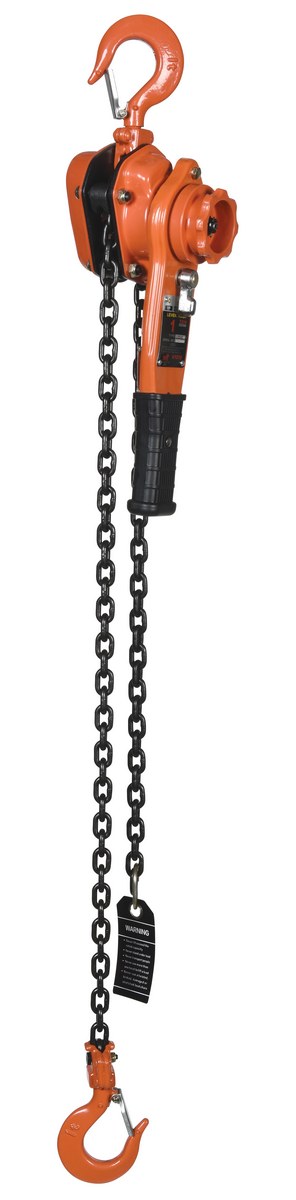

PLH-20-5 PLH-20-5Steel Professional Lever Hoist 5 Ft. Lift Height 2,000 Lb. Capacity OrangeUniform Capacity (lb.): 2,000
Handle Length (in.): 10		21

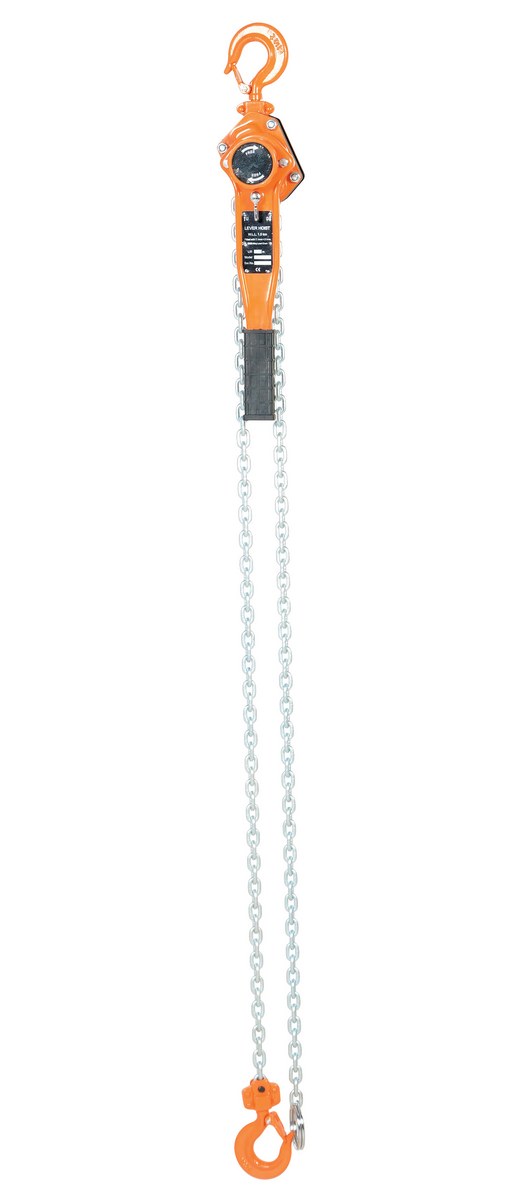

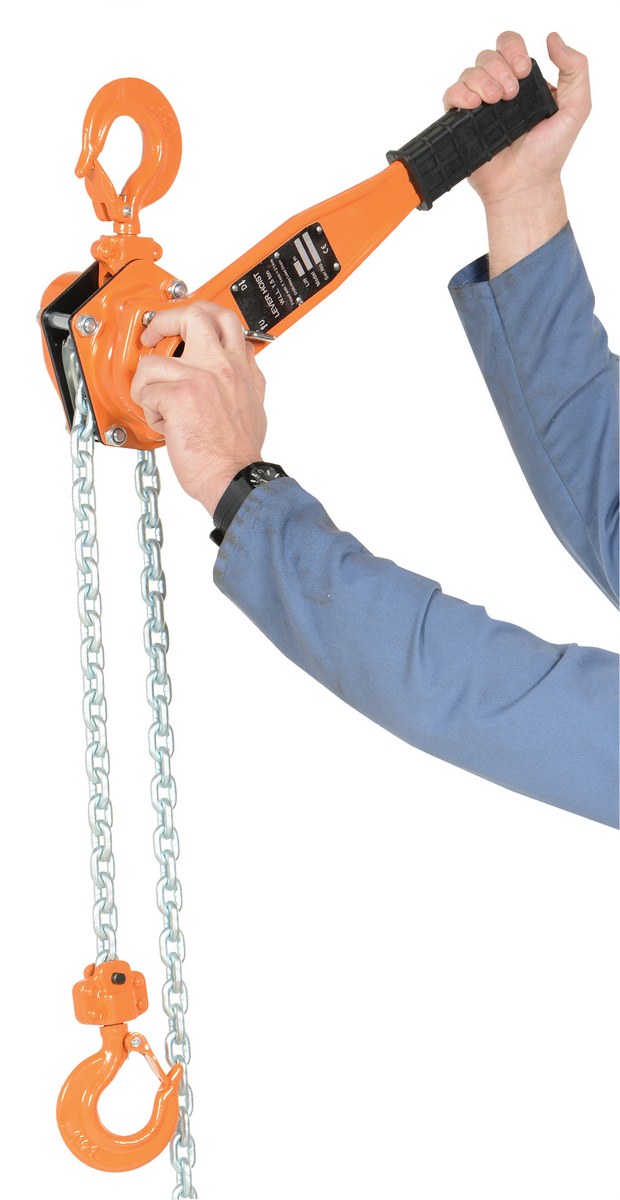

PLH-30-10 PLH-30-10Steel Professional Lever Hoist 10 Ft. Lift Height 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 10		26

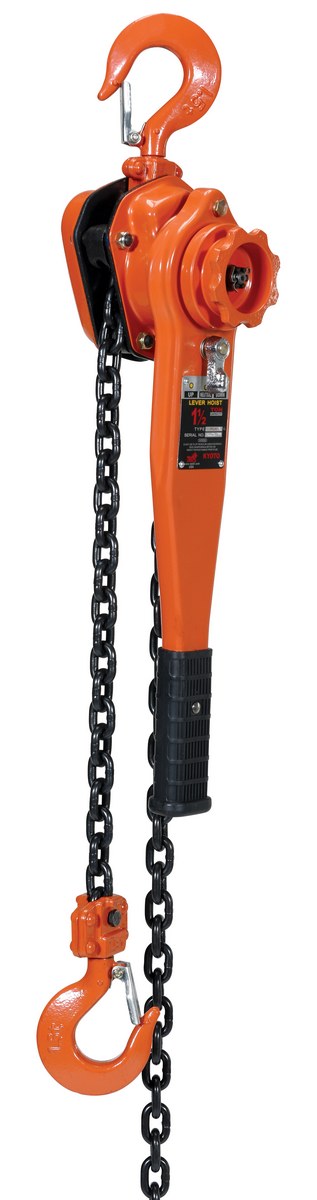

PLH-30-20 PLH-30-20Steel Professional Lever Hoist 20 Ft. Lift Height 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 20		43

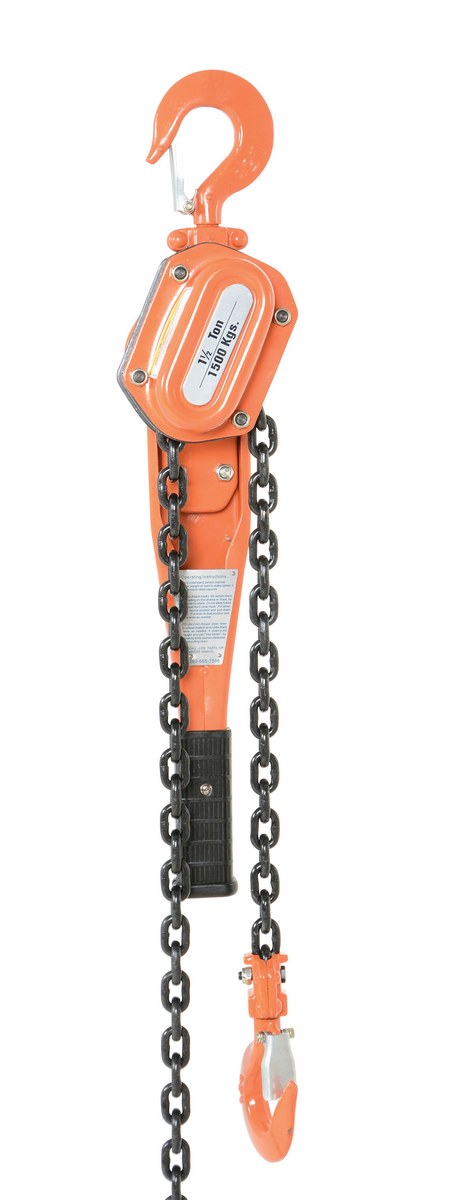

PLH-30-5 PLH-30-5Steel Professional Lever Hoist 5 Ft. Lift Height 3,000 Lb. Capacity OrangeUniform Capacity (lb.): 3,000
Standard Lift (ft.): 5		27

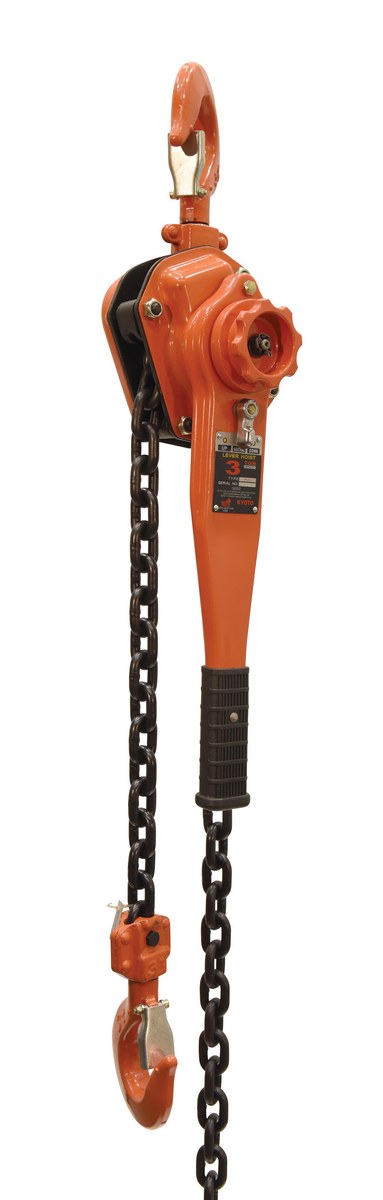

PLH-60-10 PLH-60-10Steel Professional Lever Hoist 10 Ft. Lift Height 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 10		47

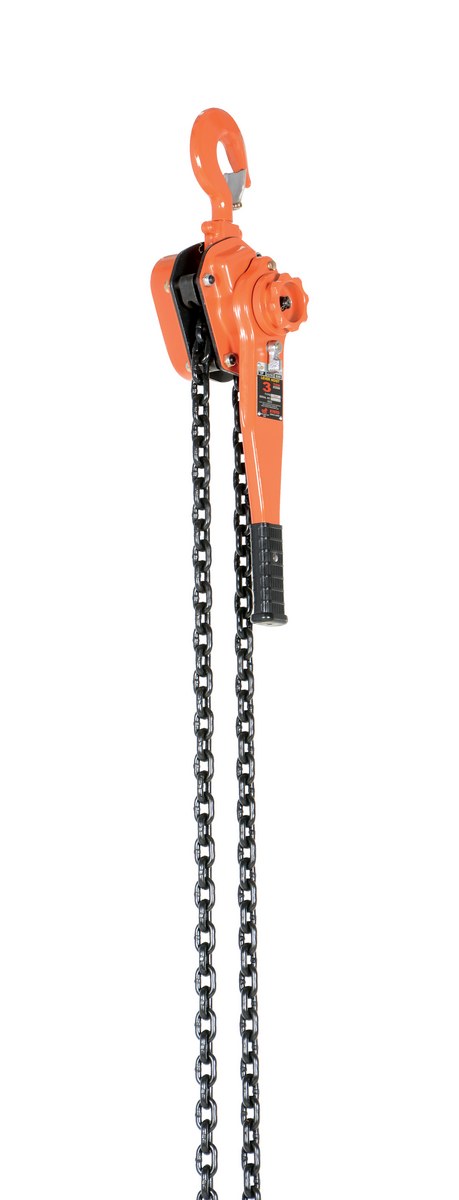

PLH-60-20 PLH-60-20Steel Professional Lever Hoist 20 Ft. Lift Height 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 20		61
PLH-60-5 PLH-60-5Steel Professional Lever Hoist 5 Ft. Lift Height 6,000 Lb. Capacity OrangeUniform Capacity (lb.): 6,000
Standard Lift (ft.): 5		40
