DJG-100

Printer Friendly
Available
DJG-100
DJG-100 DJG-100 DJG-100 DJG-100 DJG-100 DJG-100

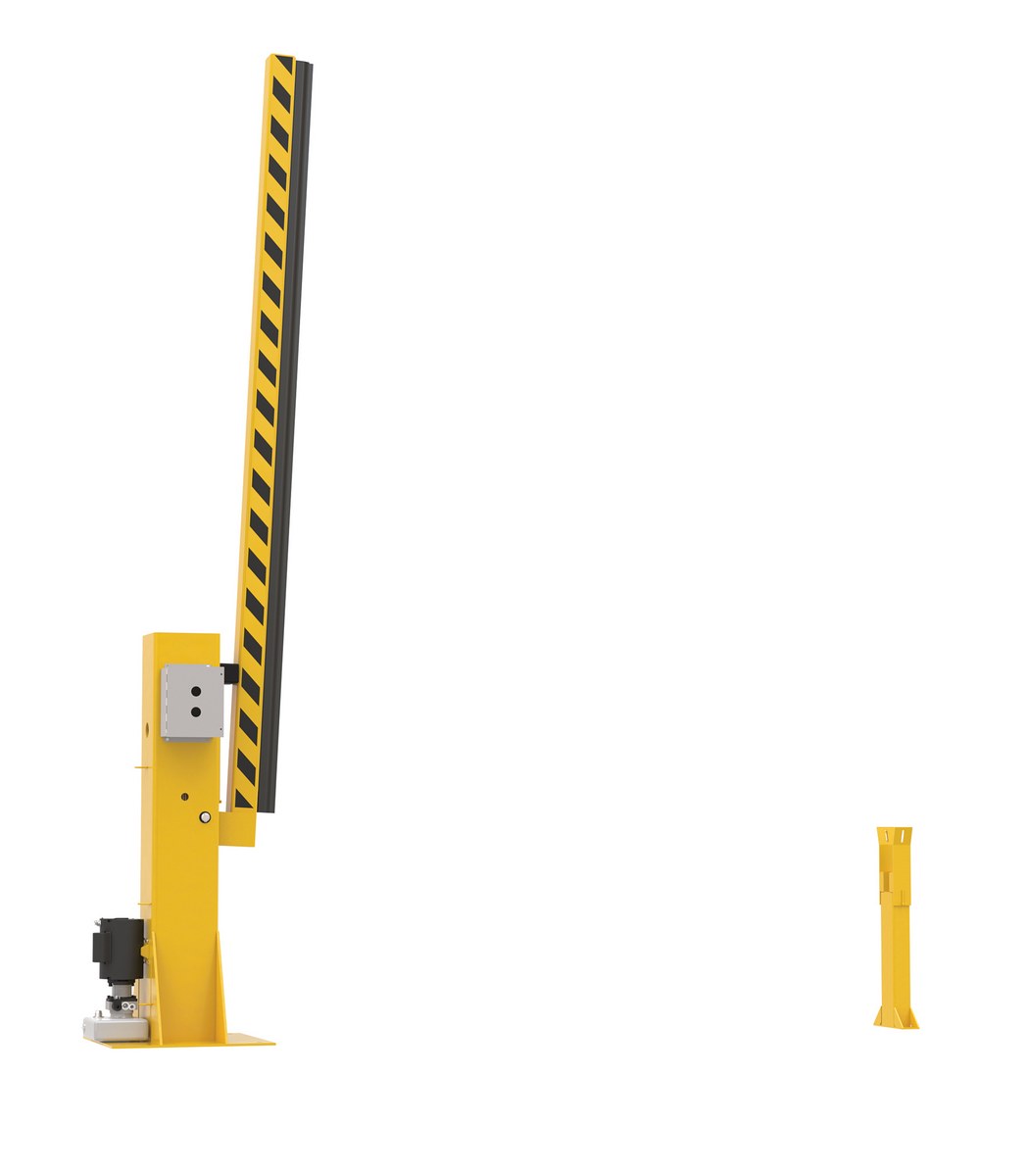

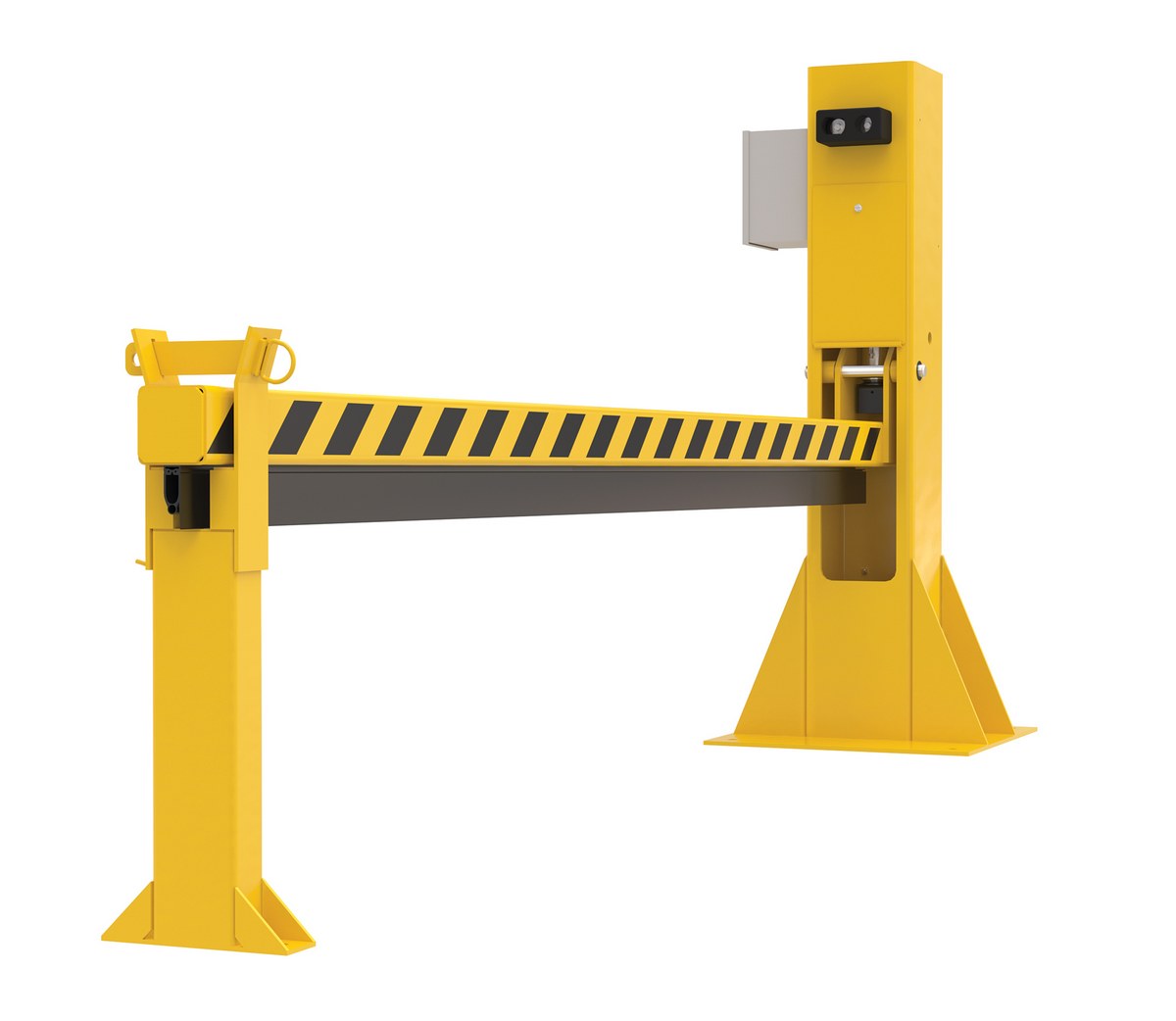

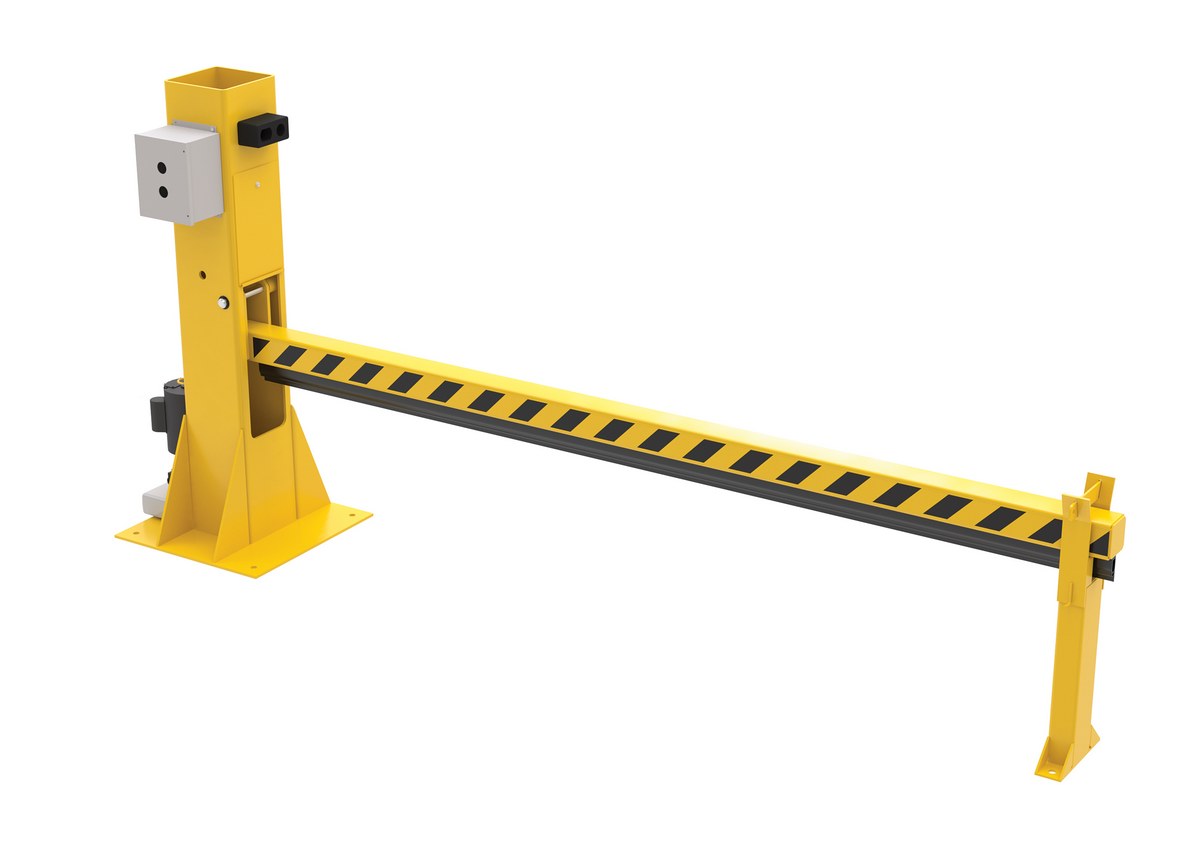

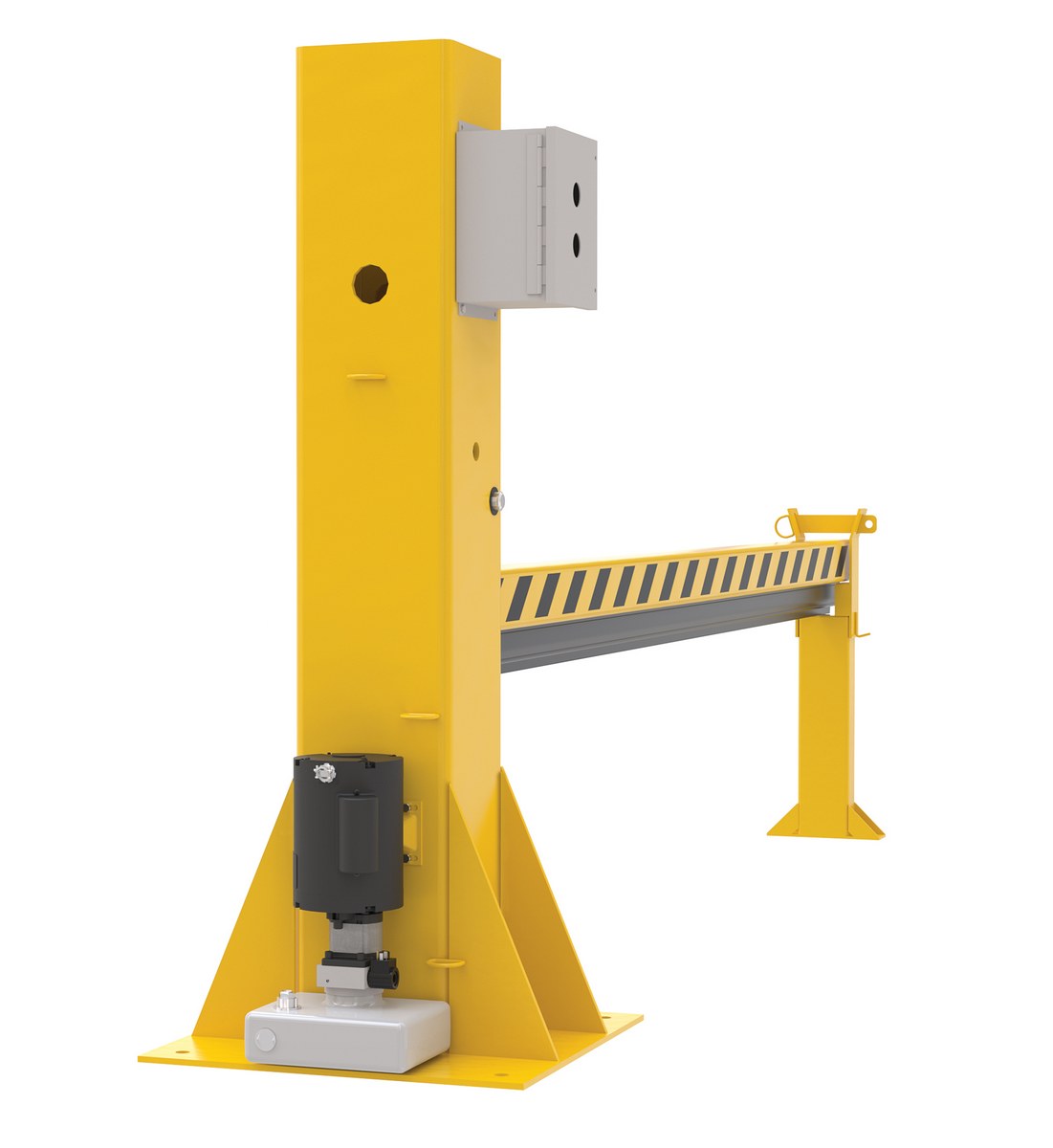

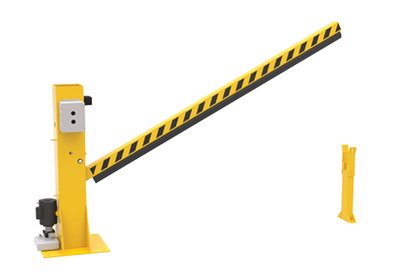

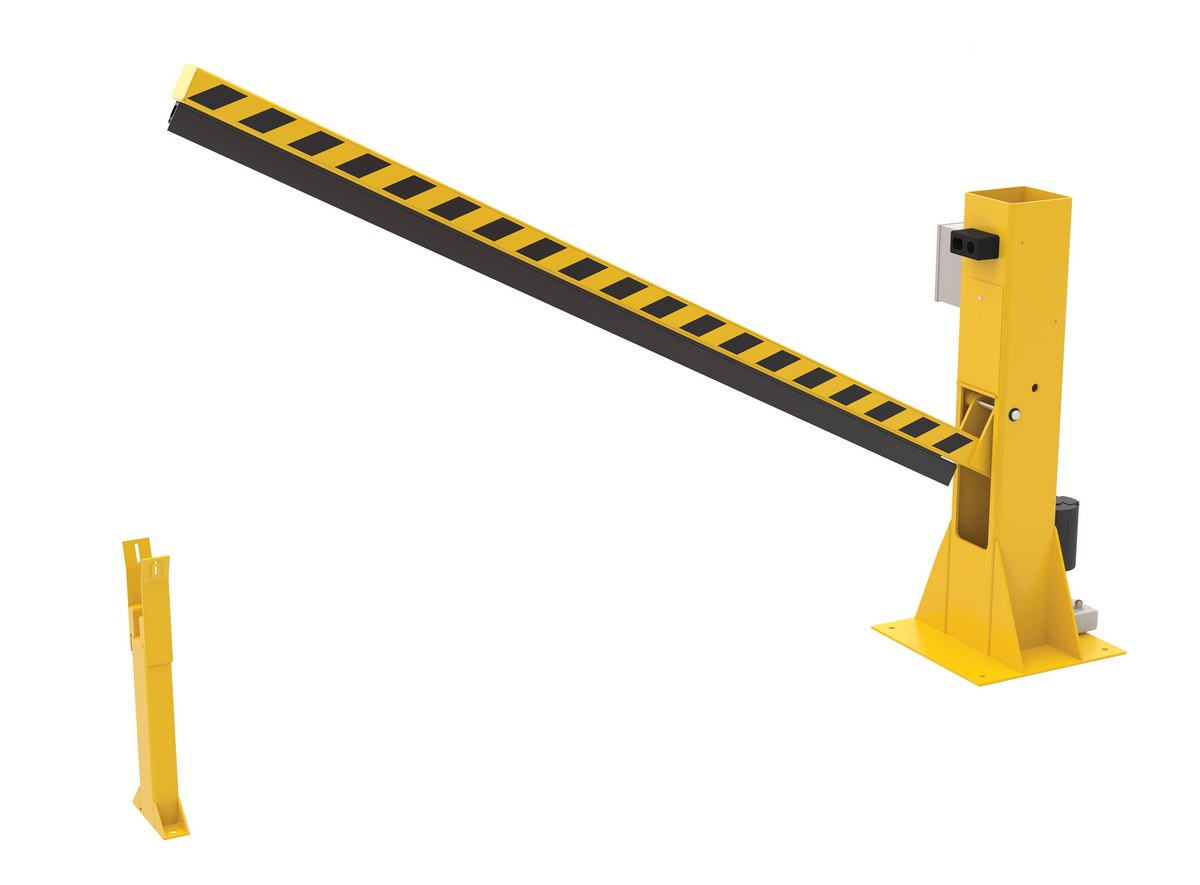

Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included. Installation is simple, anchor the unit to the floor and plug in.

  • Unique design protects open doorways at loading docks
  • Bottom arm safety stop will reverse direction when contacted
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Assembled Wt.(lbs.): 528 Assembled Size: 24"W x 130.75"L x 60.125"H

Total Ship Wt.(lbs.): 686 (only 1 package) Package 1 Size: 28"W x 159"D x 72"H Color: Yellow

Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height in Vertical Position (in.): 148-5/8
Arm Height in Horizontal Position (in.): 28-1/2 Motor Horsepower: 3/4 Base Plate Size (in.): 24 x 24
Power: 115V 1 Phase AC Power Hand Control Voltage: 24 Arm Length (in.): 102
Padlock Included?: No

Quickship Item?


NOT A Quickship Item

Can It Ship UPS/FedEx?


LTL - Must Go Truck

Image Gallery

PDF Documents

1 Year Limited Warranty

Details For Model: DJG-100
Available
DJG-100

Steel Dock Barricade Electric/Hydraulic 8 Ft. Yellow

The dock barricade is an active barrier that represents the next generation of innovative loading dock safety systems. The electric/hydraulic power unit provides quick and effortless operation. It is electronically operated and consists of an electrical bumper-style safety stop circuit to sense obstructions when lowering. Includes a lock bar on the arm post to restrict rotation of the barricade arm, padlock not included. Installation is simple, anchor the unit to the floor and plug in.

  • Unique design protects open doorways at loading docks
  • Bottom arm safety stop will reverse direction when contacted
  • Safety yellow finish with black & yellow safety tape signals a slow down point
  • Steel construction can stop a loaded 4,000 pound fork truck at 4 miles per hour
Dimensions: 24"W x 130.75"L x 60.125"H Sell UOM: -- Color: Yellow
Material: -- UPC: -- GTIN: --
Warranty: -- Shipping Weight: 686 Quickship Item? --
Can It Ship UPS? -- Option? -- Origin: --
Assembly: -- Packaging: -- Drawing Required? --
Impact Rating (lb. at mph.): 4,000 at 4 Door Width/Height (ft.): 8 x 8 Arm Height in Vertical Position (in.): 148-5/8
Arm Height in Horizontal Position (in.): 28-1/2 Motor Horsepower: 3/4 Base Plate Size (in.): 24 x 24
Power: 115V 1 Phase AC Power Hand Control Voltage: 24 Arm Length (in.): 102
Padlock Included?: No
