High Strength Self-Dumping Ste... |
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||

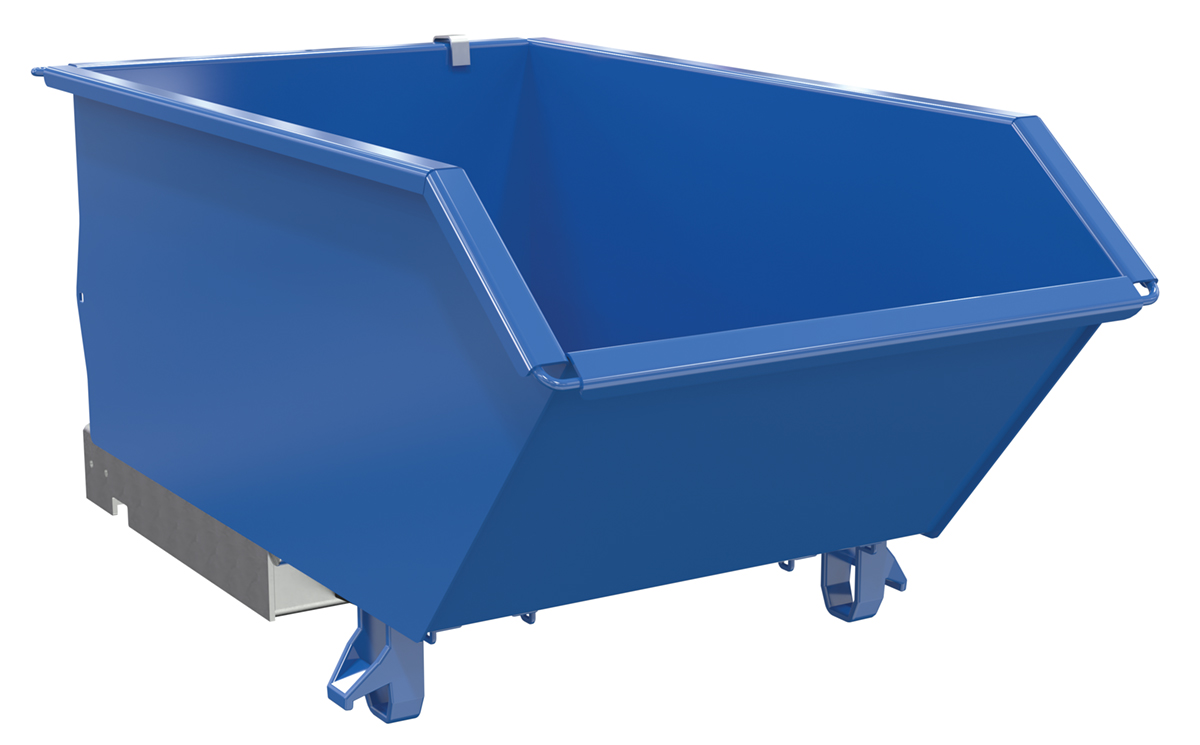

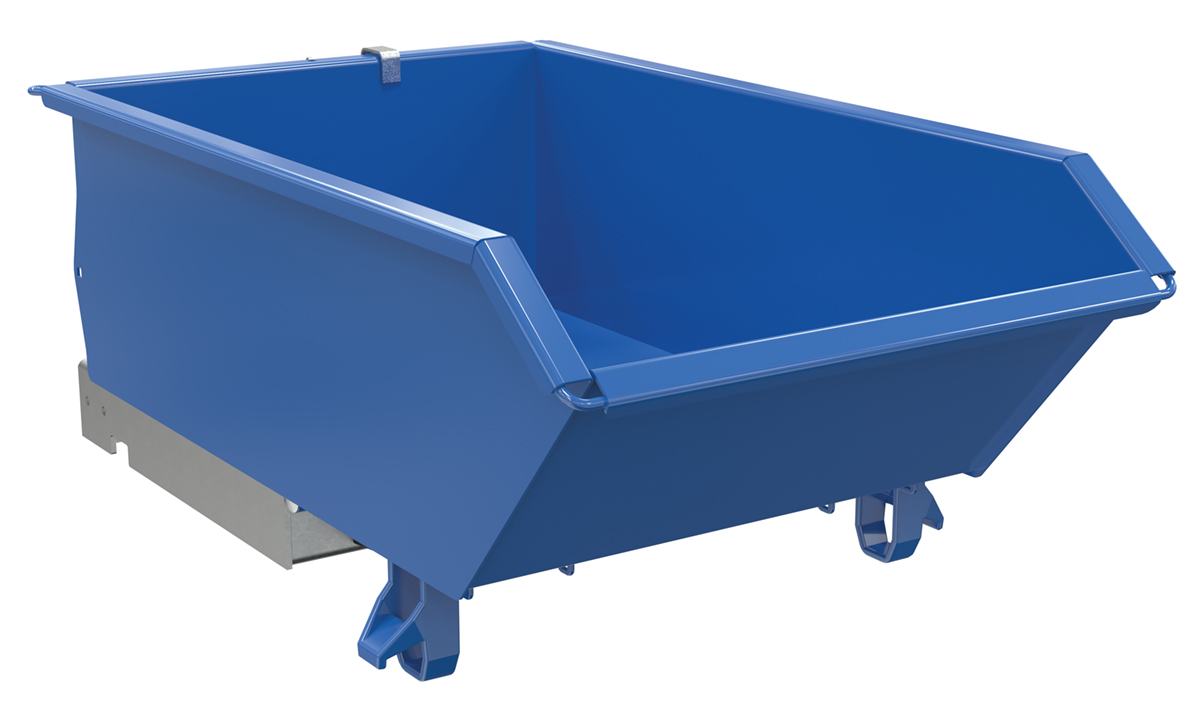

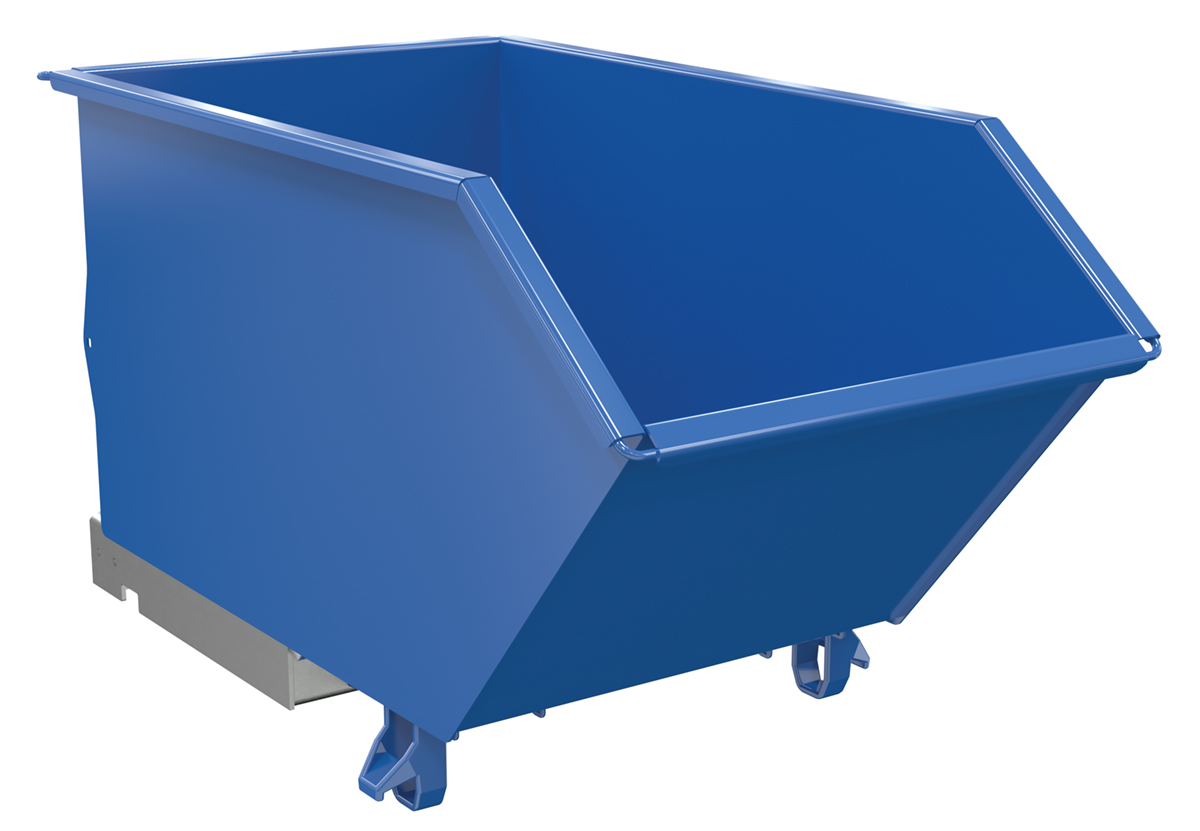

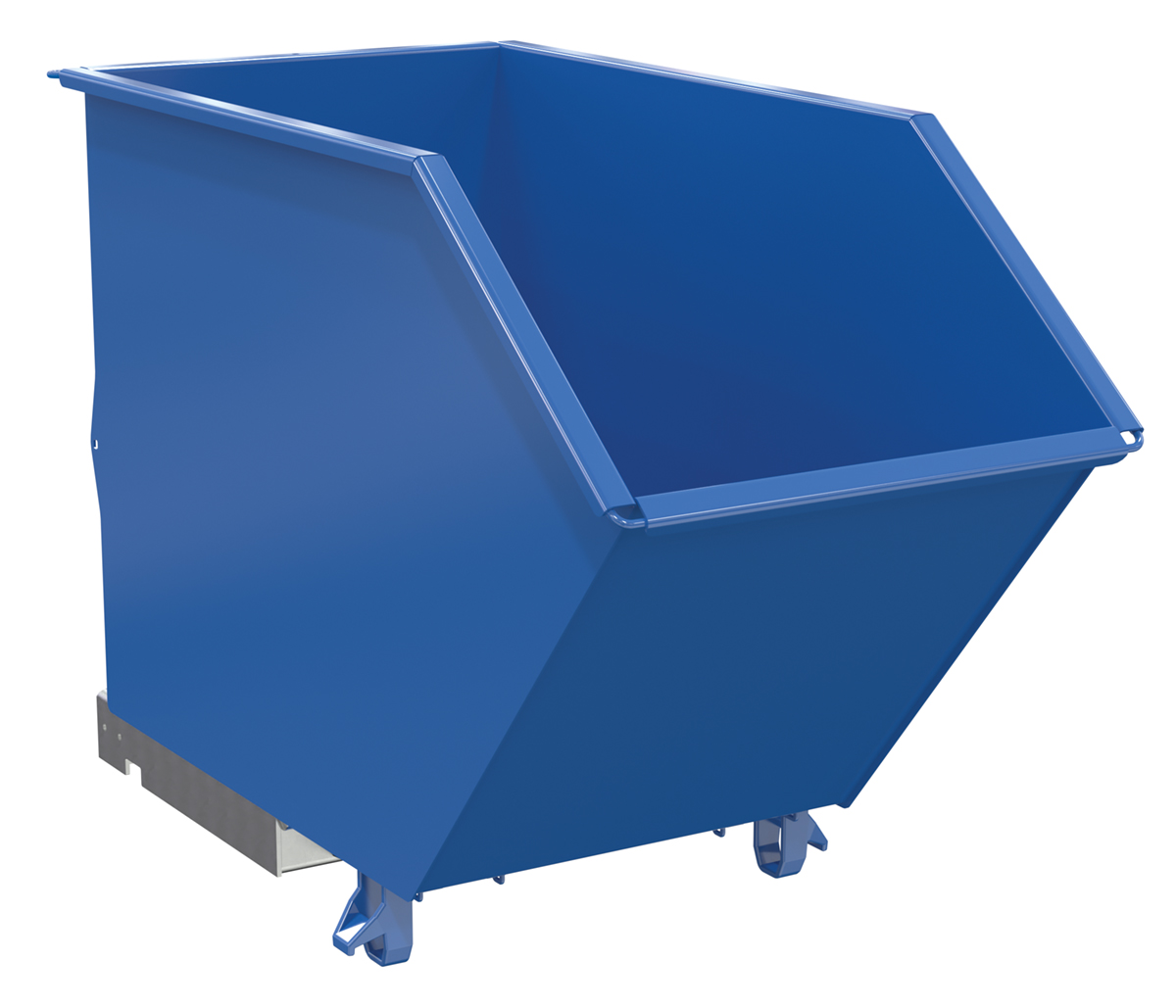

High Strength Steel Self-Dumping Hoppers for Heavy Scrap Handling
100,000 PSI Yield Strength and 110,000 PSI Tensile Strength vs 36,000 PSI Yield Strength on standard hoppers! High Strength Hopper ConstructionThe high strength steel design offers 100,000 PSI yield strength and 110,000 PSI tensile strength, providing greater impact resistance than standard hopper material. Rugged welded construction, a blue powder-coated finish, and galvanized base components support long service life in harsh work environments. Self-Dumping Forklift OperationH-style models feature a full 90 degree dump angle, low profile front edge, and cable-operated dumping from the forklift seat. The hopper returns to an upright and locked position when lowered to the ground. D-style models include bumper release dumping for automatic discharge when contacting the front of a dumpster, along with manual cable operation. Sizes, Capacities, and OptionsThis family includes low profile H-style hoppers from 1/4 cubic yard to 1 cubic yard with 6,000 lb. capacity, plus a 2 cubic yard D-style hopper with 4,000 lb. capacity. Available options include caster kits, hopper lids, factory lid installation, drain plugs with leak proof seams, and other application-specific accessories. Never stack hoppers more than 3 high. Must be attached to fork truck when dumping.
|
|||||||||||||||||||||||||||||||||||||
 |
|||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||
Options
|
|||||||||||||||||||||||||||||||||||||
Our Customer Service Associates Are Here To Assist You! |
|||||||||||||||||||||||||||||||||||||
High strength steel self-dumping hoppers are built for demanding scrap, waste, and bulk material handling applications where standard hoppers may be exposed to heavy impact. Designed for machine shops, fabrication facilities, foundries, glass handling, construction sites, and industrial waste collection areas, these hoppers provide added resistance to dents and punctures from dropped metal, stone, glass, and other abrasive materials.
