Chip & Waste Trucks

Print Friendly

Model Chart
PDF's
Options
Videos
Image Gallery
FEATURED Chip & Waste Trucks

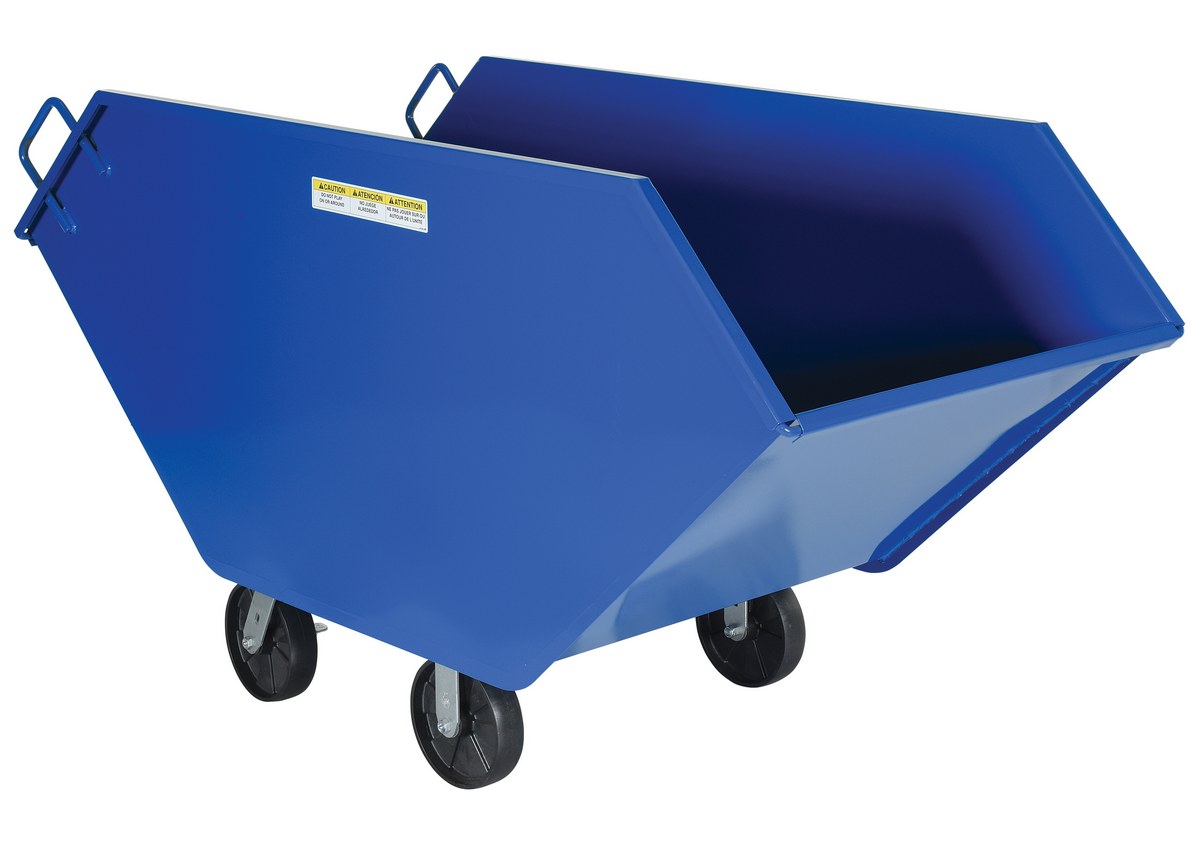

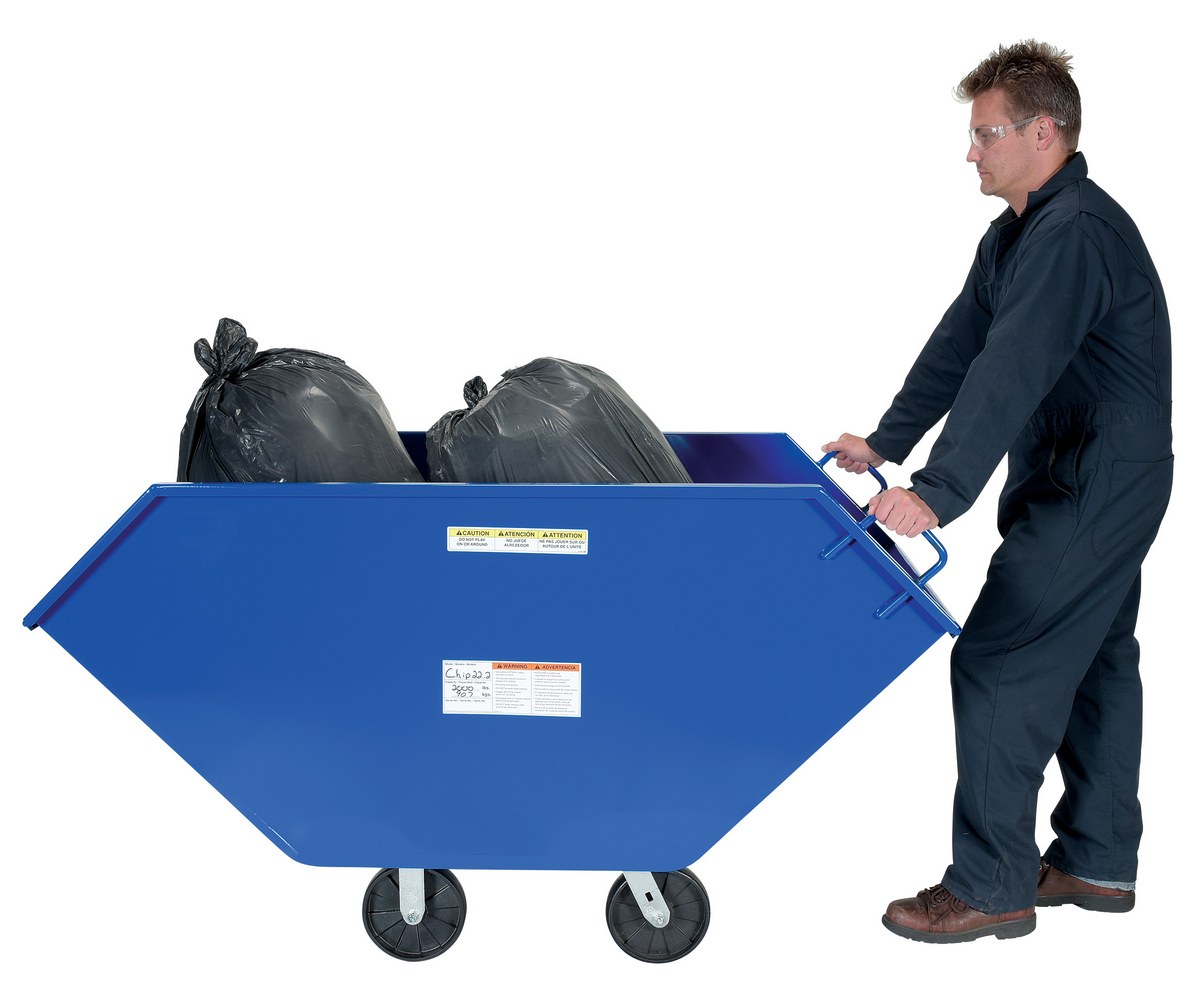

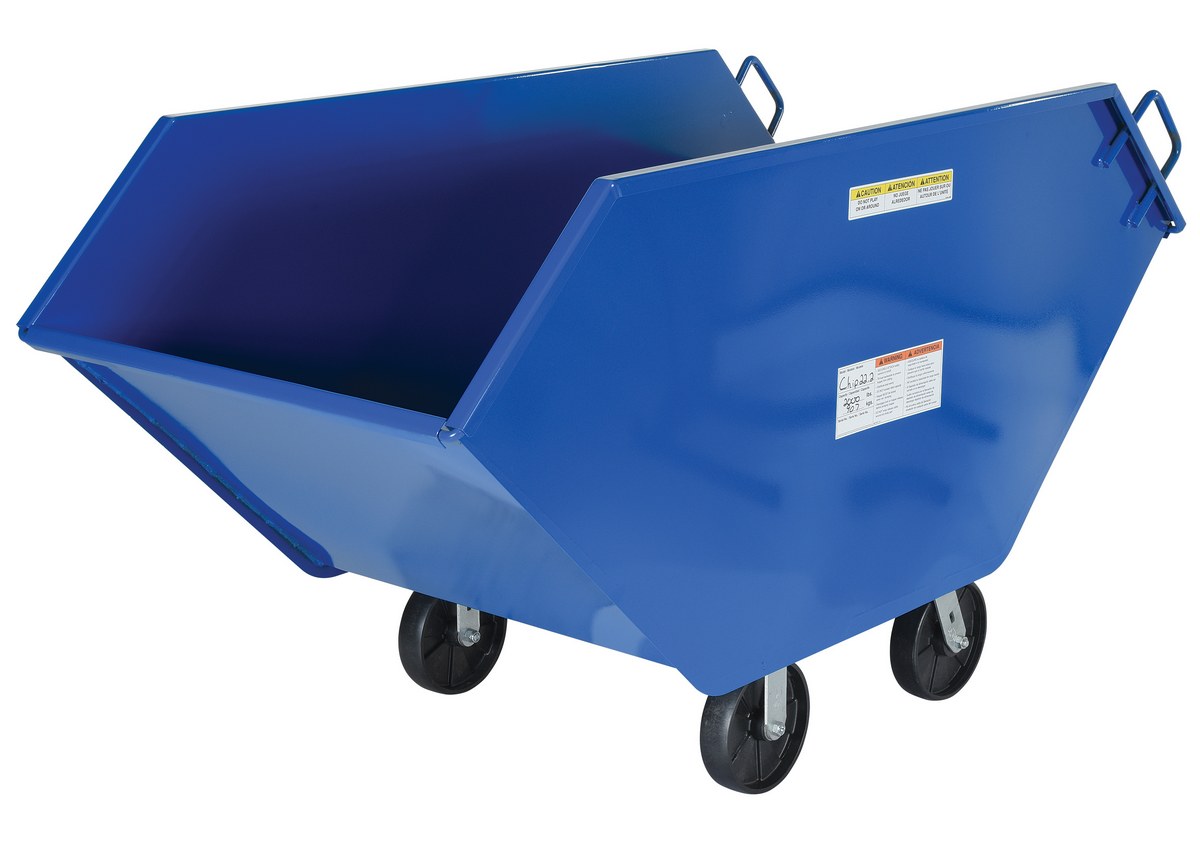

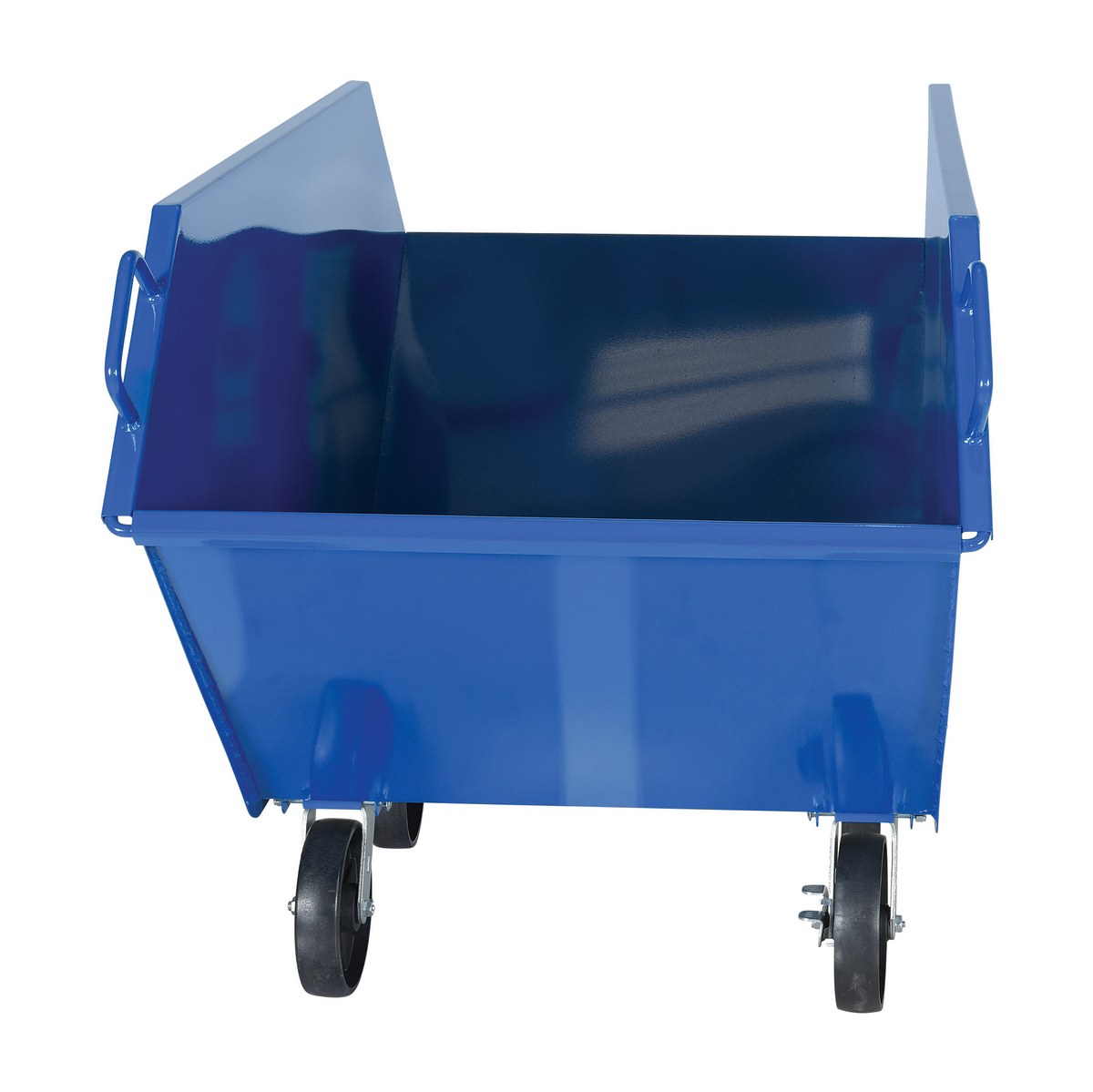

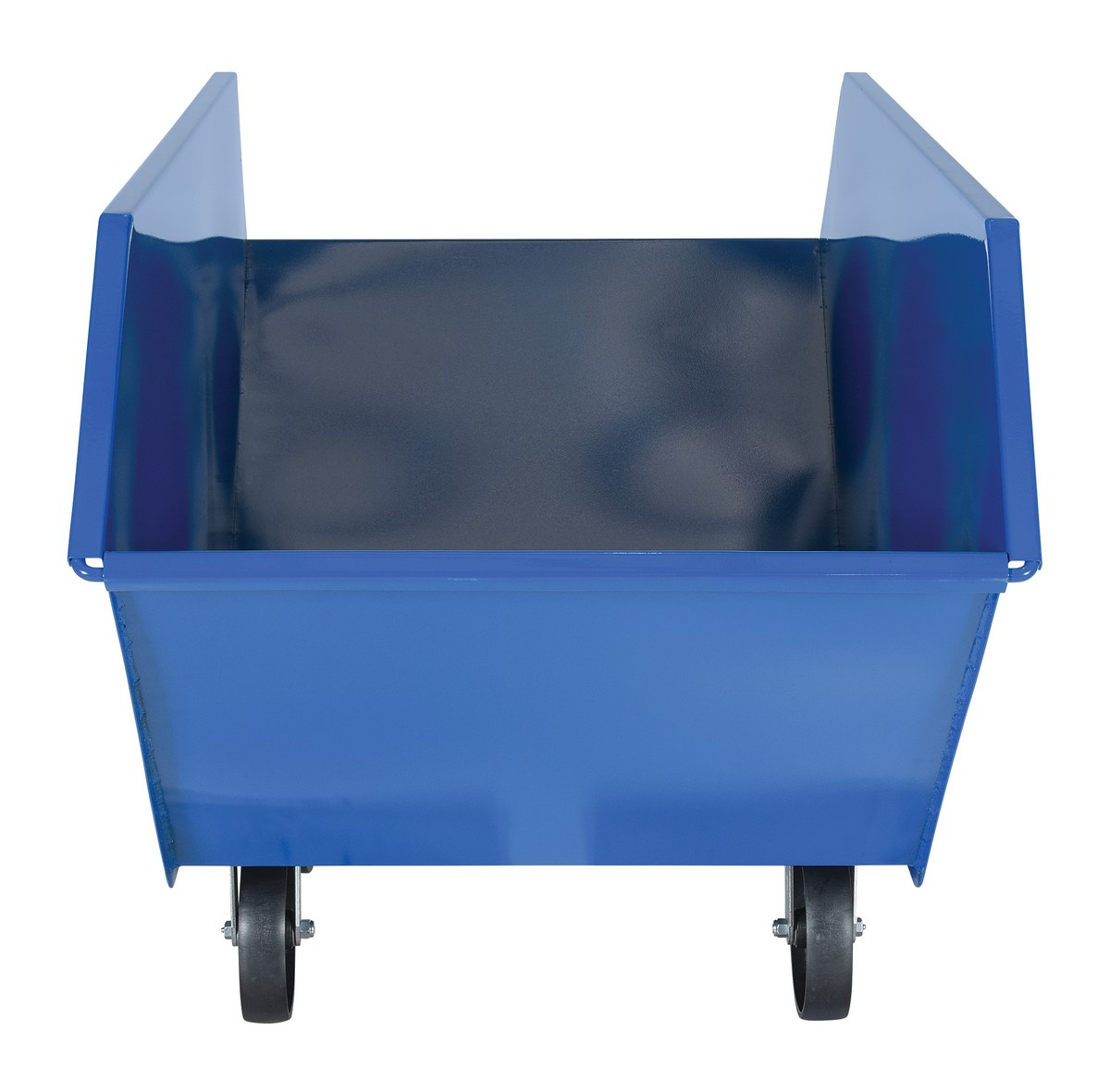

model: CHIP-22.2

CHIP-22.2_A.jpg CHIP-22.2_B.jpg CHIP-22.2_C.jpg CHIP-22.2_D.jpg CHIP-22.2_E.jpg More Images +
Chip & Waste Trucks
SERIES: CHIP   3Products 1Options
Powder Coat Custom Colors Custom Fabrication

Steel Chip and Waste Dump Trucks for Bulk Material Cleanup

Steel chip and waste dump trucks provide a rugged, mobile solution for collecting, transporting, and emptying chips, scrap, trash, and bulk materials. Designed for machine shops, manufacturing plants, fabrication areas, maintenance departments, warehouses, and cleanup operations, these trucks help keep work areas organized while reducing manual handling during material collection.

Balanced Dumping Design

The balanced hopper body allows the truck to maneuver and dump with less effort, making it practical for frequent cleanup and waste handling tasks. Tapered ends support easier loading and discharge, helping loose materials flow more efficiently during dumping.

Welded Steel Construction

All welded 14 gauge steel construction provides strength for daily industrial use. The tough blue baked-in powder-coated finish adds durability for demanding work environments where carts are exposed to chips, debris, impacts, and repeated movement between collection points.

Capacities, Volumes, and Drain Options

This family includes 17.5, 22.2, and 26.7 cubic foot models with capacities from 1,500 lb. to 2,000 lb. Large 8 inch by 2 inch casters support smooth rolling through work areas. Factory-installed 3/4 inch and 2 inch threaded drain plug options are available for applications involving wet materials, fluids, or washdown cleanup needs.

Chip & Waste Trucks

model: CHIP-22.2

Model # Description Attributes Net Wt.
(lbs)

All measurements are approximate. Slight variations, tolerances or changes may occur at any time. Weights shown are approximate shipping weights.

KEY: = Expand Model Details = Quickship item = Non-Returnable item = Approval Drawing Required = Non-Cancelable Item
= On Hold/Temporarily Unavailable = Approval Drawing = Testing Certificate = BABAA Compliant = 360 Image Warranty
= New Images Coming Soon! = Dimension Image = Works w/ Skid Only = Flatbed Truck Required

If you did not find an expected Model or SKU # in the table, try the Options Section Below
CHIP-17.5
CHIP-22.2
CHIP-26.7
For More Details of the Option Click the Red Model Button
Model Image Details Icons Wt.
Model Image Description Wt.
(lbs)
H-DPLG-75 Factory Installed Welded Steel 3/4 In. Threaded Drain Plug Left Corner 2
H-DPLG-2 Factory Installed Welded Steel 2 In. Threaded Drain Plug Left Corner 2
If you did not find an expected Model or SKU # in this table, try the Product Specifications Section Above
PDFs will open in a new window when clicked.

Owner's Manuals

0
No owner's manuals for this product family.

Survey Sheets

0
No survey sheets for this product family.

Approval Drawings

3
CHIP-17.5
Open Drawing
CHIP-22.2
Open Drawing
CHIP-26.7
Open Drawing

Testing Certificates

3
CHIP-17.5
Open Certificate
CHIP-22.2
Open Certificate
CHIP-26.7
Open Certificate

SDS Sheets

0
No SDS sheets for this product family.

Label Page PDFs

0
No label page PDFs for this product family.

Other PDFs

0
No other PDFs for this product family.







Visit Our Youtube Channel For All Available Videos For All Products
Reference#: CF-6539 Steel Hopper Lids
 Reference#: CF-6539 Steel Hopper Lids
Reference#: CF-6539 Steel Hopper Lids
Special Steel Hopper Lids for Hoppers
Reference#: CF-5670 Dewatering Hoppers
 Reference#: CF-5670 Dewatering Hoppers
Reference#: CF-5670 Dewatering Hoppers
Hopper with special holes drilled in the sides to allow liquid to drain out of the contained area.
For more Specialty Designs similar to these... Click Here

Related or Similar Products:

More From Hoppers





Chip & Waste Trucks




Steel Chip and Waste Dump Trucks for Bulk Material Cleanup

Steel chip and waste dump trucks provide a rugged, mobile solution for collecting, transporting, and emptying chips, scrap, trash, and bulk materials. Designed for machine shops, manufacturing plants, fabrication areas, maintenance departments, warehouses, and cleanup operations, these trucks help keep work areas organized while reducing manual handling during material collection.

Balanced Dumping Design

The balanced hopper body allows the truck to maneuver and dump with less effort, making it practical for frequent cleanup and waste handling tasks. Tapered ends support easier loading and discharge, helping loose materials flow more efficiently during dumping.

Welded Steel Construction

All welded 14 gauge steel construction provides strength for daily industrial use. The tough blue baked-in powder-coated finish adds durability for demanding work environments where carts are exposed to chips, debris, impacts, and repeated movement between collection points.

Capacities, Volumes, and Drain Options

This family includes 17.5, 22.2, and 26.7 cubic foot models with capacities from 1,500 lb. to 2,000 lb. Large 8 inch by 2 inch casters support smooth rolling through work areas. Factory-installed 3/4 inch and 2 inch threaded drain plug options are available for applications involving wet materials, fluids, or washdown cleanup needs.


Model # Description Attributes Net Wt.
(lbs)

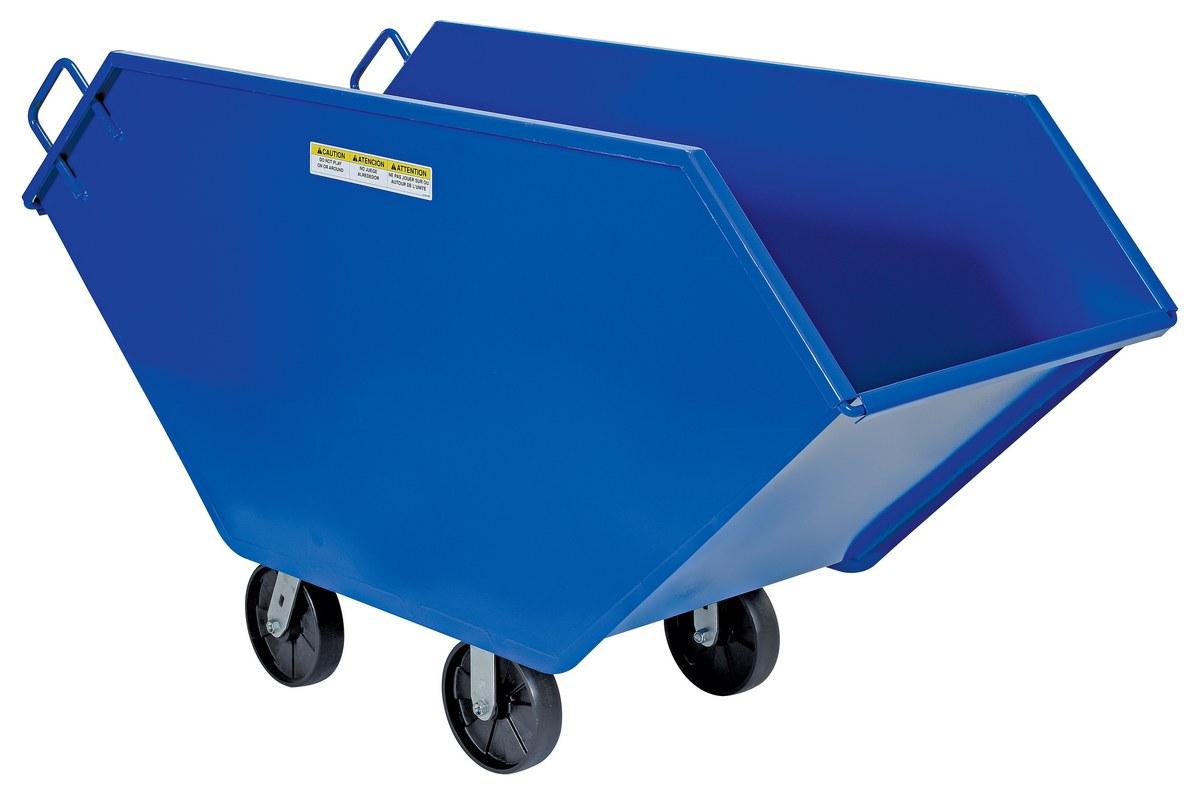

CHIP-17.5 CHIP-17.5Steel Chip and Waste Trucks 17.5 Cubic Feet 1500 Lb. Capacity BlueUniform Capacity (lb.): 1,500
Volume (cu. ft.): 17.5		176
CHIP-22.2 CHIP-22.2Steel Chip and Waste Trucks 22.2 Cubic Feet 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Volume (cu. ft.): 22.2		232

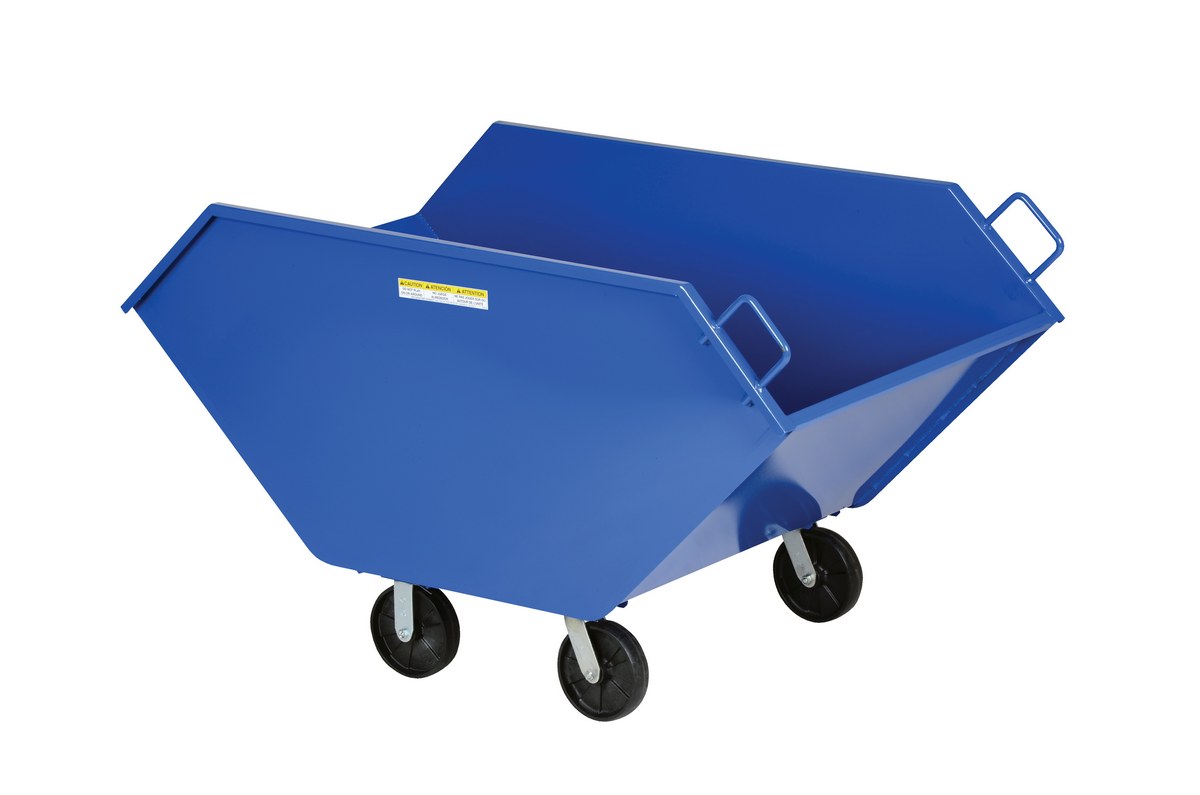

CHIP-26.7 CHIP-26.7Steel Chip and Waste Trucks 26.7 Cubic Feet 2000 Lb. Capacity BlueUniform Capacity (lb.): 2,000
Volume (cu. ft.): 26.7		267

Options


Model Image Description Wt.
(lbs)
H-DPLG-75 Factory Installed Welded Steel 3/4 In. Threaded Drain Plug Left Corner 2
H-DPLG-2 Factory Installed Welded Steel 2 In. Threaded Drain Plug Left Corner 2
